Micro Shaper question

Bob Cleek said:

Clamp the scraper as close to the scraping edge as possible in a jeweler's vise or similar hand-held tool.

Click to expand...

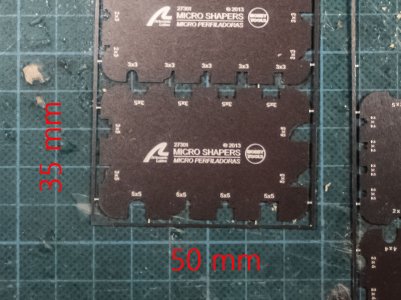

That seems to be a nice tool indeed @Bob Cleek . I found it's specifications online. The depth of the claws is only 15 mm (0.6"), while the shaper measures 35mm x 50mm (1,4" x 2"). Especially when using a slot on the short end of the shaper this makes it impossible to clamp it close to the scraping edge. Should I assume this is not a problem?

Hatteras said:

That seems to be a nice tool indeed @Bob Cleek . I found it's specifications online. The depth of the claws is only 15 mm (0.6"), while the shaper measures 35mm x 50mm (1,4" x 2"). Especially when using a slot on the short end of the shaper this makes it impossible to clamp it close to the scraping edge. Should I assume this is not a problem?

Click to expand...

Excellent point which I forgot to address. If there isn't sufficient depth to the jaws of the jewler's hand vise, you can simply sandwich the thin metal scraper between two small pieces of stiff sheet metal or stiff wood and clamp the sandwich in the vise, thereby extending the stiffening support on the scraper. I did run into this when I used my hand vise of the illustrated type and solved it quickly in this fashion. Single edge "craft" razor blades such as pictured in this thread above are easily held in any hand vise without any need for stiffening.

Alternately, there are several different designs of hand vises. One of these should avoid the depth issue without the need for a stiffening sandwich... or not.

I have my own holder i made out of a small block of wood, a piece of acrylic, two threaded inserts and a pair of hex head screws. Now if I can just figure out which drawer I put it in. I know it’s here somewhere…

Namabiiru said:

I have my own holder i made out of a small block of wood, a piece of acrylic, two threaded inserts and a pair of hex head screws. Now if I can just figure out which drawer I put it in. I know it’s here somewhere…

Click to expand...

Now you got me curious.

Hatteras said:

Now you got me curious.

Click to expand...

Found it!


This was specifically for the profile scrapers that came with Falconet’s Uvalen, but it also works with scrapers made from old exacto blades. A larger version would work with the AL scrapers
