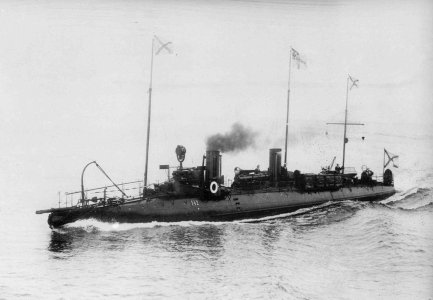

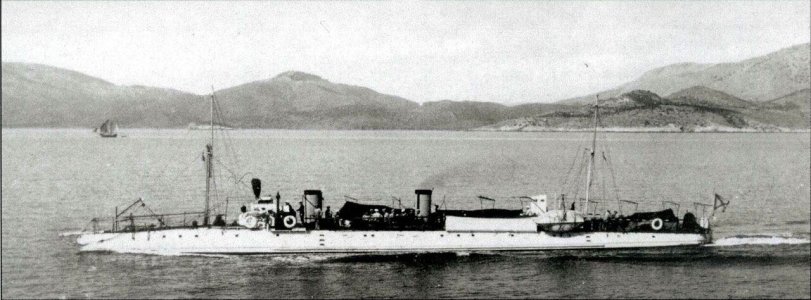

as my gun boat STERLYAD 1855 isn't being able to be build die to plan inconsistancies I decided to start to work on the reconstrution of the Пернов PERNOV 1891/92 an also in the yard Normand/LeHavre built torpedoboat a prototype for the Russian built 24 copies.

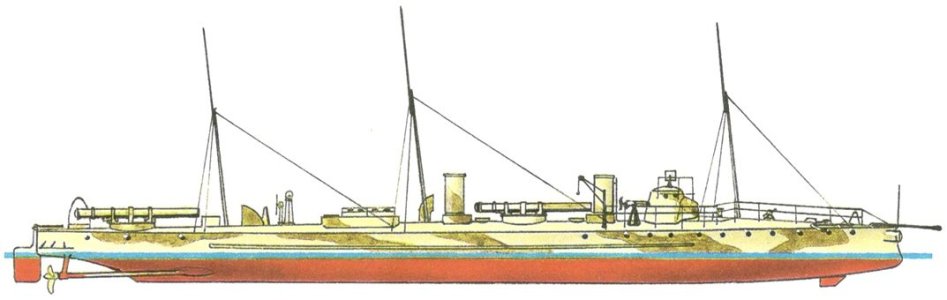

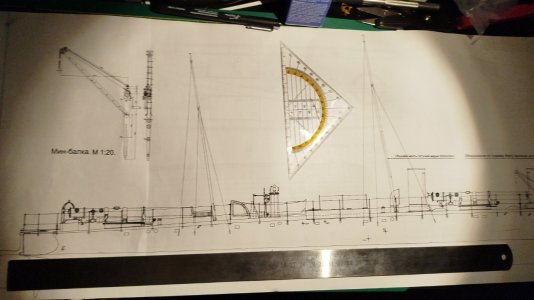

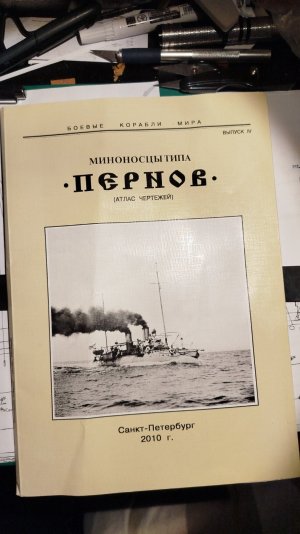

Here the Pictures of the Russian set of three sheets of plans:

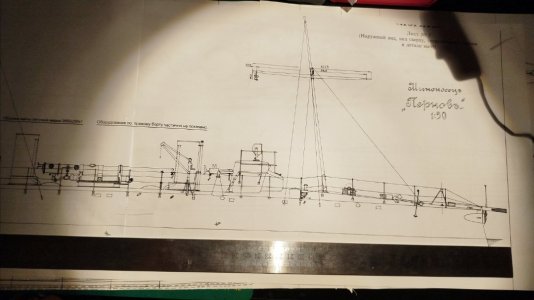

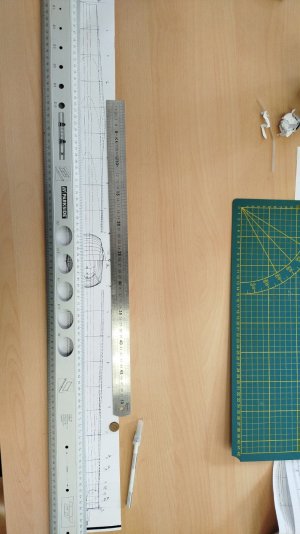

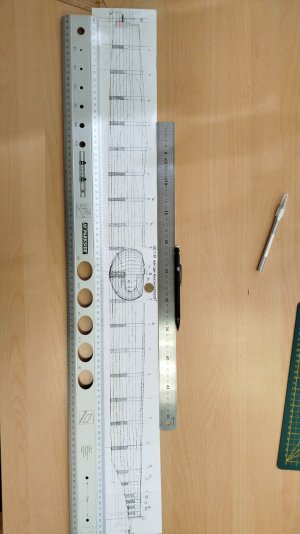

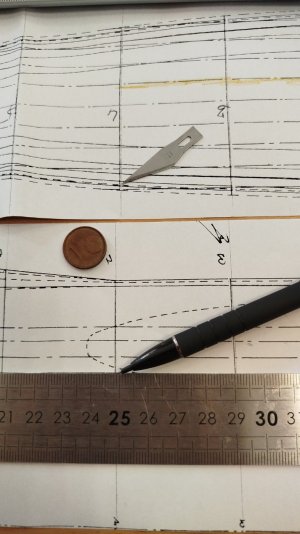

Here the sideview in 1:50 with a onehundertandfourty millimeters set square for the measurements (as I didn't find my 1¢-coins).

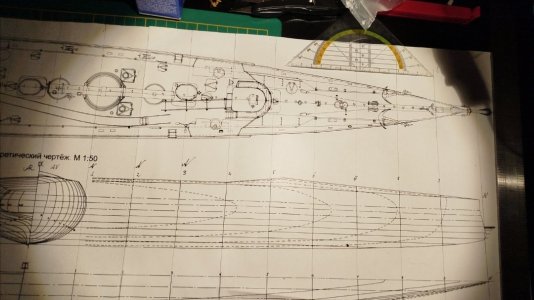

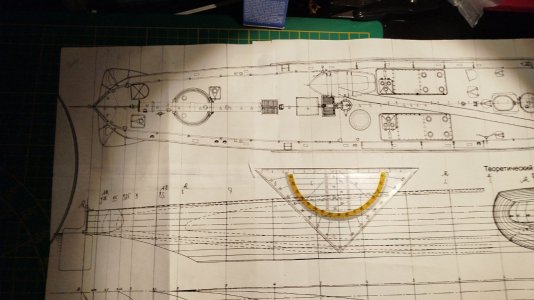

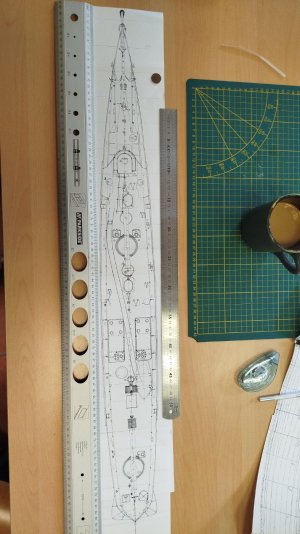

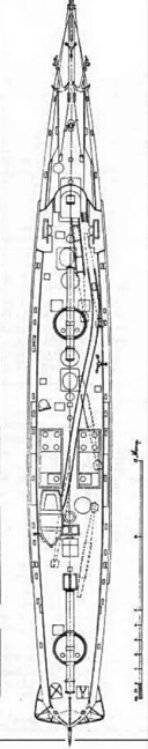

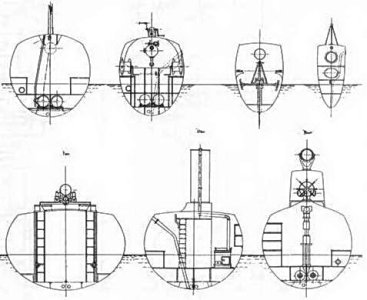

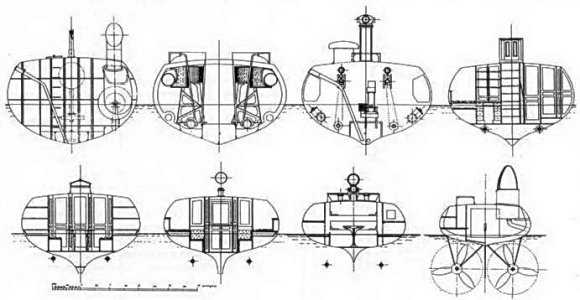

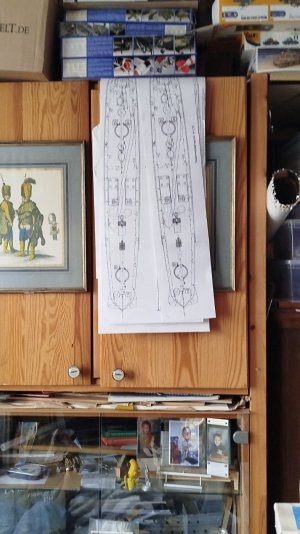

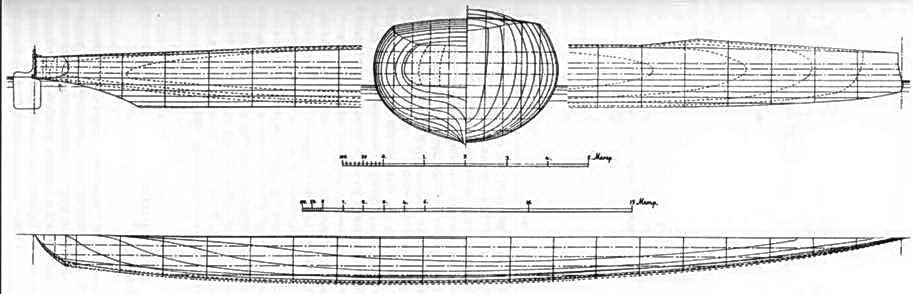

And the deck plus line drawings:

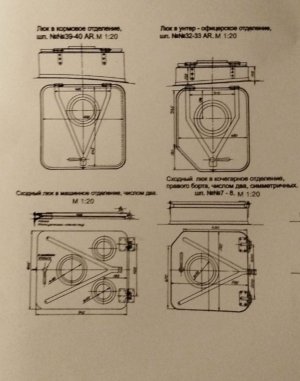

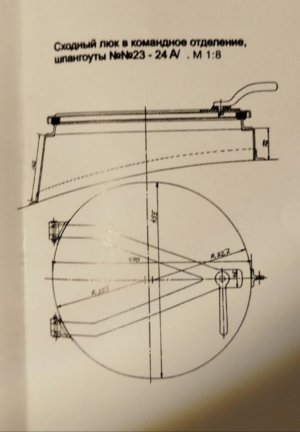

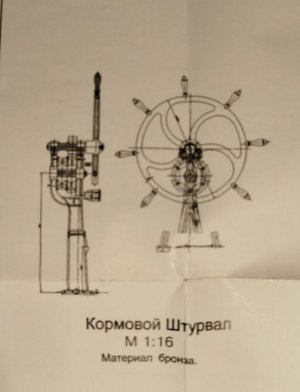

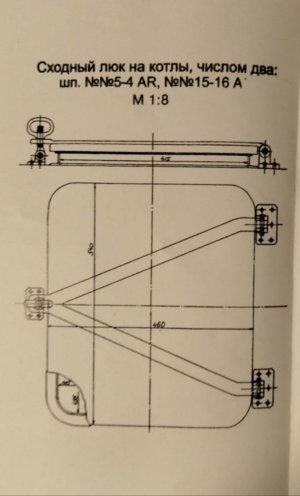

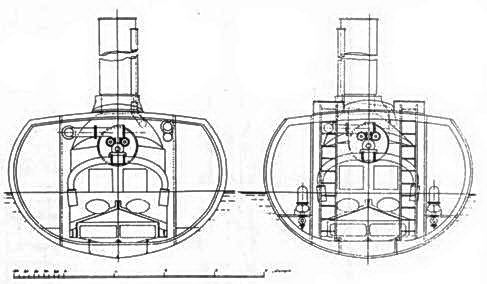

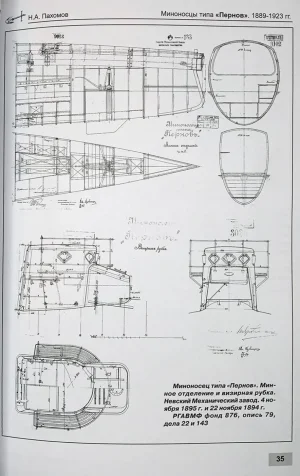

These detail plans are drawn with several imperial and metric gauges:
Here the length of the original...
as my gun boat STERLYAD 1855 isn't being able to be build die to plan inconsistancies I decided to start to work on the reconstrution of the Пернов PERNOV 1891/92 an also in the yard Normand/LeHavre built torpedoboat a prototype for the Russian built 24 copies.

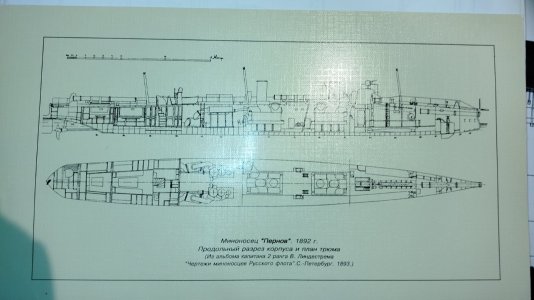

Here the Pictures of the Russian set of three sheets of plans:
Here the sideview in 1:50 with a onehundertandfourty millimeters set square for the measurements (as I didn't find my 1¢-coins).

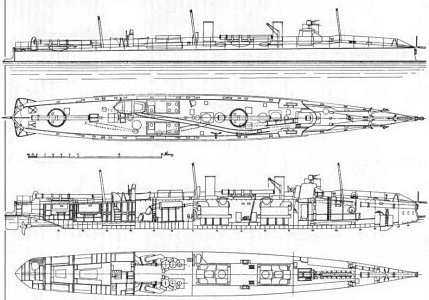

And the deck plus line drawings:
These detail plans are drawn with several imperial and metric gauges:
Here the length of the original...
| Length | 42 m (137 ft 10 in) |
|---|---|
| Beam | 4.5 m (14 ft 9 in) |
| Draught | 2.06 m (6 ft 9 in) |
