1:16 Scale Armed Pinnace

[Madagas2002]

I have recently bought a pinnace from an antique shop.

It have been clumsily made and is missing some pars.

I have no plans to work off and I would like to fashion a tiller.

An anyone tell me the dimension I need to work to, or a photo of that part of the plan would help.

Thank you in avance.



[Don Case]

Collection Results | Royal Museums Greenwich

Find objects, archive records and library items relating to your search, and use the filters to narrow down your results.

www.rmg.co.uk



[Uwek]

If you like please show us a photo(s) ....



[Madagas2002]

I'll try my best to send some.



[Madagas2002]

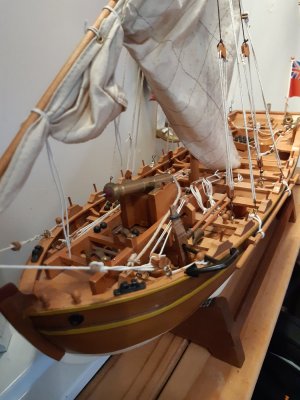

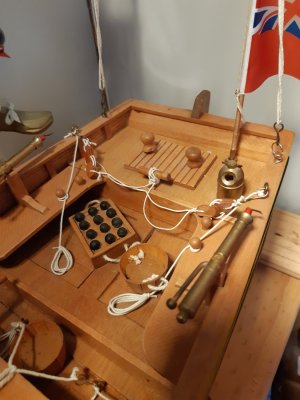

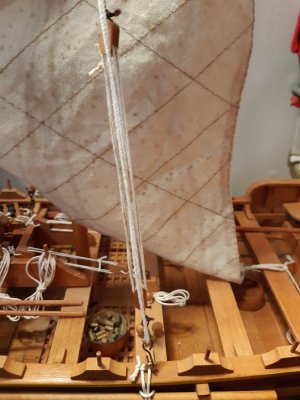

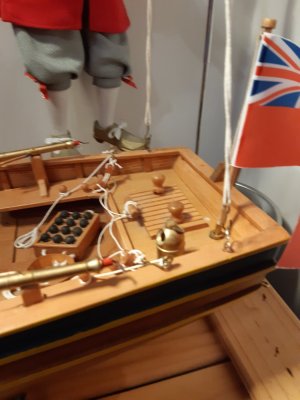

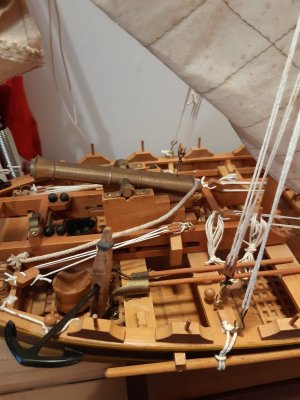

Here it is.



[Uwek]

A nice model - looking in some parts like the Panart / Mantua kit model #748 in the same 1:16 scale

Search results for query: panart armed



[Uwek]

Just recognized, that the blocks of the rigging are installed wrong - they should be 180° turned



[Madagas2002]

Hello,
I only paid £25 for it and so far have spent more than that on parts.
Thanks for the heads-up on the rigging, I have no plan or instructions so I'm working a bit in the dark.



[Uwek]

Just to show what I mean.

The ropes are running over a wheel in the block to be able to work

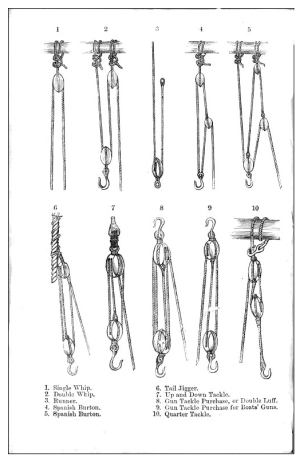

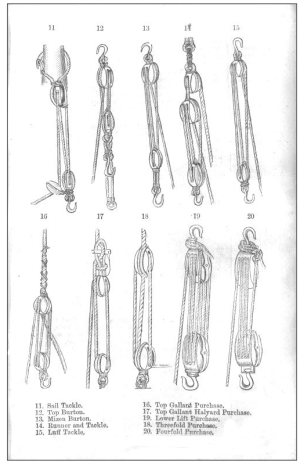

f.e. some tackles are shown here



the ropes on your model should be only thread through the correct hole (I marked with red arrow)



so no new material - you can correct this easily, if the ropes can be re-used



[Madagas2002]

Thank you. I'll have a go.
This morning I plan to cut out a new rudder and tiller. I'm working on photos with some measurements.
It may take a couple of attempts to get it right.



[Adry]

Hello
I found this video on YouTube that may interest you to improve your model:

Cheers



[Madagas2002]

Hi,
Many thanks, but the link will not open.



[Adry]

Hi,
Many thanks, but the link will not open.

Try again, I fix the problem, I mean. Sorry



[Madagas2002]

Brilliant. Thank you.



[WDO]

I have the full scale patterns if you would like a copy, let me know.



[Roger Pellett]

I suggest that you change the flag. The boat appears to be French not English. Ancre has published two monographs of armed French longboats and your model resembles these.

Roger



[Madagas2002]

I have the full scale patterns if you would like a copy, let me know.

Thank you in advance.



[WDO]

what would you need, I can scan any object you like?



[Madagas2002]

Just the rudder and tiller would be helpful as I'm best guessing the dimensions. Thank you



[WDO]

OK, I'll scan those today .
