637 Class (Stretch) 3D Printed Submarine in 1/72 Scale

Joined
Nov 29, 2023
Messages
32
Points
48

Just completed one of my favorite boats, the USS Parche (SSN-683) - the most decorated ship in the history of the US Navy. Being a highly modified "SSN Unique," the Parche underwent two conversions. This is the first converted version completed in the late 70's. The second version, finished in the early 90's was lengthened by 100' forward of the sail. It's on my build list after I finish a couple of higher priority builds.

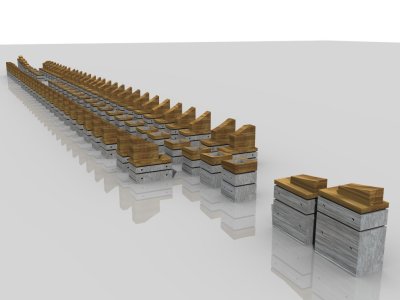

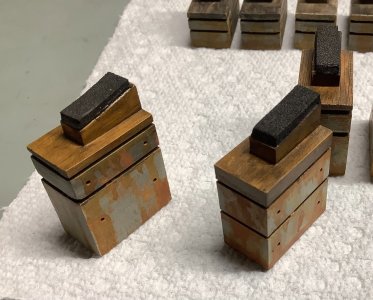

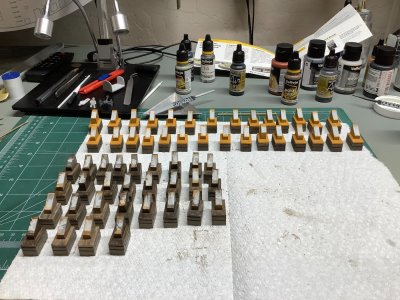

Designed, 3D printed, and assembled by me. There were about 90 keel blocks with each individually embossed on the bottom with position and location. Each has a pad bonded to the mating surface with the hull to prevent scratches. Parche will get another paint job, (weathering) before it's sent to its new home. Total length (including the base) is 60" x 8".

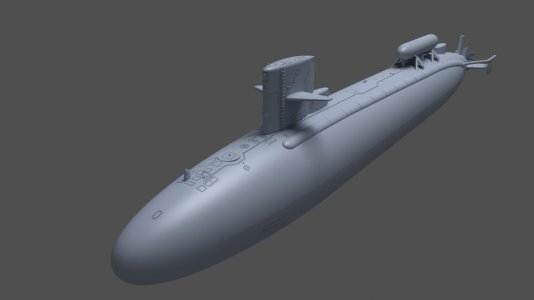

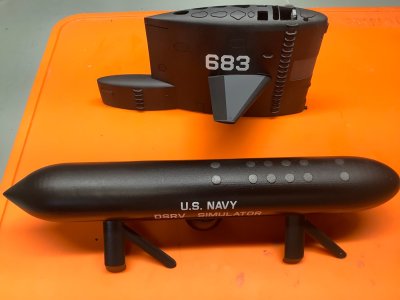

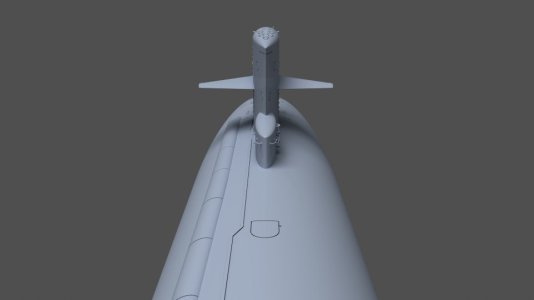

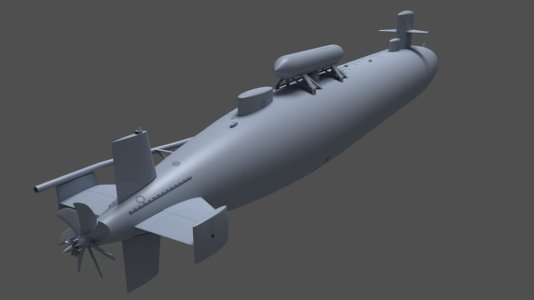

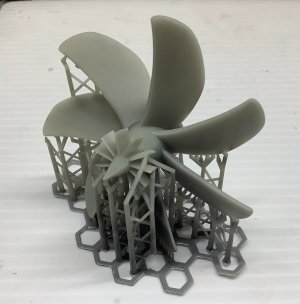

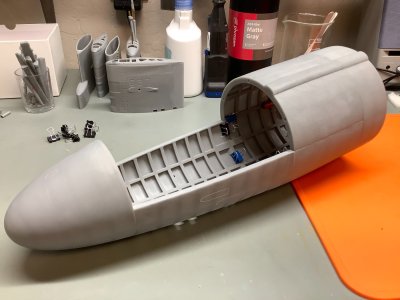

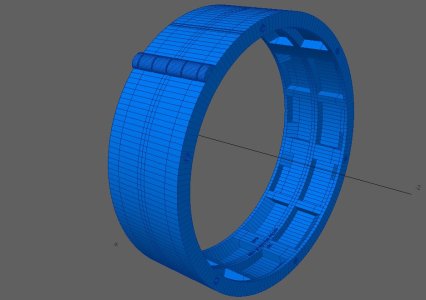

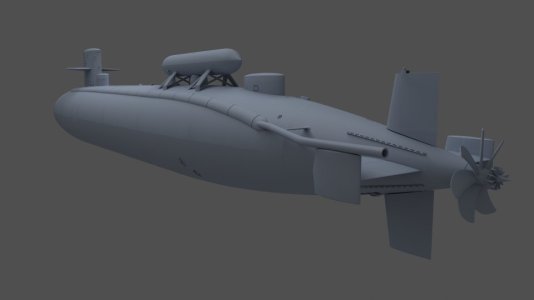

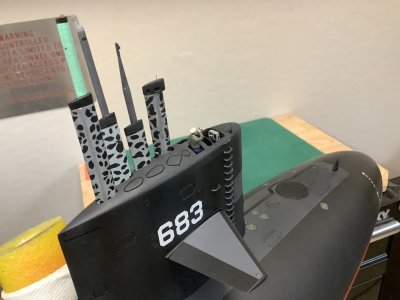

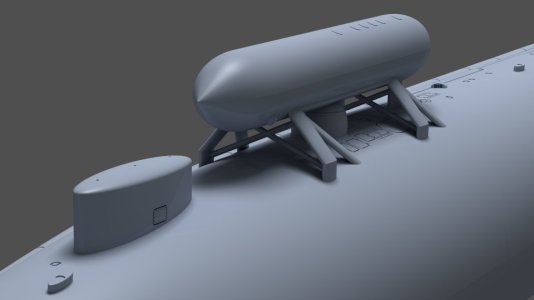

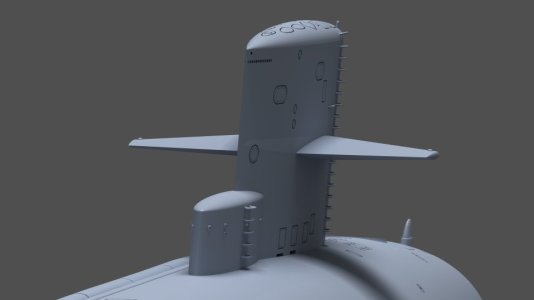

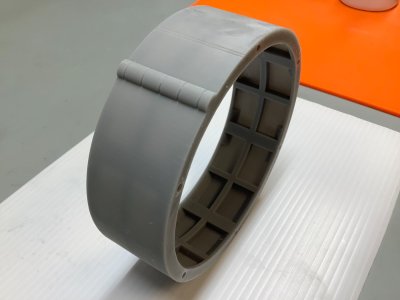

Aft Stbd Upper 01.jpgAft Stbd Upper 01-2.jpgAft Stbd Upper 01-3.jpgSail - Aft View.jpgAft Port 02.jpgFwd Port 02.jpg637 Stretch Plug Mesh.jpg637 Stretch Ops Plug (6).JPGTA Stowage Tube (3).JPGAwaiting Final Piece.JPG18-Bladed Screw.JPGSail (3).JPGStern View.JPGSail and DSRV Sim Decals Applied.JPGKeel Blocks 01.jpgIMG_E0840.JPGIMG_0762.JPGInbound.jpg

CC

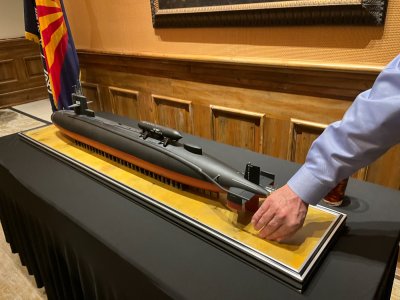

2025 Awards Banquet.jpg
