here is a simple and short creating a hull

starting with a high resolution scan of the original


I import the image into CAD and trace the station lines and the bodyplan the black lines are the original stations and the red lines were added.

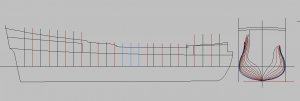

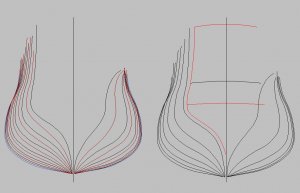

here you can see the original bodyplan on the right and the final bodyplan with added bulkheads in red

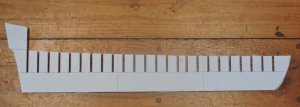

one by one the bodyplan lines are lined up with the profile and the deck is added and the slot for the profile.

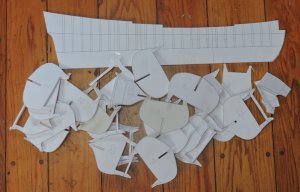

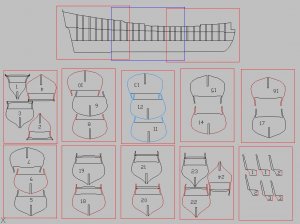

when all the bulkheads are drawn they are set up for a 8 1/2 x 11 printer. The profile is to long so it was printed in 3 parts and taped together.



Dave Stevens (Lumberyard)

Moderator
Staff member
Moderator
Sponsor
Joined
Dec 1, 2016
Messages
2,025
Points
528

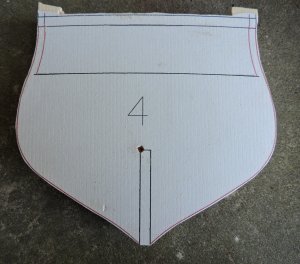

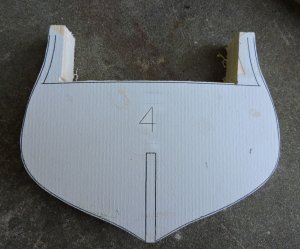

next step is a mockup to check the fit and make sure there are no bad bulkheads so foam board is used to cut out the parts

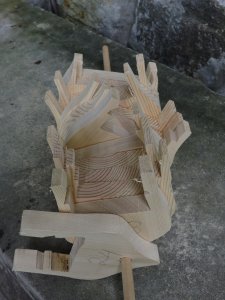

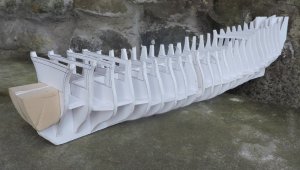

then a mockup hull is assembled the blocks at the bow were used only to square up the first bulkhead then bulkhead 2 was set square to one and so on.

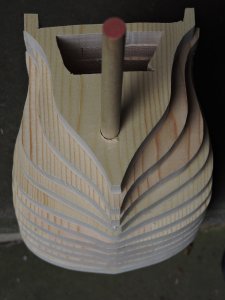

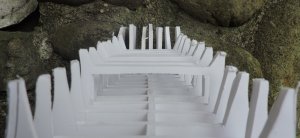

looking down the hull and under the poop deck



now that the foam mockup looks good the next step is to build the hull out of wood. In this case a light weight easy to work wood will be used such as Cedar. the bulkhead and filler blocks will all be made of the same wood. I found by using plywood bulkheads and foam board filler blocks the filler blocks are way to soft and they do not sand equal to the plywood bulkheads so you end up with the bulkheads sticking out beyond the foam blocks. By using all the same material you will get a nice smooth hull ready for planking.

looking over the hull this will make a nice model it has the classic shape narrow, sleek and a beautiful tumble home to the cap rail. Looking from the side the curve of the sheer from the stern to the bow is just so nice.

Last edited:

paulv1958

Well-Known Member
Joined
Jul 7, 2015
Messages
688
Points
298

Location
Melb, Australia
cool but how do you get from the trace to the bulkheads. does the software do this?

I understand the body plan fine and doing all the bulkheads all by hand from the left/right for the hull shape.
but is there an automated process in the cad?

I have the means to cut them out accurately ( CNC / LASER) and the software to read pdf 1/1 images / vectors but the get from plan to those minus a hand draw of each no.


Not a cad fellow.


Dave Stevens (Lumberyard)

Moderator
Staff member
Moderator
Sponsor
Joined
Dec 1, 2016
Messages
2,025
Points
528

cool but how do you get from the trace to the bulkheads. does the software do this?

the drawing starts as a raster file which is imported into cad and the tracing creates a vector file that can be machine read for CNC or laser cutting


I understand the body plan fine and doing all the bulkheads all by hand from the left/right for the hull shape.
but is there an automated process in the cad?


the black bodylines are already on the original drawing it is just a matter of setting them up as bulkheads. now for all the bulkheads between the originals the red ones are done in CAD so cad is creating the curved shape of the red bulkheads by using a spline and plotting the shape from points i setup.

I have the means to cut them out accurately ( CNC / LASER) and the software to read pdf 1/1 images / vectors but the get from plan to those minus a hand draw of each no.

here is a topic I did on the Royal George it goes into detail on how this is done. The computer created frames or bulkheads are pretty accurate. I still do a foam board mockup just to check the work. sometimes the CAD program will draw an odd spline line. I can refine the process in CAD to get a very accurate shape if the hull is going to have all the framing. a bulkhead hull leaves room for a final shaping so they do not have to be within thousandths of and inch.



Dave Stevens (Lumberyard)

Moderator
Staff member
Moderator
Sponsor
Joined
Dec 1, 2016
Messages
2,025
Points
528

back to this project now it is time to build a hull

Cleveland Ohio was a major steel town and all the supporting machine shops and pattern shops for making patterns for casting.

it might just be a local term but the wood for this hull is pattern pine and it was use to make the molds for castings. A pattern of the part to be cast was carved in wood then waxed. foundry sand was packed around the wood pattern and a mold created.

the reason this wood was used because for one reason you can get clean defect free boards


another reason is the grain is straight

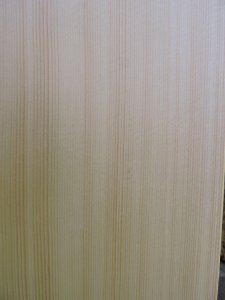

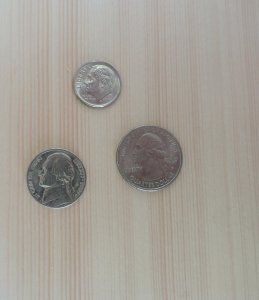

and finally the grain is tight and fine so it is really nice to carve and holds a nice edge, it can be finished very smooth


So when you read forum members telling people you have to use such and such wood and only that wood they have no idea what they are talking about. The wood depends on what you plan on doing with it. In this application pattern pine is a perfect choice.

The hull will be built then sent off to a remarkable 3D artist and she will be creating the carvings. The hull will also be planked.

if you think this will be your standard plank on bulkhead hull well hang on this will be a totally different approach.


donfarr

Blandford
Blandford Group Build
Joined
Jan 9, 2013
Messages
2,511
Points
528

ANOTHE ONE DAVE KEEP THEM COMING, DO NOT STOP, WILL YOU BE DOING A STERN SECTION ANY TIME SOON, BOY YOU ARE SOMETHING. Don


Uwek

Admin
Staff member
Administrative
Moderator
Blandford Group Build
Joined
Dec 25, 2017
Messages
11,259
Points
928

Location
Vienna, Austria
Dave,

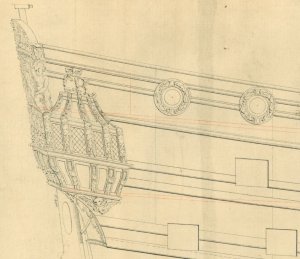

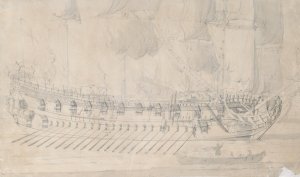

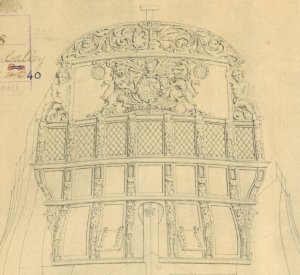

do you have more information about the ship. The NMM drawing looks really interesting for me.
Take a look at this post I wrote in the Naval History Topic


and here:



Dave Stevens (Lumberyard)

Moderator
Staff member
Moderator
Sponsor
Joined
Dec 1, 2016
Messages
2,025
Points
528

The standard method for building a plank on bulkhead hull is to cut the bulkheads out of plywood, this is how kits are designed. The first thing after all the bulkheads are placed into slots in the profile piece filler blocks are used to fill the space between the bulkheads. Reason for the filler material is to shape a smooth hull with a full surface. Planking a bulkhead hull without filler material between the bulkheads creates flat areas in the planking and also the bulkheads are thin not giving enough surface area for a proper shape of the hull.

i am thinking outside the "standard" method for hull construction. If you need to fill the spaces between the bulkheads why not create bulkheads that are wide enough to fill the space. so what i did was measure the bulkheads from center to center which is 3/4 of an inch. Taking pine boards i surfaced them to exactly 3/4 and cut out the bulkheads.


not using a center profile piece I needed another way to liune up the bulkheads to one another. The idea that poped into my head was to string the bulkheads on a dowel like a string of pearls. I needed an exact location on every bulkhead

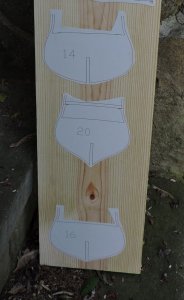

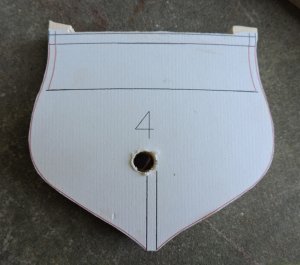

i had the slot drawn on all the bulkheads so i punched a guild hole right in the upper corner of the slot, using a diamond tip i lined up the points to the lines


now it was just a matter of drilling a hole the size of the dowel in all the bulkheads




Dave Stevens (Lumberyard)

Moderator
Staff member
Moderator
Sponsor
Joined
Dec 1, 2016
Messages
2,025
Points
528

stringing the bulkheads on a round dowel did cause the bulkheads to spin 360 degrees. if I could of drilled a square hole that would have worked better. OR if I was using a laser I could have cut a square hole and milled out a square stick, but this did work out.




Dave Stevens (Lumberyard)

Moderator
Staff member
Moderator
Sponsor
Joined
Dec 1, 2016
Messages
2,025
Points
528

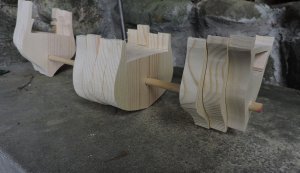

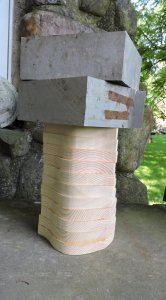

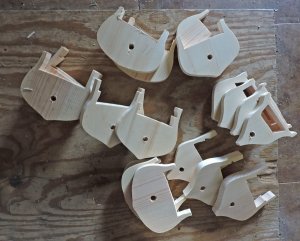

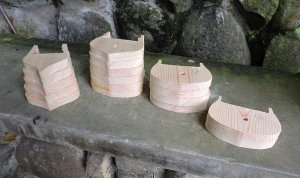

I ended up with sections of the hull

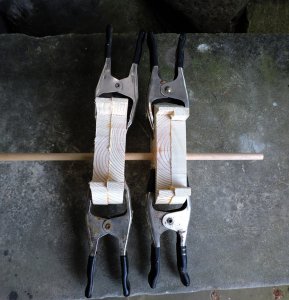

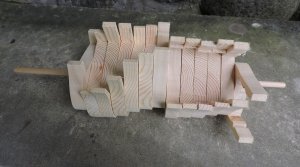

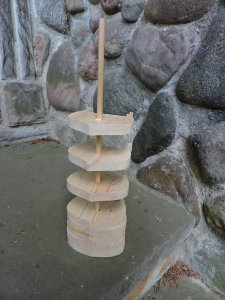

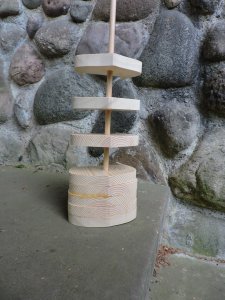

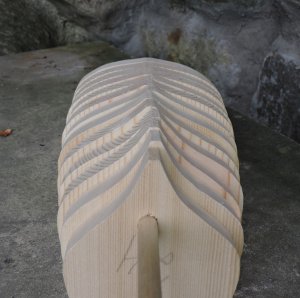

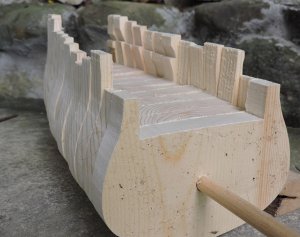

these sections were then strung on to the dowel. you may wonder why not just place each bulkhead on the work surface rather than usung the dowel? Well notice the bulkheads rise at the stern and bow off the surface so you need an X,Y location which is the dowel. i know this because i made this mistake once before.



Dave Stevens (Lumberyard)

Moderator
Staff member
Moderator
Sponsor
Joined
Dec 1, 2016
Messages
2,025
Points
528

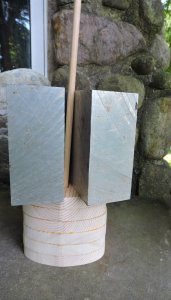

what about those bulkheads spinning around the dowel?

that was no big deal I used the deck to line up each bulkhead


also sighting down the hull I made sure each side had the same space between one bulkhead to the other. you could measure the distance between the bulkheads on either side but just sighting it worked out fine. The hull is going to be sanded and given a final shape. If there is any misalinement a bit of wood filler will take care of it.




Dave Stevens (Lumberyard)

Moderator
Staff member
Moderator
Sponsor
Joined
Dec 1, 2016
Messages
2,025
Points
528

and that is how to create a core hull for planking in one operation without having to cut a center profile piece, bulkheads and add filler material.
when I get to the bow and stern I will post how I do that.


schifferlbauer

Well-Known Member
Joined
Apr 10, 2019
Messages
65
Points
103

Hi Dave

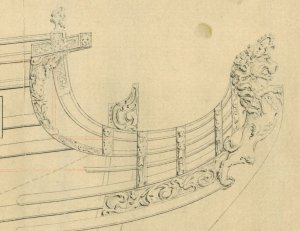

Can you tell me from which time the Plan is. 1676 I could see on the plan, but It looks like a drawing of the 18th. Century.

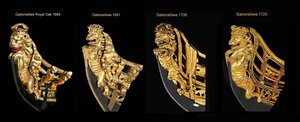

Especially the lion. Such a lion I know after 1702, because the lions before had no tailLöwen 17. 18. jht.jpg

regards
Willi (schifferlbauer)


schifferlbauer

Well-Known Member
Joined
Apr 10, 2019
Messages
65
Points
103

Hi Jack
I know the date 1676 from the Plan, but are you sure that the plan is original from this time?

Willi (schifferlbauer)


Uwek

Admin
Staff member
Administrative
Moderator
Blandford Group Build
Joined
Dec 25, 2017
Messages
11,259
Points
928

Location
Vienna, Austria
I tried to find out, when the drawing of the Charles Galley, Dave is using, drawn - could not find something, but maybe Dave has closer info finding on the drawing.
As I understood, no drawings of the Adventure Galley of William Kidd is existing, so Dave is using a contemporary ship of the same type, size and period.

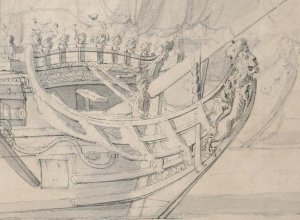

I know a painting from van de Velde the Elder (1611-1693), which was definitely painted in the questioned period.....and the Lion has no tail
