5 October 1778 – Launch of French Annibal, a 74-gun Annibal-class ship of the line, launched

The Annibal was a 74-gun ship of the line of the French Navy, lead ship of her class. She was designed by Jacques-Noël Sané, and was one of the earliest of his works. She was built at Brest in 1778.

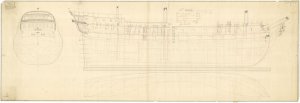

Scale: 1:48. Plan showing the body plan with sternboard decoration and the name on the counter in a cartouche, the sheer lines with inboard detail and figurehead, and longitudinal half-breadth for Achille (captured 1794), a captured French Third Rate. The plan illustrates the ship as she was taken off prior to being broken up at Plymouth Dockyard in February 1796. Signed by John Marshall [Master Shipwright, Plymouth Dockyard, 1795-1801].
Read more at http://collections.rmg.co.uk/collections/objects/80594.html#3o0Az3SvE5ei5LTd.99

large.jpglarge (1).jpg

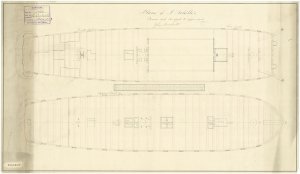

Scale: 1:48. Plan showing the lower deck, orlop deck, and fore and aft platforms for Achille (captured 1794), a captured French Third Rate. The plan illustrates the ship as she was taken off prior to being broken up at Plymouth Dockyard in February 1796. Signed by John Marshall [Master Shipwright, Plymouth Dockyard, 1795-1801].
Read more at http://collections.rmg.co.uk/collections/objects/80595.html#mvgO9Bl56qUZdXi4.99

large (2).jpg

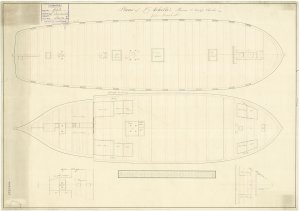

Scale: 1:48. Plan showing the quarterdeck and forecastle, and upper deck for Achille (captured 1794), a captured French Third Rate. The plan illustrates the ship as she was taken off prior to being broken up at Plymouth Dockyard in February 1796. Signed by John Marshall [Master Shipwright, Plymouth Dockyard, 1795-1801].
Read more at http://collections.rmg.co.uk/collections/objects/80596.html#lj5HxWpWBG4YKyhl.99

She sailed out to the West Indies and took part in the Battle of Grenada under Lamotte-Picquet.

She was then sent out to the East Indies with Suffren and fought at the battles of Porto Praya, Sadras, Providien, Negapatam and Trincomalee in 1782. The following year she fought at the battle of Cuddalore.

She was renamed Achille in 1786 to prevent confusion with the Petit Annibal.

She served with the French Navy until 1794, when she was captured by the Royal Navy during the battle of the Glorious First of June. She was commissioned into the Royal Navy as the third-rate HMS Achille, retaining the French spelling of the name. However, she was in a poor state and was broken up at Plymouth in 1796, just two years after her capture.


The Annibal class was a class of two 74-gun ships of the French Navy. The type was one of the first achievements of Jacques-Noël Sané. His first design - on 24 November 1777 - was for a ship of 166 pieds (176 feet 11 inches) length, but he produced an amended design on 10 January 1779 for the Annibal, and a further amended design on 3 March 1780 for her near-sister Northumberland. Both ships were captured during the Third Battle of Ushant ("Bataille du 13 prairial an II" or "Glorious First of June") on 1 June 1794 off Ushant, and were added to but never commissioned into the British Navy.
Builder: Brest Dockyard
Ordered: 20 February 1778
Launched: 5 October 1778
Fate: Captured by the Royal Navy on 1 June 1794 and renamed HMS Achille, but broken up at Plymouth in February 1796.
Builder: Brest Dockyard
Launched: 3 May 1780
Fate: Captured by the Royal Navy on 1 June 1794 and named HMS Northumberland, but broken up at Plymouth in November 1795.

Northumberland was a 74-gun Annibal class ship of the line of the French Navy.
She took part in the Battle of the Chesapeake (5 September 1781), a crucial naval engagement of the American Revolutionary War (Captain Bon-Chrétien, Marquis de Bricqueville), as well as the Battle of the Saintesseven months later, under Captain Saint Cézaire, who was killed in the action. In 1782, she captured the 14-gun sloop HMS Allegiance.
Northumberland was captured during the Glorious First of June in 1794, where she was captained by François-Pierre Étienne. She was recommissioned in the Royal Navyas HMS Northumberland, and was broken up the next year in December 1795


https://en.wikipedia.org/wiki/French_ship_Annibal_(1779)
https://en.wikipedia.org/wiki/Annibal-class_ship_of_the_line
