Rich (PT-2)The Artesania Latina kit provides a jig to construct the two small dory boats that accompany the Bluenose II. The process shares similarities with the fairing and planking process of the Bluenose itself, just on a much smaller and far more finicky scale. The jig allows you to assemble the dory in upside-down fashion on a series of tempoarary bulkheads that are provided to hold the dory in place but do not actually form part of the boat.

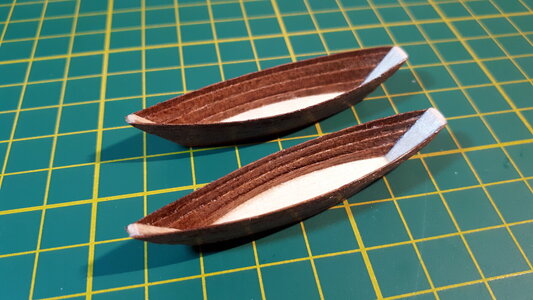

The planks are made up of the same sapele wood that formed the second planking layer of the ship, and overlay each other in a stepping manner to complete the hull. Fairing the stem- and sternpost went a long way to ensuring that the planks lay flush and comfortable at each point of contact.
A series of stanchions gave the dory a certain sense of shape and form.

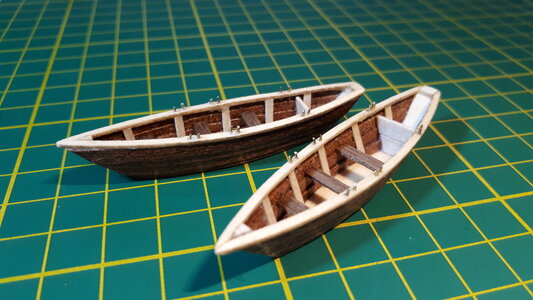

And the sprint to the end included the laying of walnut seats, a single bulkhead positioned near the stern, gunwale covers along the sides, and the most challenging of all, the installation of twenty-four 2mm brass-wire cuttings to make up the oarlocks.
The dory boats will rest on a set of cradles when they are eventually hoisted and attached to the ship.
The planks are made up of the same sapele wood that formed the second planking layer of the ship, and overlay each other in a stepping manner to complete the hull. Fairing the stem- and sternpost went a long way to ensuring that the planks lay flush and comfortable at each point of contact.
A series of stanchions gave the dory a certain sense of shape and form.
And the sprint to the end included the laying of walnut seats, a single bulkhead positioned near the stern, gunwale covers along the sides, and the most challenging of all, the installation of twenty-four 2mm brass-wire cuttings to make up the oarlocks.
The dory boats will rest on a set of cradles when they are eventually hoisted and attached to the ship.
Nicely done. They should nest very tightly. RIch

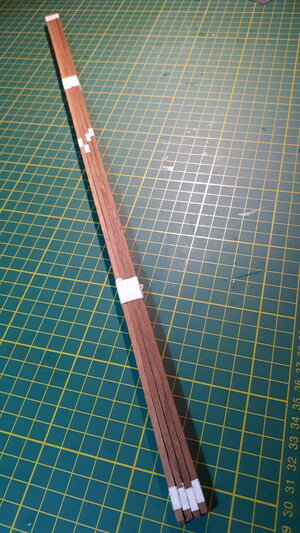

The pack of sapele planks I ordered for the ship stanchions finally arrived, much to my delight. The two strips supplied by AL were insufficient for the number of stanchions required and I consider myself fortunate to have measured them all before attaching them to the deck. Particularly as the new strips are slightly thicker than the ones supplied by AL.

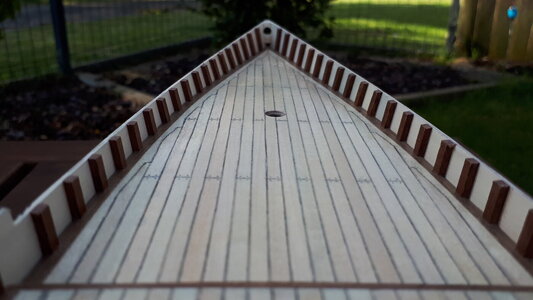

Installing the stanchions on the deck was a breeze after all the tricky joinery of the deck furniture. The bow deck stanchions rose to the full height of the bulwarks, whereas those on the stern deck were cut to a shorter, predetermined length.
Time will tell whether I got the stern deck stanchion lengths correct, as there appear to be a lot of things that will be placed on top of them. But at least now I can crack on with the scuppers
Installing the stanchions on the deck was a breeze after all the tricky joinery of the deck furniture. The bow deck stanchions rose to the full height of the bulwarks, whereas those on the stern deck were cut to a shorter, predetermined length.
Time will tell whether I got the stern deck stanchion lengths correct, as there appear to be a lot of things that will be placed on top of them. But at least now I can crack on with the scuppers
Last edited:
Looking very good!The pack of sapele planks I ordered for the ship stanchions finally arrived, much to my delight. The two strips supplied by AL were insufficient for the number of stanchions required and I consider myself fortunate to have measured them all before attaching them to the deck. Particularly as the new strips are slightly thicker than the ones supplied by AL.
View attachment 262366
Installing the stanchions on the deck was a breeze after all the tricky joinery of the deck furniture. The bow deck stanchions rose to the full height of the bulwarks, whereas those on the stern deck were cut to a shorter, predetermined length.
View attachment 262367
Time will tell whether I got the stern deck stanchion lengths correct, as there appear to be a lot of things that will be placed on top of them. But at least now I can crack on with the scuppers
View attachment 262368

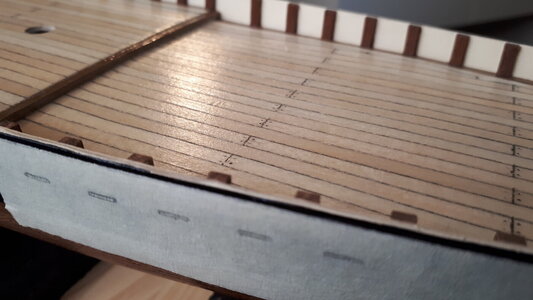

Installing the scuppers was another nerve-racking experience that called for precision and patience, creating thirty-eight new holes in the hull that I had been so careful to protect from a mere scratch. I started by applying masking tape to the affected areas and carefully marked the depth of each scupper from the top edge of the bulwarks.

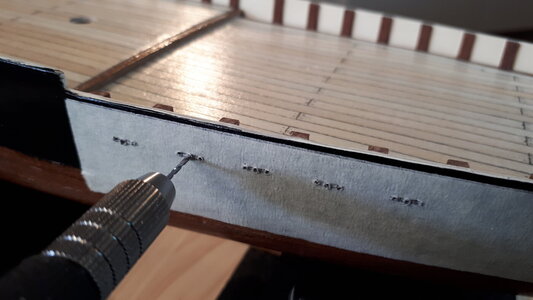

Using a pin vise, I drilled three small holes with a .5mm bit at the centre and ends of each scupper outline, and enlarged them again with a bigger, 1mm drill bit.
I removed the tape at this point and used a hobby knife to clean out the wood between the drilled holes. When the slot was wide enough, I used a fine coping-saw blade to give the scupper a consistent length and width.
A pointed flat file took care of the inside edges and gave the scupper its final shape and form.

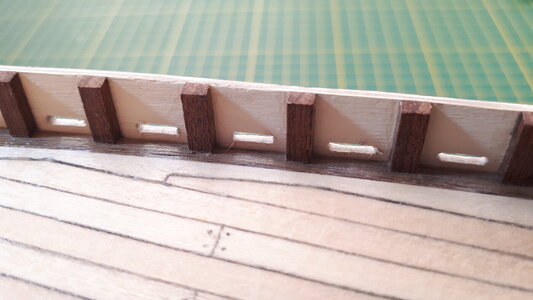

Always making sure that the corresponding slots on the inside of the bulwarks were clean and above deck level.
It was a case of mark, drill, saw, file, rinse and repeat thirty four times until all the scupper holes were installed. Two further circular holes on either side aft completed the process.
I'm sure there is an easier way to do this, and on closer inspection I think I may have done a better job, but for now I'm quite happy with the result and relieved that I didn't wreck my hull in the process
Using a pin vise, I drilled three small holes with a .5mm bit at the centre and ends of each scupper outline, and enlarged them again with a bigger, 1mm drill bit.
I removed the tape at this point and used a hobby knife to clean out the wood between the drilled holes. When the slot was wide enough, I used a fine coping-saw blade to give the scupper a consistent length and width.
A pointed flat file took care of the inside edges and gave the scupper its final shape and form.
Always making sure that the corresponding slots on the inside of the bulwarks were clean and above deck level.
It was a case of mark, drill, saw, file, rinse and repeat thirty four times until all the scupper holes were installed. Two further circular holes on either side aft completed the process.
I'm sure there is an easier way to do this, and on closer inspection I think I may have done a better job, but for now I'm quite happy with the result and relieved that I didn't wreck my hull in the process
Last edited:
Very well laid out and executed. You are a brave man working from the outside. I did it from the inside for the initial holes to get them flush to the waterway/deck initially and then followed your tack refining them from the outside. Your BN is looking very good. RIch (PT-2)Installing the scuppers was another nerve-racking experience that called for precision and patience, creating thirty-eight new holes in the hull that I had been so careful to protect from a mere scratch. I started by applying masking tape to the affected areas and carefully marked the depth of each scupper from the top edge of the bulwarks.
View attachment 263307
Using a pin vise, I drilled three small holes with a .5mm bit at the centre and ends of each scupper outline, and enlarged them again with a bigger, 1mm drill bit.
View attachment 263309
I removed the tape at this point and used a hobby knife to clean out the wood between the drilled holes. When the slot was wide enough, I used a fine coping-saw blade to give the scupper a consistent length and width.
View attachment 263310
A pointed flat file took care of the inside edges and gave the scupper its final shape and form.
View attachment 263311
Always making sure that the corresponding slots on the inside of the bulwarks were clean and above deck level.
View attachment 263312
It was a case of mark, drill, saw, file, rinse and repeat thirty four times until all the scupper holes were installed. Two further circular holes on either side aft completed the process.
View attachment 263316
I'm sure there is an easier way to do this, and on closer inspection I think I may have done a better job, but for now I'm quite happy with the result and relieved that I didn't wreck my hull in the process
Looks great! Nice job!Installing the scuppers was another nerve-racking experience that called for precision and patience, creating thirty-eight new holes in the hull that I had been so careful to protect from a mere scratch. I started by applying masking tape to the affected areas and carefully marked the depth of each scupper from the top edge of the bulwarks.
View attachment 263307
Using a pin vise, I drilled three small holes with a .5mm bit at the centre and ends of each scupper outline, and enlarged them again with a bigger, 1mm drill bit.
View attachment 263309
I removed the tape at this point and used a hobby knife to clean out the wood between the drilled holes. When the slot was wide enough, I used a fine coping-saw blade to give the scupper a consistent length and width.
View attachment 263310
A pointed flat file took care of the inside edges and gave the scupper its final shape and form.
View attachment 263311
Always making sure that the corresponding slots on the inside of the bulwarks were clean and above deck level.
View attachment 263312
It was a case of mark, drill, saw, file, rinse and repeat thirty four times until all the scupper holes were installed. Two further circular holes on either side aft completed the process.
View attachment 263316
I'm sure there is an easier way to do this, and on closer inspection I think I may have done a better job, but for now I'm quite happy with the result and relieved that I didn't wreck my hull in the process
Thanks Rich. Yes, I think starting from the inside would have made more sense, and I wonder now whether I should have done what I intended several weeks ago and cut the scuppers before installing the bulwarks. Didn't have the confidence. Still it is done at least and I feel I have made reasonably good progress, but when I look at your and Dean's models I can't help but feel that I still have a very long way to go yet. Have you a next model lined up yet? Cheers, Mark.
Thanks DeanLooks great! Nice job!
In your reference to the BN of Dean and me, they are very different in all aspects: Dean has a clean precisely detailed model while my own is a ratty and worn looking presentation. Both may offer some aspects for your own BN but in addition those elements that are of your mind and eye only. Keep up the good work. It shows. Rich (PT-2)
