Book Review:
BRUNELS´S SHIPS
by Denis Griffiths, Andrew Lambert and Fred M. Walker

IMG_31261.jpg IMG_31271.jpg

  • Hardcover: 192 pages
  • Publisher: Chatham Publishing; First Edition edition (20 April 1999)
  • Language: English
  • Product Dimensions: 24.8 x 1.9 x 29.8 cm,

Synopsis:

Isambard Kingdom Brunel created a number of quite revolutionary steamships - the Great Western which was the first practical transatlantic paddle-steamer; the Great Britain, the first iron-built screw-driven liner; and the monster Great Eastern which remained the largest ship in the world for almost half a century. Besides these well-known wonders of the maritime world, Brunel also worked with the Admiralty on the introduction of the screw propeller into naval service.

Although apparently well-known, the story of Brunel and his ships is surrounded by myth and self-created propaganda. In this book, a team of marine engineer, historian, and naval architect combine to analyse the scientific and economic context, the reality of Brunel's contribution, and the technical features of his ships. It is illustrated with original draughts, cutaway drawings and photographs.

IMG_31311.jpg IMG_31321.jpg

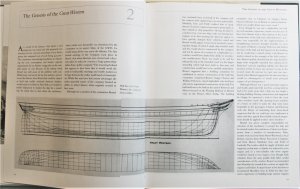

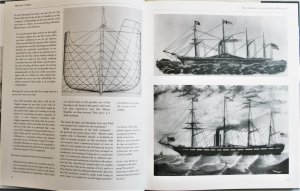

left side: Hull lines of the Great Western
right side: Body plan of Great Western, prints of the
Great Western


Contents:

Introduction: The Man and his Ships / Andrew Lambert

PART I: BRUNEL AND SHIPBUILDING (pages 15 to 90)
1. Formation of the GWSS Company / Denis Griffiths
2. The Genesis of the Great Western / Denis Griffiths
3. Brunel, the Navy and the screw propeller / Andrew Lambert
4. Iron shipbuilding / Fred M. Walker
5. The GWSS Company Works / Denis Griffiths
6. The Great Britain and the end of the GWSS Company / Denis Griffiths

PART II: THE SHIPS (page 91 to 153)
7. The steamship Great Western / Denis Griffiths
8. HMS Rattler - Brunel's warship in service, 1845-56 / Andrew Lambert
9. The Screw-propelled iron steamship Great Britain / Denis Griffiths
10. The Steamship Great Eastern / Denis Griffiths.

Bibliography, Notes, Index

IMG_31331.jpg IMG_31341.jpg

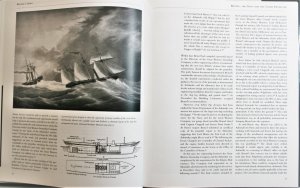

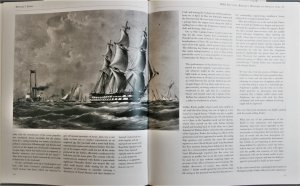

left side: paddle sloop Virago is towing the HMS Queen 110 guns
right side: screw driven
Archimedes


Review:

Isambard Kingdom Brunel was an English mechanical and civil engineer who is considered "one of the most ingenious and prolific figures in engineering history", "one of the 19th-century engineering giants", and "one of the greatest figures of the Industrial Revolution, [who] changed the face of the English landscape with his groundbreaking designs and ingenious constructions". Brunel built dockyards, the Great Western Railway, a series of steamships including the first propeller-driven transatlantic steamship, and numerous important bridges and tunnels. His designs revolutionised public transport and modern engineering. (from wikipedia)


In the book "Brunel´s Ships" his work on the three steam ships is described in detail. The fact, that three specialists of their fields Griffith, Lambert and Walker as marine engineer, historian, and naval architect are giving the reader a good insight and analysis of the scientific and economic context, as well describe the technical specialities of his ships.
A very interesting field of naval history, documented and well illustrated with original draughts, drawings and photographs. Highly recommended book.

IMG_31351.jpg IMG_31361.jpg

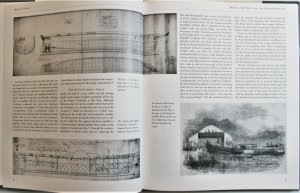

left side: lines and original profile of the Rattler, the launch of the Rattler

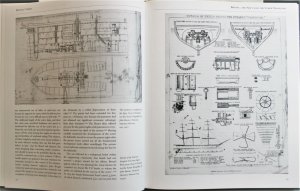

right side: machinery installation of the Ajax, Ericsson designed US screw frigate
USS Princeton

IMG_31371.jpg IMG_31381.jpg
left side: drawing of iron passage boat Vulcan, iron built coastal steamer Rainbow
right side:
Great Eastern

More Looki Inside photos of the Book you can find in the following post of this topic ..........


Additional Information and Background:

For the members who do not know Brunels work, here some short excerpt out of Wikipedia:

Transatlantic shipping

In 1835, before the Great Western Railway had opened, Brunel proposed extending its transport network by boat from Bristol across the Atlantic Ocean to New York City. The Great Western Steamship Company was formed by Thomas Guppy for that purpose. It was widely disputed whether it would be commercially viable for a ship powered purely by steam to make such long journeys. Technological developments in the early 1830s—including the invention of the surface condenser, which allowed boilers to run on salt water without stopping to be cleaned—made longer journeys more possible, but it was generally thought that a ship would not be able to carry enough fuel for the trip and have room for a commercial cargo. Brunel applied the experimental evidence of Beaufoy and further developed the theory that the amount a ship could carry increased as the cube of its dimensions, whereas the amount of resistance a ship experienced from the water as it travelled only increased by a square of its dimensions. This would mean that moving a larger ship would take proportionately less fuel than a smaller ship. To test this theory, Brunel offered his services for free to the Great Western Steamship Company, which appointed him to its building committee and entrusted him with designing its first ship, the Great Western.

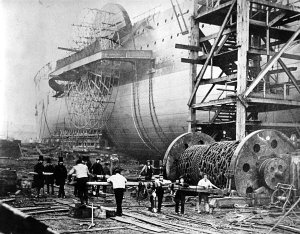

Great Eastern shortly before launch in 1858

The Great Eastern in 1866

When it was built, the Great Western was the longest ship in the world at 236 ft (72 m) with a 250-foot (76 m) keel. The ship was constructed mainly from wood, but Brunel added bolts and iron diagonal reinforcements to maintain the keel's strength. In addition to its steam-powered paddle wheels, the ship carried four masts for sails. The Great Western embarked on her maiden voyage from Avonmouth, Bristol, to New York on 8 April 1838 with 600 long tons (610,000 kg) of coal, cargo and seven passengers on board. Brunel himself missed this initial crossing, having been injured during a fire aboard the ship as she was returning from fitting out in London. As the fire delayed the launch several days, the Great Western missed its opportunity to claim title as the first ship to cross the Atlantic under steam power alone. Even with a four-day head start, the competing Sirius arrived only one day earlier and its crew was forced to burn cabin furniture, spare yards and one mast for fuel. In contrast, the Great Western crossing of the Atlantic took 15 days and five hours, and the ship arrived at her destination with a third of its coal still remaining, demonstrating that Brunel's calculations were correct. The Great Western had proved the viability of commercial transatlantic steamship service, which led the Great Western Steamboat Company to use her in regular service between Bristol and New York from 1838 to 1846. She made 64 crossings, and was the first ship to hold the Blue Riband with a crossing time of 13 days westbound and 12 days 6 hours eastbound. The service was commercially successful enough for a sister ship to be required, which Brunel was asked to design.

Brunel had become convinced of the superiority of propeller-driven ships over paddle wheels. After tests conducted aboard the propeller-driven steamship Archimedes, he incorporated a large six-bladed propeller into his design for the 322-foot (98 m) Great Britain, which was launched in 1843. Great Britain is considered the first modern ship, being built of metal rather than wood, powered by an engine rather than wind or oars, and driven by propeller rather than paddle wheel. She was the first iron-hulled, propeller-driven ship to cross the Atlantic Ocean. Her maiden voyage was made in August and September 1845, from Liverpool to New York. In 1846, she was run aground at Dundrum, County Down. She was salvaged and employed in the Australian service. She is currently fully preserved and open to the public in Bristol, UK.

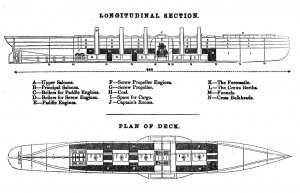

Sectional plan of Great Eastern

In 1852 Brunel turned to a third ship, larger than her predecessors, intended for voyages to India and Australia. The Great Eastern (originally dubbed Leviathan) was cutting-edge technology for her time: almost 700 ft (210 m) long, fitted out with the most luxurious appointments, and capable of carrying over 4,000 passengers. Great Eastern was designed to cruise non-stop from London to Sydney and back (since engineers of the time mistakenly believed that Australia had no coal reserves), and she remained the largest ship built until the start of the 20th century. Like many of Brunel's ambitious projects, the ship soon ran over budget and behind schedule in the face of a series of technical problems. The ship has been portrayed as a white elephant, but it has been argued by David P. Billington that in this case Brunel's failure was principally one of economics—his ships were simply years ahead of their time. His vision and engineering innovations made the building of large-scale, propeller-driven, all-metal steamships a practical reality, but the prevailing economic and industrial conditions meant that it would be several decades before transoceanic steamship travel emerged as a viable industry.

1024px-The_Great_Eastern_under_construction_at_Millwall_(4313594000).jpg 800px-SS_Great_Eastern_in_New_York_Harbor_by_Stacy.jpg

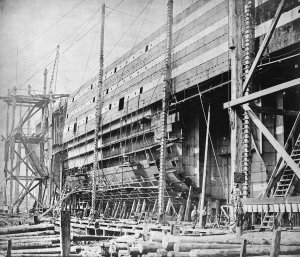

left side: Construction of Great Eastern, August 18, 1855

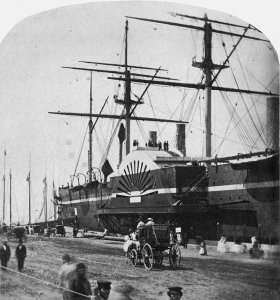

right side: Berthed at New York, 1860


Great Eastern was built at John Scott Russell's Napier Yard in London, and after two trial trips in 1859, set forth on her maiden voyage from Southampton to New York on 17 June 1860. Though a failure at her original purpose of passenger travel, she eventually found a role as an oceanic telegraph cable-layer. Under Captain Sir James Anderson, the Great Eastern played a significant role in laying the first lasting transatlantic telegraph cable, which enabled telecommunication between Europe and North America.

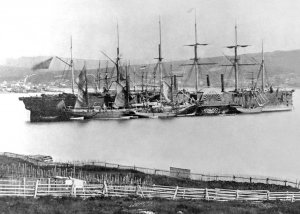

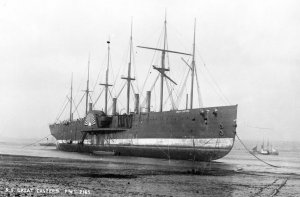

Great Eastern beached for breaking up


Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
17,585
Points
938

Location
Vienna, Austria
Book Review, Part 2
BRUNELS´S SHIPS
by Denis Griffiths, Andrew Lambert and Fred M. Walker

IMG_31391.jpg IMG_31401.jpg
left side: diorama model of the Great Eastern under construction
right side: two pages from Brunel´s notebook


IMG_31411.jpg IMG_31421.jpg

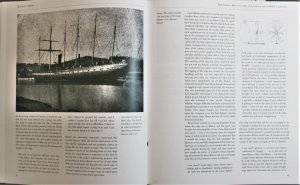

left side: Great Britain
right side: details of structure, arrangement of frames of
Great Western

IMG_31431.jpg IMG_31441.jpg

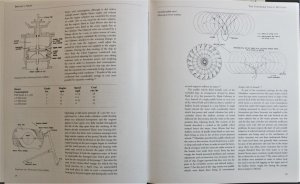

left side: expansion valve, cam, cycloidal paddle wheel

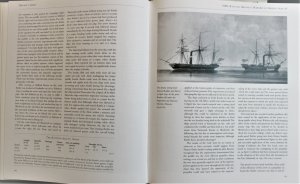

right side: famous towing trials between Rattler and Alecto 1845



IMG_31451.jpg IMG_31461.jpg

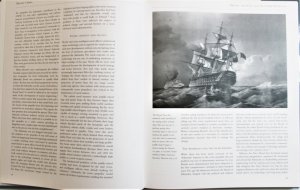

left side: Symons´twodecker HMS Superb and Royal Yachts
right side: simulated attack at Southsea Castle 1856, waterline model of Great Britain in National Maritime Museum

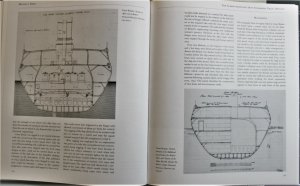

IMG_31471.jpg IMG_31481.jpg
left side: lines of the Rattler and the Great Britain, Great Britain as originally rigged
right side: Sections of Great Britain


IMG_31491.jpg IMG_31501.jpg

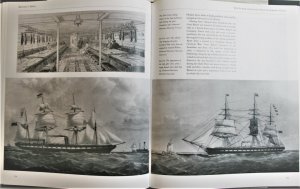

left side: first class dining salon of Great Britain, appearance of Great Britain in 1852 and 1857
right side: longitudinal section and upper deck

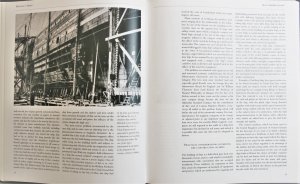

IMG_31511.jpg IMG_31521.jpg

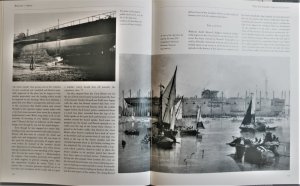

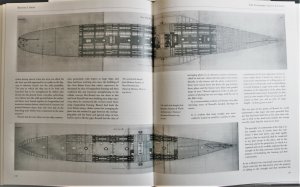

left side: second deck and third deck draught of Great Eastern
right side: hull of Great Eastern towering over slipway, horizontal screw engine

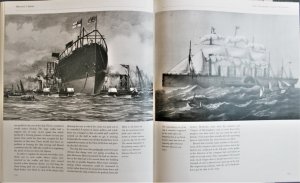

IMG_31531.jpg IMG_31541.jpg
left side: frame of paddle wheel of Great Eastern, view of ship from river
right side: Great Eastern launch
