Book review Book Review: "THE 50-GUN SHIP: A Complete History" by Rif Winfield

Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
17,220
Points
938

Location
Vienna, Austria
The 50-Gun ship
by Rif Winfield

IMG_25621.jpg IMG_25631.jpg
  • Hardcover: 128 pages (but also available in the meantime as soft)
  • Publisher: Chatham; First UK edition (1997)
  • Language: English
  • Product Dimensions: 10 x 0.5 x 11.8 inches, or 24,1 x 1,9 x 28,6 cm
  • Shipping Weight: 2.2 pounds
the softcover-version of the book with different cover

Synopsis:

By the end of the sailing era the 50-gun ship had become regarded as a hybrid, too small to stand in the line of battle, and lacking the speed and hardiness of the frigate, so it has often been dismissed as a naval architectural dinosaur left over from an earlier age. This book aims to reveal the crucial role of the 50-gun ship in the development of both the battleship and the frigate, and explains the enduring role which ensured the survival of the type into the 19th century. Charting its origins in the pre-Commonwealth frigates, the author follows the development of the type in the 18th century and its gradual transition from battlefleet to heavy cruiser role, highlighting its revival for the special conditions of colonial warfare during the American Revolution. Thereafter they were employed as peacetime flagships for distant stations, achieving final glory leading small craft in anti-invasion operations during the Napoleonic War. The Leopard is the subject of the cutaway drawings.

Features include: an in-depth text, based on the latest research in original sources, covering the complete history of the 50-gun ship; numerous tables of technical data covering dimensions, construction, armament and details; comprehensive collection of illustrations including original draughts, models and contemporary paintings and drawings; a selection of specially commissioned perspective and cutaway drawings by John McKay; a separate set of large scale plans for modelmakers; these and the cutaway depict the Leopard of 1790, famous in history for her assault on USS Chesapeake and as well known in fiction as the 'horrible old Leopard' of Patrick O'Brian's Aubrey novels.

History and development of this type from 1650 to 1816 - All 50-gun ships in the British Navy are covered in detail, with a chronological history and full details of every vessel built or acquired, plus chapters on gunnery, construction, manning, stores, masts and sails with sailing qualities.

IMG_25651.jpg IMG_25661.jpg

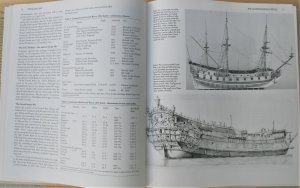

left side: The Earliest Frigates with HMS Sheerness 1691, Tiger painting by Van de velde
right side: The Commonwealth Period with "Dover of the Taunton / Crown 1654/1660 and HMS Leopard 1659


About the Author:

Rif Winfield has been researching naval matters for 25 years and has been a frequent contributor to Jane's Fighting Ships. This is his first book.

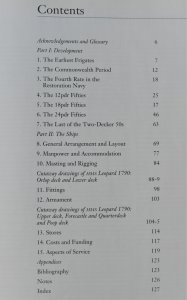

Contents:

Part I: DEVELOPMENT
The earliest frigates
The Commonwealth period
The fourth rate in the Restoration Navy

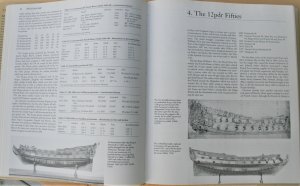

The 12pdr [pounder] fifties
The 18pdr fifties
The 24pdr fifties
The last of the two-decker 50s

Part II: THE SHIPS
General arrangement and layout
Manpower and accommodation
Masting and rigging
Cutaway drawings of HMS Leopard 1790 : orlop deck and lower deck

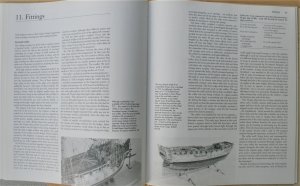

Fittings
Armament
Cutaway drawings of HMS Leopard 1790 : upper deck, forecastle, and quarterdeck and poop deck

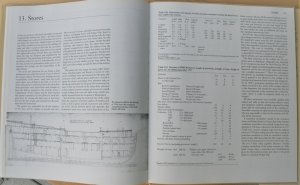

Stores
Costs and funding

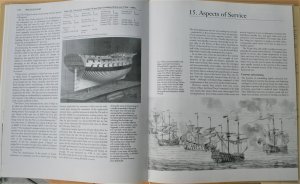

Aspects of service
Appendices

and very important

Plans and cutaway drawings in scale 1:96 of HMS Leopard in pocket.


IMG_25671.jpg IMG_25681.jpg

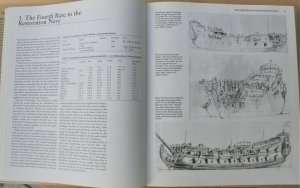

left side: HMS Adventure, HMS Saint David, HMS Assurance
right side: HMS Bonaventure after rebuilding 1683


Review:

The classes of 50-gun ships suffered from being neither fish nor fowl, being too small for the line of battle and too large to serve as frigates, and are usually neglected in histories of the era. . The book is representing a complete history of this type of ship and his forerunners starting in the 17.th century and is fully provided with reproductions of historical draughts and photos of models.

The book is divided in principle into two sections. The first looks at the development of the 50 gun ship, following the lines and principles of the early frigates copied from Flemish privateers, commonly known as Dunkirkers, from the first half of the seventeenth century. The story develops through the Commonwealth period, the Restoration up through the last ships built during the Napoleonic Wars. This section looks especially at the design changes to the hull and armament, the restrictions created by the rules of the Establishment, and how that led to the navy falling behind the capabilities of the other navies in Europe.

The second section of the book looks at the ships themselves, general layout, manpower and accommodation; masts and rigging; fittings; armament; stores; costs and funding; and how they were used in service.

Throughout the book there are lots of superb period diagrams showing you what the ships looked like and how they changed. All ships of this class seem to be mentioned, described and you get a real sense of what the ships were like and how they compared with one another. And there is a bonus here for fan's of Patrick O'Brian and his hero, Jack Aubrey of the Royal Navy. One of Jack's least favorite commands, the "Horrible Old Leopard", is prominently featured in this volume, including meticulously detailed big size cutaway drawings of the HMS Leopard 1790 (Portland-class) and hull plans in a pocket in scale 1:96, drawn by Donald McKay.

If you are interested in the fourth and fifth class vessels and their specialities, this book is highly recommended. And also if you are interested not only in the well known threedeckers and want to learn more about the working horses of the navies......

IMG_25691.jpg IMG_25701.jpg

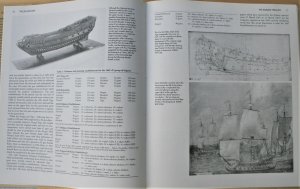

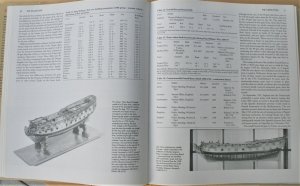

left side: Navy Board model of (most likely) HMS Lincoln

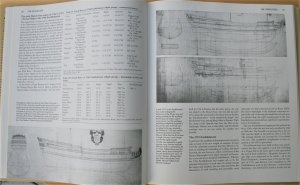

right side: HMS Deptford 1718, HMS Chatham 1721, HMS Falkland 1720


IMG_25711.jpg IMG_25721.jpg

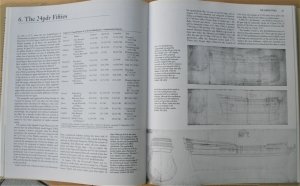

left side: 24pdr Fifties, HMS Falkland 1741
right side: Painting of HMS Portland, dutch Prinses Carolina 1748 and dutch Rotterdam


IMG_25731.jpg IMG_25741.jpg
left side: HMS Cato, HMS Grampus 1780
right side: HMS Jupiter, HMS Saturn


More Look Inside photos you can find in the following post


Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
17,220
Points
938

Location
Vienna, Austria
The 50-Gun ship
by Rif Winfield

IMG_25751.jpg IMG_25761.jpg

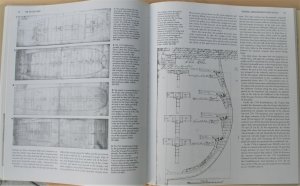

left side: 1741 establishment orlop deck and gundeck, captains accomodation, quarter deck and forecastle, midship section of HMS Jupiter 1812

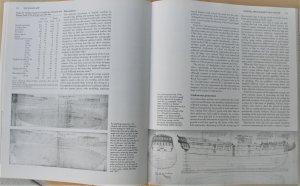

right side: planking expansions of HMS Antelope 1802, Navy board draughts


IMG_25771.jpg IMG_25781.jpg

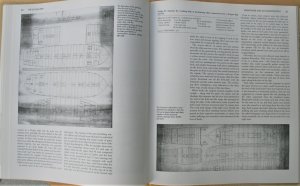

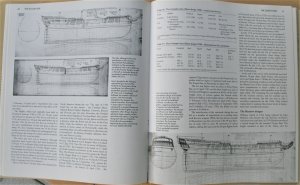

left side: HMS Salisbury 1770, deck plans of HMS Centurian

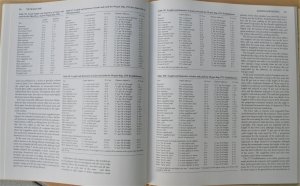

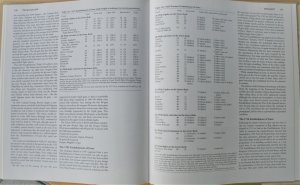

right side: Measure tables of Masting and rigging


IMG_25791.jpg IMG_25801.jpg

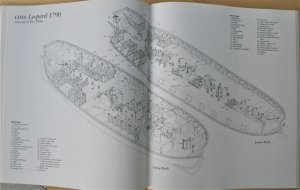

left side: Orlop deck and Lower deck of HMS leopard 1790

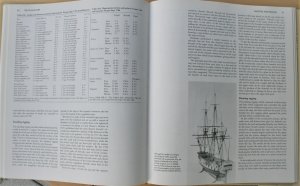

right side: length and diameters of masts and yards, unidentified model of a 50-gun ship 1685


IMG_25811.jpg IMG_25821.jpg

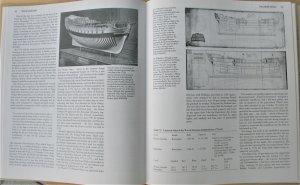

left side: model HMS Portland 1690, unidentified model 1725
right side: Poop deck, Upper deck and Forecastle / Quarter deck HMS Leopard 1790


IMG_25831.jpg IMG_25841.jpg
left side: Establishments

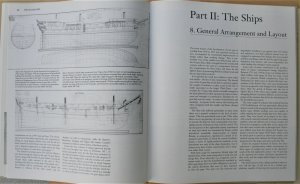

right side: inboard profile of HMS Romney 1762


painting of HMS Experiment

IMG_25861.jpg IMG_25871.jpgL

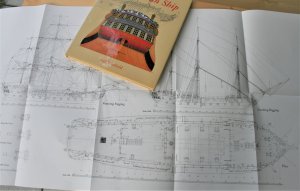

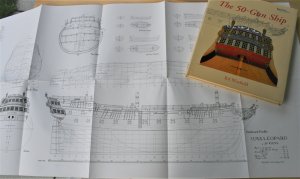

scale 1:96 drawings of HMS Leopard 1790 with Outboard Profile, Stern, Body plan, section boats, running rigging, standing rigging, deckplan

A

Asat

Guest
Uwe, does the paperback edition have the separate plans sheets as well? I’m looking for a large project to build....


Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
17,220
Points
938

Location
Vienna, Austria
Uwe, does the paperback edition have the separate plans sheets as well? I’m looking for a large project to build....
Hallo,
I think so.
When I went through the descriptions of some of the copies available at abebooks.....

So before you order a copy of this book, I would directly ask the seller, if the plans are included

Would be great to see your Leopard here in a building log :cool:

BTW: I made also once a Ship History Topic of the HMS Leopard, a really very interesting vessel and class !
