Book Review:
THE 74-Gun SHIP / THE SEVENTY-FOUR GUN SHIP
A Practical Treatise on the Art of Naval Architecture
4 Volume Set (Set of 4 volumes)



Overview of the Content of all 4 Volumes

Here:
Volume 4 - MANNING / SHIPHANDLING

IMG_18011.jpg IMG_16762.jpg

by Jean Boudriot
english translation by David H. Roberts


This Book Set from Jean Boudriot is also in our forum very often mentioned, but most of modelers, which had the copy never in hand can not imagine how detailed and informative this documentation is in real. It is the basic cornerstone of all the Plansets and monographies published over the years by ancre.
Due to the fact, that these books are in my opinion one of the most important publications I want to show you these four different volumes, but also the planset of the 74-gunner, in detail.
Please have in mind, that these books were already published in 1973 (french version), so Jean Boudriot prepared all these drawings and perspective sketches in the books by hand.
In 1985 the english copies with translation by David H. Roberts were published and shown here in the following Book Reviews......

english version still available at ancre:
https://ancre.fr/en/basic-books/9-v...-en-quatre-volumes-base-de-la-collection.html


IMG_18021.jpg IMG_18041.jpg

IMG_18051.jpg IMG_18061.jpg

SYNOPSIS:

This 4 volume set is the starting point of our collection and as such is almost essential to the understanding of all our other books. It gives the definitions of all parts of a ship, " from keel to mast's truck", illustrated with many detailed drawings. It also explains how to manœuvre and operate a ship, and what shipboard life was like.
In order to avoid unnecessary repetitions, these explanations and definitions are not given in our other publications, in which you will find numerous cross-references to "The 74 Gun Ship".

ABOUT THE AUTHOR
Jean Boudriot (20. March 1921 - 22 February 2015)


Jean Boudriot was an exceptional Frenchman. Originally an architect, he was an outstanding draughtsman and in only a few years' time became the first specialist in 17th and 18th century naval architecture. He was first interested in the study of French statutory arms, on which he published four books that were accepted as authorities. In 1960, he moved on to studying naval archeology.
J. Boudriot's first studies on naval guns, published in 1969 in Neptunia, are true revelations for amateurs. Between 1973 and 1977, he published the four volumes of "The 74 GUN SHIP" thus creating the Boudriot myth. Since then, he had dedicated his time to scouring the archives in Paris in winter, and to drawing in Charente in summer. For our utmost pleasure, Jean Boudriot regularly published the monographs and historical studies that constitute the French Naval Archeology Collection. He worked very close with Hubert Berti, with whom he run ancre. Nowadays ancre is organized by Berti´s son Didier Berti.
Boudriot was both an author and a publisher. He also teached the weekly naval archeology seminar that took place in the Musée de la Marine, and gave numerous lectures, most of them in the Sorbonne. He was a talented speaker and hearing him speak on his topic was an enchanting event.

THE METHOD

While the shape of things to come is not set at the beginning of the book, principles are well established there. Boudriot started with primary sources by systematically studying models in the arsenals and by doing daily archival research in every harbour in France. He neglected nothing : neither the theoretical contributions brought by such authors as Duhamel du Monceau, Romme, Bouguer or Vial du Clairbois, nor the valuable iconographic documents provided by such draughtmen as Puget, Ozanne, Vernet, Guéroult du Pas and Sponsky de Passebon, etc. But the practical drawing booknotes of anonymous engineers, the more modest wood estimates by master carpenters or the inventories of a warehouse were even more important.
Only the irrefutable document is to be taken into account : engineers' plans, construction, equipping and campaigning estimates; correspondence and manuscripts of the time.
Because of his talent as a draughtman and because of his architect's training, Jean Boudriot is convinced that naval archeology - because it is a restitution of the past - can only be approached through drawing, the only true means of expression and understanding it. His rigorous and magical lines, with their lively and familiar style, immerse the reader in the atmosphere of the 17th, 18th and 19th ports and ship building sites throughout his numerous books.

THE SHIP

As the main naval war machine at the end of the 18th century, the 74 Gun Ship was the result of a compromise, like every successful vessel. Her balance between strong guns and manoeuvrability offered by the 28 gun lower gundeck and firing 36 pound cannon-balls, made the "74" the perfect ship of the line. Since she moved more easily, she was much more useful in combat than the heavy 100 gun three-decker.
Her hull alone represented half of 3000 tons moving. 2800 hundred-year-old oak trees (a whole forest), and 600 tons of iron and wood bolts were needed for her construction. The hold and its orlop-deck could contain victuals for 6 months and water for 12 weeks. The gundeck had to bear the considerable weight of enormous 36-pdr guns, weighing 4 tons each. The upper deck, covered front and back with castles, carried lighter guns.
This hull rose 7 meters above water and carried prodigious flights of sails. Each of the three masts, in three elements, rigged three floors of square sails and the main top-mast truck towered at 60 meters. This ship was well designed by her engineer and when correctly used by her crew, she performed superbly at sea in all weathers. In a fair breeze, she could exceed ten knots by sailing quartering.


IMG_18241.jpg IMG_18251.jpg

Total 385 pages

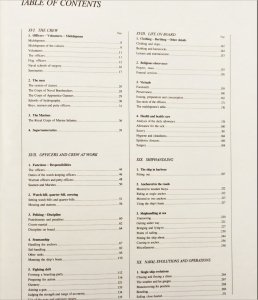

CONTENT OF VOLUME 4 - MANNING / SHIPHANDLING

XVI. THE CREW (pages 8 to 43)
1. Officers – Volunteers – Midshipmen
Midshipmen – Midshipmen of the colours – Volunteers – The officers – Flag officers – Naval school of surgery – Seminaries
2. The men

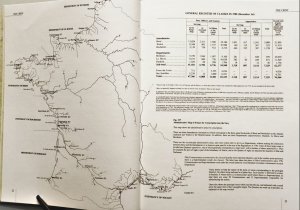

The system of classes – The Corps of Naval Bombardiers – The Corps of Apprentice Gunners – Schools of hydrography – Boys, seamen and petty officers
3. The Marines
The Royal Corps of Marine Infantry
4. Supernumeraries

XVII. OFFICERS AND CREW AT WORK (pages 44 to 141)
1. Functions – Responsibilities
The officers – Duties of the watch-keeping officers – Warrant officers and petty officers – Seamen and Marines
2. Watch-bill, quarter-bill, messing
Setting watch-bills and Quarter-bills – Messing and stations
3. Policing – Discipline
Punishments and penalties – Courts-martial – Discipline on board

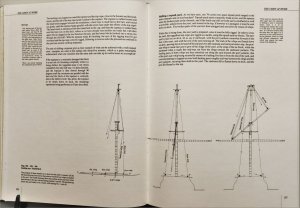

4. Seamanship

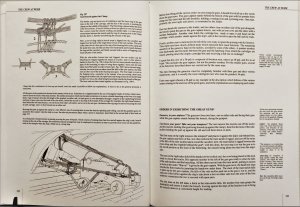

Handling the anchors – Sail-handling – Other tasks – Manning the ship´s boats
5. Fighting drill
Forming a boarding-party – Preparing for action – Gunnery – Aiming a gun – Judging the strength and range of an enemy – Use of the guns and optimum ranges

XVIII. LIFE ON BOARD (pages 142 to 206)
1. Clothing – Berthing – Other details
Clothing and slops – Berthing and hammocks – Leisure and entertainment
2. Religious observance
Prayers, mess – Funeral services
3. Victuals
Foodstuffs – Preservation – Issuing, preparation and consumption – Sea stock of the officers – The midshipmen´s table
4. Health and health care
Analysis of the daily allowance – Allowance for the sick – Scurvy – Hygiene and cleanliness – Epidemic diseases – Surgery

XIX. SHIPHANDLING
(pages 207 to 263)
1. The Ship in harbor
Fitting out
2. Anchored in the roads
Moored to wooden buoys – Riding at single anchor – Moored to two ancors – Using the ship´s boats
3. Shiphandling at sea

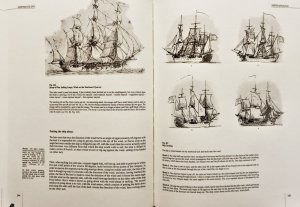

Unmooring – Getting under way – Bringing and lying-to – Points of sailing – Putting the ship about – Coming to anchor – Miscellaneous

XX. NAVAL EVOLUTIONS AND OPERATIONS (pages 264 to 305)
1. Single ship evolutions
Chasing and fleeing a chase - The weather and lee gauges - Manoeuvering for position – Boarding – Sailing close-hauled
2. Fleet operations

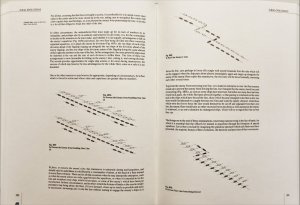

General considerations – Naval evolutions – Manoeuvering in the line of battle – Particular operations

XXI. NAVIGATION – COLOURS AND SIGNALS (pages 306 to 360)
1. Navigation instruments

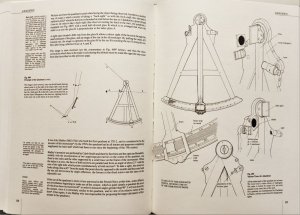

Quadrant – Azimuth compass – Marine chronometer – Marine barometer and other instruments
2. Navigation
Charts – Use of the log and line – Use of the compass, traverse board and sounding lead Plane sailing – Finding the latitude – Finding the longitude – Reckoning the ship´s position – Keeping a journal at sea
3. Flags, Colours and Signals
Flags and colours – Pendants – Honours and saluting – Day and night signals
Supplement
Commentary on various drawings - Decommissioning report and inventories

BIBLIOGRAPHY
Overall plan of the four volumes
VOCABULARY

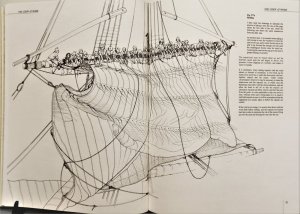

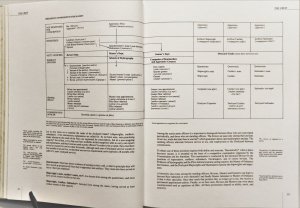

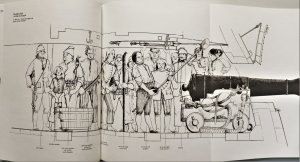

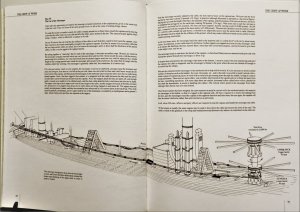

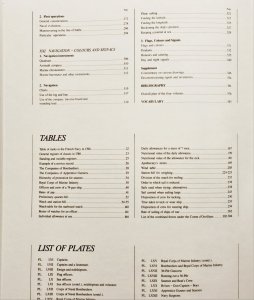

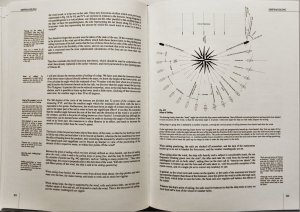

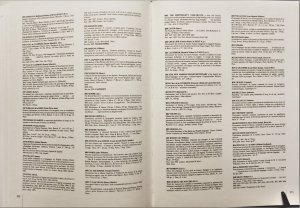

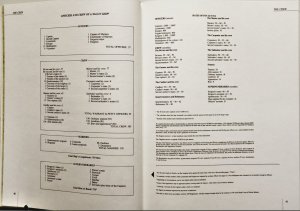

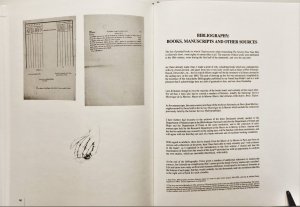

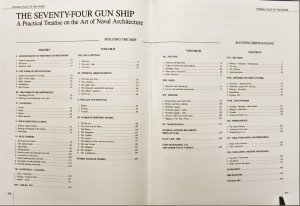

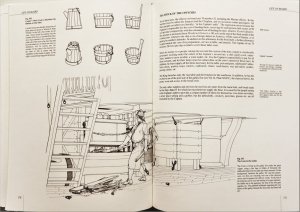

LOOK INSIDE:
