Bow of the frigate Neptunus

Joined
Apr 16, 2019
Messages
16
Points
48

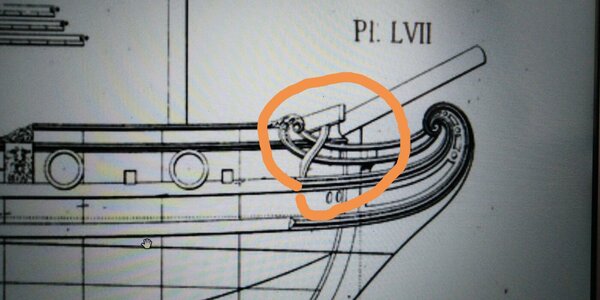

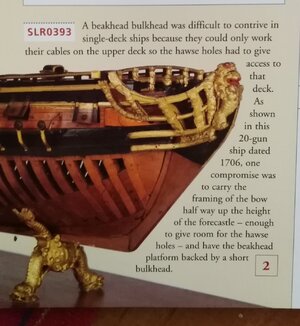

I keep seeing the plans for Chapman's Neptunus frigate. Looking at the bow, I can't understand if it is of the beakhead bulkhead type (like the first figure I attach) or if it is without bulkhead (like the second, both taken from Robert Gardiner's book). I think, from the time the Neptunus was built and from what I indicate on the plan that it would be without a bulkhead. But before starting to build it I would like to know other opinions. Many thanks!

Hms Rose.jpgSLR0012.jpgDetalle proa Neptunus.jpg


Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
18,354
Points
938

Location
Vienna, Austria

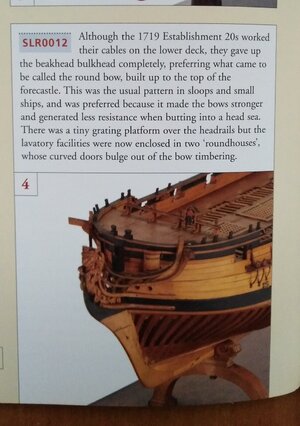

I would interprete the drawing as an "round bow" described in the second photo SLR0012

Here you can find another example




I just checked the list of all 20 gunners build based on the 1719 Establishment which were



Maybe it is interesting for you to search at the NMM page for the shipsnames of this class

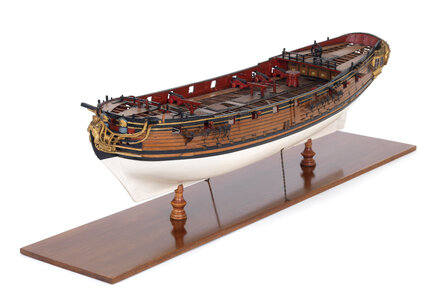

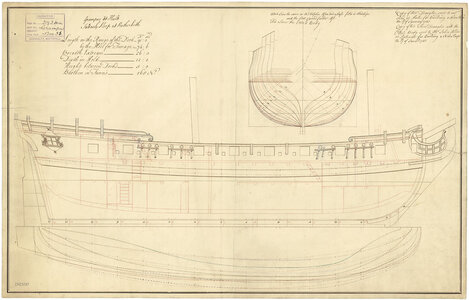

I just checked the Dolphin 1732



Joined
Apr 16, 2019
Messages
16
Points
48

I would interprete the drawing as an "round bow" described in the second photo SLR0012

Here you can find another example

View attachment 234433

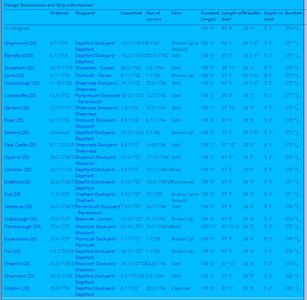

I just checked the list of all 20 gunners build based on the 1719 Establishment which were

View attachment 234434


Maybe it is interesting for you to search at the NMM page for the shipsnames of this class

I just checked the Dolphin 1732

View attachment 234435

Again, thank you very much Uwek!
