CAF Models La Salamandre...1:48 My Attempt

Joined
Jul 2, 2018
Messages
952
Points
393

Location
Canton, Oh

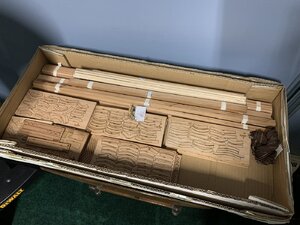

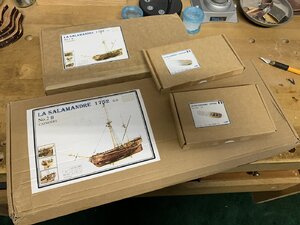

Well I have put this off long enough, welcome to my build log of La Salamandre. The kit is amazing, the materials are top quality.
This build will be quite a challenge for me but fortunately I have Uwek, ADC and Koreets logs to follow.

087AE271-BC40-4BEE-8624-B48A9B311246.jpegE47E947A-06E5-40DD-B8E6-32F18F612229.jpeg4C8ACC83-42F0-49CF-B596-54C28C86DBC6.jpeg

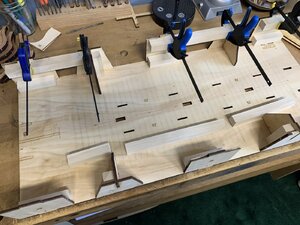

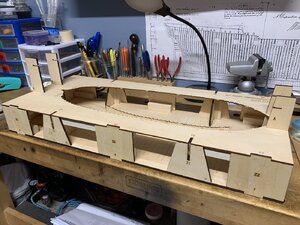

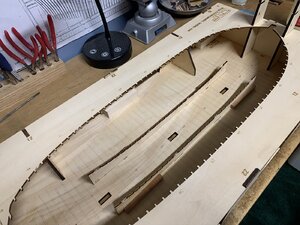

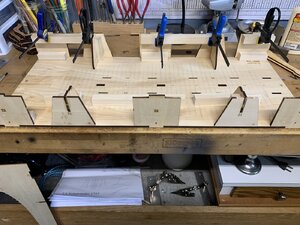

The building jig was straight forward and went together easily. I used some wood blocks for extra support and also left the ends removable.E9851530-7A87-4B6C-9236-E964BAED298D.jpegD2353BF8-5F11-4E06-88E3-C338C200A098.jpeg4085CDFD-B610-4C99-8B5C-B355D3D53366.jpeg

Next up was building the frames...

Last edited by a moderator:
Joined
Jul 2, 2018
Messages
952
Points
393

Location
Canton, Oh

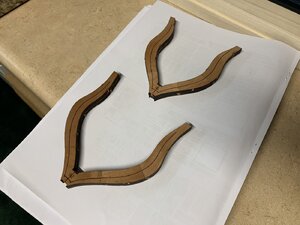

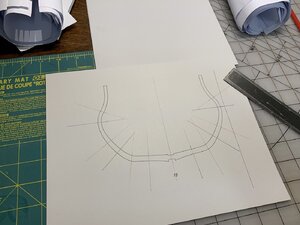

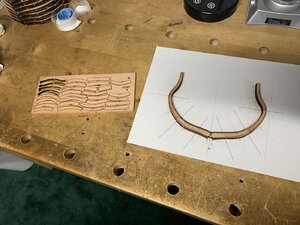

All the frame parts are laser cut and need to be sanded Square to get a good fit. I use double stick tape to hold the parts to the pattern for glue up. This was the first step in a long slow going process.

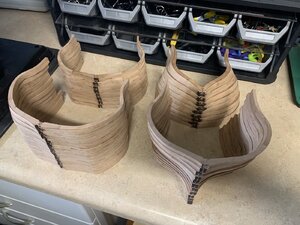

Next was sanding and grinding the bevels in all the frames. The laser etched lines were a great help in getting the proper angles. I used my Dremel for grinding the bevels, I tried using the spindle sander but I felt I had a better control with the Dremel.

7DF87A19-9FCC-4ECB-BBC3-1A6112E94A52.jpeg9334E903-E7C2-4B48-9409-39962BEC5E1F.jpeg736CC985-A2BD-4996-AB2A-BBFD2C48EAC0.jpeg94AE3353-EA2D-499D-9B1D-86452694834D.jpeg

I worked on the keel while grinding frames for a break

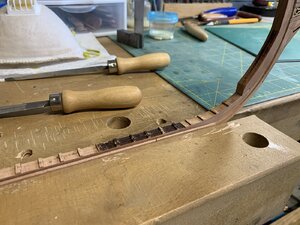

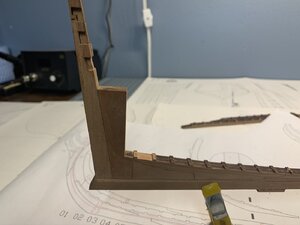

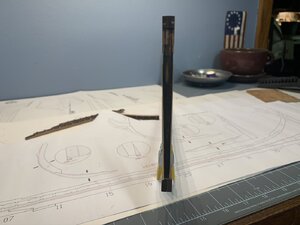

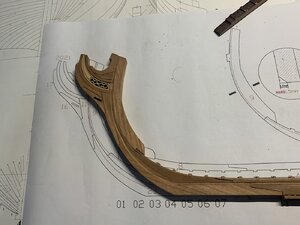

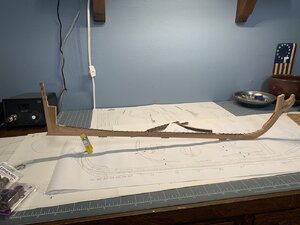

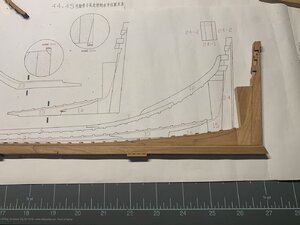

The keel was fitting together very well. The rabbet is laser etched and cut with chisel. The dead wood needs to be tapered down to the keel. I used an archival ink pen to blacken the joint lines in the pieces of the keel, one side of the joint gave good results.

C18A819F-A24F-4931-A94B-D4396C0EF2AA.jpeg83ED8A5E-6204-447D-91E8-E061A25BC0DD.jpeg164ABF94-935C-4EB5-875A-CE1883D38336.jpegE92B3064-1103-43F3-AAD1-E943DB0DF1FF.jpeg71879E54-9C35-4110-9443-1E9E139482EE.jpeg84028BF5-A877-4431-805B-A15B0AD87657.jpeg

More to come...

Joined
Jan 10, 2020
Messages
127
Points
113

Location
Kungsängen Sweden
Well I have put this off long enough, welcome to my build log of La Salamandre. The kit is amazing, the materials are top quality.
This build will be quite a challenge for me but fortunately I have Uwek, ADC and Koreets logs to follow.

View attachment 164887View attachment 164888View attachment 164889

The building jig was straight forward and went together easily. I used some wood blocks for extra support and also left the ends removable.View attachment 164893View attachment 164894View attachment 164895


Next up was building the frames...
I will follow the build log

Joined
Jan 10, 2020
Messages
127
Points
113

Location
Kungsängen Sweden
Well I have put this off long enough, welcome to my build log of La Salamandre. The kit is amazing, the materials are top quality.
This build will be quite a challenge for me but fortunately I have Uwek, ADC and Koreets logs to follow.

View attachment 164887View attachment 164888View attachment 164889

The building jig was straight forward and went together easily. I used some wood blocks for extra support and also left the ends removable.View attachment 164893View attachment 164894View attachment 164895


Next up was building the frames...
I see a Swedish name there on the bench "SJÖBERGS":)

Joined
Jan 10, 2020
Messages
127
Points
113

Location
Kungsängen Sweden
All the frame parts are laser cut and need to be sanded Square to get a good fit. I use double stick tape to hold the parts to the pattern for glue up. This was the first step in a long slow going process.
Next was sanding and grinding the bevels in all the frames. The laser etched lines were a great help in getting the proper angles. I used my Dremel for grinding the bevels, I tried using the spindle sander but I felt I had a better control with the Dremel.

View attachment 164900View attachment 164898View attachment 164897View attachment 164899

I worked on the keel while grinding frames for a break
The keel was fitting together very well. The rabbet is laser etched and cut with chisel. The dead wood needs to be tapered down to the keel. I used an archival ink pen to blacken the joint lines in the pieces of the keel, one side of the joint gave good results.

View attachment 164903View attachment 164904View attachment 164906View attachment 164905View attachment 164907View attachment 164908

More to come...
I want to build that one:p


Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
17,215
Points
938

Location
Vienna, Austria
I am very happy to another building log of the La Salamandre kit from CAF - also good to see, that you have the planset from Jean Boudriot which will be of very big help
Maybe it is allowed here to make short links several topics for everybody interested

Joined
Jul 2, 2018
Messages
952
Points
393

Location
Canton, Oh
I am very happy to another building log of the La Salamandre kit from CAF - also good to see, that you have the planset from Jean Boudriot which will be of very big help
Maybe it is allowed here to make short links several topics for everybody interested

Please Uwe jump in any time with comments and links. For what is lacking in instructions your build log and others here on SOS make up for it.

Joined
Jul 2, 2018
Messages
952
Points
393

Location
Canton, Oh
Mike, wish you every success and patience in this project. Remember that you must build this model better than your predecessors!

Meanwhile I may say that visually the mfg improved the kit.

Thanks Koreets, if I can make mine half as good as yours I would be happy.
Improving the kits is what’s so impressive with CAF. It seems he hears what modelers have to say and will act on it.
