Carabela La Niña, Plan in scale 1:50

[eugen.t]

Hello everybody,

I want to show you my plan for Carabela La Niña.
The plan consists of three sheets A1 with many details.
I used the following sources to create the plan:
Sketches and drawings by Raphael Monleon and pictures by Nina Repliс from 1892.
If anyone is interested, please send me a message or email: v.troppau@gmail.com



[eugen.t]

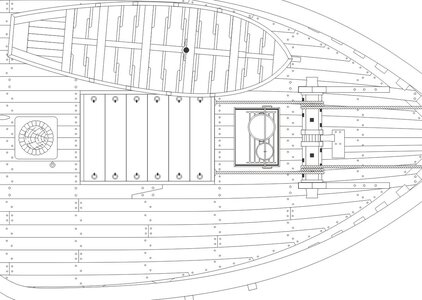

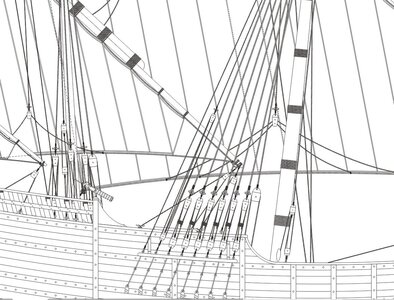

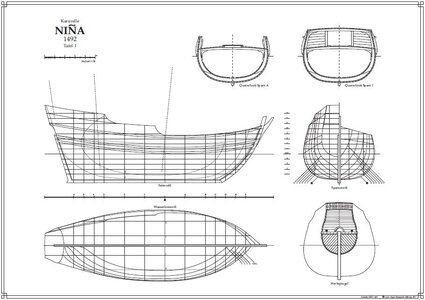

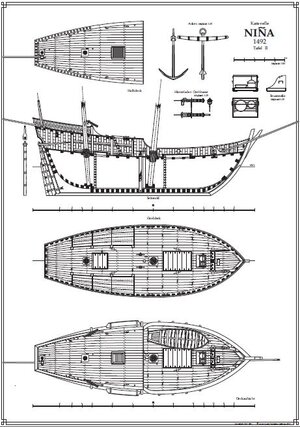

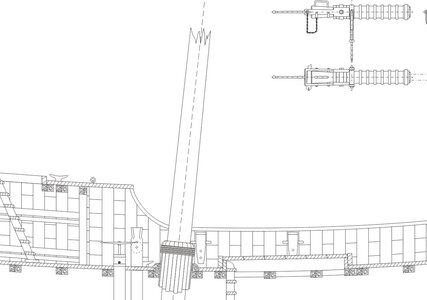

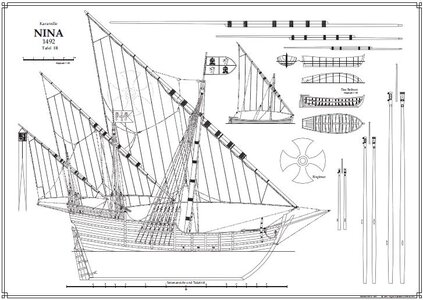

Here are a few plan screenshots



[eugen.t]

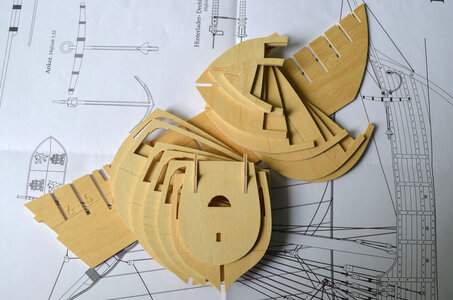

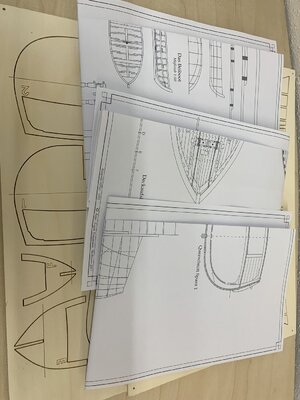

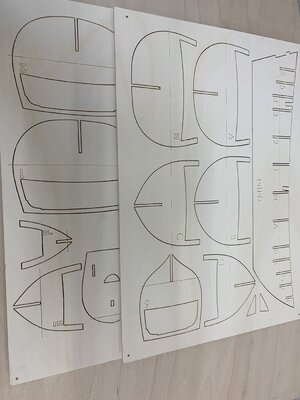

As a supplement to the plan, there is now a keel and bulkhead frames, created with CNC in high quality.



[eugen.t]

Hello everyone,

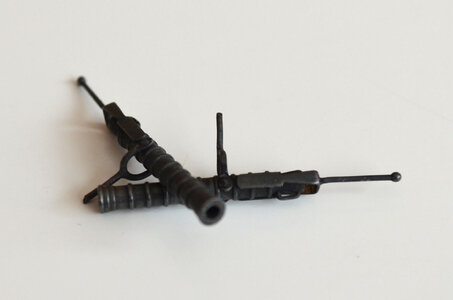

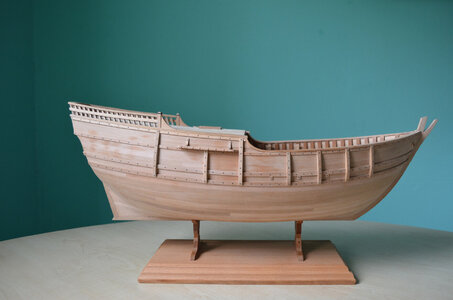

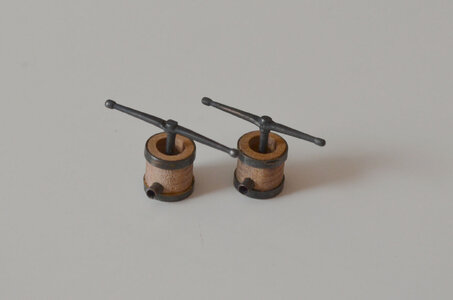

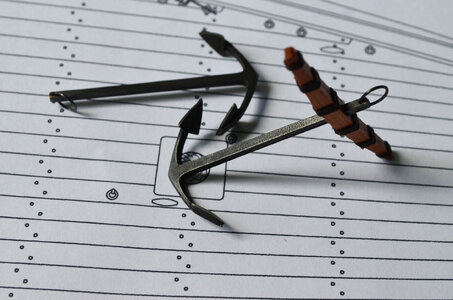

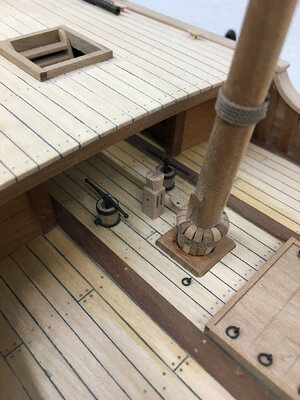

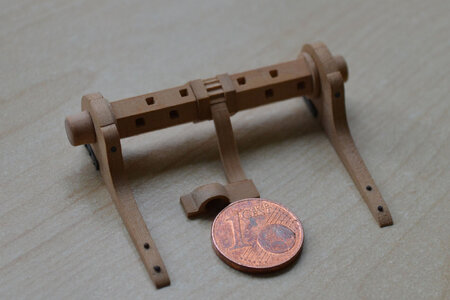

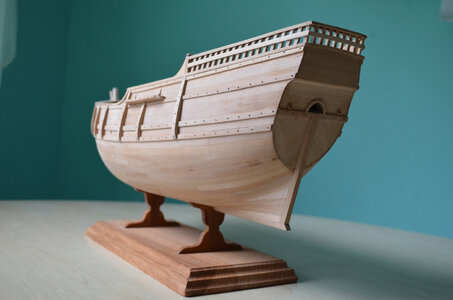

I want to show how the model of the Nina, which I started building according to my own drawings, looks like.

Best regards,



[Uwek]

Bravo - I like the way you work - clean and accurate
Maybe you show us the project of modeling in more details in a building log - maybe as a photo report?



[eugen.t]

Thank you, Uwe! The entire process of model building is progressing slowly, and I am currently in the preparation phase for the final stage. One of the most important tasks at this stage is rigging and sails. My goal is to create a realistic appearance, as if the sails were slightly inflated by the wind, to give the model liveliness. I have already received excellent blocks from Ships of Pavel Nikitin, which were specifically designed by me for this model. They were also included in the Santa Maria kit from Ships of Pavel Nikitin. Once I finish the preparations, I will definitely open a topic in the forum.
