Chapman Frigate

[polydoc]

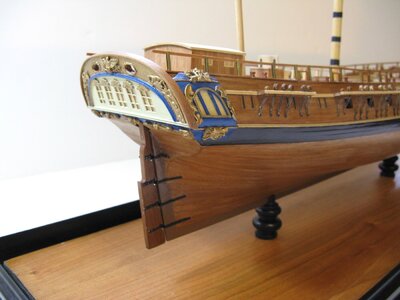

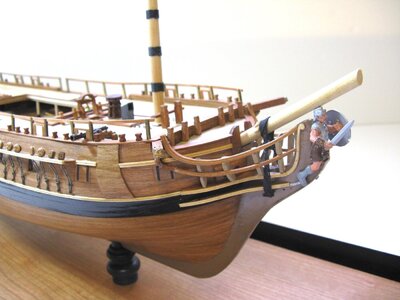

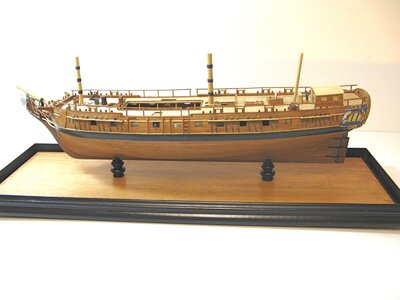

This model was built from the plans in Chapman's Architectura Navalis, Plate 33, Plan 2. The scale is 1/64. The plan shows a design for a swiveling carriage for the guns. Carriages were built per the plan and one cannon was shown run out and one in storage . An opening was left in the deck so the carriages could be seen.



[shota70]

well done, your work looks great and the result is excellent



[polydoc]

A correction to my first post. The scale is 1/96 and the hull is 22.2" between perpendiculars.



[jepoysaipan]

A correction to my first post. The scale is 1/96 and the hull is 22.2" between perpendiculars.

Hi polydoc,

I was able to acquire a 3d cut plan of this boat, unfortunately only the hull, if you don't mind me asking did you made yours from scratch?

Thanks!



[polydoc]

Yes it was scratch built by the plank on bulkhead method for the hull. I made this a long time ago, but if you have any questions I will try to answer them.



[aferox]

Lovely work!
