Hallo my friends,
I received a sample of the new revised add on kit of one of the boats of the La Salamandre from CAF, which I want to introduce today

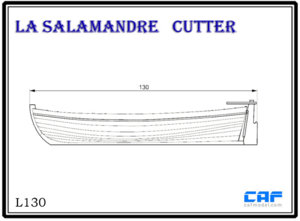

It is the Cutter in scale 1:48, full rib construction with a total length of 130mm

Before I want to show you the "old" version which was built inside a jig, similar to the Salamandre, here you had the "problem, that you had to put the framework out of the jig before you could make the planking. Carvel-planked

43a793e8d5.jpg 695f67531e.jpg

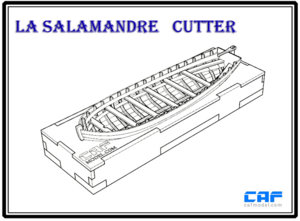

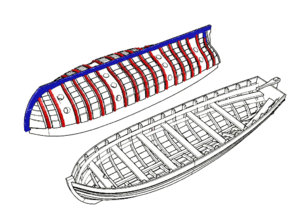

With the new version of the Cutter-kit you have a negative form on which you can install the keel, frames and also the outer planking, all based on a rigged form.
Clinker built Cutter

1b.JPG 3 (002).jpg

5.jpg d176943292.jpg

But now let us have a look on the parts of the revised Cutter-kit

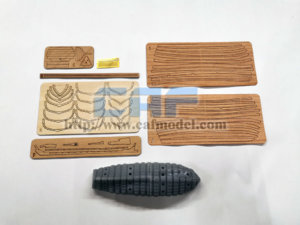

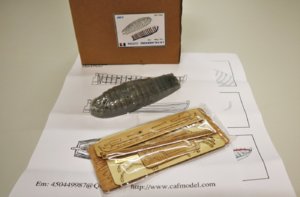

The complete content:

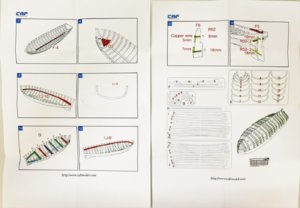

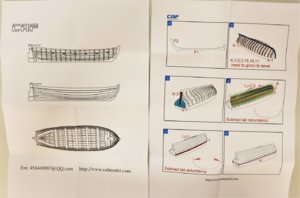

The small manual describing the different working steps - in my opinion enough information

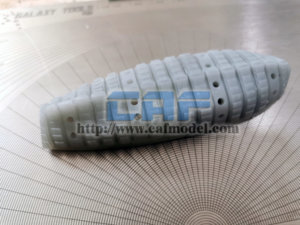

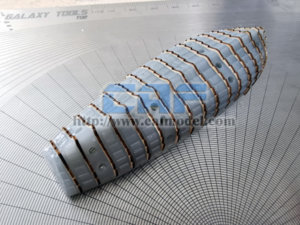

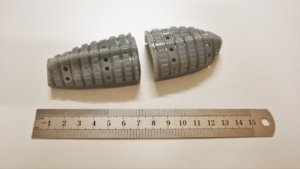

The negative basis - simple but great idea - you can see the steps for the planking - it is a clinker built cutter !!!

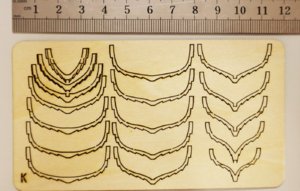

The frames / ribs - prepared for clinker planking

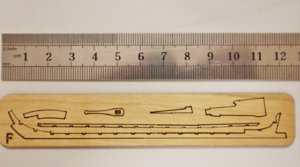

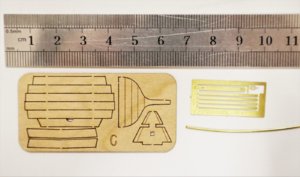

the keel and keelson, rudder etc.

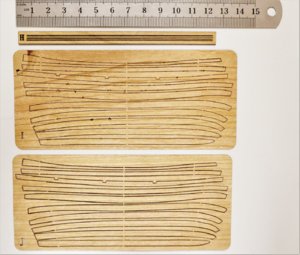

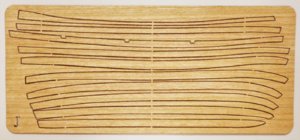

The pre-cut planking

One side of the planking in more detail - I guess there is now problem with the grain, it is fine / small enough

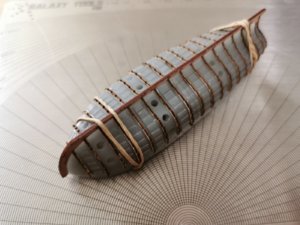

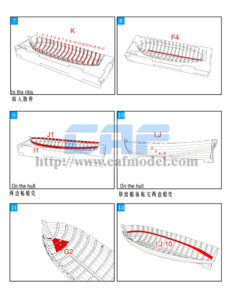

In the following some more photos from CAF showing some of the working steps






A small and interesting new development by CAF - hope, that they will revise also the longboat accordingly
