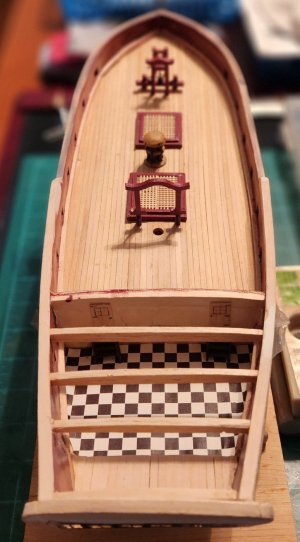

The next steps were to install some planking inside of the hatch openings and paint them black. Then I worked on building the hatch coverings. The pieces provided to make these are of very poor quality. Many of them are thinner than the others and many had teeth broken off of them. I am wondering if I can get some good quality hatch coverings from another source.

Hatch coverings.jpg

Joined
Aug 1, 2014
Messages
184
Points
103

Location
Tennessee
After I get the hatch coverings installed, I am looking to install the capstan and Bitts at the bow. Looking at the metal pieces provided, I am once again disappointed in the quality. Do any of you know where I could get wood replacements for the capstan and Bitts?

Joined
Aug 1, 2014
Messages
184
Points
103

Location
Tennessee
I must be missing something, but I cannot find the size of the cannons that are onboard the Fair American. I was looking to get a couple samples of the cannon and carriages to test out replacing the ones that came with MS2015. But, I do not know what size they are supposed to be.
Any ideas?


Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
17,174
Points
938

Location
Vienna, Austria
I must be missing something, but I cannot find the size of the cannons that are onboard the Fair American. I was looking to get a couple samples of the cannon and carriages to test out replacing the ones that came with MS2015. But, I do not know what size they are supposed to be.
Any ideas?
At this time, these brigs, of which several had the name "Fair American", were armed with american 6-pounders

naval gun by Harold Hahn 1.jpg


Joined
Aug 1, 2014
Messages
184
Points
103

Location
Tennessee

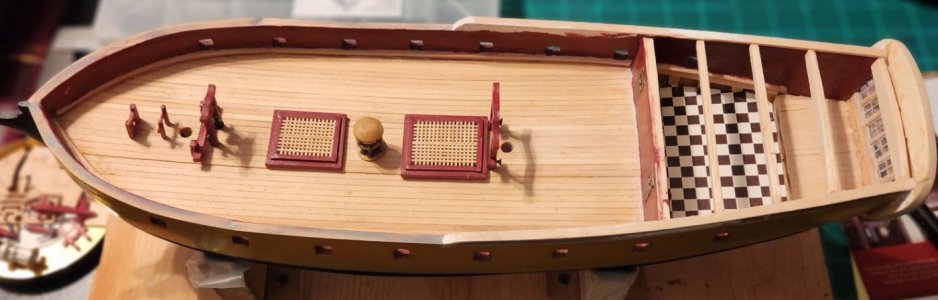

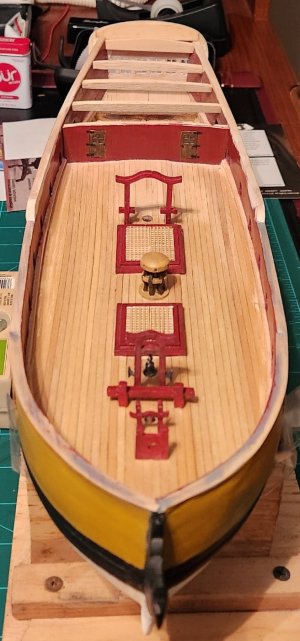

I finished carving and painting the capstan. I like the way the carved capstan came out so I glued it to the deck. I compared the painted wood bitts I made with the metal bitts after painting them. I used 2 of the cast pieces and one of my wooded carvings and dry fit them to the deck.

Capstan and Bitts 001.jpg

Capstan and Bitts 002.jpg

Last edited by a moderator:
Joined
Aug 1, 2014
Messages
184
Points
103

Location
Tennessee

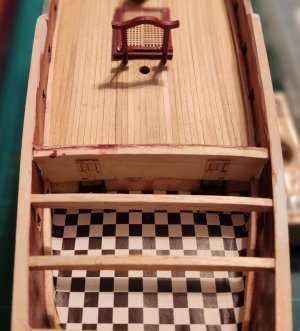

The practicum called to show the cabin through part of the quarterdeck. But, I am not sure how to build out the area directly in front of the transom windows.
