Friesland - Mamoli scale 1:75

Maarten

Staff member
Forum Moderator
Joined
Sep 10, 2017
Messages
2,417
Points
628

Location
The Netherlands
A few months ago I finished building the Mayflower and now at the beginning of the construction of Friesland

Good to see a Friesland build, build it some 20 years ago. See below link to my model.

Beautifull model and it is perfect for additional detailing.
If you want to upgrade your build have a look at the 7 provincien drawings of otte blom, freely available and he did fantastic work.

Friesland is based on the hohenzollern model and from the same time frame as 7 provincien, so you can use the drawings as a guideline.
Lots of succes, looking forward to your build.

Joined
Apr 20, 2020
Messages
1,344
Points
443

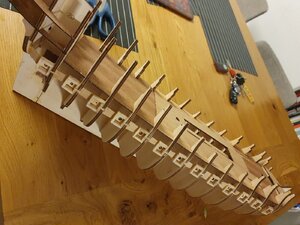

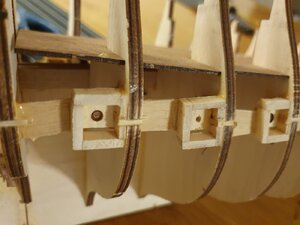

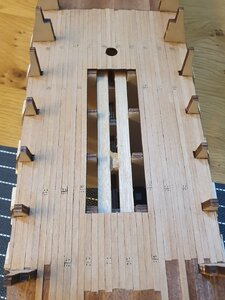

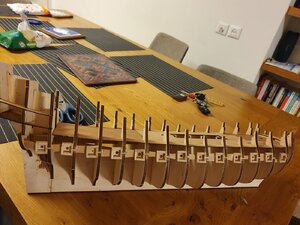

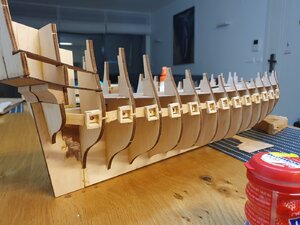

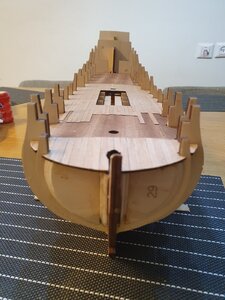

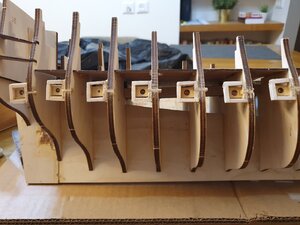

I made some further progress in installing the inner frame of the windows to the lower deck guns. Of course I need to do more polishing and precision. Thanks for the references and especially Maarten's reference. Attaching photos.
Teammates, I do not know if this is the right place, I would love to get your help. I try to get the next book in English with the sketches and accompanying plans, but some of the sites are very expensive or only in a language I do not know. I would love to buy from a friend or group member who is willing to sell or recommend a reliable website that sells at a fair price. This is the book: Le Fleuron 1729, Vaisseau De 64 Canons Du Constructor Blaise Olivier.

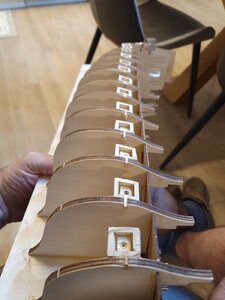

20200505_224113.jpg20200505_224056.jpg20200505_213023.jpg20200505_224113.jpg20200505_224056.jpg20200505_213023.jpg I would also love to recommend similar books that incorporate detailed plans of ships on which ships can be built from drawings and plans, and at medium difficulty. Many thanks in advance to you all


Kkonrath

Kurt Konrath
Joined
Feb 11, 2020
Messages
1,915
Points
488

Location
Oklahoma City OK

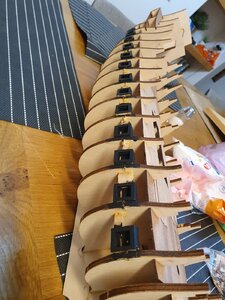

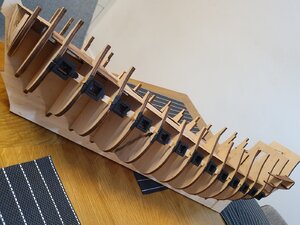

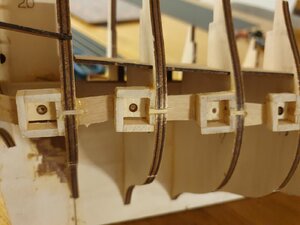

Might I recommend you make sure to paint the gun box enclosures before you start planking.

Most kits I have seen use black to darken the area to look like dark insides of ships, and hide the back wall of gun box.

Much easier and cleaner then done with planks attached.

Joined
Apr 20, 2020
Messages
1,344
Points
443

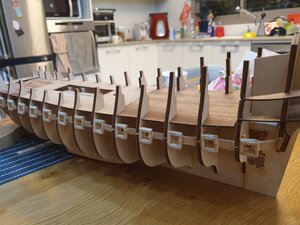

Unfortunately, I had to remove all of the windows frames, because with the start of the flanking I found that they were not installed in a straight and leveled line. Not bad, it's better to fix and accurate. I will re-create the window frames and it will take about two weeks. Hope we hear in a few days with better results.

Joined
Apr 20, 2020
Messages
1,344
Points
443

Dear Friends

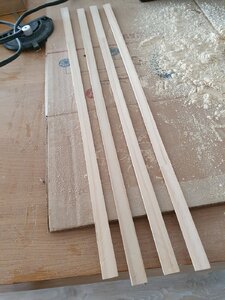

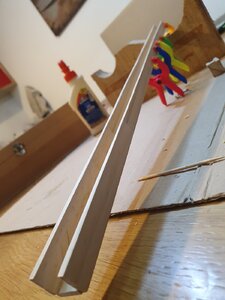

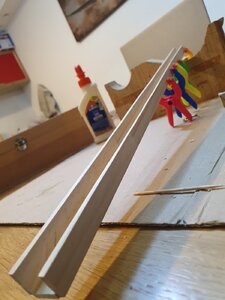

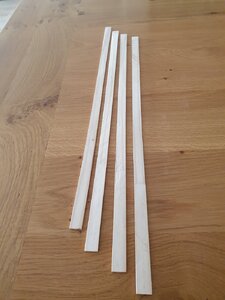

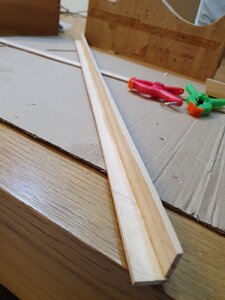

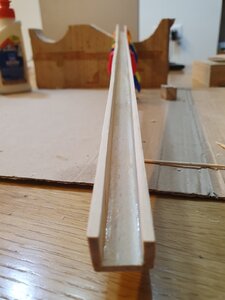

As I said three days ago, I removed the artillery windows. Today I started the process of creating the new frames. I cut four new boards and glued them to a square sleeve, from which I would cut slices from which I would attach the window frames. In the new sleeve I have reduced the size by one and a half millimeters, but the frames themselves will be wider by 3.5 millimeters. I am attaching pictures to illustrate the construction process.
Hope to keep up with the progress in a few days20200519_181659.jpg20200519_183111.jpg20200519_190455.jpg20200519_194059.jpg20200519_194107.jpg20200519_194113.jpg20200519_195538.jpg20200519_195549.jpg20200519_203659.jpg20200519_203715.jpg

Last edited by a moderator:

zoly99sask

Administrator
Staff member
Administrator
Joined
Apr 13, 2015
Messages
6,311
Points
738

Location
Saskatoon,Canada
Dear Friends
As I said three days ago, I removed the artillery windows. Today I started the process of creating the new frames. I cut four new boards and glued them to a square sleeve, from which I would cut slices from which I would attach the window frames. In the new sleeve I have reduced the size by one and a half millimeters, but the frames themselves will be wider by 3.5 millimeters. I am attaching pictures to illustrate the construction process.
Hope to keep up with the progress in a few daysView attachment 152323View attachment 152324View attachment 152325View attachment 152326View attachment 152327View attachment 152328View attachment 152329View attachment 152330View attachment 152331View attachment 152332

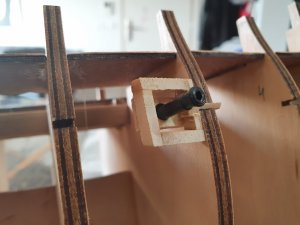

This is the method I used to build the gunports for my Ontario


Kkonrath

Kurt Konrath
Joined
Feb 11, 2020
Messages
1,915
Points
488

Location
Oklahoma City OK
I have found when trying to make square empty boxes as you designed, find a block of wood or stack wood the size you need and use as center block to keep ends aligned, I have used two or three spaced the length of new box to help in alignment to keep square better.
