H.M.S Granado. Plank on frame 1/48 scale. CAF model.

[Bryian]

Hi guys,

my next project just arrived today. Its the new kit from Tom at CAF model in Shanghai China. It arrived at my doorstep in 7 days from ordering it, and that is excellent mail order service.
This is the full hull version, as there is also a cross section kit of this ship available. The first stage of the kit features all the frames which are very accurately laser cut in Cherry wood and also includes the building cradle.

Here is the two boxes of the first stage -

.



[Bryian]

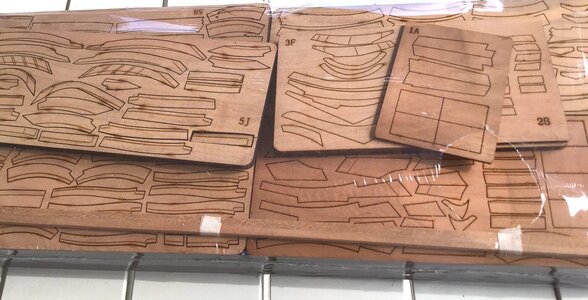

Here is the framing cradle and the Cherry wood frames.

.



[Bryian]

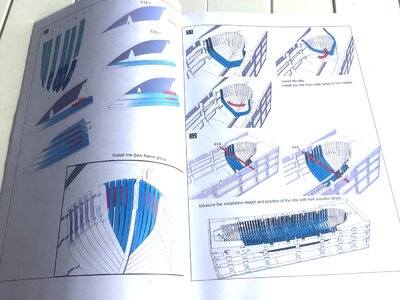

Plans and step by step instruction booklet in colour. Very impressed with this, and it has English instructions.

.



[Jimsky]

Congrats, mate. I am taking an empty seat to watch your build. Can you do an open box - review?



[Bryian]

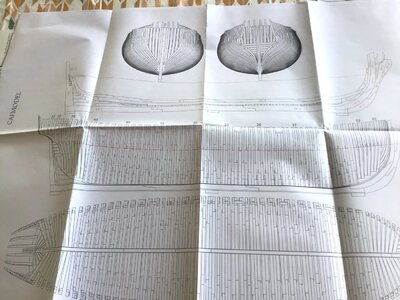

There are multiple sheets of plans with frame assembly details. The frame assembly is double laminated for strength.

My fingers are itching to get cracking on this. Will keep you all posted. I am thrilled to bits !



[Bryian]

Jim,
I opened up some of the parts to show the open box review. This is stage 1 of the build.

There are 2 more stages of the model to come over the next 8 months.

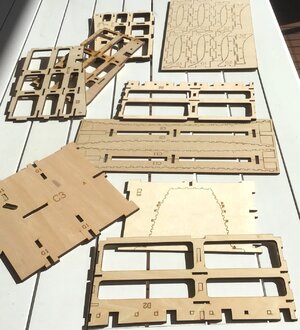

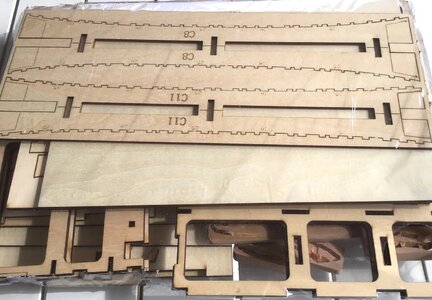

Here is some of the framing cradle. Its laser cut in 3 ply.

.



[Bryian]

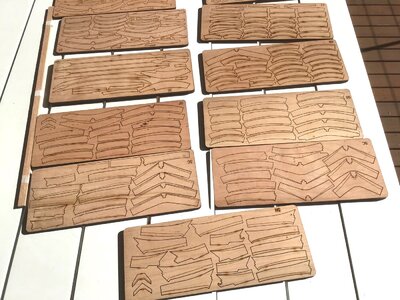

This is some of the multiple sheets of laser cut cherry wood framing material. I'm certainly going to be busy.

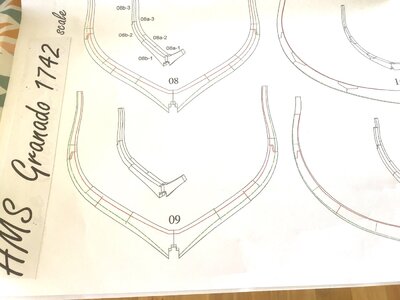

There is also a snap shot of a section of the framing assembly plans.

.



[Bryian]

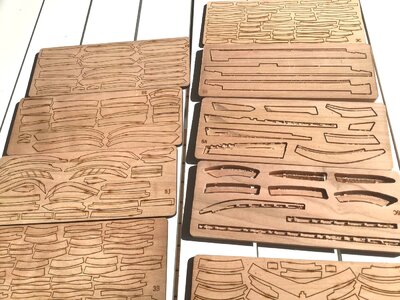

Cannot help myself... I'm so excited. Here are some more frames.

..



[shota70]

Cannot help myself... I'm so excited. Here are some more frames.

..View attachment 247908

good luck with this great model



[Uwek]

I will follow with big interest - because I am also thinking about the full hull model of the Granado
- especially because of the impressive and detailed frame construction



[Heinrich]

I am very glad to see you building again Bryian. I thought your next project was Kris's HMS Tyger.



[Kurt Konrath]

good luck with this great model

Bryian, it looks like someone is trying to frame you as a boat builder! ha ha, kit looks great, I will be watching.



[DenisR]

Looks good Brian
Will pull a chair up.

Denis.



[jeep]

"Hurrahs" for perhaps a proper instruction booklet from CAF. Previous attempt was much like the "Blind Watchmaker".



[Bryian]

The instructions are a vast improvement from previous kits. The step by step assembly instructions are in English.



[wmgrimball]

Very tempting! I shall watch with interest.



[Tony H]

What a fantastic looking project, very high tech with all that CNC machining. I will be watching this build with interest.



[Bryian]

I am just commencing the build of the ships cradle. Will post some photos tomorrow.



[tedboat]

I have also bought the kit, and I'm at about the same stage as you Bryian.
Excellent quality, and a huge step up in the instructions - very impressed!
Will post some photos (when I remember to take some)

Ted



[Bryian]

I hope you can start a build log Ted, so we can be working on our models together.
