I have two other projects going, but....


This will be my build log for a scratch-built, 1:32 scale, plank-on-frame, admiralty style model of "Hannah", purportedly the first armed ship recruited into Washington's navy during the Revolutionary War.

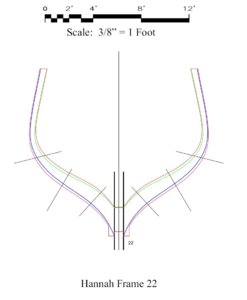

I've wanted to do a full hull scratch build at this larger scale, but what ship? The choice was not completely arbitrary. Even a 5th or 6th rate frigate in the Royal Navy would be 4-1/2 feet long at this scale, not including the bowsprit! Obviously I had to look elsewhere. I settled on Hannah because it is significantly smaller (this model will be 24" long with a 6" beam) and there was a lot of documentation out there regarding the model. I have Hahn's book as well as his plans for "Hannah" to use as a reference. The actual building plans were drawn by Bob Hunt, based on Hahn's original drawings, and were done in 1:48 scale. I had them resized to 1:32. The drawings show each individual futtock and include detailed drawings of each frame, including bevel lines. The model will be built in an upright jig, as was my 1;32 Armed Virginia Sloop and my 1:32 "Blandford" cross section. The frames, stem, keel and stern will be boxwood. I'll decide on other woods as I move along with the build.

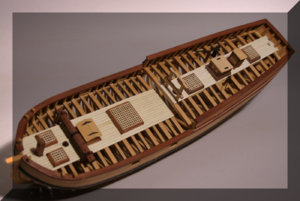

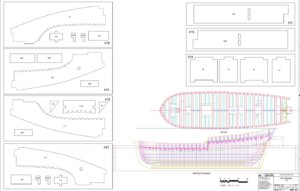

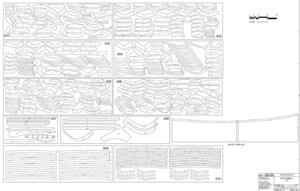

Thanks for looking in! Here are some shots of the plans and Bob Hunt's "Hannah" model along with a link to his website. https://www.lauckstreetshipyard.com/



IMG_1800.JPGIMG_2466.JPGplans1.jpgplans2.jpgplans3.jpgT


DocBlake

Blandford
Blandford Group Build
Joined
Jan 24, 2015
Messages
1,401
Points
483

Location
Pewaukee, Wisconsin
Thanks for looking in, guys!

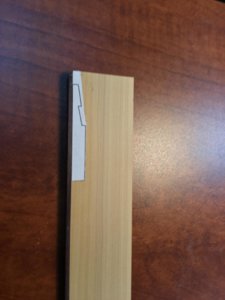

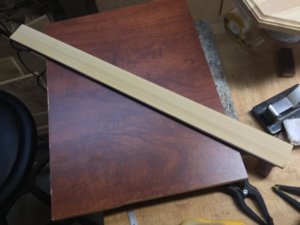

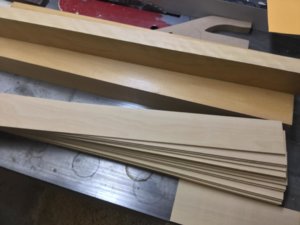

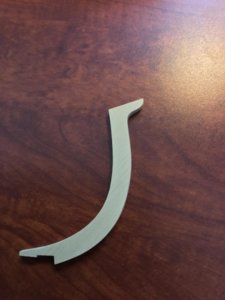

I started working on the model by milling my wood. The frames are double frames, sistered together. each half-thickness frame is 9/64" thick, with a finished frame thickness of 9/32". almost all the billets are 9/64" thick. The stem and keel are supposed to be constructed of two thicknesses also, but I simply made them 9/32". The photos show some of the milled wood, my keel blank with the false keel attached , the stem and the template for the keel scarf rubber cemented to the keel blank.






Mike41

Moderator
Staff member
Moderator
Blandford Group Build
Joined
Aug 10, 2017
Messages
951
Points
343

They would add a lot to the model, since she is a small ship it wouldn't add much more time to the build and you can always get a bigger plate lol.


DocBlake

Blandford
Blandford Group Build
Joined
Jan 24, 2015
Messages
1,401
Points
483

Location
Pewaukee, Wisconsin
You're convincing me Mike! I have a larger plate on order! :D

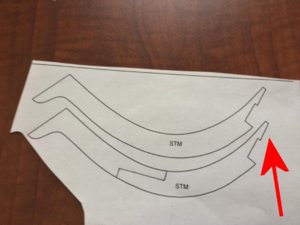

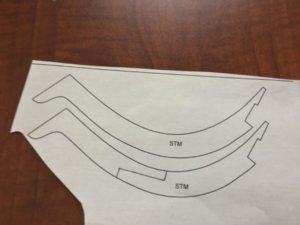

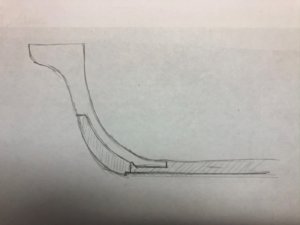

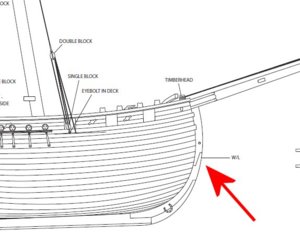

I question making the stem out of a single timber. Both Harold Hahn and Bob Hunt left the stem as a single timber. It's a large piece of wood with a pretty serious curve in it. I doubt that a large enough tree could be found with the natural curve in it to serve as the stem. If the stem were cut from a single straight timber , that piece of wood would have to be almost 6 feet wide! I doubt there were many trees that were more than 6 feet in diameter while being suitable for shipbuilding! My conclusion it that the stem would almost certainly be scarfed together. Here is a proposed scarf for the stem. I have no real plans that show this...it just makes sense to me. Thoughts? stemscarf.jpg
