Help. Corel Endeavour rigging

Joined
Jun 23, 2020
Messages
48
Points
78

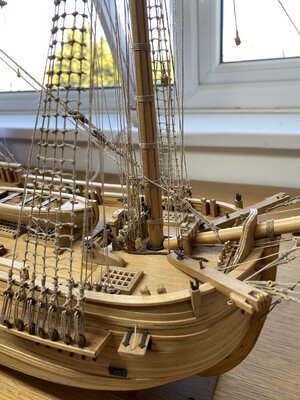

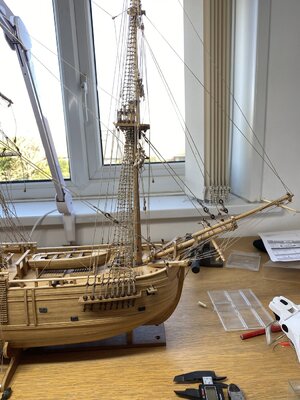

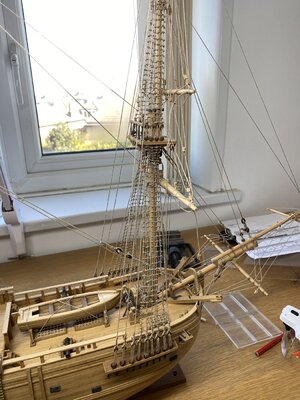

Bowsprit and foremast fully rigged. Learned some lessons along the way and developed some tools. Made a rig to make coils of rope. Tooth pick and a wooden BBQ skewer sanded to a flat point then cut a notch in it to help reach those hard to reach places.


Attachments

  • 6DD1BED3-6470-404E-90D4-0F3011839536.jpeg
    297.2 KB · Views: 17
  • B192C41F-7F2B-4137-90B2-3BB214EBC9CD.jpeg
    299.5 KB · Views: 18
  • FC812220-07FE-4B9B-9B12-3864306D14B0.jpeg
    306.4 KB · Views: 17
Joined
Jun 23, 2020
Messages
48
Points
78

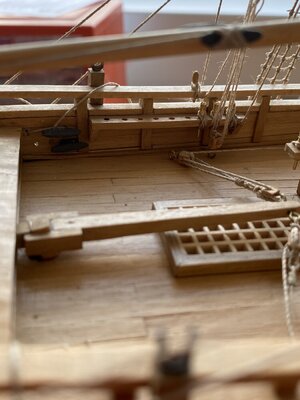

Hello. More help needed. I’m nearly finished but I appear to have a lot of empty belay pin slots in the stern racks. Have I missed something?


Attachments

  • FCFF9B24-A7FD-43F4-8F82-9B269BB7976E.jpeg
    183.3 KB · Views: 8

Jimsky

Administrator
Staff member
Administrator
Joined
Nov 3, 2018
Messages
8,003
Points
738

Location
Brooklyn, New York USA
Hello. More help needed. I’m nearly finished but I appear to have a lot of empty belay pin slots in the stern racks. Have I missed something?
I would think so...But, it is hard to tell from your image. Every and each ship has rigging plans. Those plans are showing where each shroud should belong (belaying) to.
There is a great book by Karl Heinz Marquardt Captain Cook's Endeavor (Anatomy of the Ship series). I am sure it will help you to identify the correct position of belying pins.


Joined
Jun 23, 2020
Messages
48
Points
78

Thanks. I have checked the plans and there is no diagram of the rear portion of the belay rack. Only the first three pins seem to be used.

Joined
Aug 6, 2018
Messages
678
Points
298

Location
calahonda, mijas costa, malaga- spain
Thanks. I have checked the plans and there is no diagram of the rear portion of the belay rack. Only the first three pins seem to be used.
I can be correct. SA far I can see, you have build the ship without sails -sails has a lot of running Rigning -which needs to be attached. Staysails and Squire sails. I have just been through all your Images and NO sails is seen, so do not worry. Sails will take up over 50% of the total Riggen.. I build it my selves with sails in 1990 something.

Joined
Jun 23, 2020
Messages
48
Points
78

Hi. Yes I have already purchased the kits. I have the 1/16 scale Sopwith Camel by Artensia Latina and the rotary engine kit by model shipways. Followed by the Mercury brig by Victory models. My wife has said she has some projects around the house before I’m allowed to start ‍♂️
