HMS Barfleur was a 90-gun second-rate ship of the line of the Royal Navy, designed by Sir Thomas Slade on the lines of the 100-gun ship Royal William, and launched at Chatham Dockyard on 30 July 1768, at a cost of £49,222. In about 1780, she had another eight guns added to her quarterdeck, making her a 98-gun ship; she possessed a crew of approximately 750. Her design class sisters were the Prince George, Princess Royal, and Formidable. She was a ship of long service and many battles.

The Barfleur-class ships of the line were a class of four 90-gun second rates, designed for the Royal Navy by Sir Thomas Slade.

Design
The design for the Barfleur class was based upon HMS Royal William.

Ships
Builder: Chatham Dockyard
Launched: 30 July 1768
Fate: Broken up, 1819
Builder: Chatham Dockyard
Launched: 31 August 1772
Fate: Broken up, 1839
Builder: Portsmouth Dockyard
Launched: 18 October 1773
Fate: Broken up, 1807
Builder: Chatham Dockyard
Launched: 20 August 1777
Fate: Broken up, 1813


http://en.wikipedia.org/wiki/HMS_Barfleur_(1768)
https://en.wikipedia.org/wiki/Barfleur-class_ship_of_the_line

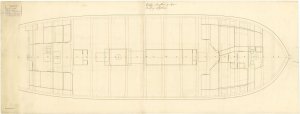

Hms Barfleur 1768 orlop deck

Hms Barfleur 1768 orloop deck.jpg
Scale 1:48. Plan showing the orlop deck with fore and aft platforms for 'Barfleur' (1763), a 90-gun Second Rate, three-decker, building at Chatham Dockyard.
Read more at http://collections.rmg.co.uk/collections/objects/80131.html#vwP92REObtxtoWVL.99

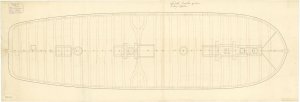

Hms Barfleur 1768 Lower Gundeck Plan.jpg

Scale 1:48. Plan showing the gun deck (lower deck) for 'Barfleur' (1768), a 90-gun Second Rate, three-decker, building at Chatham Dockyard.
Read more at http://collections.rmg.co.uk/collections/objects/80132.html#otDbij1lWau1pMhC.99

Hms Barfleur 1768   Middle and Upper Gundecks, Quarterdeck and Forecastle plans.jpg

Scale 1:96. Plan showing the quarterdeck and forecastle, upper deck, and middle deck for 'Barfleur' (1768), a 90-gun Second Rate, three-decker.
Read more at http://collections.rmg.co.uk/collections/objects/80134.html#pwPURT53B5riSuMr.99

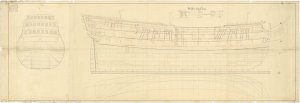

Hms Barfleur 1768  Sheer Plan, details of the stern and Lines.jpg

Scale 1:48. Plan showing the body plan with stern board outline, sheer lines with inboard details, and longitudinal half-breadth for 'Barfleur' (1768), a 90-gun Second Rate, three-decker. The extension to the Roundhouse illustrated in this plan was ordered in January 1771 while 'Barfleur' was completing at Chatham Dockyard. The plan also shows her with three quarter galleries, unlike the proposal plan (ZAZ0336), which illustrates only two.
Read more at http://collections.rmg.co.uk/collections/objects/80129.html#eAzZmgHHcyUFBmI1.99

Hms Barfleur  1768 Inboard Profile and Plan.jpg

Scale 1:48. Plan showing the inboard profile proposed (and approved) for fitting for 'Barfleur' (1768) and later for 'Princess Royal' (1773), both 90-gun Second Rate, three-deckers. The plan shows the later extension to the Roundhouse ordered in January 1771 while 'Barfleur' was completing at Chatham Dockyard.
Read more at http://collections.rmg.co.uk/collections/objects/80130.html#WjEdbukrorFSyux2.99
