HMS Euryalus 1803 - Scale 1:48 [COMPLETED BUILD]

Joined
May 21, 2018
Messages
245
Points
348

Location
Leverkusen, Germany
Sorry for the text in german, but my English is not good enough. I hope there are some members who can do this for me

Hallo zusammen,

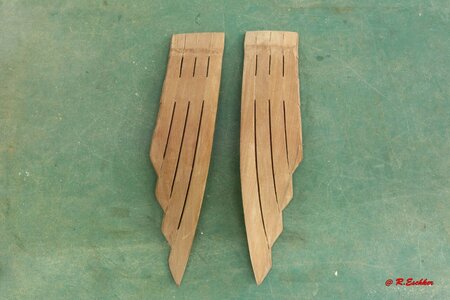

ich möchte hiermit mal einen Baubericht meines neuen Projektes einstellen. Es handelt sich um die HMS Euryalus von 1803 im Maßstab 1:48. Es ist, wie auch in den Bauberichten zuvor, nicht mein Anspruch ein Museumsmodell zu erstellen, sondern das meine Hände dem folgen, was mein Hirn so vorgibt. Kurz gesagt; es geht mir mehr ums bauen als um geschichtliches. Ich hoffe Ihr könnt mir das verzeihen. Zur weiteren Vorgehensweise folgendes: ich werde Bilder ohne viel Text einstellen, da ich der Meinung bin dass Bilder manchmal mehr erzählen als Worte und ich auch ein wenig schreibfaul bin. Falls Fragen von Euch auftauchen werde ich versuchen diese so gut und ausführlich wie möglich beantworten. Ich bin jetzt ca. 1 1/2 Jahre intensiv (Corona macht möglich) mit dem Bau beschäftigt und hoffe, das Modell irgendwann einmal fertig zu bekommen.

Die HMS Euryalus war eine 36 Kanonen Fregatte der Apollo Klasse. Sie lief 1803 vom Stapel und nahm an der Schlacht von Trafalgar teil. Ebenfalls war sie im Krieg von 1812 sehr aktiv. 1847 wurde sie nach Gibraltar verlegt und diente dort weitere 13 Jahre als Prison Ship. 1859 wurde der Name des Schiffes auf „Africa“ geändert und 1860 verkauft und abgewrackt. Das Modell entsteht nach den Büchern und Plänen von Allan Yedlinsky und Wayne Kempson (Seawatch Books) im Maßstab 1:48. Ich werde versuchen das Modell ohne Beplankung, Bemastung und Takelage aber mit Inneneinrichtung zu bauen. Es soll das Ständerwerk bzw. das Holzgerüst im Vordergrund stehen um zu sehen wie früher die Schiffe gebaut wurden.

Das Modell hat eine Länge von ca. 1100 mm, eine Breite von ca. 280 mm und eine Höhe von ca. 300 mm.

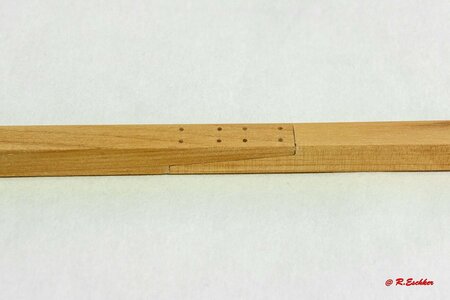

Es beginnt mit dem Kiel


google (and Uwe) translation:

Hello, everyone,

I would like to post a construction report of my new project. It is the HMS Euryalus from 1803 in a scale of 1:48. As in the previous construction reports, it is not my aim to create a museum model, but rather that my hands follow what my brain dictates. Briefly I'm more about building than about history. I hope you can forgive me for that. To proceed as follows: I will post pictures without a lot of text, because I am of the opinion that pictures sometimes tell more than words and I am also a little bit lazy in writing. If you have any questions I will try to answer them as well and in detail as possible. I am now about 1 1/2 years intensively (Corona makes it possible) busy with the construction and hope to get the model ready one day.

The HMS Euryalus was a 36 gun frigate of the Apollo class. It was launched in 1803 and took part in the Battle of Trafalgar. She was also very active in the war of 1812. In 1847 she was moved to Gibraltar and served there as a prison ship for another 13 years. In 1859 the name of the ship was changed to "Africa" and in 1860 it was sold and scrapped. The model is based on the books and plans by Allan Yedlinsky and Wayne Kempson (Seawatch Books) on a scale of 1:48. I will try to build the model without planking, masting and rigging but with interior fittings. The structural work or the wooden framing should be in the foreground to see how the ships were built in the past.

The model has a length of approx. 1100 mm, a width of approx. 280 mm and a height of approx. 300 mm.

It starts with the keel


Best Regards
Lucius


Attachments

  • ESC6596.jpg
    73.6 KB · Views: 19
Last edited by a moderator:
Hallo Rüdiger alias @Lucius
I am very happy and glad, that you decided to start the building log of your actual model.
And I am also very happy to read, that you will show us a lot of photos - drawings and photos showing the work are telling more than 1.000 words and are often self-explaining -> but be sure: there will come some questions of members. We all want to learn from each other
Happy Modelling
ByTheWay BTW: wonderful pear wood you are using! and very accurate work
BTW2: To all other members: Rüdiger built in the past a wonderful model of the Le Requien in 1:48......maybe you show us once you have some time the model in this area - just beautiful

Hallo my friend,

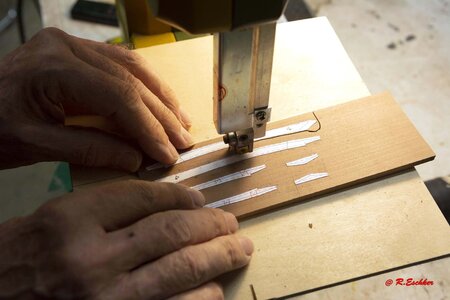

It looks like, that you use the Proxxon band-saw for cutting the frame pieces - I never used a bandsaw, but usually my scroll saw for these works.
Do you have better experiences with the band-saw?

Hallo Uwe,
ich habe die Proxxon Bandsäge genommen weil sich die Geschwindigkeit des Sägebandes einstellen läßt und und außerdem gibt es ja seit kurzem die Feinsägeblätter. Damit geht das Kurvenschneiden noch besser und die Sägefläche ist glatter.

(Goggle Translator)
I took the Proxxon band saw because the speed of the saw band can be adjusted and, moreover, the fine saw blades have recently been available. This makes curve cutting even better and the sawing surface is smoother.

Best regards
Rüdiger

Sorry for the text in german, but my English is not good enough. I hope there are some members who can do this for me

Hallo zusammen,

ich möchte hiermit mal einen Baubericht meines neuen Projektes einstellen. Es handelt sich um die HMS Euryalus von 1803 im Maßstab 1:48. Es ist, wie auch in den Bauberichten zuvor, nicht mein Anspruch ein Museumsmodell zu erstellen, sondern das meine Hände dem folgen, was mein Hirn so vorgibt. Kurz gesagt; es geht mir mehr ums bauen als um geschichtliches. Ich hoffe Ihr könnt mir das verzeihen. Zur weiteren Vorgehensweise folgendes: ich werde Bilder ohne viel Text einstellen, da ich der Meinung bin dass Bilder manchmal mehr erzählen als Worte und ich auch ein wenig schreibfaul bin. Falls Fragen von Euch auftauchen werde ich versuchen diese so gut und ausführlich wie möglich beantworten. Ich bin jetzt ca. 1 1/2 Jahre intensiv (Corona macht möglich) mit dem Bau beschäftigt und hoffe, das Modell irgendwann einmal fertig zu bekommen.

Die HMS Euryalus war eine 36 Kanonen Fregatte der Apollo Klasse. Sie lief 1803 vom Stapel und nahm an der Schlacht von Trafalgar teil. Ebenfalls war sie im Krieg von 1812 sehr aktiv. 1847 wurde sie nach Gibraltar verlegt und diente dort weitere 13 Jahre als Prison Ship. 1859 wurde der Name des Schiffes auf „Africa“ geändert und 1860 verkauft und abgewrackt. Das Modell entsteht nach den Büchern und Plänen von Allan Yedlinsky und Wayne Kempson (Seawatch Books) im Maßstab 1:48. Ich werde versuchen das Modell ohne Beplankung, Bemastung und Takelage aber mit Inneneinrichtung zu bauen. Es soll das Ständerwerk bzw. das Holzgerüst im Vordergrund stehen um zu sehen wie früher die Schiffe gebaut wurden.

Das Modell hat eine Länge von ca. 1100 mm, eine Breite von ca. 280 mm und eine Höhe von ca. 300 mm.

Es beginnt mit dem Kiel


google (and Uwe) translation:

Hello, everyone,

I would like to post a construction report of my new project. It is the HMS Euryalus from 1803 in a scale of 1:48. As in the previous construction reports, it is not my aim to create a museum model, but rather that my hands follow what my brain dictates. Briefly I'm more about building than about history. I hope you can forgive me for that. To proceed as follows: I will post pictures without a lot of text, because I am of the opinion that pictures sometimes tell more than words and I am also a little bit lazy in writing. If you have any questions I will try to answer them as well and in detail as possible. I am now about 1 1/2 years intensively (Corona makes it possible) busy with the construction and hope to get the model ready one day.

El HMS Euryalus era una fragata de 36 cañones de la clase Apollo. Fue lanzado en 1803 y participó en la batalla de Trafalgar. También fue muy activa en la guerra de 1812. En 1847 fue trasladada a Gibraltar y sirvió allí como barco prisión durante otros 13 años. En 1859 se cambió el nombre del barco a "África" y en 1860 fue vendido y desguazado. El modelo se basa en los libros y planos de Allan Yedlinsky y Wayne Kempson (Seawatch Books) en una escala de 1:48. Intentaré construir el modelo sin tablones, mástiles y aparejos pero con equipamiento interior. El trabajo estructural o la estructura de madera deben estar en primer plano para ver cómo se construyeron los barcos en el pasado.

El modelo tiene una longitud de aprox. 1100 mm, un ancho de aprox. 280 mm y una altura de aprox. 300 mm.

Empieza por la quilla

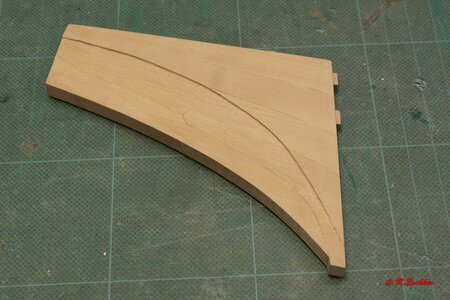

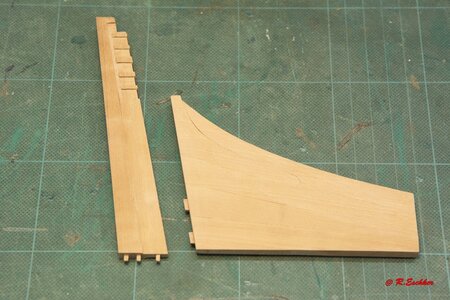

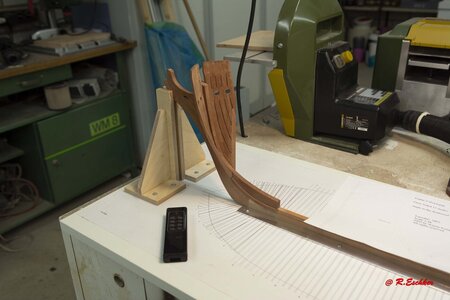

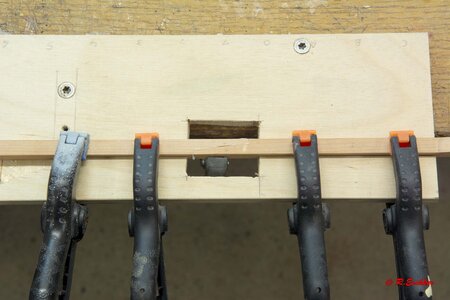

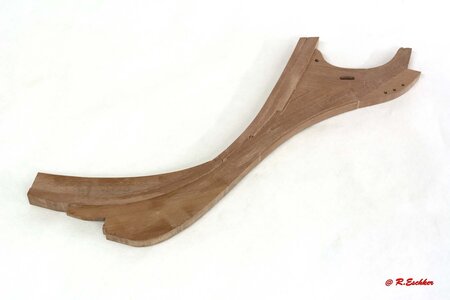

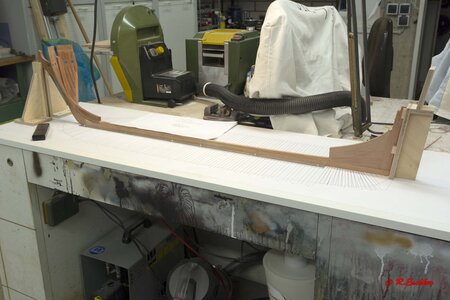

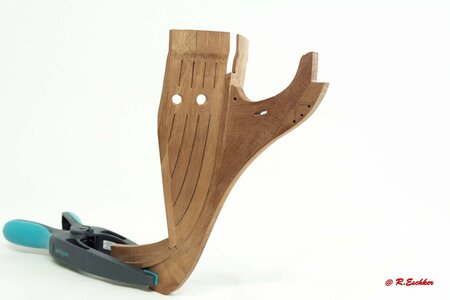

View attachment 259648

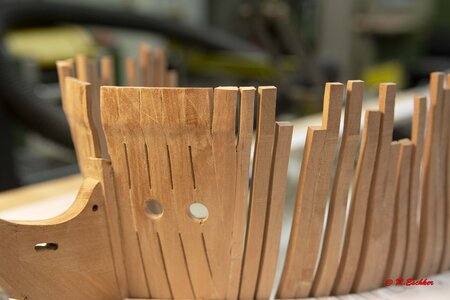

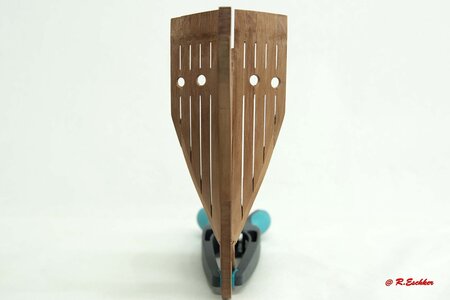

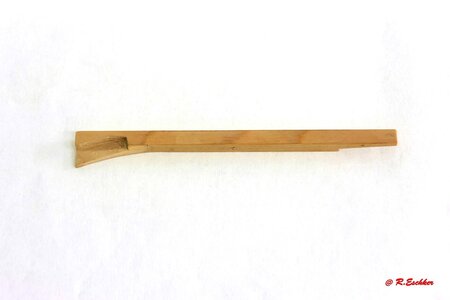

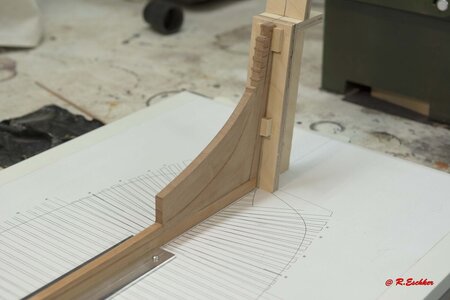

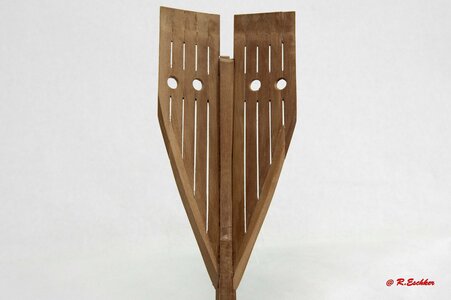

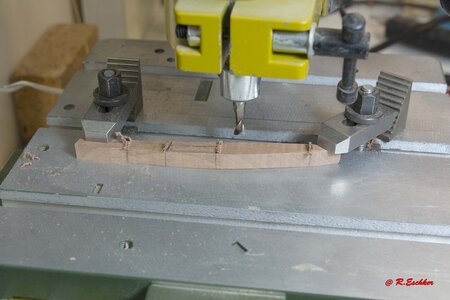

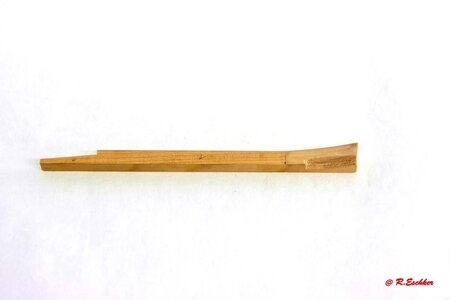

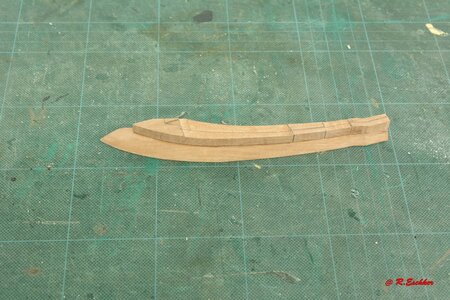

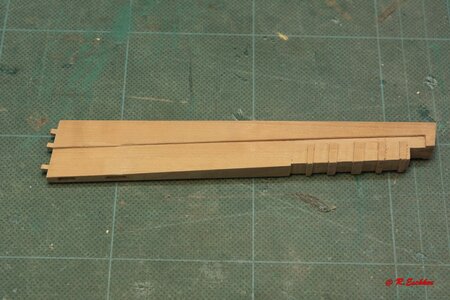

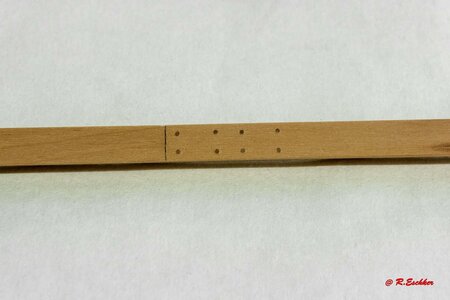

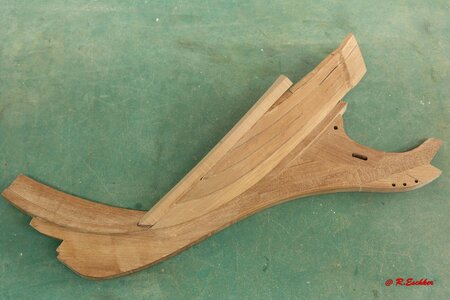

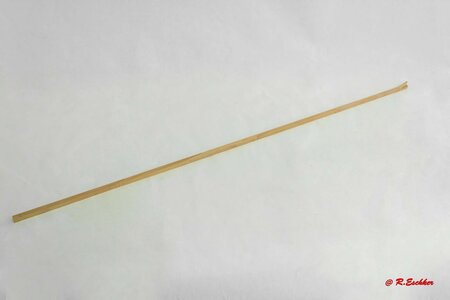

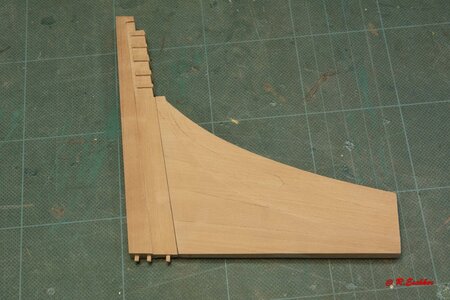

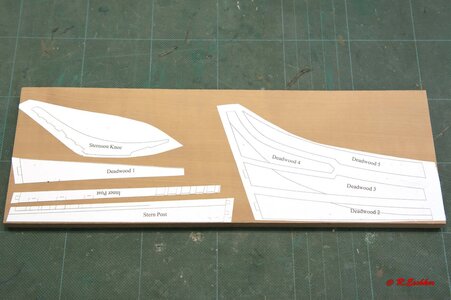

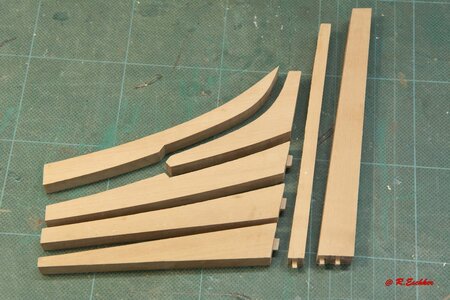

View attachment 259650View attachment 259651View attachment 259652View attachment 259653View attachment 259654

Atentamente
Lucius
SUERTE en la construcción del Eurylus, según veo por las fotografías que has enviado empiezas bien y con calidad...

LUCK in the construction of the Eurylus, as I can see from the photographs you have sent you are starting well and with quality ...

Last edited by a moderator:
Hello everybody,

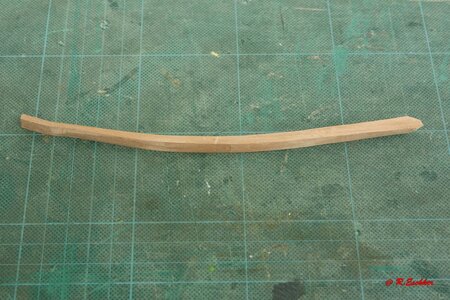

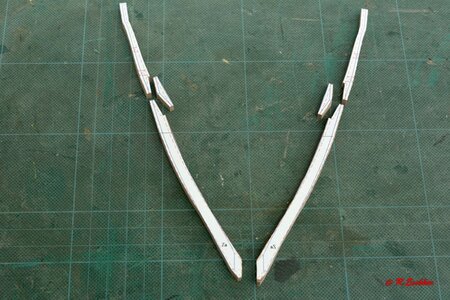

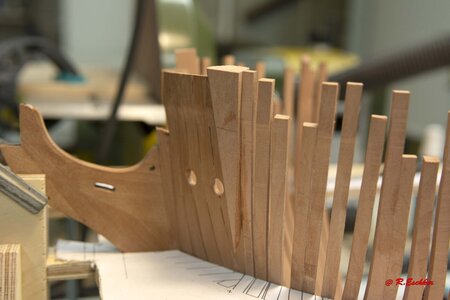

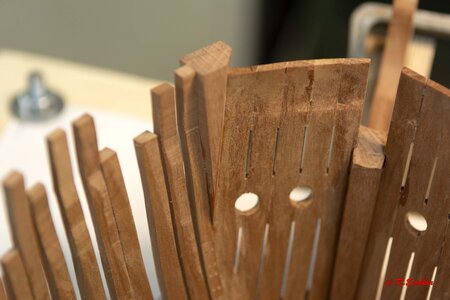

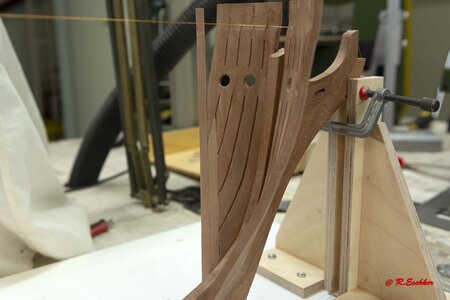

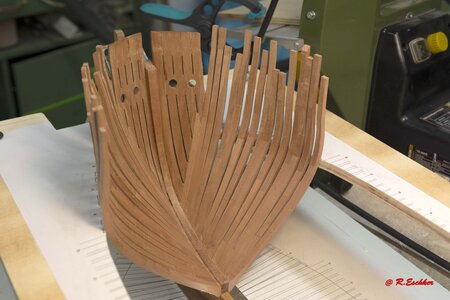

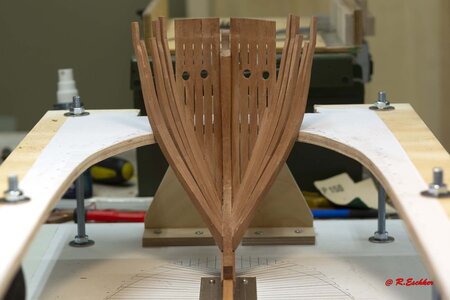

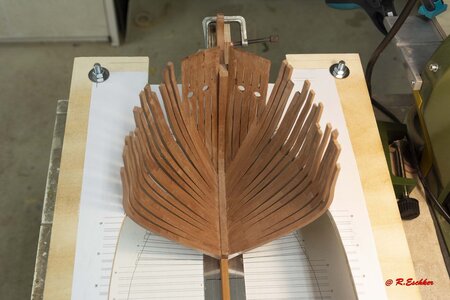

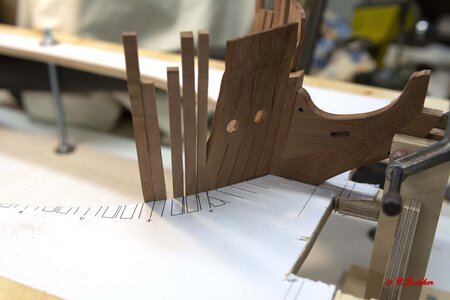

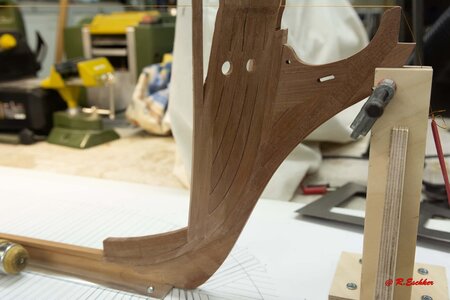

the bow section was completed with the frames and a filler piece was inserted. The inside was then smoothed with a scraper.

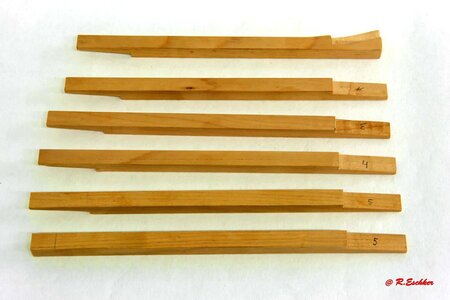

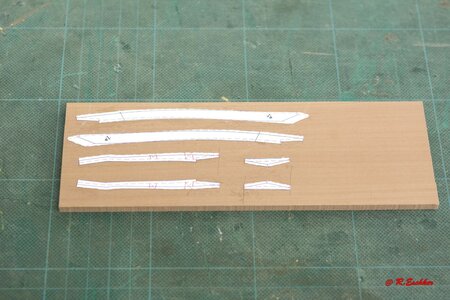

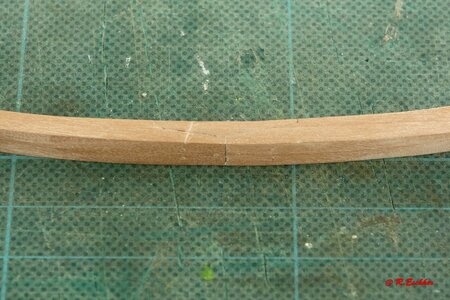

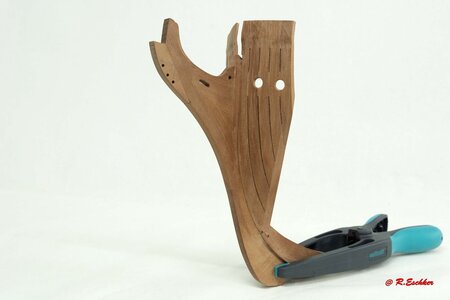

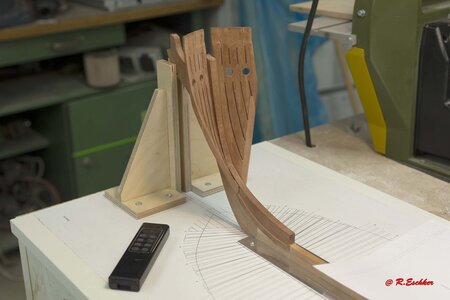

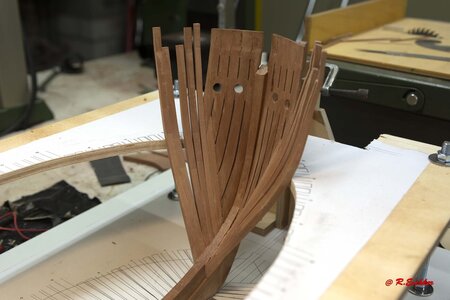

View attachment 261122View attachment 261123View attachment 261124View attachment 261125View attachment 261126View attachment 261127

to be continued

Greetings
Lucius

Short question: Is my english good enough for you to understand what I mean?
Your English is better than good. No problems understanding what you mean. Outstanding work as usual. And SO fast. Thanks for sharing.
