And so it begins:

I purchased this kit back in 2014 ( 8 YEARS AGO) for $1,400 Australian. After finishing 4 previous models ( CC Endeavour, Occre Albatros, Amaiti Stage Coach & Occre Stephensons Rocket) I was hooked on wood kits. I had a windfall and invested in the kit.

I was keeping it till I had enough skill to to do it justice. Well 8 years and 4 more ships later and being 64 this year its time to begin.

I will not go through an unboxing, as this is in an old video here:


I purchased the obligatory ref books along the way as well as the CC Victory Admiralty Paint set. I have used Admiralty paint before and they are great to use.

So without rambing on here bigginith the adventure.

I will be doing both a pictural & Video log of this adventure. ( I'd supply the drinks & popcorn, but given the time that this log is likely to go on for, I will be in serious debt. Gifts of popcorn & beer gladly accepted.

Take care see you soon.


Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
22,740
Points
1,038

Location
Vienna, Austria
You are very well prepared for the Jotika Victory.
Your experience in kit models, the documentations you have about the ship and also the high quality material of the kit will make this project successfull.
Enjoy the work on this model - I will follow your building log with big interest...

Joined
Jul 7, 2015
Messages
1,217
Points
443

Location
Berwick, Australia
Just spent 6 hours doing inventory . All present and accounted for . Rubber bands around strip wood has deteriorated, so it was all mixed up. ( Hence the 6 hours re sorting, labling & re banding). FYI the parts list is a separate document 43 page in length. Off to bed.

Next up the Base board & keel prep. ( plus some PVA tubing for stripwood filing.)

Joined
Jul 7, 2015
Messages
1,217
Points
443

Location
Berwick, Australia
Thanks all

Well we have 2 videos and the basic skeleton is complete. So far its been a breeze, with ho hickups. The parts are very clean and requried very little sanding to assemble. It has been a dream to work with quality wood & parts. The instructions are straight forward and together with the plans ( only sheet 1 & 2 so far) make it relatively easy. Having said that I unless you are an experienced modeller, I would not recommend this as a beginners kit due to its complexity and size.

Okay so I will break this up into two entries.

If I make it too dumbed down please let me know.

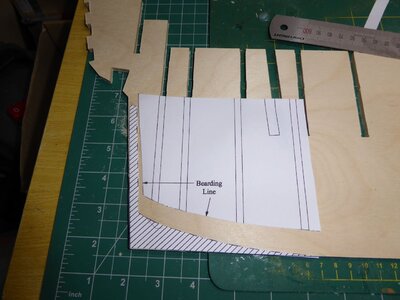

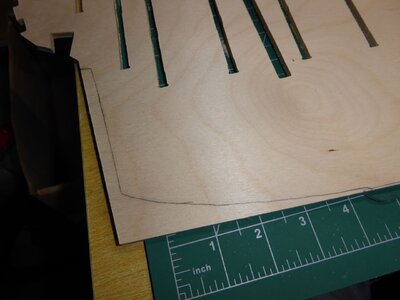

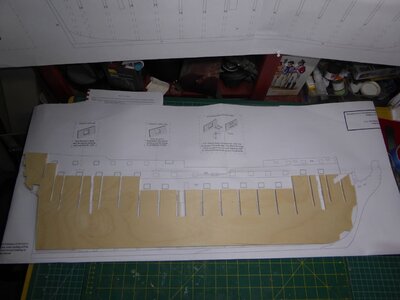

After removing the false keel form the 5mm sheet I laid it down on the 1:1 plan sheet two and then photocopied & printed the beading line area.
This was then laid on the keel and mark according.

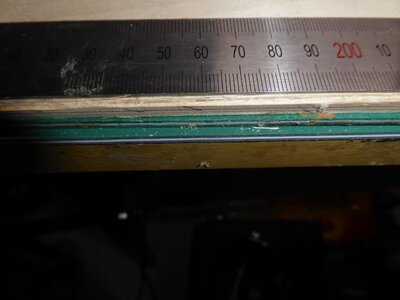

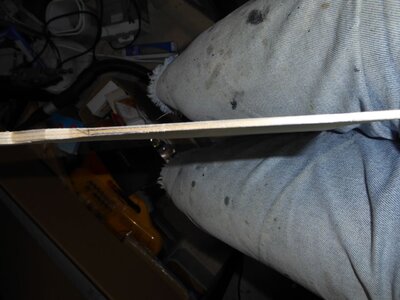

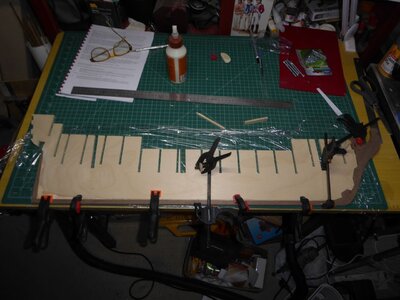

The keel was them clamped to the desk as was a 600mm ruler and a 2mm ( Plank thickness )Rabbit line for the garboard plank was cut away on both sides.
The keel beading line and deadwood aread was then tapered down with a dremel from 5mm to 2mm ( 1 plank each side) so that 1st planking makes up the 5mm thickness of the keel base.
The walnut keel parts were then cleaned, clamped to the false keel, glued with wood glue and allowed to set overnight.
The rear stem is not glued in place and was removed to allow sanding and final cleaning of the 1 & second layer planking prior to re fitting.

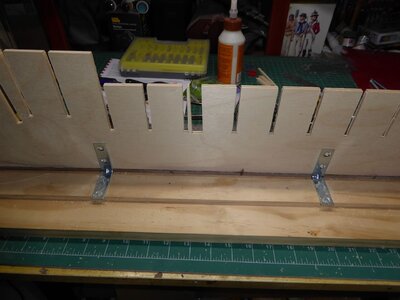

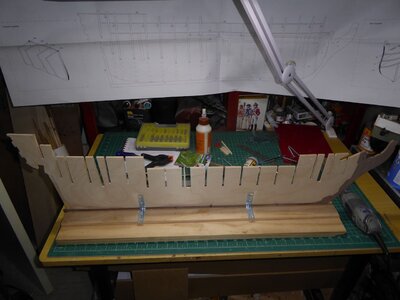

Te following day the keel was then fitted and screwed to a 25mm pine baseboard. The keel was locked in with wood beading either side of the keel and 4 right angle steel brackets. This made for a straight and sturdily held keel.

Video of stage 1 here:


Joined
Jul 7, 2015
Messages
1,217
Points
443

Location
Berwick, Australia
Part 2

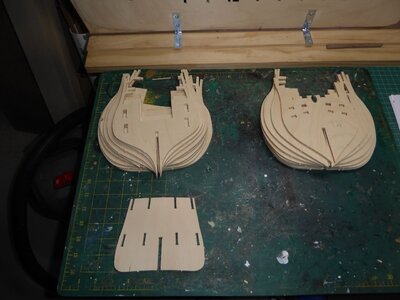

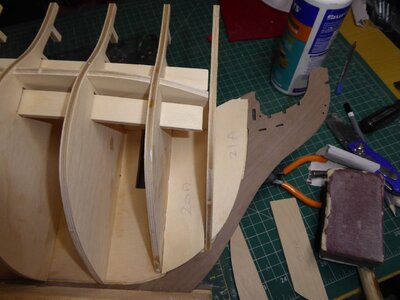

The bulkheads were cut from their sheets ( Wrist killer due to thickness). and cleaned up ( CNC Tags removed.) There are 18 in total.

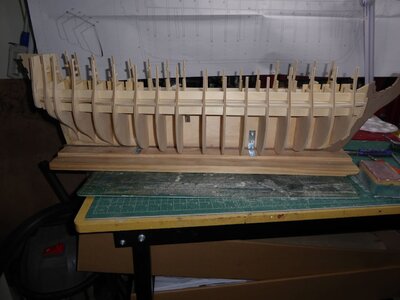

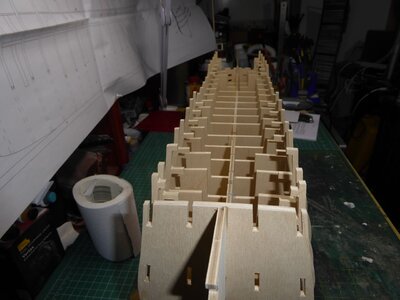

They were then test fitted to the keel and only minimal sanding of the joint cuts where needed to allow a tight fit. The lower deck (Also 5mm Ply) was then tested fitted and required NO adjustment or sanding. It fitted perfectly. After making sure eveything was square, the parts were removed glued and re added and allowed to set. Bulkhead 1 is left off till the gunport strips are added.
The gun port strips were then inserted through the builkheads above and below the lower deck. These were lightly sanded and the edges tapered slightly. The strips went in easily and only required minimal force and bending to fit. No soaking or pre bending was required.

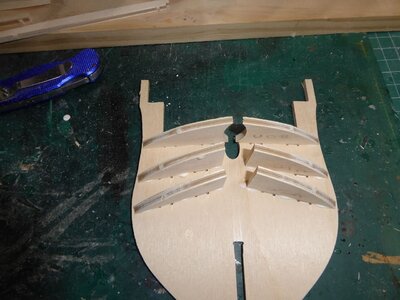

The stern supports were then added to bulkhead 18.

Bulkhead 1 was then added and the bow planking supports were added

At this point the masts( uncut ) & bowsprit was test fitted to ensure alignment.

The bow upper formers were added and the bowsprit hole was adjusted to allow fit. ( This was warned of in another log.) In this fashion no modification needs to be done later or possible damage adjusting bowsprit entry later.

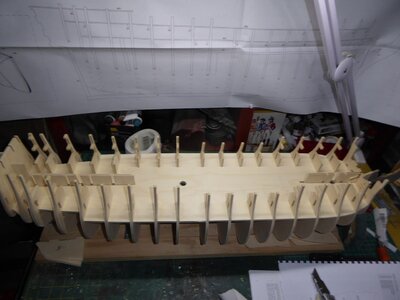

Finally the upper deck ( minus the middle) was pinned in place to allow the false gun port templates to be aligned correctly. ( A cannon and truck will need to be set up ( as well as adding the thickness of the deck planking) to ensure proper port alignment.

This will be in the next entry ( yet to be done or thought about.)

Its going to be a hot weekend, so any work may be delayed due to beer and BBQ's

Video build 2

Take care.

Joined
Oct 17, 2020
Messages
644
Points
258

Part 2

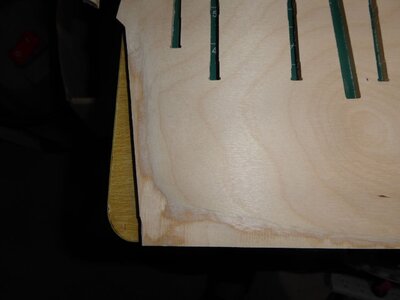

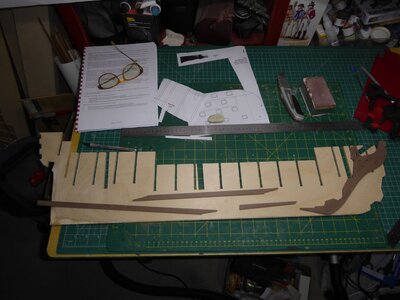

The bulkheads were cut from their sheets ( Wrist killer due to thickness). and cleaned up ( CNC Tags removed.) There are 18 in total.
View attachment 288441

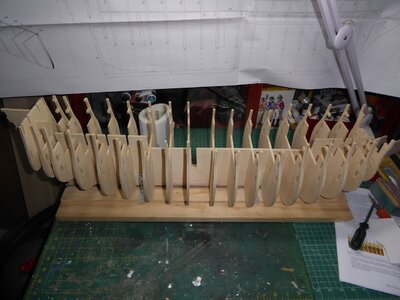

They were then test fitted to the keel and only minimal sanding of the joint cuts where needed to allow a tight fit. The lower deck (Also 5mm Ply) was then tested fitted and required NO adjustment or sanding. It fitted perfectly. After making sure eveything was square, the parts were removed glued and re added and allowed to set. Bulkhead 1 is left off till the gunport strips are added.
View attachment 288442
View attachment 288443
View attachment 288444

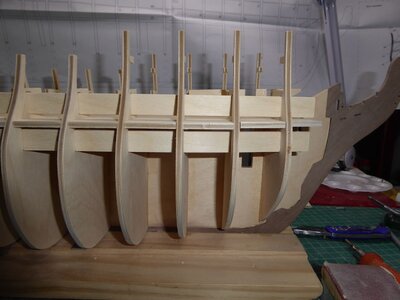

The gun port strips were then inserted through the builkheads above and below the lower deck. These were lightly sanded and the edges tapered slightly. The strips went in easily and only required minimal force and bending to fit. No soaking or pre bending was required.
View attachment 288445
View attachment 288446
The stern supports were then added to bulkhead 18.
View attachment 288447

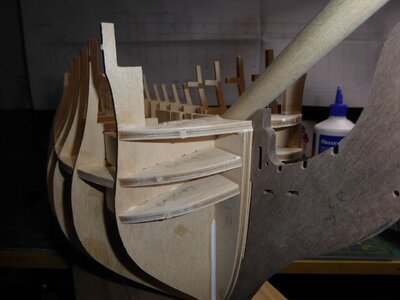

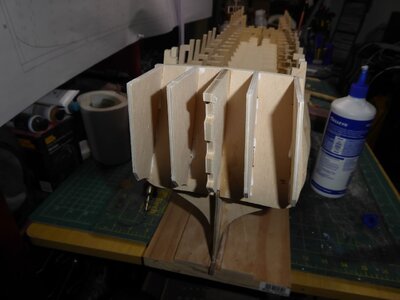

Bulkhead 1 was then added and the bow planking supports were added
View attachment 288448

At this point the masts( uncut ) & bowsprit was test fitted to ensure alignment.

View attachment 288449
View attachment 288450

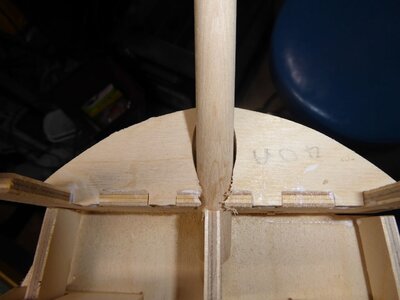

The bow upper formers were added and the bowsprit hole was adjusted to allow fit. ( This was warned of in another log.) In this fashion no modification needs to be done later or possible damage adjusting bowsprit entry later.
View attachment 288451
View attachment 288452
View attachment 288453

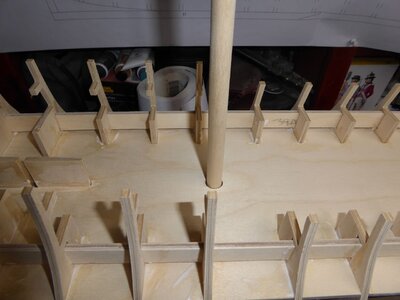

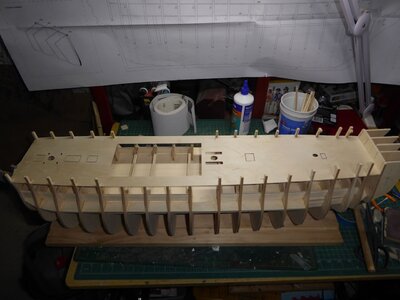

Finally the upper deck ( minus the middle) was pinned in place to allow the false gun port templates to be aligned correctly. ( A cannon and truck will need to be set up ( as well as adding the thickness of the deck planking) to ensure proper port alignment.
View attachment 288454

This will be in the next entry ( yet to be done or thought about.)

Its going to be a hot weekend, so any work may be delayed due to beer and BBQ's

Video build 2

Take care.
