"And is it not scary for you to board the ship? After all, so many people died in shipwrecks!" This is the logic of the layman. "Aren't you afraid to go to bed? Even more people have died in bed." That is the answer of the sailor.
Gyula Illyés (Hungarian poet)



Based on my personal impression and quality of the kit contents, I think this may be a really good project for a couple of weeks (depending on your skills)


The scale is large enough to work with. Wooden parts are made from precious timber; steel components are made from brass by photo-etching (PE), belaying pins made from brass wire. Sewn sails included. Although Kit doesn't have an English assembly instruction, it comes with a photo, step-by-step illustrations. The kit recommended for beginners and suitable for kids 12 years old an above.

Scale: 1:36
Model size: 295mm length, 82mm wide (beam), and 240mm Height

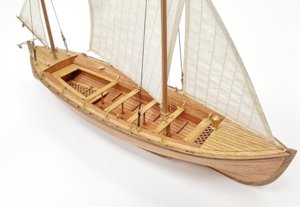

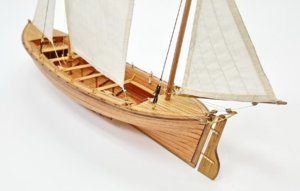

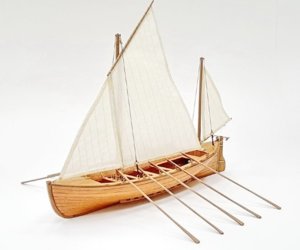

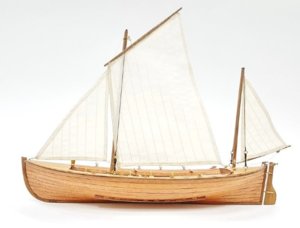

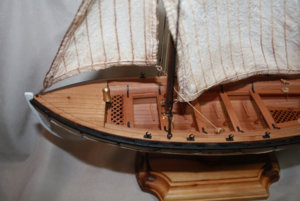

In the end, the finished model should look like the photos sown below, but there are many ways to make your model unique! (pictures courtesy of LSModel)





to continue in part 2...​


Attachments

Jimsky

Moderator
Staff member
Moderator
Joined
Nov 3, 2018
Messages
2,610
Points
578

Location
Brooklyn, New York USA
A bit of history:

On July 3, 1871, the Charter of the Society for Rescue on The Waters was approved by Emperor Alexander II and the first Chairman of the Board was elected an outstanding navigator and statesman of Russia, Vice Admiral Posiet Konstantin (1819-1899). The Most Important Patron of the Society from its inception until its forced liquidation on October 15, 1918, was Grand Duchess Of Cesarevna, later Empress all-Russian Maria Fedorovna. By the beginning of the twentieth century, the Society had 2,000 rescue stations, 10,000 rescue posts, 2 marine rescue stations, four motor yachts and dozens of sailing rescue vessels.

The rescue boat "Ksenia", the White’s system’s Whaleboat was used on the inland waters of Russia. P.N. introduced this type of boat to the staff of boat rescue boats. White's rescue Whaleboat was built of mahogany, distinguished by good seaworthiness and increased stability. Sailing armament allowed them to maneuver on small expanses. The size of the Whaleboat was 10 meters long, 2.6 meters wide. White's rescue Whaleboat had air boxes/dry compartments filled with cork to ensure buoyancy and unsinkability. Even when the water was full, the Whaleboat remained afloat with the rowers and passengers.

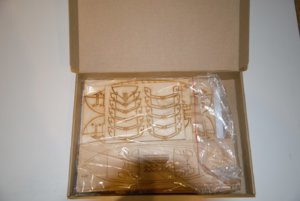

Un-boxing

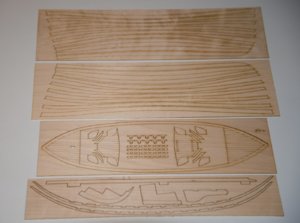

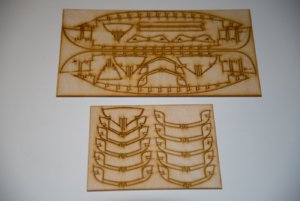

The base assembly is plywood (dry and flat), There are some laser char on one side. The cutting line is reasonably thin.

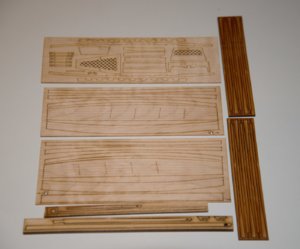

Scoring planking for both sides. Very good timber 0.5mm Also showing deck keel and deck parts assembly

Inside assembly, masts, spars, and row paddles (looks like pear wood)

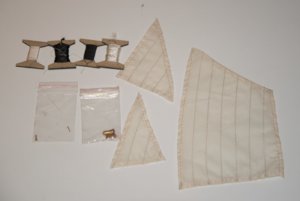

ready to use sewed Sails and ropes

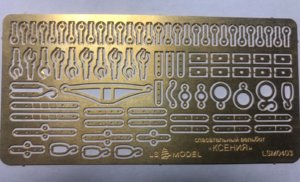

nice freet of PE parts 0.4mm thick

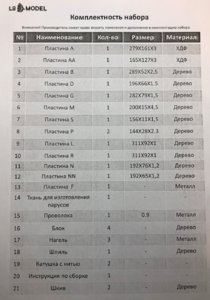

The last part will be the instruction and parts contents listed and labeled. To be continued...


Jimsky

Moderator
Staff member
Moderator
Joined
Nov 3, 2018
Messages
2,610
Points
578

Location
Brooklyn, New York USA

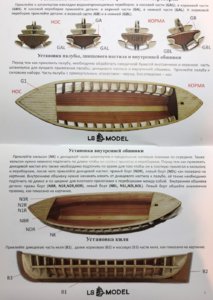

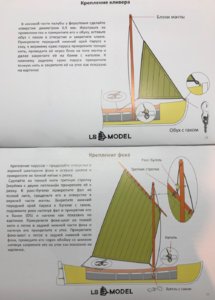

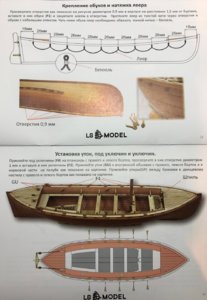

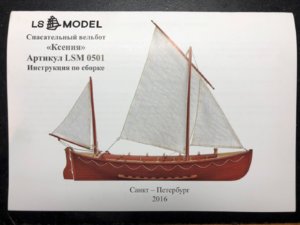

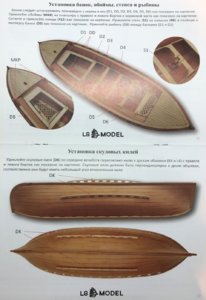

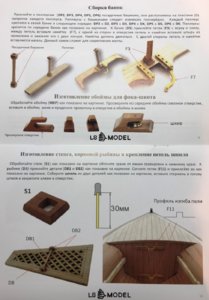

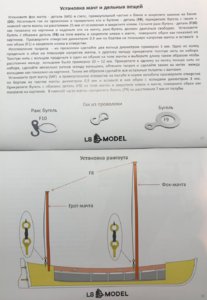

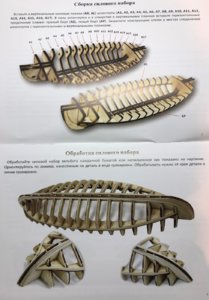

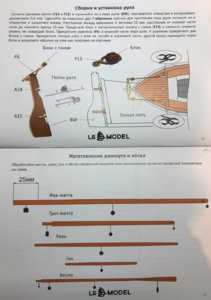

...and the last part - instruction. As I said before, international builders will not find Instructions written in English. However, well-made color photos should definitely help in the building process.










I hope this was somehow informative and will help you to make a decision. Enjoy and happy modeling!


Norway

Blandford
Blandford Group Build
Joined
Dec 3, 2018
Messages
1,364
Points
433

Fine Kit Review Jim, I like the brass parts, almost just fitting right away just a little refinishing / adjusting.


Jimsky

Moderator
Staff member
Moderator
Joined
Nov 3, 2018
Messages
2,610
Points
578

Location
Brooklyn, New York USA
JIM WHAT IS A ( WHITE TYPE WHALE BOAT. Don
Hi Don, many thanks for your interest. This is Mr. White's system whaleboat. He is the designer and invented this rescue boat with air compartments filled with cork to ensure buoyancy and unsinkability. Even when the water was full, the whaleboat remained afloat with the rowers and passengers. :)


Jimsky

Moderator
Staff member
Moderator
Joined
Nov 3, 2018
Messages
2,610
Points
578

Location
Brooklyn, New York USA
Fine Kit Review Jim, I like the brass parts, almost just fitting right away just a little refinishing / adjusting.

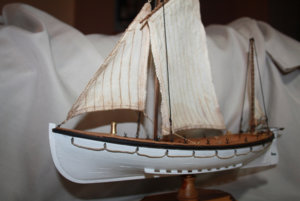

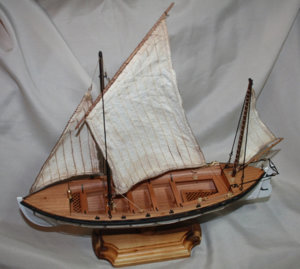

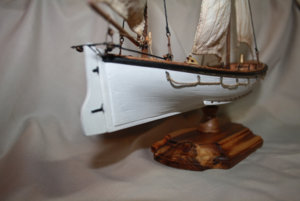

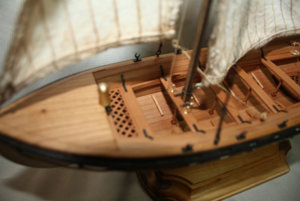

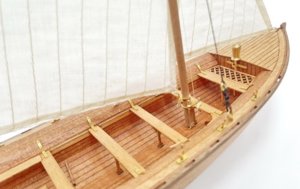

Yes, Knut. The kit should suffice both: novice and experienced builders. While I have not built this kit (yet), the first appearance and impression of this kit, it should be a nice model (without bashing). However, there are some ways for improvements, Take a look at the model made by Usupov Rinat (photos courtesy of Karopka.ru)





Enjoy!!!


donfarr

Blandford
Blandford Group Build
Joined
Jan 9, 2013
Messages
1,900
Points
478

Hi JIM, What is the price in U.S. Dollars, interesting as next month I will start on CHRISTMAS PRESENTS AND THIS ONE WOULD MAKE A GOOD GIFT, NOT TO COMPLICATED BUT ENOUGH OF A CHALLANGE, IT WOULD MAKE A NICE FILL IN BETWEEN MY BUILDS. THANKS FOR REVIEWING THIS KIT Don


Jimsky

Moderator
Staff member
Moderator
Joined
Nov 3, 2018
Messages
2,610
Points
578

Location
Brooklyn, New York USA
Hi JIM, What is the price in U.S. Dollars
I didn't find any US-based distributors for this model and bought it directly from Russia on eBay. The shipping is way expensive, though.



donfarr

Blandford
Blandford Group Build
Joined
Jan 9, 2013
Messages
1,900
Points
478

Jim just looked it up with the link you gave, the shipping was $25.00, is that correct with something like $53.00, not a bad price. THANKS AG Don


Jimsky

Moderator
Staff member
Moderator
Joined
Nov 3, 2018
Messages
2,610
Points
578

Location
Brooklyn, New York USA
yes, this is correct, Don. Shipping from Russia, they sent EMS (registered) and tracking. Takes from 2 -3 weeks to deliver.
