Planset Review:
LE BATEAU DE LANVEOC -Traversier Brest
Petite marine des XVII et XVIIIème siècles

The little navy (ferry boat) in the 17th and 18th centuries
in scale 1:36
by Jean Boudriot & Hubert Berti

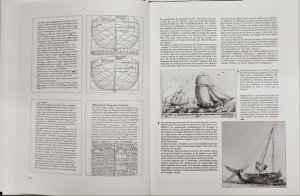

IMG_27031.jpg IMG_27041.jpg


available from ancre in french or italian language


taken from the pdf:



SYNOPSIS:

The little navy in the XVII and XVIIIth centuries Relics of the Middle Ages with five plates at 1:36 scale and one plate at 1:40 scale Including all plans of the timber works

This monograph presents the "little navy" in France during the Ancien Régime. We owe this knowledge to a modest little craft, called the Bateau de Lanvéoc, which devoted itself to ferry traffic in the broad roadstead of Brest. The monograph of this small ferry boat also represents the full extent of its activities in the harbor, illustrated by Pierre Ozanne's drawings done in the last decade of the XVIIIth century which we have collected for you in this volume.

Thanks to the builders' manuscripts by B. Ollivier and especially Morineau, the shape of the hull is known and P.-A.-L. Forfait's tables establish its rigging rules. With this knowledge of the "primitive formula" for the ship - a single mast and square sail - we are able to describe the progressive evolution of the ship into the Breton two-master.

In turn this allows us to understand the value of the Album of 1679 (also called the Jouve Album) which is devoted to the little navy of the Atlantic seaboard from Bayonne to Nantes.

We offer the most significant information from this album which is preserved in the Bibliothèque Nationale (the French National Library).

Lastly, samples of medieval iconography are proof that it is possible to undertake a study of the ships of that period based on the information garnered on the Lanvéoc ferry, an exceptional relic that survived from the Middle Ages into the first half of the XIXth century in the harbor of Brest.

The monograph section includes six double plates with commentary that allow for a model fitted out with its timbers to be built at 1:36 scale. These plates are bound within the volume. A second set of plates is also offered separately.

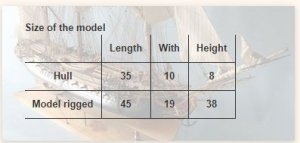

size of the finished model in scale 1:36


CONTENTS OF THE MONOGRAPH

The Book

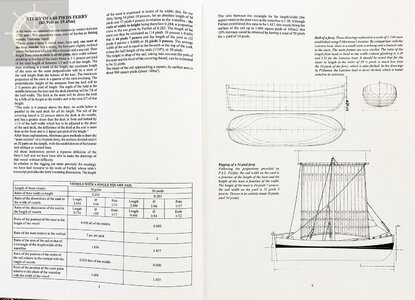

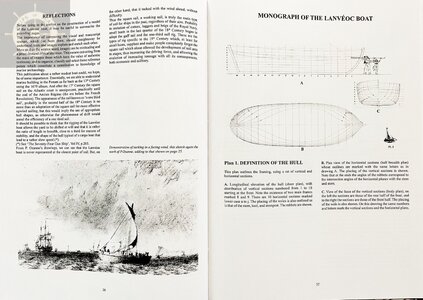

A 18 p. cloth-bound volume, 24 x 31 cm format, including :
- A description of the Bateau de Lanvéoc
- The ferry in the roadstead of Brest, a single square-sailed ship

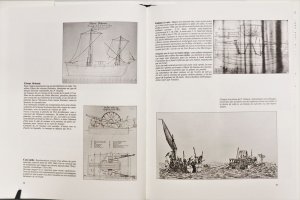

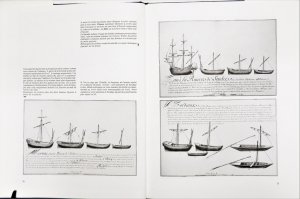

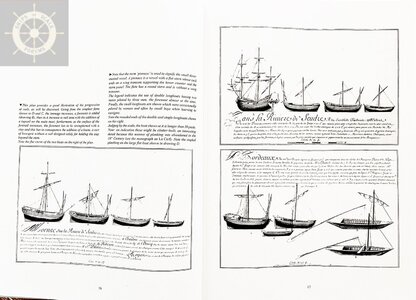

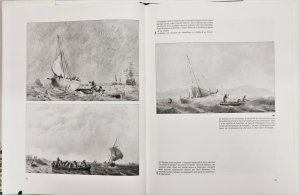

- Illustrated sources, the Album of 1679, Ozanne's drawings
- The basic formula of a two masted ship
- The single mast, a medieval representation

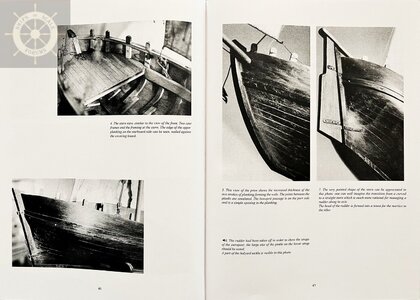

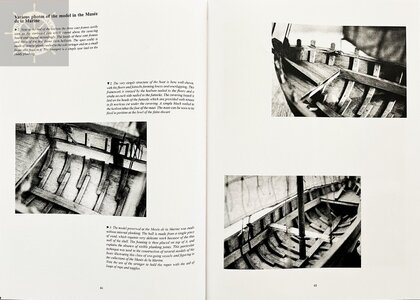

- Photographs with commentary of the model in the Musée de la Marine (The French Naval Museum in Paris)
- Bound plates

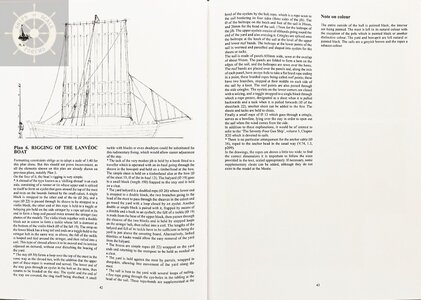

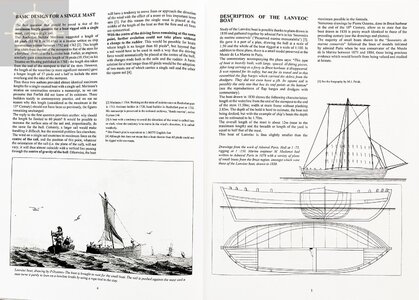

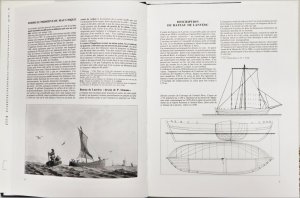

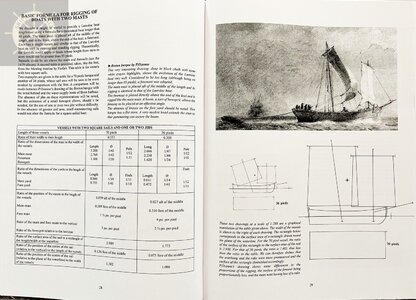

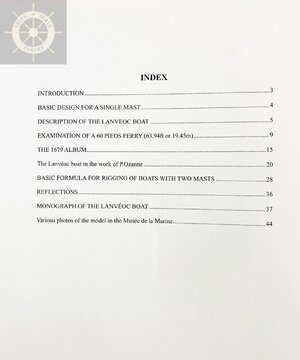

IMG_27051.jpg IMG_27061.jpg

IMG_27071.jpg IMG_27081.jpg

IMG_27091.jpg IMG_27101.jpg

IMG_27111.jpg IMG_27121.jpg

IMG_27131.jpg IMG_27141.jpg

IMG_27151.jpg IMG_27161.jpg

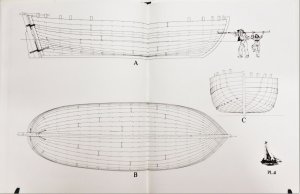

The Drawings

A set of six plates at 1:36 scale including :

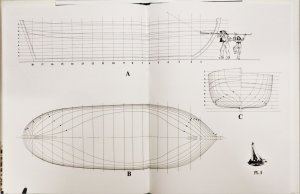

1 - Shape of the hull - Lines
2 - The timberworks - cross-sections
3 - The ribs - framing
4 - Planking the hull

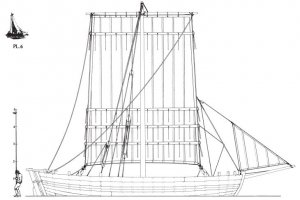

5 - Building pieces and rigging (incl. sailplans)

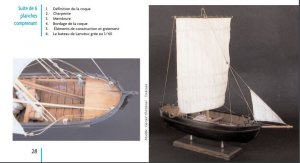

6 - The oufitted Lanvéoc ferry at 1:40 scale




Comment:

A small and complete monographie of a very interesting working ferry boat.
In my opinion a very good start into the scratch building


Attachments

  • lebateaudelanveoc.pdf
    679 KB · Views: 42
Based on a newsletter information, this monograph is now also available in english language

MONOGRAPHIE DU BATEAU DE LANVEOC -Traversier Brest​

Jean BOUDRIOT & Hubert BERTI
Translated by Anthony Klouda


when you have the drawings already you can order also the booklet alone

in addition also drawings in different scales are available - now also in 1:18 or 1:24

In the meantime also the english version for the Aurore was published by ancre
many thanks to Didier Berti for this copy

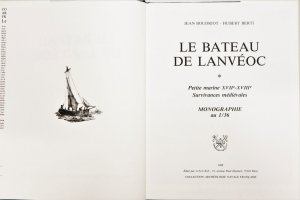

MONOGRAPHIE DU BATEAU DE LANVEOC - Traversier Brest​

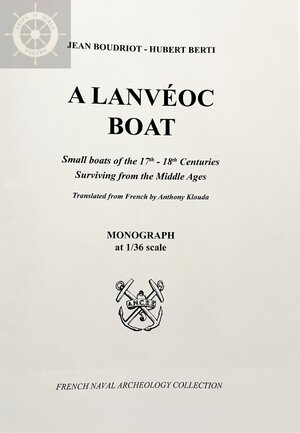

The little navy in the XVII and XVIIIth centuries Relics of the Middle Ages with five plates at 1:36 scale and one plate at 1:40 scale Including all plans of the timber works.

Author : Jean BOUDRIOT & Hubert BERTI
Translated by Anthony Klouda

NEW IN ENGLISH
Series of 5 PLANS at 1/24 or 1/18 AVAILABLE



when you have already the french version, you can order only the booklet in english language
Also the drawings are now available in scale 1:24 or in 1:18


IMG_2069a1.jpg IMG_2070a1.jpg

IMG_2071a1.jpg IMG_2072a1.jpg

IMG_2073a1.jpg IMG_2074a1.jpg

IMG_2075a1.jpg IMG_2076a1.jpg

IMG_2077a1.jpg IMG_2078a1.jpg
