Le François

Joined
May 31, 2020
Messages
18
Points
78

Voici quelques photo du François, je n'ai malheureusement pas pensé à faire un reportage complet au début de la construction. je vais essayer de faire cela maintenant, et faire des photos de meilleures qualités.

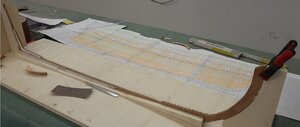

le chantier avec sa quille (notez un relèvement à l'avant et à l'arrière)

google:
Here are some photos of the François, I unfortunately did not think of doing a full report at the start of the construction. I will try to do this now, and take better quality photos.

the site with its keel (note a front and rear bearing)

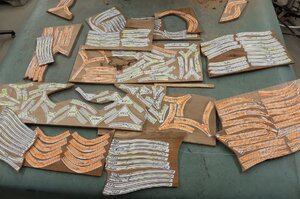

quelques pièces de charpente
some pieces of frame

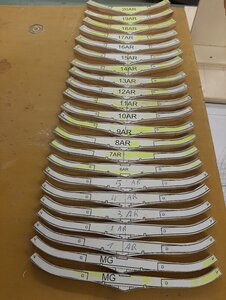

quelques varangues
some floor timbers


suite au prochain post, ici c'est pour un essais
following the next post, here it is for a test

Last edited by a moderator:
Joined
May 31, 2020
Messages
18
Points
78

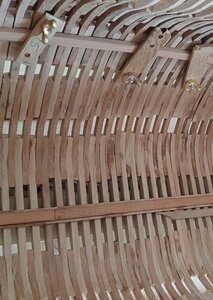

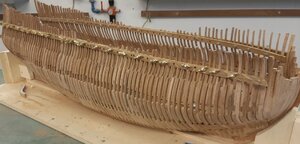

here is somes other pictures, The quality is not perfect, i'll try do better for the next.

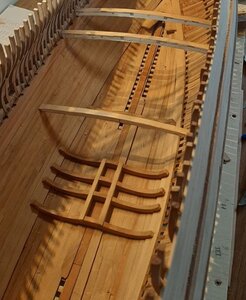

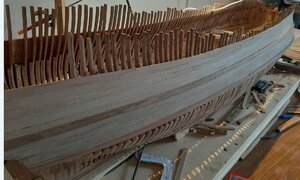

here is the projet at this time.







pour le moment, je suis occupé a faire les porques des photos suivront dans quelques jour.
for the moment, I am busy doing the porches photos will follow in a few days.

Last edited by a moderator:

Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
16,724
Points
938

Location
Vienna, Austria
also from my side many thanks for starting the log and the description of your work on the Francois.
Like Oliver I am also a big fan of this ship and also of the monograph.
Just received some days ago my copy of the planset in english language, of the french version Imade already once a planset review.....so everybody more interested in this ship can take a look here:

BTW: the english translation of this monograph was done recently by our friend and member Gilles @Gilles Korent


Maarten

Staff member
Forum Moderator
Joined
Sep 10, 2017
Messages
2,385
Points
628

Location
The Netherlands
That should be a beautiful model in 1:36.
What is the wood selection you are using?
Frames in pear, but what is the light coloured wood for the planking?


Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
16,724
Points
938

Location
Vienna, Austria
Just received also the booklet of the monograph in english language, so I had a chance to read a little bit.

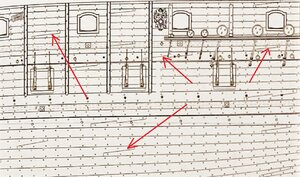

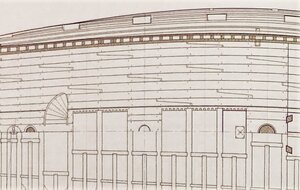

The hull as well the decks of the Francois was planked with butt joints (on the two excerpts from the monograph with red arrow)
IMG-3579.jpg IMG-3580.jpg
(left deck - right hull)

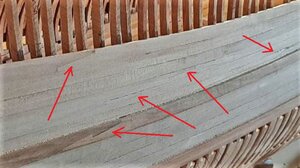

And we can recognize these joints also on your model

Great detail Thumbsup

Joined
May 31, 2020
Messages
18
Points
78

Hello Uwek, Hello all

thank's for your comments and encouragement

Your right about joint of the hull, if you look rignt there is 2 kind different of joints one on (preceinte c'est un assemblage a trait de jupiter) I Don't know the name in English, and the other on the simple plank of the hull and deck. the lengt of the planks are about 8 to 10 metres. (26 to 32ft)
Here too, for facilities, I Don't make this kind of joint at the place where I must cut for the sabords.

Joined
Feb 27, 2019
Messages
10
Points
13

Location
Yorkville, IL US
Joined
Feb 27, 2019
Messages
10
Points
13

Location
Yorkville, IL US
Ou avez-Vous achete les plans? Et est-ce que Vous avez le temps pour ce projet parce que c'est chez Vous 'Jeudredi' aussi? Lol.

Joined
May 31, 2020
Messages
18
Points
78

Ou avez-Vous achete les plans? Et est-ce que Vous avez le temps pour ce projet parce que c'est chez Vous 'Jeudredi' aussi? Lol.


I bought the monograph directly from Ancres editions.

For the time being, I hope I have had enough, I will soon be retired.
This is my second ship I started with the La Renommée , but I don't know why, I don't want the continuation anymore. However it is a beautiful frigate, maybe I will continue after Le françois.
