Leudo vinaccere 1:72 scratch (test building)

0Seahorse

Well-Known Member
Joined
Jan 20, 2019
Messages
24
Points
108

Hi Everybody
I've just started the test building of Il Leudo vinaccere in 1:72.

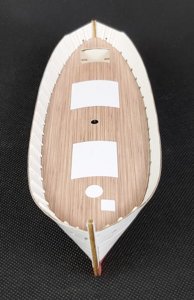

Method and style typical for my projects, i.e. 1.0 mm cardboard frame, two layers on the hull (vertical and horizontal) and final planks. Most of the parts were laser cut. The hull length is 19.5 cm. A few pictures of the construction process:
20191205_210736.jpg20191205_210656.jpgpoprzeczne 1.jpgpoprzeczne 3.jpgpodłużne 01.jpgpodłużne 05.jpgpodłużne 04a.jpgkajuta 2.jpgkajuta.jpg20191205_210858.jpg20191205_210834.jpg
leudo robocza.jpgpokład.jpgposzycie red.jpgview 21 12 19.jpgview 21 12 19 02.jpg

Tomek


Uwek

Admin
Staff member
Administrative
Moderator
Blandford Group Build
Joined
Dec 25, 2017
Messages
11,205
Points
928

Location
Vienna, Austria
The hull is looking very good - very realistic in my opinion


Danno71

Well-Known Member
Joined
Aug 22, 2019
Messages
61
Points
78

Location
Hollywood, Maryland
Love your work Sir,
Can you tell me what brand of laser cutter you are using? I believe I would like to get into card stock models and design plans and cut from scratch. Beautiful work! And love the detail.


0Seahorse

Well-Known Member
Joined
Jan 20, 2019
Messages
24
Points
108

Hello Danno71,
My laser cutter is nothing special, imported from China and is distributed in Poland by several companies. Total NO NAME, but admitted to the European Union market and meets safety standards. Tube 50W, work space about 30 x 50 cm. It is not any high-tech product. But gives a lot of fun!!!

Best
Tomek


0Seahorse

Well-Known Member
Joined
Jan 20, 2019
Messages
24
Points
108

Hi Friends,
Some progress is visible on leudo. I made barrels, the anchor, lights, the kitchen, cleats etc.
I also made a "special" equipement, that made it possible to drag the boat out of the sea directly on the beach.

06.03.010.jpg02.02.016.jpg06.03.002.jpgleudo 06.jpg10,03,08.jpg

Best
Tomek


Attachments

Pgtaylorart

Active Member
Joined
Feb 19, 2020
Messages
15
Points
48

Beautiful work, Tomek! I’m very impressed and interested in your laser cut paper ships. May I ask what software you use to design the ships for laser cutting?

Thanks
George


0Seahorse

Well-Known Member
Joined
Jan 20, 2019
Messages
24
Points
108

Hi George,
I design models in Rhinoceros3D, use CorelDraw for coloring and drawing details. Parts for the laser cutter are prepared both in Rhino and Corel, then exported to *.dxf files. Software for my cutter is rather poor and I use it only for settings (speed/power etc)
For very precise details I have to compensate for the laser cutting thickness by about 0.07 mm per side, i.e., the 10.00 mm long part after laser cutting is about 9.85 mm. If it is necessary and very important to keep exactly the dimension, I correct it in Rhino, too.
Best
Tomek


Sulaire

Well-Known Member
Joined
Oct 17, 2019
Messages
145
Points
103

That's gorgeous - I'm building the Panart Santa Lucia and I can only hope that mine turns out anywhere near as good as yours!


Jimsky

Moderator
Staff member
Moderator
Joined
Nov 3, 2018
Messages
3,375
Points
578

Location
Brooklyn, New York USA
@0Seahorse Tomek, I am really impressed with your designer's and craftsman's skills in the same time! I really regret that project comes to the end, but in the same time, I really happy for the outcome of it! An awesome model! ThumbsupThumbsup


Pgtaylorart

Active Member
Joined
Feb 19, 2020
Messages
15
Points
48

Thank you George, it will be printed in May. I don't plan to sell in the form of downloads for now, but maybe someday who knows.

Tomek
That’s good news. I would love to have one. Will they also be laser cut?

-George


0Seahorse

Well-Known Member
Joined
Jan 20, 2019
Messages
24
Points
108

Laser cut frame, some details and the first longitudal planks - yes.
