Micrometer set screw for Proxxon FKS/E table saw

Moxis

Well-Known Member
Joined
Jul 27, 2018
Messages
131
Points
133

Location
Finland
When working with my present project, I needed very accurate planks with even height. First I tried to set the fence of my Proxxon saw manually, but it is very frustrating to have it set within a few hundreds of a millimeter.

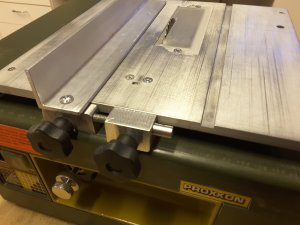

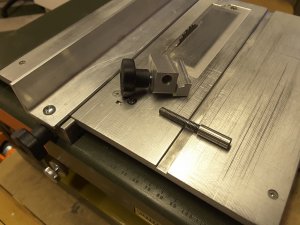

So i decided to make this small gadget to simplify the setting. The only thing what was needed was to mill two pieces of aluminium, and cut threads into them for set screw and locking screw. The thread of set screw is M6x1, so that one revolution extends the screw with one millimeter. The head of the screw has 10 divisions so that one division represents 0,1 mm movement. The set screw only pushes the fence, it is not threaded into it, which makes it easy to remove the gadget after the fence is set. With this equipment i can now easily adjust the width of planks in about 0,05 mm accuracy.7978179782


Norway

Blandford
Blandford Group Build
Joined
Dec 3, 2018
Messages
1,373
Points
433

Moxi's exciting adapter you've made, which model is your saw ?, maybe you can show how the adapter works.


Moxis

Well-Known Member
Joined
Jul 27, 2018
Messages
131
Points
133

Location
Finland
Hi Norway, my saw is of type FKS/E. To operate the set screw you adjust the fence near the width you want and make a test sawing & measure how near you are. Lets assume that you get 2 mm width, but you would like to have 2,5 mm.
Then you glide the gadget into the fence so that the point of set screw just touches the fence. You lock the gadget into the table, using that black knob and open the locking of the fence. Now you rotate the set screw with 5 divisions so that the screw pushes fence 0,5 mm forward and lock the fence. Make again a test sawing. That should show that you are pretty close to 2,5 mm which was your target.
I hope you understand what I try to explain, if not please ask.

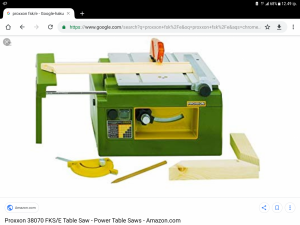

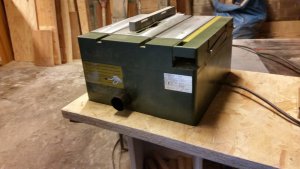

And here is a picture of the saw, Proxxon FKS/E:

79786


Norway

Blandford
Blandford Group Build
Joined
Dec 3, 2018
Messages
1,373
Points
433

Moxis, when I look at the picture of the case you have, I understand why you made this gadget,
I have the model called Proxxon FET it you can sideadjust (mm) to the desired thickness and
then lock with a wing nut at the front of the table. I have posted photos of my tools
on one of my threads.
Thanks for the quick response!.


MM2CVS9

Well-Known Member
Joined
Aug 21, 2011
Messages
38
Points
48

Location
Michigan
Went to the Proxon site to see maybe a better picture of the saw. What I saw was a piece of wood, one end against the fence and the other end against a part on the top of the left end support. Boy, is that dangerous.

EJ


Moxis

Well-Known Member
Joined
Jul 27, 2018
Messages
131
Points
133

Location
Finland
I have the model called Proxxon FET it you can sideadjust (mm) to the desired thickness and
then lock with a wing nut at the front of the table.
That's right Knut, you have a newer version of the saw. It has already this possibility as stock. But we others who have an older version are more unlucky. We have to rely on manual adjusting of the fence, which is sometimes quite frustrating when trying to set a few fractions of a millimetre.

Joined
Feb 19, 2013
Messages
1
Points
1
I hate to ask, but do you by any chance have a drawing of the two pieces with the measurements? Thanks,
Alex


Moxis

Well-Known Member
Joined
Jul 27, 2018
Messages
131
Points
133

Location
Finland
Hello Alex, unfortunately there are no drawings. I made the pieces with same dimensions as are the ones with original fence. In this way locking them into the table edge is easy.


Norway

Blandford
Blandford Group Build
Joined
Dec 3, 2018
Messages
1,373
Points
433

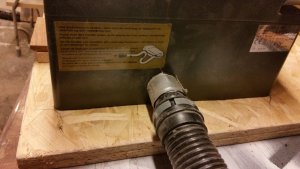

Moxis, completely forgot your question about vacuum cleaner problem / adapter.

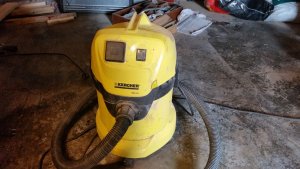

I have a powerful vacuum cleaner that takes both dust and water, can also turn the hose to the back and blow.
80418

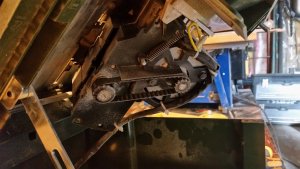

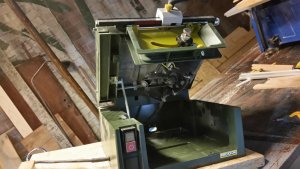

Some images from different angles, also tilted to 45%.
80419804208042180422
At the end of the shooting, the adapter brake.
It was quickly attached with a little super glue.
8042380424

Hope the pictures show what you were looking for.
Hilsen-


Moxis

Well-Known Member
Joined
Jul 27, 2018
Messages
131
Points
133

Location
Finland

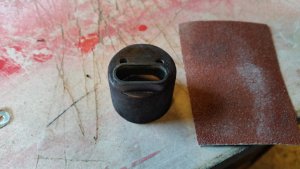

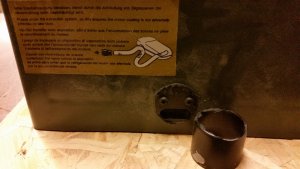

Hi Knut. Thanks for pictures. Funny thing, I have exactly same Kärcher vacuum cleaner as you. And it seems that the new Proxxon saw is much better designed than the old one. For instance the upper part does not tilt like yours, so cleaning of inner parts is more complicated. Also the hole for vac hose has same strangled part as yours, so I had to dismantle it completely and file the hole bigger to receive the vac hose. But still there remain some dust which has to be removed by unscrewing a little cover at the bottom of the saw. I quess Byrnes table saw would have been much better purchase than Proxxon, but now i have to live with that.


Norway

Blandford
Blandford Group Build
Joined
Dec 3, 2018
Messages
1,373
Points
433

Moxis, here in scandinavia, we have to cope with the proxxon as best we can, the byrnes is becoming too expensive.
