The Minerva-class sailing frigates were a series of four ships built to a 1778 design by Sir Edward Hunt, which served in the Royal Navy during the latter decades of the eighteenth century.

During the early stages of the American Revolutionary War, the Royal Navy - while well supplied with ships from earlier programs, but faced with coastal operations and trade protection tasks along the American littoral - ordered numerous forty-four gun, two-decked ships and thirty-two gun 12-pounder armed frigates. Anticipating the entry of European powers into the war, and with renewed resistance provided by the large, nine hundred ton, thirty-two gun 12-pounder armed frigates of the French Navy, the RN looked to a newer larger design of frigate to meet this challenge. From November 1778 larger frigates with a heavier 18-pounder primary armament were ordered.

They were the first Royal Navy frigates designed to be armed with the eighteen-pounder cannon on their upper deck, the main gun deck of a frigate. Before coming into service, their designed secondary armament was augmented, with 9-pounder guns being substituted for the 6-pounder guns originally planned, and with ten 18-pounder carronades being added (six on the quarter deck and four on the forecastle). The type eventually proved successful, and went on to be virtually the standard frigate type during the latter periods of the age of sail.

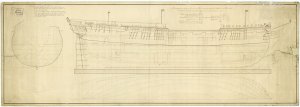

Plan showing the body plan, stern board outline, sheer lines with stern quarter decoration and figurehead, and longitudinal half-breadth for Minerva (1780). From Tyne & Wear Archives Service, Blandford House, Blandford Square, Newcastle upon Tyne, NE1 4JA.

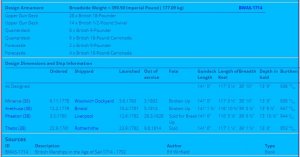

Class and type: Minerva-class frigate
Tons burthen: 938 72/94
Length: 141 ft (43 m)
Beam: 38 ft 10 in (11.84 m)
Depth of hold: 13 ft 10 in (4.22 m)
Complement: 270 (raised to 280, 25 April 1780)
Armament:
  • UD: 28 × 18-pounder guns
  • QD: 8 × 6-pounder guns
  • FC: 2 × 6-pounder guns
At launching day of Minerva July 1780:
Broadside Weight = 387 Imperial Pound (175.5045 kg)

For comparison a typical 12-pdr frigate (figures of Active-class) of the same year

Class and type: 32-gun Active-class fifth-rate frigate
Tons burthen :692 59⁄94 (bm)
Length: 126 ft 2 1⁄2 in (38.5 m) (overall); 1,036 ft 9 3⁄4 in (316.0 m) (keel)
Beam: 35 ft 5 in (10.8 m)
Draught: 13 ft 2 in (4.0 m)
Complement: 250
Armament:
  • Gundeck: 26 x 12-pounder guns
  • QD: 4 x 6-pounder guns + 4 x 24-pounder carronades
  • Fc: 2 x 6-pounder guns + 2 x 24-pounder carronades
At launching day of Active August 1780:
Broadside Weight = 246 Imperial Pound (111.561 kg)

=> The new frigate class had more than 50% more fire-power!


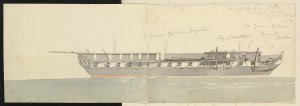

Ships in class
  • HMS Minerva
    • Builder: Woolwich Dockyard
    • Ordered: 6 November 1778
    • Laid down: November 1778
    • Launched: 3 June 1780
    • Completed: 6 July 1780
    • Fate: Fitted as a troopship and renamed Pallas 29 May 1798; broken up March 1803 at Chatham Dockyard.

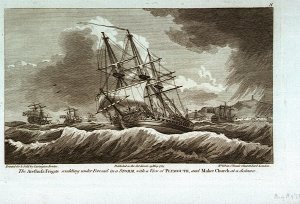

  • HMS Arethusa
    • Builder: James Martin Hilhouse, Bristol
    • Ordered: 26 January 1779
    • Laid down: 23 August 1779
    • Launched: 10 April 1781
    • Fate: Broken up May 1815 at Sheerness Dockyard.

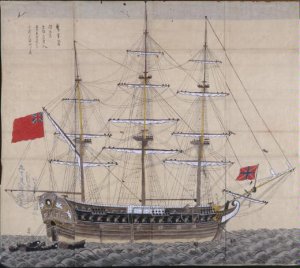

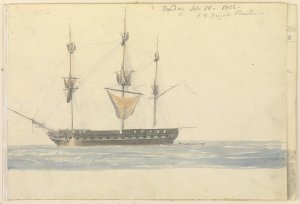

  • HMS Phaeton
    • Builder: John Smallshaw, Liverpool.
    • Ordered: 3 March 1780
    • Laid down: June 1780
    • Launched: 12 June 1782
    • Completed: 27 December 1782 at Plymouth Dockyard.
    • Fate: Sold to break up 26 March 1828

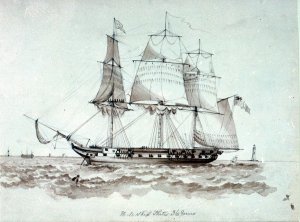

  • HMS Thetis (modified from the Minerva class above - used as troopship between 1800 and 1805, sold 1814)
    • Builder: John Randall, Rotherhithe.
    • Ordered: 22 September 1781
    • Laid down: December 1781
    • Launched: 23 September 1782
    • Completed: 15 November 1782 at Deptford Dockyard.
    • Fate: Sold 9 June 1814 at Chatham Dockyard.



https://en.wikipedia.org/wiki/Minerva-class_frigate
https://threedecks.org/index.php?display_type=show_class&id=49
http://collections.rmg.co.uk/collections/objects/382872.html


Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
14,391
Points
938

Location
Vienna, Austria
In this post I will show the drawings of the ships of the Minerva class available on the web-page of the NMM.....

large (8).jpg

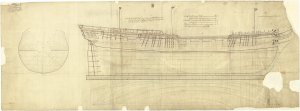

Minerva Lines & Profile (ZAZ2502)

Plan showing the body plan, stern board outline, sheer lines with stern quarter decoration and figurehead, and longitudinal half-breadth for Minerva (1780). From Tyne & Wear Archives Service, Blandford House, Blandford Square, Newcastle upon Tyne, NE1 4JA.

large (2).jpg

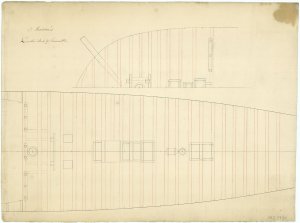

Plan showing the quarter deck, and longitudinal half-breadth of the forecastle for Minerva (1780). From Tyne & Wear Archives Service, Blandford House, Blandford Square, Newcastle upon Tyne, NE1 4JA.

large (3).jpg

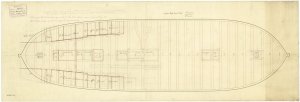

Plan showing the upper deck, espeically midship works, for Minverva (1780). From Tyne & Wear Archives Service, Blandford House, Blandford Square, Newcastle upon Tyne, NE1 4JA.

large (4).jpg
Scale 1:48. Plan showing the body plan, sheer lines with inboard detail, longitudinal half breadth for Arethusa (1781), and later with alterations for Phaeton (1782), both 38-gun Fifth Rate Frigates.

large (5).jpg
Lower deck plan (ZAZ2503)

large (6).jpg
Upper deck plan (ZAZ2504)

large (7).jpg
Deck, Quarter & Forecastle (ZAZ2505)



http://collections.rmg.co.uk/collections/objects/382872.html
http://collections.rmg.co.uk/collec...2;browseBy=vessel;vesselFacetLetter=A;start=0


Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
14,391
Points
938

Location
Vienna, Austria
and the model of Minerva class frigates at NMM


large (9).jpg

large (10).jpg

large (11).jpg

large (12).jpg

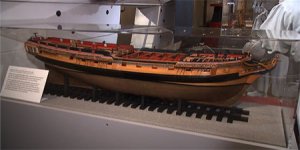

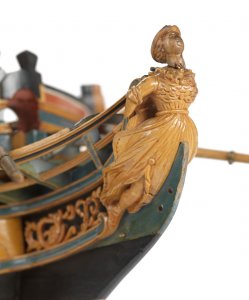

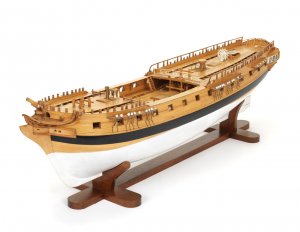

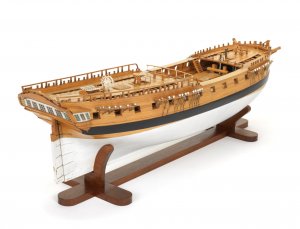

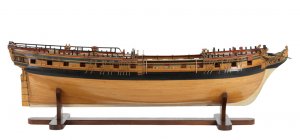

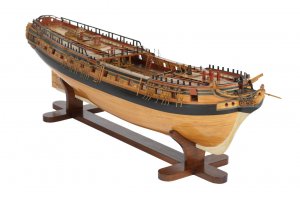

Scale: 1:48. A contemporary full hull model 'Minerva' (1780), a 38-gun frigate, built in 'bread and butter' fashion, planked and finished in the Georgian style. Model is partially decked, equipped and mounted on modern hull crutches. It has been identified by comparison to the original ship plans held in the NMM collection, as well as by the presence of a carved owl on the stern decoration, a figure associated with the 'Minerva’. Built at the Royal Dockyard, Woolwich, it had a gun deck length of 141 feet by 39 feet in the beam and a tonnage of 940 (builders old measurement). The 'Minerva’ was the first of a group of five 38-gun frigates built with identical dimensions. It took part in Admiral William Hotham’s action off Genoa in 1795 and was later renamed 'Pallas’ in 1798. It was eventually sold for breaking up in 1803.



large (13).jpg

large (14).jpg

large (15).jpg

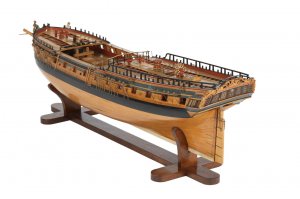

Scale: 1:48. A Georgian full hull model of a 38-gun frigate (1780). The model is decked. The name ‘Amazon’ has been associated with the model, but its dimensions do not suit any ship of that name. From the model the vessel measured 141 feet in length (lower deck) by 39 feet in the beam, displacing 940 tons, builders own measurement. It was armed with twenty eight 18-pounders on the upper deck and ten 9-pounders on the quarterdeck. This model represents a proposed design for a 38-gun frigate, probably of the ‘Minerva’ class (see SLR0317). The use of bone for the deadeyes, stanchions, steering wheel and small items of decoration was a feature of some official models of the late 18th century. G. W. French of Chatham made the model in about 1800 for Sir Evan Nepean (1751–1822), First Secretary to the Admiralty, 1795–1804. Frigates were fifth-or sixth-rate ships and so not expected to lie in the line of battle. With the advantage of superior sailing qualities over the larger ships of the line, they were used with the fleet for such tasks as lookout or, in battle, as repeating ships to fly the admiral’s signals. They also cruised independently in search of privateers.


http://collections.rmg.co.uk/collections.html#!csearch;searchTerm=Minerva_1780


Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
14,391
Points
938

Location
Vienna, Austria
In Robert Gardiners book The Sailing Frigate: A History in Ship Models
Illustrated from the Collections of the National Maritime Museum

https://shipsofscale.com/sosforums/...story-in-ship-models-by-robert-gardiner.1924/

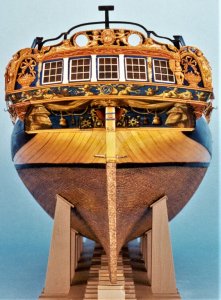

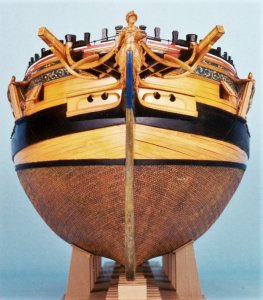

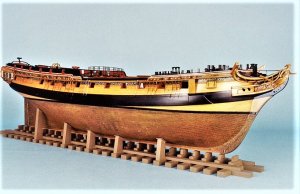

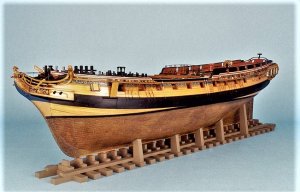

the models of the NMM are shown, but also the beautiful coppered hull of another model of the HMS Minerva which is in exhibition in the US Naval Academy in Annapolis

Excerpt of the Book Review:

obj 04 - 1.jpg obj 04 - 2.jpg obj 04 - 5.jpg

obj 04 - 3.jpg obj 04 - 4.jpg

In the following you can find a very good small film explaining the model and the construction as well history of the HMS Minerva 1780

A HISTORY OF THE NAVY IN 100 OBJECTS

Artifacts like those found in the U.S. Naval Academy Museum are tangible links to our past - holding and studying them evokes emotions and makes connections in our memories. The U.S. Navy has a long and storied history - only beginning to understand it would take a lifetime of study. By bringing notable objects and places to life, this podcast series highlights key moments and themes in the Navy's complex history. Citizens and sailors alike can use this series to connect with their past, understand their present, and prepare for their future. The U.S. Naval Academy Museum, the Nimitz Library Special Collections and Archives Department and their partners proudly present "A History of the Navy in 100 Objects," a weekly podcast and video series exploring the navy's storied history using objects.

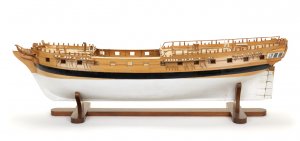

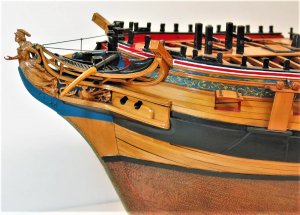

Object 04 - Wooden Model of HMS Minerva
