Nikitin San Bartolome 1584 A.D. (Kit #35)

[Sutty]

Do you think the wrap around deck sides which i taped together are correct. Also how do the hinges go together?



[Pathfinder65]

Do you think the wrap around deck sides which i taped together are correct. Also how do the hinges go together?

Sorry, I can't help I've not gotten to that part of the build yet. I think if you do a search and find the other SB builds on SOS you might find an answer.

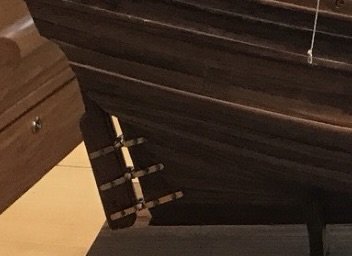

I used the same type of rudder hinge on my Willem Barentsz build.







Jan



[Fish&Chip]

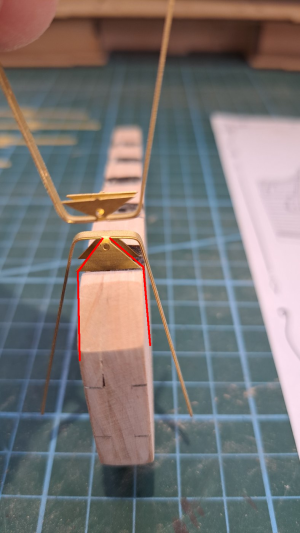

My bet is that you don't ply the triangle on the good Side( interior vs exterieur of the braket). Then you can attach two triangles with pin.



[Sutty]

That's interesting I was going to put the hinges on top of each other where you have butted them together.



[Sutty]

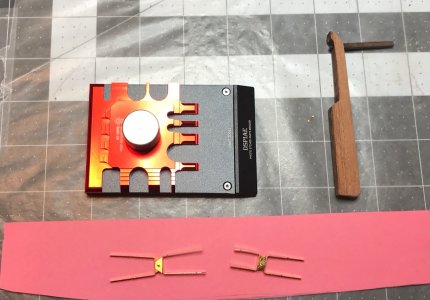

Photo etched part bender looks interesting might have to do a bit of Google search.
