Panart battle deck section x2 kit mash up [COMPLETED BUILD]

Joined
Nov 29, 2021
Messages
340
Points
268

Location
Welsh, LA
I am currently in the process of building a kit mash up of 2 of these kits. Your eyes aren't playing tricks on you. 20211124_034422.jpg

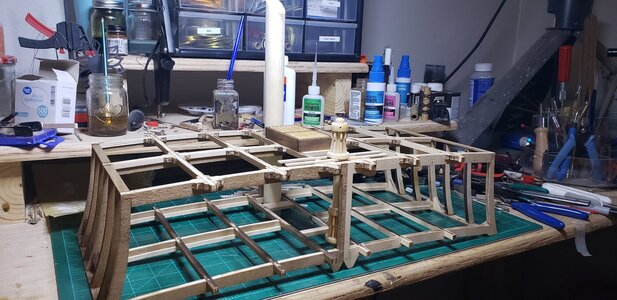

Here I am joining the 2 frames of the kit and adding some bracing with the 2x5 strips.

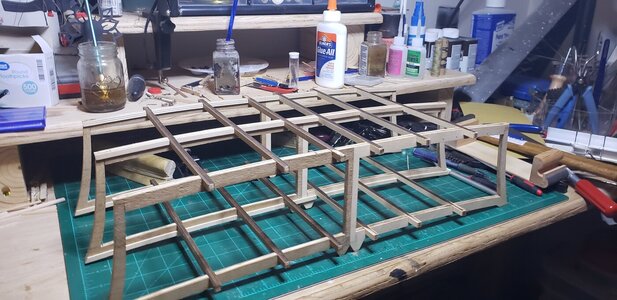

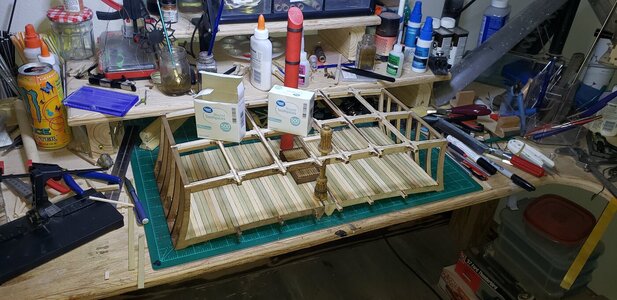

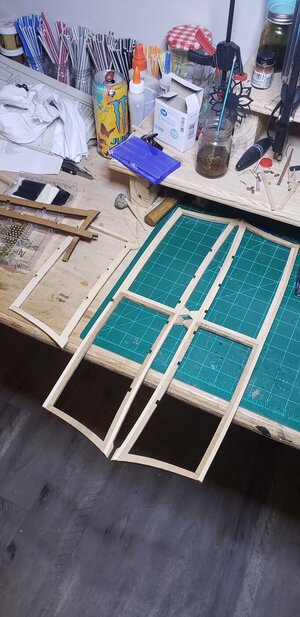

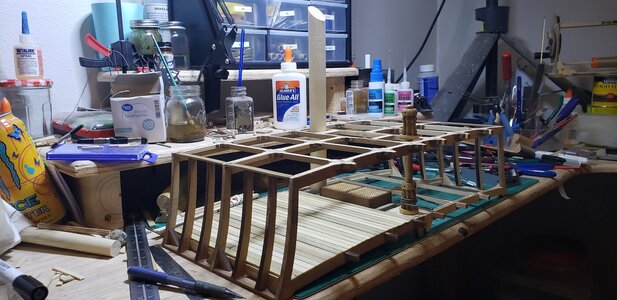

Here are all the frames joined together. Total footprint of this one will be 21" x 10"20211125_192616.jpg

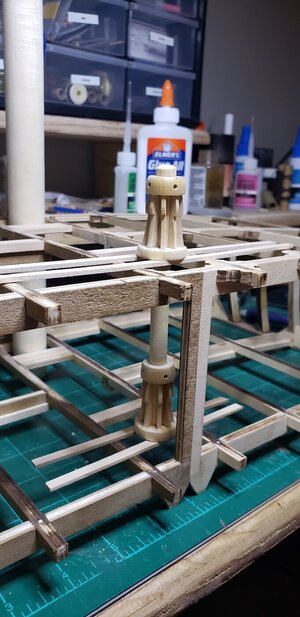

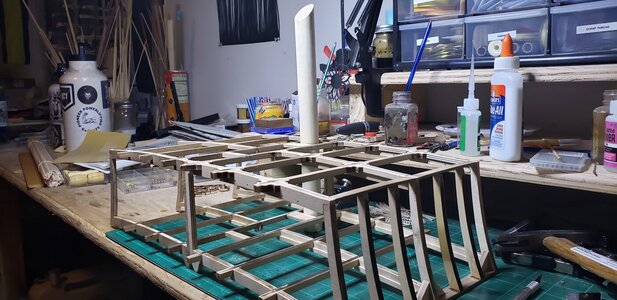

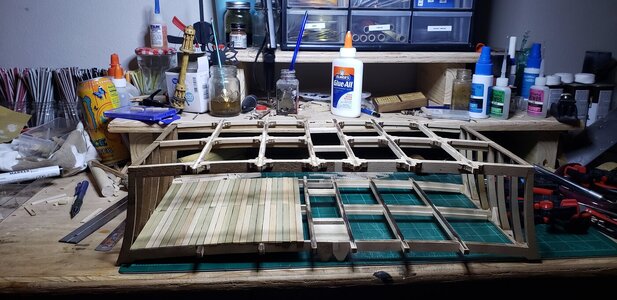

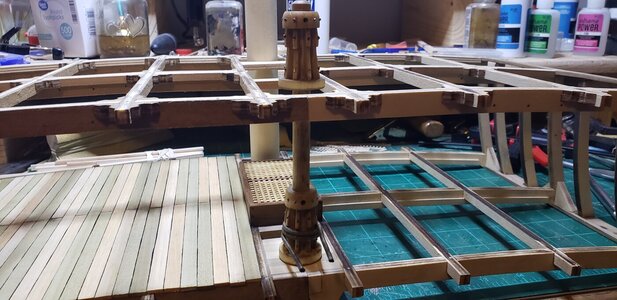

Getting frame bracing in and placing a mast section.

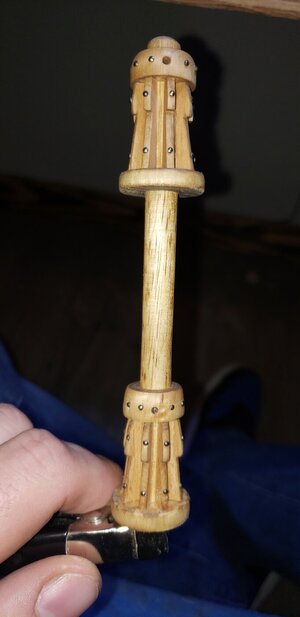

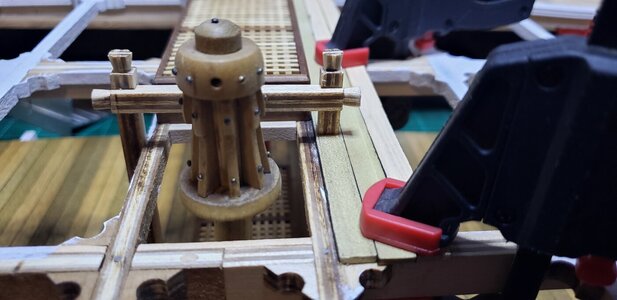

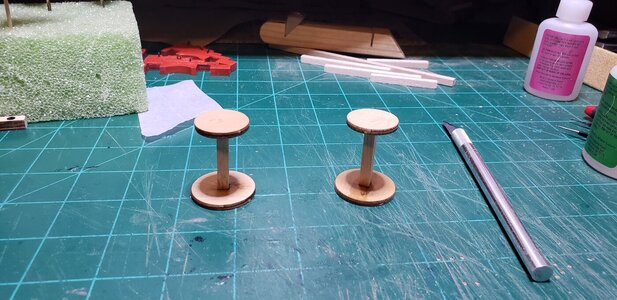

Scratch built a capstan for this model too.

Getting things mocked up for placement.

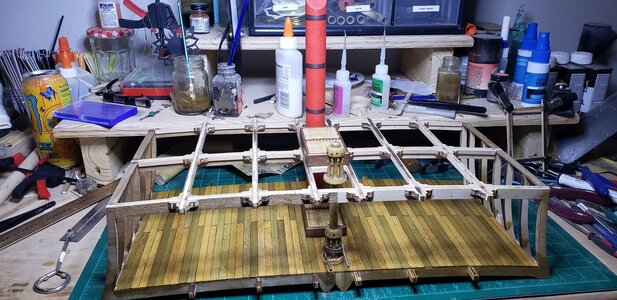

Showing how it will be once it's in place.

Figured I'd put some bolts in it.

Laying down some decking

More decking going down.

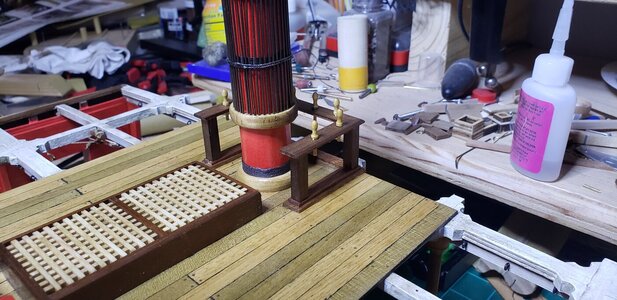

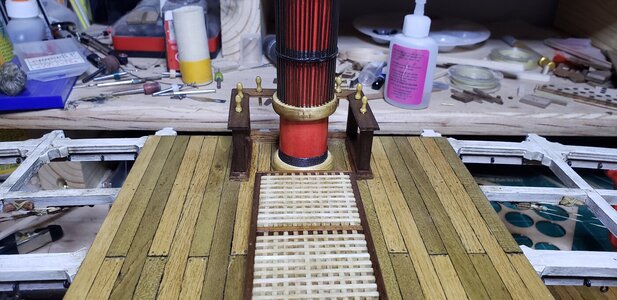

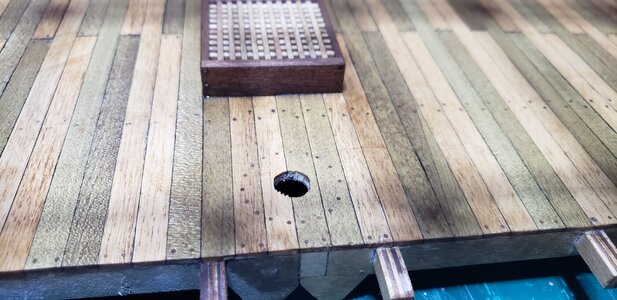

Fitment of the grating is in

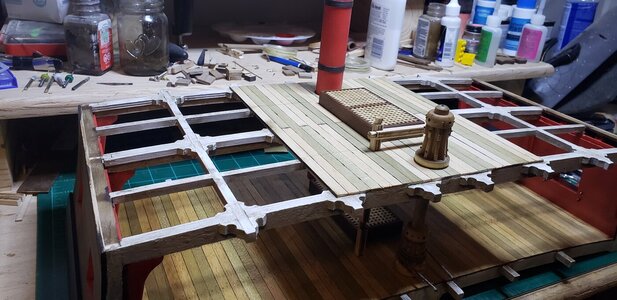

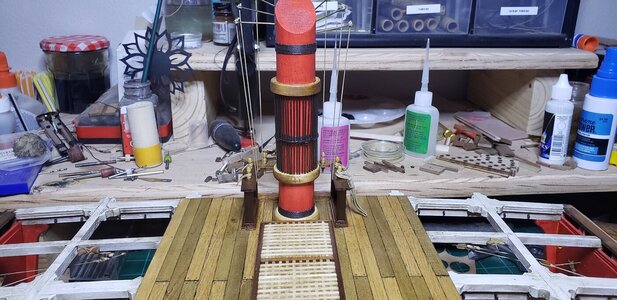

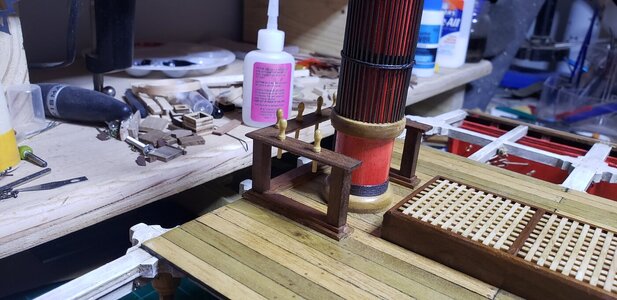

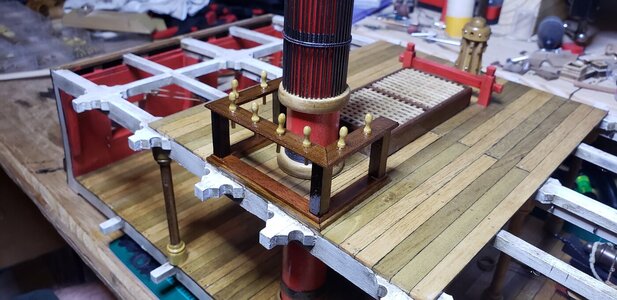

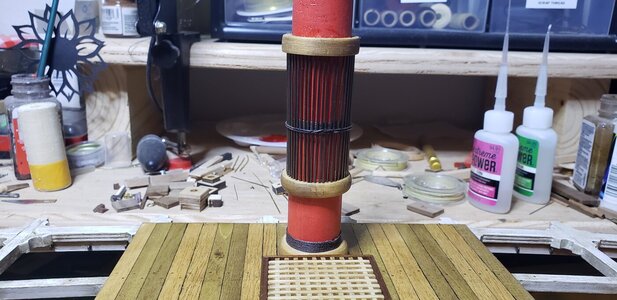

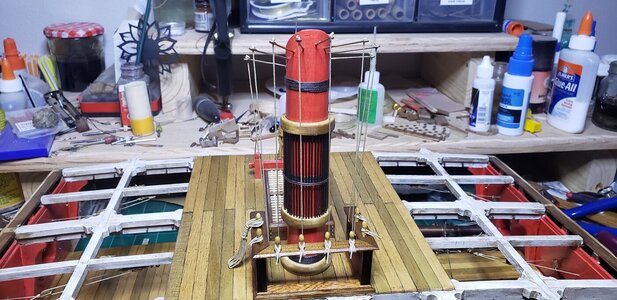

More decking and painted the mast section and have some rope lashing on it. Will be adding spears to it later on.

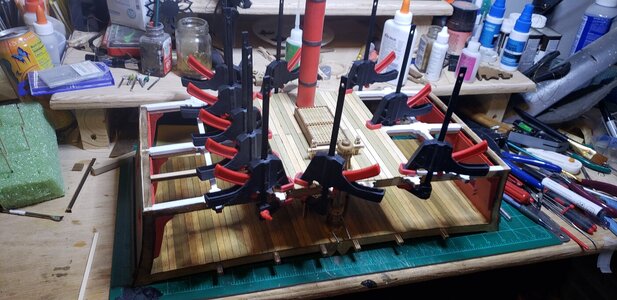

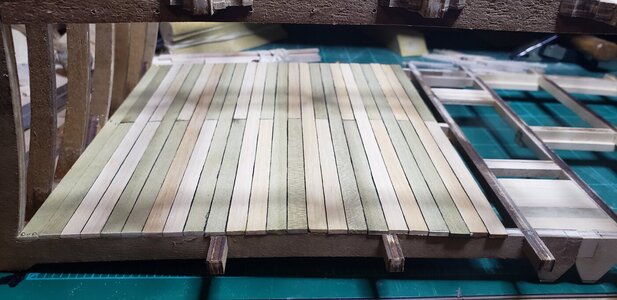

Planking on the bottom deck is complete.

About to get started laying down some wooden nails. 20211207_034253.jpg

Inserting toothpicks


Bottom deck nails are in

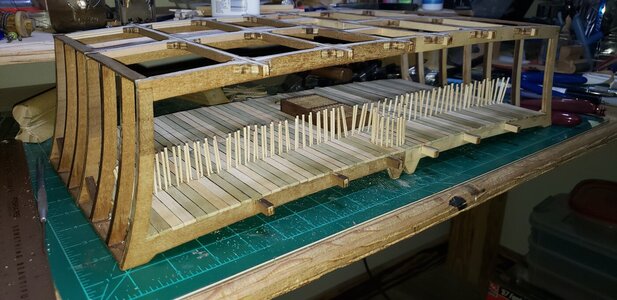

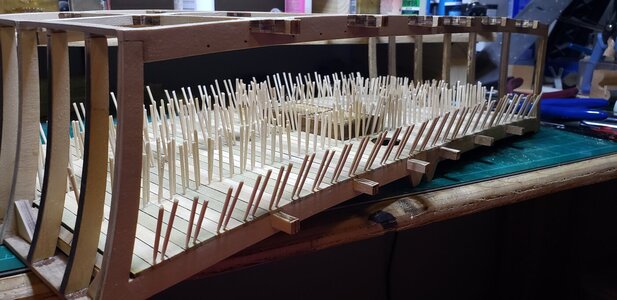

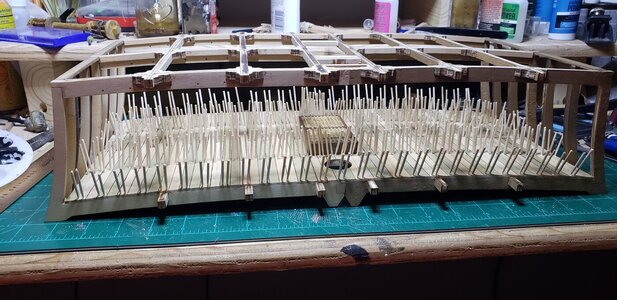

Just a sea of toothpicks

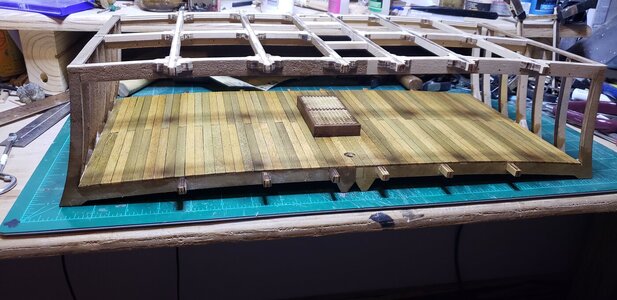

Everything is clipped off and sanded down and has a coat of light walnut stain

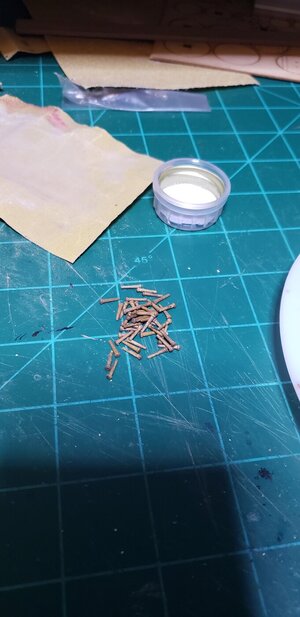

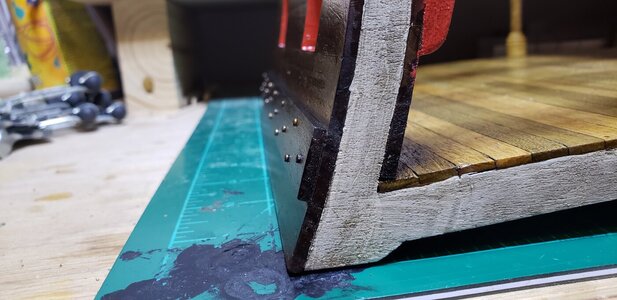

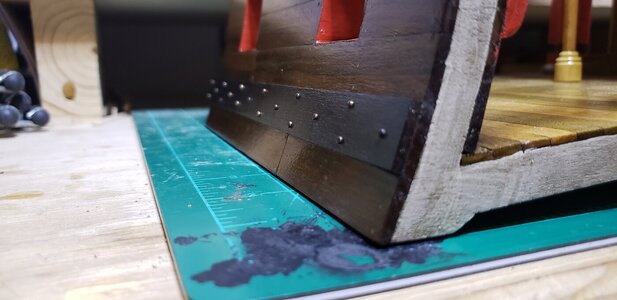

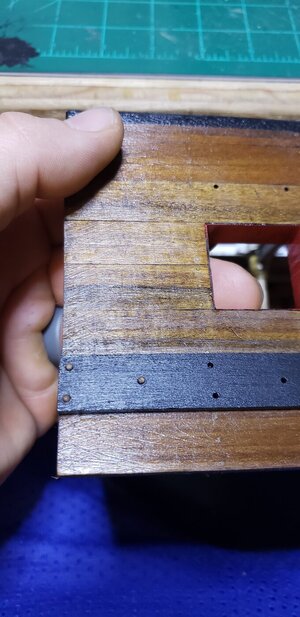

Close up of how the nails turned out.

More test fitting.

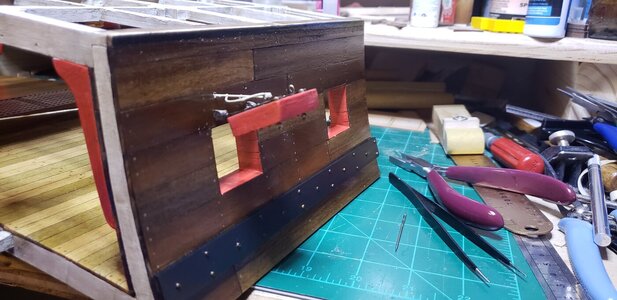

Starting to lay the sides on.

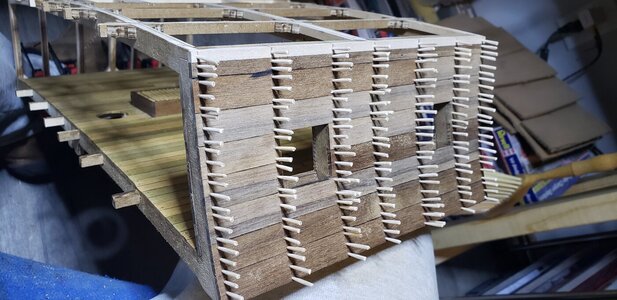

Side is complete now for the nails

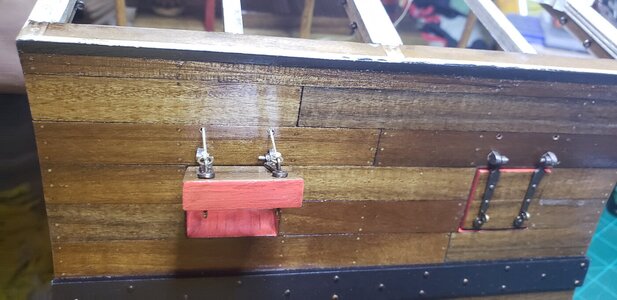

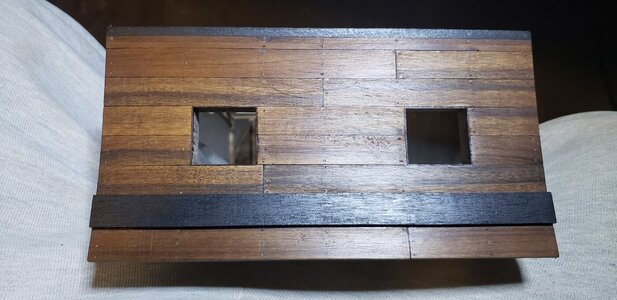

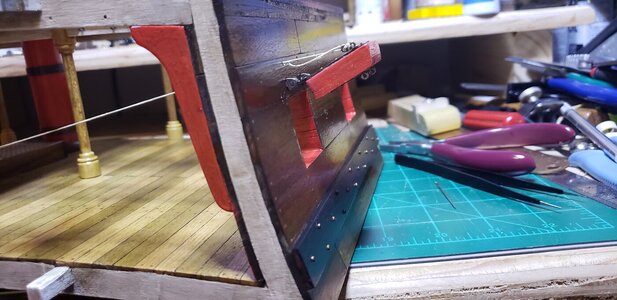

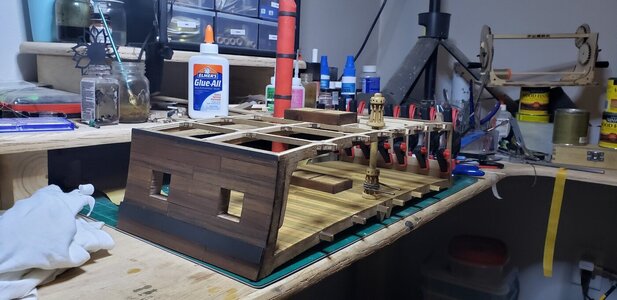

Sanded and stained and even got the rubbing painted and on.

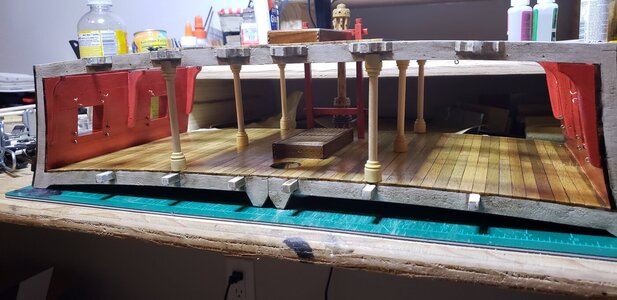

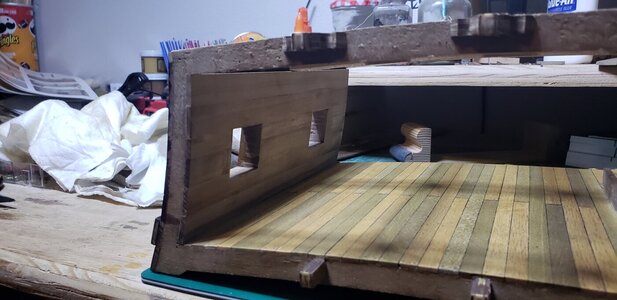

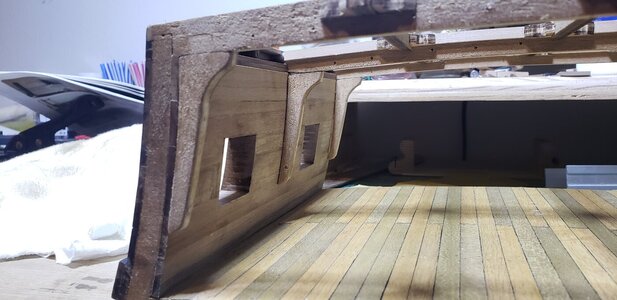

Got the inside of the bulwarks done.


Attachments

  • 20211202_141646.jpg
    214 KB · Views: 27
  • 20211212_193554.jpg
    208.5 KB · Views: 28
Joined
Nov 29, 2021
Messages
340
Points
268

Location
Welsh, LA

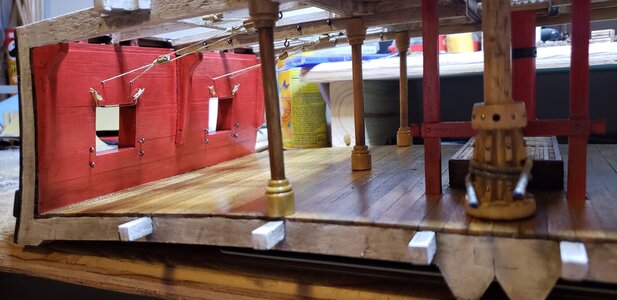

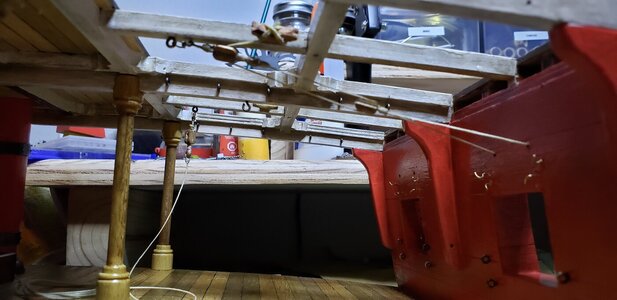

Putting the hanging knees in place.

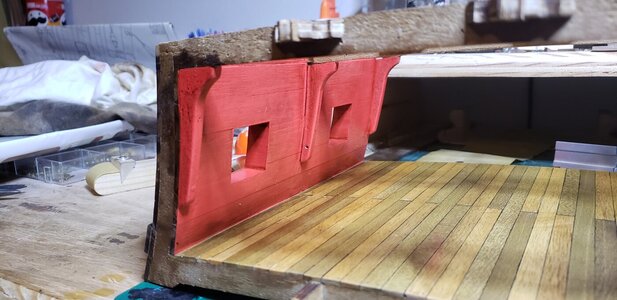

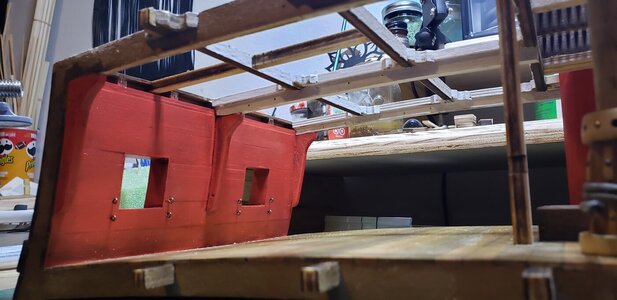

Painted the inside of the bulwarks red and added some aging with staine

Now working on the other side.

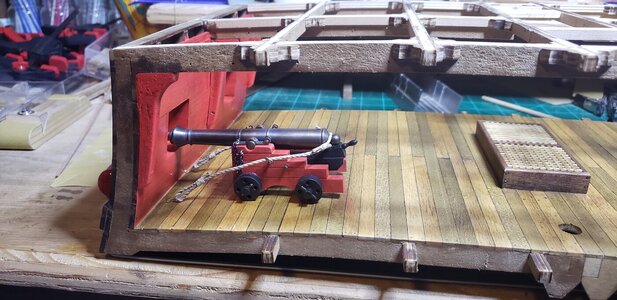

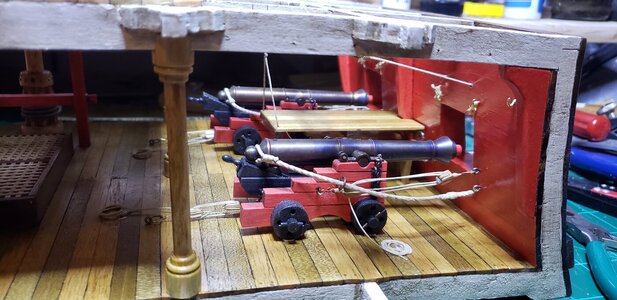

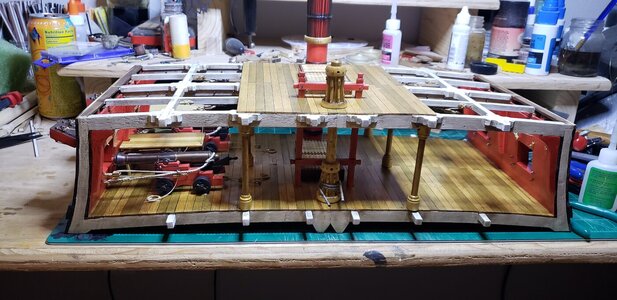

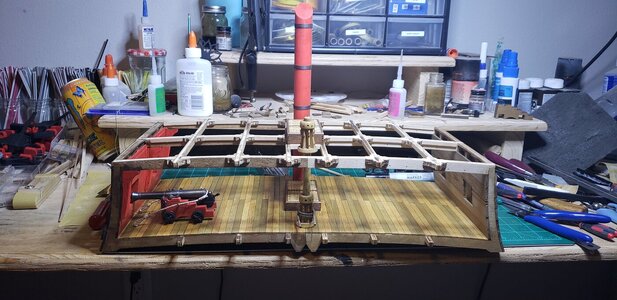

Checking to see how the cannon will look in place. Not done with rigging quite yet

Checking this out

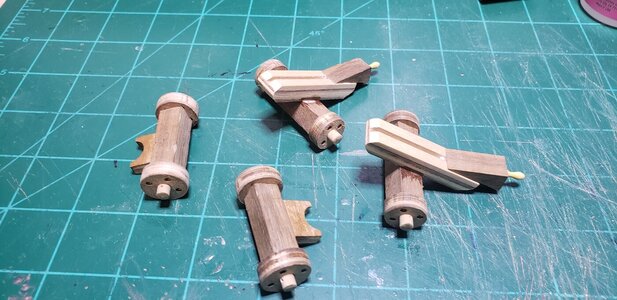

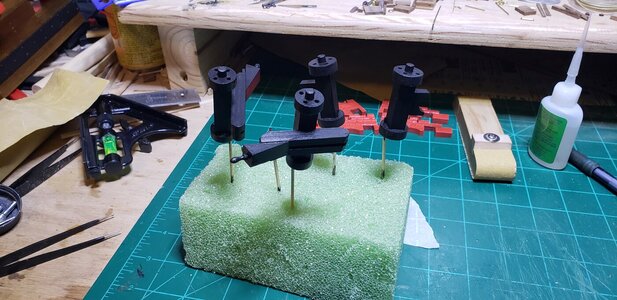

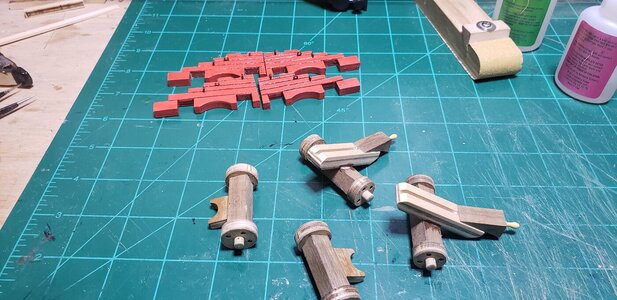

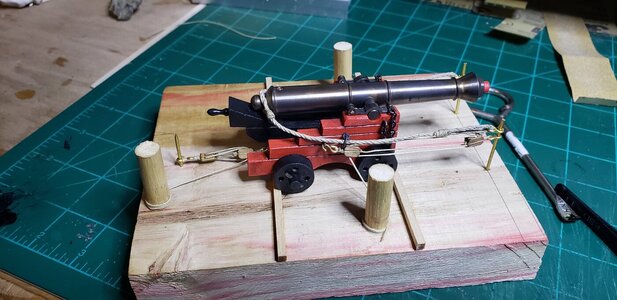

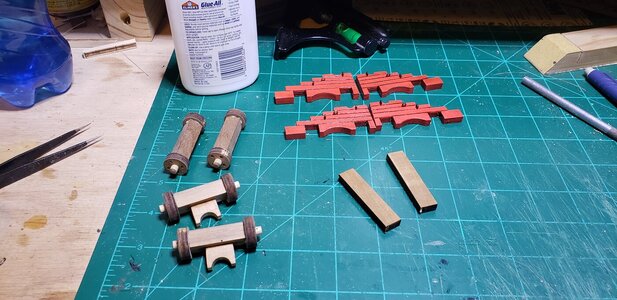

Jig I made for the cannons

Same jig

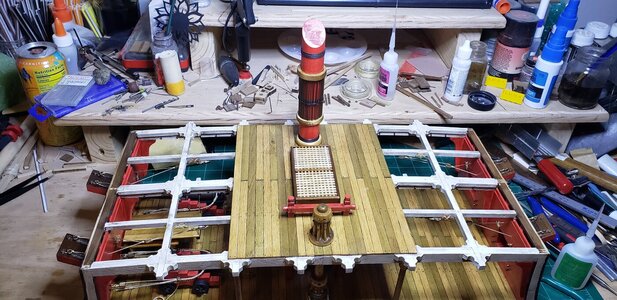

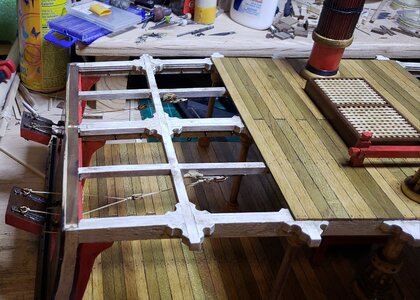

Starting on the top deck now

Floor view

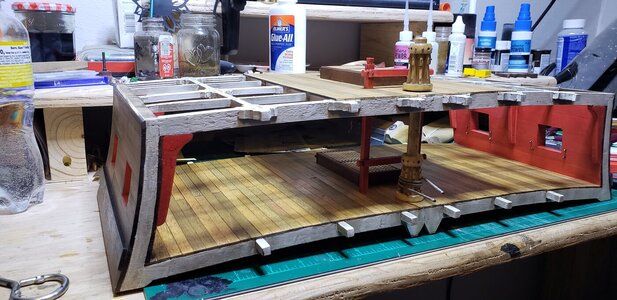

Top deck

More of the top deck

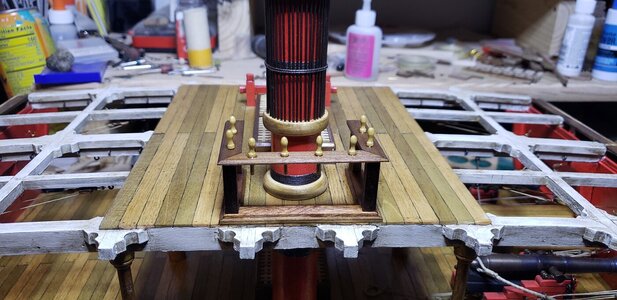

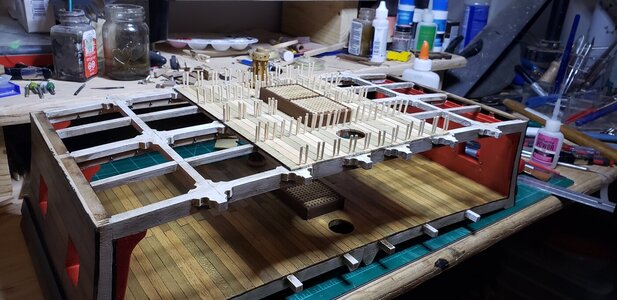

Top deck complete now for nails

More nails

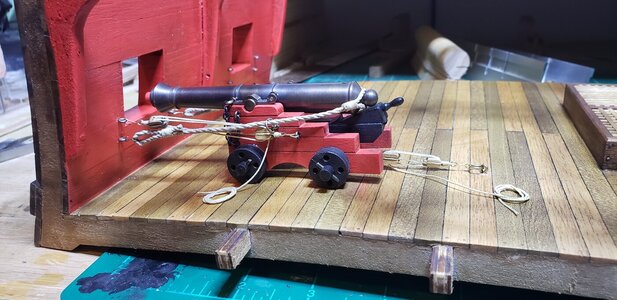

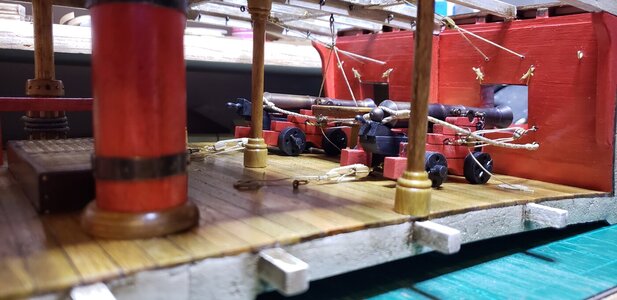

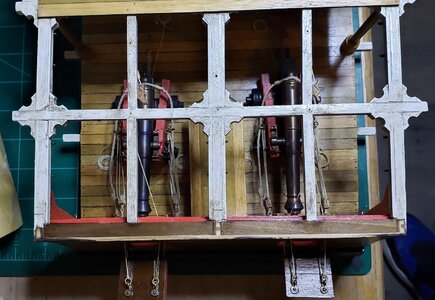

Fully rigged cannon

Frame is painted and aged

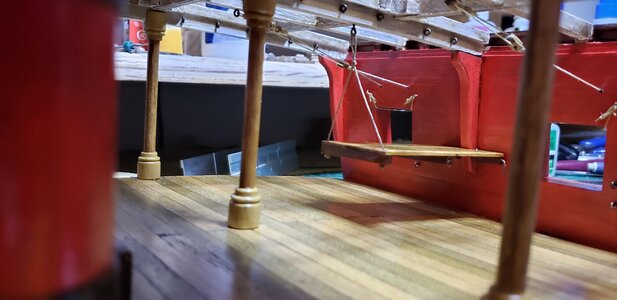

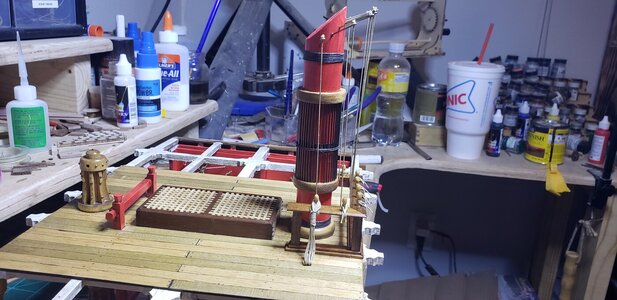

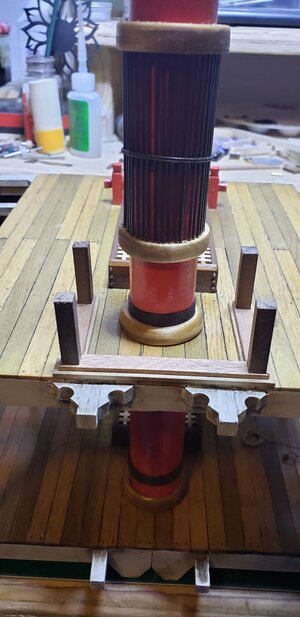

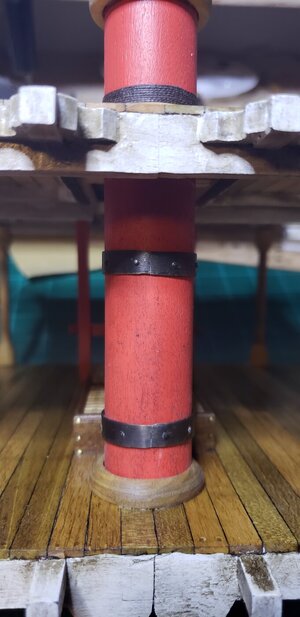

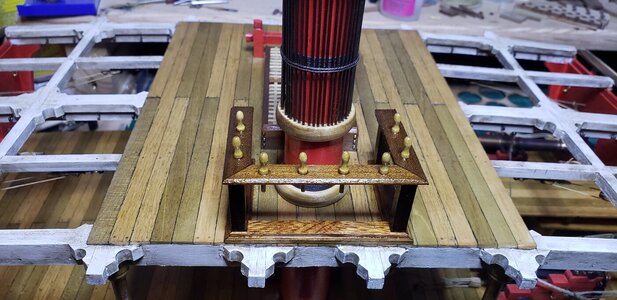

Columns are in place

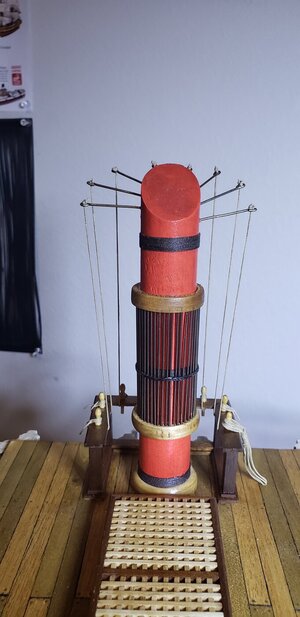

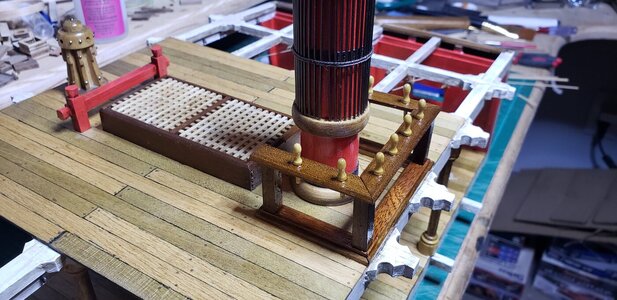

Spears are on the mast
