Percassa Motor Torpedo Boat 1/24 scale by neptune

To carry on with the torpedoes I had to make the cowling that goes around the propeller, I found some electrical pipe connectors with an outside dia of 25mm which was just right for me, some of the cowlings at the front after having the internal size bored down,


I set the connector up in the lathe, and ground a little boring tool out of some tool steel,


I have a sherline lathe but not the sherline motor, my son is an electrician and he set me up with a three phase motor that runs through a computer controlled box and it can go in forward or reverse, so I set it up in reverse and bored the connector from the back so I could see what was happening,


on the right is the original part and on the left is the bored part,


still a bit of adjusting to do,

a view of the control box,

thanks for looking in,

best regards John.
.

That is looking fantastic nicely done love the fact you even making parts wish I had room for that sort of kit as I did do a engineering nvq 1,2,3 corse after I left school could but that to good use again but was such along time ago lol. Thank you so much for all the links such a big help did you find the props well balanced. The gun looks so detailed iv opted to use a company called battlecraft for my fitting have a look you thay do some nice bits on there for are boats.
What motors are you going to run ?.
What the boat plan is thst the one of the side Vue and you Vue looking down.

neptune said:
I have sent you the instruction booklet by PM, I am having trouble trying to scan the plan, so if you PM me your name and address I will post the plan to you, it is at half size so if you take to the Printers and ask them to enlarge it 200 percent, this is what I did and then you can take all your measurements straight off the enlarged version,

best regards John,
Click to expand...
I thnk i have this part it a side view and top view looking down showing where bits sit on the boat

neptune said:
vi.aliexpress.com

2 PCS High-Precision 4mm Stainless Steel Ship Propeller Support Shaft And Bushing Set Various Sizes For Remote Control Boat - AliExpress 26

Smarter Shopping, Better Living! Aliexpress.com
vi.aliexpress.com vi.aliexpress.com

The tubes and shafts


vi.aliexpress.com

1Pair 4-Blade Zinc Alloy Propeller Diameter 55mm Metal Paddle 4mm Shaft Hole CW CCW Props for RC Tug Bait Boat Accessories - AliExpress 26

Smarter Shopping, Better Living! Aliexpress.com
vi.aliexpress.com vi.aliexpress.com

The props

vi.aliexpress.com

2pcs Brass Propeller Shaft Bracket Double Arm Axle Strut Holder Inner Dia 4mm Flexible Supporter DIY Handmade Parts for RC Boat - AliExpress

Smarter Shopping, Better Living! Aliexpress.com
vi.aliexpress.com vi.aliexpress.com

The shaft supports


vi.aliexpress.com

Good Quality Stainless Steel/Copper/Aluminum 3mm/4mm/4.76mm(3/16

Smarter Shopping, Better Living! Aliexpress.com
vi.aliexpress.com vi.aliexpress.com

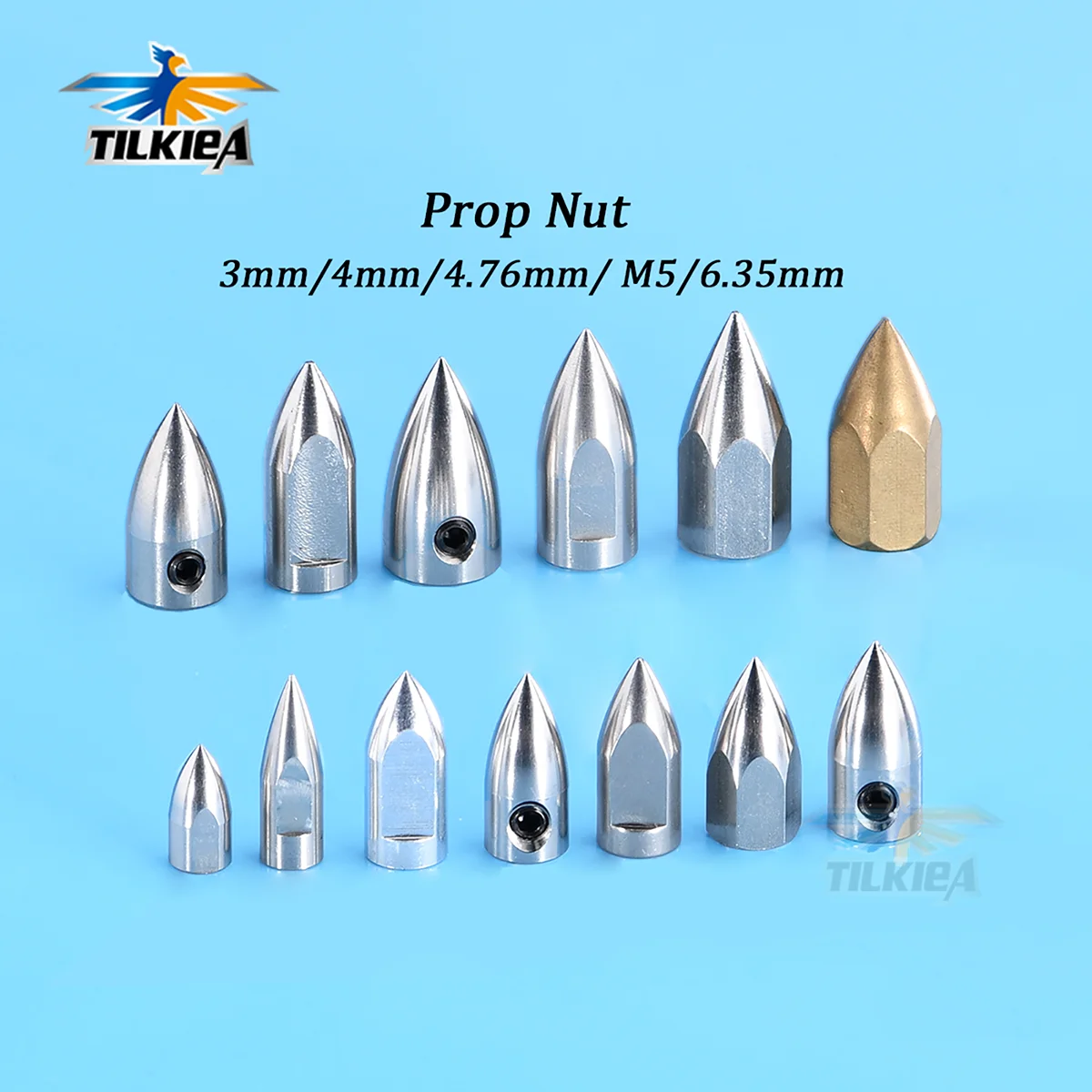

The nuts for the ends of the shafts


vi.aliexpress.com

1Pc M2 Stainless Steel Push Rod Linkage + 2Pcs Nylon Rod End Ball Joint Set Assembly for Rc Model Airplane Car Boat - AliExpress

Smarter Shopping, Better Living! Aliexpress.com
vi.aliexpress.com vi.aliexpress.com

The connecting rods for the rudders


vi.aliexpress.com

CYG104 1/16 Bofors 40 mm Flak 28 AA Gun With Brass Detail Up Assembly Model Kit DIY Hobby Making Accessories - AliExpress 26

Smarter Shopping, Better Living! Aliexpress.com
vi.aliexpress.com vi.aliexpress.com

The Bofor guns, these are a little on the big side so I opted to leave the shields off, they claim they are 1/16 scale, I'm not sure I think they look alright on the boat, I did adjust the foot pedals,


View attachment 453727
Click to expand...
Yea don't look to big I wouldn't say it was looks really good

The Bofor gun mounts all primed ready for the final coats of grey,


The gun and shield,


overall side view,


and with the superstructure,


also the fore Bofor gun in place,


A close up, I decided to go with the Bofor Gun without the shield which was the way the Royal Navy had them on these boats,

best regards John.


.

Nice I'm.looking to go brushless for mine I think 2 motors 2 esc with water cooling motors I'm not shore if there be water cooled yet will see lol.

A little late but I wanted to wish you Happy birthday!
Sorry for the delay but now I prepare for the trip to my son graduation in Southampton on the 21
He is finnaly a doctor in satellite electric engines after a 5 year research!
Kind regards
Daniel

badras-khan said:
A little late but I wanted to wish you Happy birthday!
Sorry for the delay but now I prepare for the trip to my son graduation in Southampton on the 21
He is finnaly a doctor in satellite electric engines after a 5 year research!
Kind regards
Daniel
Click to expand...
Thank you Daniel for the Birthday Wishes, and Congratulations to your Son on his achievement,

best regards John.
