Plank cutting jig?

Sid Barras

Well-Known Member
Joined
Jun 23, 2019
Messages
76
Points
78

Shipwrights:
As I contemplate starting my second build, I think about the one thing I wish I had, and this was reinforced when I saw just what I needed in an old (5+years ago) build log. A hull planking jig for slicing those 5mmx.5mm planks into narrower strips or stealers. Such a device would make life so much easier, not to mention accurate!
I looked at a couple of model maker sites, but found nothing currently for sale. I can certainly make my own if a kindly benevolent fellow shipwright could get me started, or point to the right retailer for commercially available said device ...


Uwek

Admin
Staff member
Administrative
Blandford Group Build
Joined
Dec 25, 2017
Messages
9,895
Points
728

Location
Vienna, Austria
Shipwrights:
As I contemplate starting my second build, I think about the one thing I wish I had, and this was reinforced when I saw just what I needed in an old (5+years ago) build log. A hull planking jig for slicing those 5mmx.5mm planks into narrower strips or stealers. Such a device would make life so much easier, not to mention accurate!
I looked at a couple of model maker sites, but found nothing currently for sale. I can certainly make my own if a kindly benevolent fellow shipwright could get me started, or point to the right retailer for commercially available said device ...
Did you see this relatively actual topic in which we discussed the use of such devices and chop-saw?


Moxis

Well-Known Member
Joined
Jul 27, 2018
Messages
131
Points
133

Location
Finland

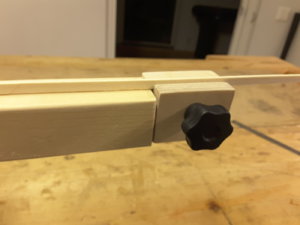

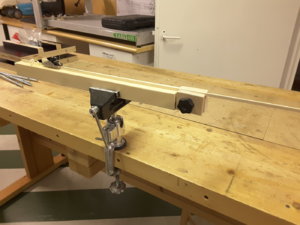

When talking about tapering the planks, you might be interested about the jig I made of a length of 40x40 mm wood & small piece of 12 mm plywood and a knob wheel attached into short piece of threaded rod (M8).

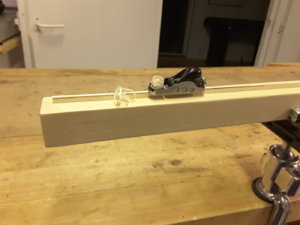

The plank to be tapered is squeezed between the "jaws", and tapered using the wonderful Veritas small plane:




Uwek

Admin
Staff member
Administrative
Blandford Group Build
Joined
Dec 25, 2017
Messages
9,895
Points
728

Location
Vienna, Austria
