Planset Review:
N.S. Nostra Signora DEL ROSARIO - Felucca - 1759
Pietro Garibaldi’s felucca Nostra Signora del Rosario (Our Lady of the Rosary)
in scale 1:36
by Franco Fissore
Translated by Francois Fougerat

IMG_41611.jpg IMG_41621.jpg


This interesting monograph / planset is available from ancre in the languages french, italian, spanish or english


Some excerpts from the web-page


Unbenannt.JPG Unbenannt1.JPG


ns-del-rosario-feluca-1759 (6).jpg

Size of the finished model



SYNOPSIS:

Captain and owner Pietro Garibaldi’s felucca Nostra Signora del Rosario (Our Lady of the Rosary) which is presented in this monograph is an example of a typical sardine-fishing vessel of Sanremo (Liguria). Built in the Porto Maurizio yards and launched in 1759. She was under the control of the Most Serene Minister of Health of the Republic of Genoa. As compared to feluccas intended for other functions, those intended for fishing had a characteristic rig. The very large sail surface, difficult to handle while fishing, was carried on a short and stubby lateen yard, capable of imparting power and resistance to the vessel by preventing it from capsizing in a hard blow. In some cases, lateen yards could have a diameter approaching that of the mast under the top, as was the case with a pianella (a variant of the felucca) of 1766 that we discuss in the text.

An exceptional documentation comprised of 292 photos and 99 drawings supplements the plates and allows the reader to follow the complete construction of the felucca step-by-step. Experienced modelers, as well as those more recently interested in the subject, will find in the text, complete information including the making of special tools facilitating the construction of the model.



CONTENT:

A 200-page booklet, 130 of which concern the construction of the model, and 8 pages in full color.
The monograph contains the 20 plates necessary for the construction of the timber frame, with one plate in full color showing the felucca N.S. Del Rosario.

Content of the booklet:

Bibliography
The Borea d´Olmo Palace
Porto Maurizio
A 1773 map by the geographer Matteo Vinzoni
Porto Maurizio during Vinzoni´s days
Introduction
Map - The Mondovi province and the Principality of Oneglia
The harbor of Genoa in 1684
Topographical map of the Porto Mautizio roadstead in 1750
Liguirian feluccas
Fig.1 - Stern of lateen feluccas with "cadregas"
Fig.2 - Detail, of a "farchetta" (wash-board)
The Felucca
The Felucone
The felucca in the Western Ligurian Navy from 1747 to 1766
Porto Maurizio feluccas
Oneglia feluccas
Diano Marina feluccas
Cervo feluccas
Arma di Taggia feluccas
Sanremo feluccas
About looting and wrecks
Drawings of feluccas by Sergio Spina
Monograph of Nostra Signora del Rosario


LIST OF PLATES AT 1/36 SCALE

1 Schematic elevation, vertical section
2 Fore and aft and transverse timber frame
3 Spread-out view of the fore-and-aft timber frame.
4-5-6 The 36 assembled frames and spread-out view of the frames
7 Timber framing, including parts of the ceiling.
8 Framing and internal arrangements.
9 Developed view of beams, carlings and waterways
10 Framing and deck planking
11 Plan view of the stern without the wings
12 Planked hull
13 Overhead view, details of the « cadrega »
14 Cross-sections
15 Elements of furniture
16 Masts, spars and blocks
17 Sails and flags
18 Sails and running rigging
19 Plan view showing runing rigging locations
20 Side view


LOOK INSIDE of the BOOKLET

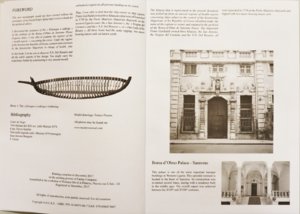

IMG_41651.jpg IMG_41661.jpg

IMG_41671.jpg IMG_41681.jpg

IMG_41691.jpg IMG_41701.jpg



IMG_41711.jpg IMG_41721.jpg

IMG_41731.jpg IMG_41741.jpg

IMG_41751.jpg IMG_41761.jpg


IMG_41771.jpg IMG_41781.jpg



Attachments

Uwek

Admin
Staff member
Administrative
Blandford Group Build
Joined
Dec 25, 2017
Messages
9,835
Points
728

Location
Vienna, Austria
Planset Review: PART II
N.S. Nostra Signora DEL ROSARIO - Felucca - 1759
Pietro Garibaldi’s felucca Nostra Signora del Rosario (Our Lady of the Rosary)
in scale 1:36
by Franco Fissore
Translated by Francois Fougerat

Some more Look Inside of the Booklet:

IMG_41801.jpg IMG_41811.jpg

IMG_41821.jpg IMG_41831.jpg


IMG_41841.jpg IMG_41851.jpg

IMG_41861.jpg IMG_41871.jpg

IMG_41881.jpg IMG_41891.jpg

IMG_41901.jpg IMG_41911.jpg


IMG_41921.jpg IMG_41931.jpg


Important REMARK:
On the ancre page you can download for free 130 pages of the booklet in high quality showing the construction of the model - a great building log

click on "construction of the felucca"




LOOK INSIDE of the DRAWINGS in scale 1:36

IMG_41951.jpg IMG_41961.jpg

IMG_41971.jpg IMG_41981.jpg


IMG_41991.jpg IMG_42001.jpg

IMG_42011.jpg IMG_42021.jpg



Uwek

Admin
Staff member
Administrative
Blandford Group Build
Joined
Dec 25, 2017
Messages
9,835
Points
728

Location
Vienna, Austria
A great miniature model of the felucca was built in scale 1:170 by our member @Javier Baron and shown in a building log......
