Potosi - German five-masted barque

shipbuilder

Moderator
Moderator
Joined
Jun 30, 2012
Messages
754
Points
298

Location
Great Britain
I have just begun drawing up plans of the German five master Potosi. This vessel was completed by J C Tecklenberg, Geesmunde, in 1895. With a gross tonnage of 4,026 tons, she had a length of 366.3 feet and a beam of 49.7 feet. She was interned in Valparaiso for the duration of World War I. In 1918, she was handed over to the French, who sold her to Chile in 1923. She was lost by fire two years later under the name Flora.
So far, I have drawn the profile and the five masts. The fifth mast, the jigger, is completed. The name of the masts from forward to aft are: Fore, Main, Middle, Mizzen and Jigger.
Models of the Potosi are few and far between, because of the belief that the rigging is too complicated. This is not so - it is repetitive, but not complicated, as each of the four square-rigged masts are practically identical. The deck layout is fairly simple, and there is a minimum of decoration on the hull.
I am drawing this as a simple stress-free activity whilst convalescing from rather complicated eye surgery on the 3rd of this month.
Potosi 1 (Medium).JPG


Uwek

Admin
Staff member
Administrative
Blandford Group Build
Joined
Dec 25, 2017
Messages
9,422
Points
728

Location
Vienna, Austria
The Potosi was a really interesting barque, especially because she was stronger designed because of her usual journeys around Cape Horn between Germany and Chile.



I am looking forward to see your drawing finished


Uwek

Admin
Staff member
Administrative
Blandford Group Build
Joined
Dec 25, 2017
Messages
9,422
Points
728

Location
Vienna, Austria
The Potosi was a really interesting barque, especially because she was stronger designed because of her usual journeys around Cape Horn between Germany and Chile.

View attachment 113080

I am looking forward to see your drawing finished


Uwek

Admin
Staff member
Administrative
Blandford Group Build
Joined
Dec 25, 2017
Messages
9,422
Points
728

Location
Vienna, Austria
The Potosi was a really interesting barque, especially because she was stronger designed because of her usual journeys around Cape Horn between Germany and Chile.

View attachment 113080

I am looking forward to see your drawing finished


shipbuilder

Moderator
Moderator
Joined
Jun 30, 2012
Messages
754
Points
298

Location
Great Britain
Thanks Uwe. All the Flying P sailing ships were well-built, and I believe that they never lost a single one due to bad weather, despite being mainly on the Cape Horn run. This afternoon, I pencilled in the jibs and staysails, and completed rigging the mizzen mast. Only three more to go!:)
Potosi 3 mizzen mast (Large).JPG


shipbuilder

Moderator
Moderator
Joined
Jun 30, 2012
Messages
754
Points
298

Location
Great Britain

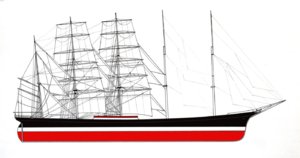

The total number of officers and crew for the Potosi, was 44 men. The ship could carry 6,400 tons of cargo, and with good weather conditions attain a speed of 19 knots. But the voyage speed average was pulled down by the long spells of calm between the trade winds. Sail plan coloured in with the computer -
