Pride of Baltimore II 1:24 scale scratch build

Joined
Apr 26, 2020
Messages
15
Points
58

Location
Patumahoe, Auckland
Hello

Just finished the planking of the hull, glad its painted as it was my first planking job, a bit of filler and fairing to do.

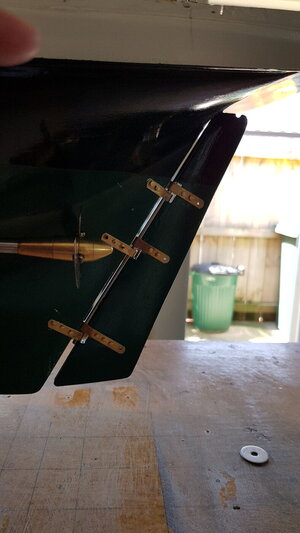

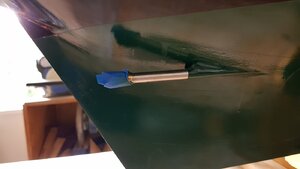

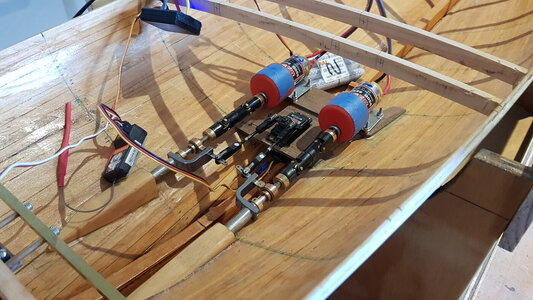

Thinking ahead about how to do the propulsion of the boat, it is a twin screw setup.
Questions
  1. Can a single electric motor with belt drive to each of the propeller shafts?
  2. What size motor/s?
  3. What type of shaft, do they weep?
  4. What sort of controls for forward and reverse?
  5. Did the propellers need to be con-rotating?

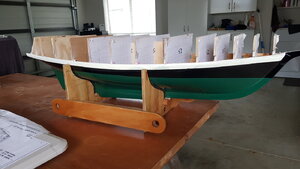

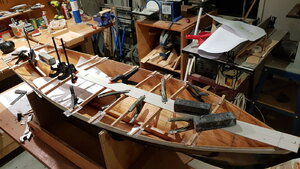

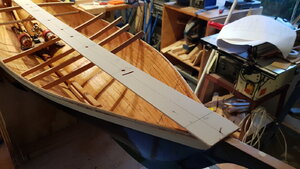

Half the planking completed:

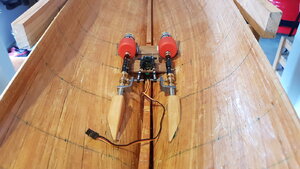

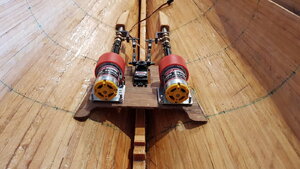

Test rig for sorting out the sheeting etc:


I look forward to your replies.

Last edited by a moderator:
Joined
Apr 26, 2020
Messages
15
Points
58

Location
Patumahoe, Auckland
Slowly working on the hull, here's an update.

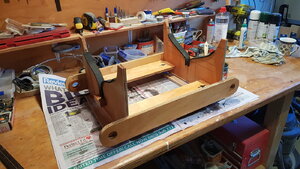

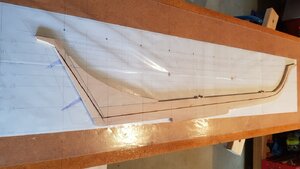

1. Lamination of the keel from macrocarpa timber, there's a local timber mill handy that specializes in macrocarpa Mac Direct https://www.macdirect.co.nz/
1 Keel Lamiation.jpg

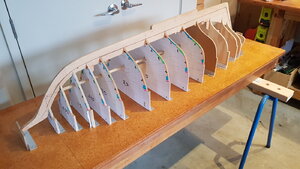

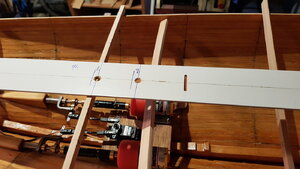

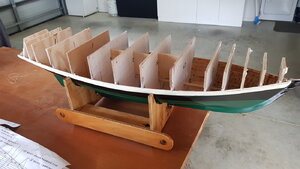

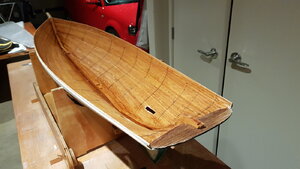

2. Frames setup
2 Frames.jpg

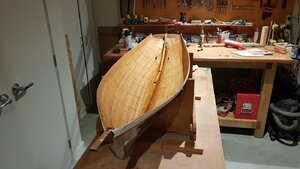

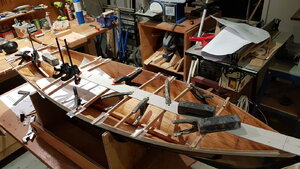

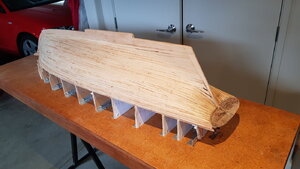

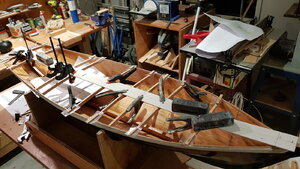

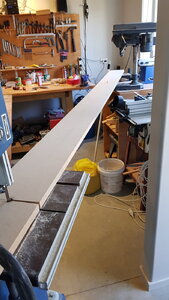

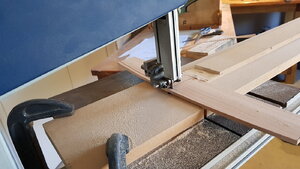

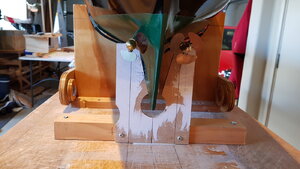

3. Staring to plank, I machined the planks to 8 x 2.5 mm macrocarpa.
5 Planking Started.jpg

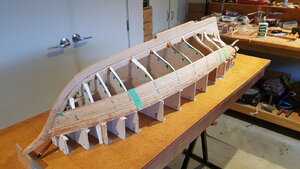

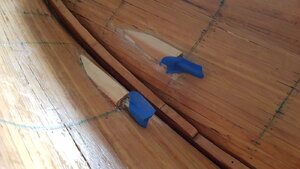

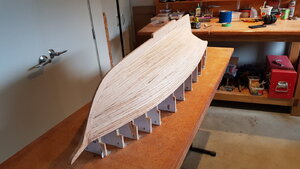

4. Planking finished, not the best but will be painted, had a problem with station 9.5. about 2 mm to high.
7 Planking Complted.jpg

8 Planking Completed.jpg

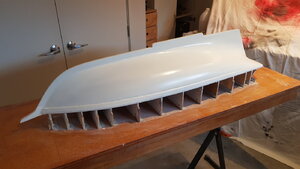

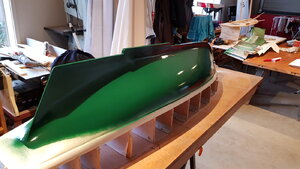

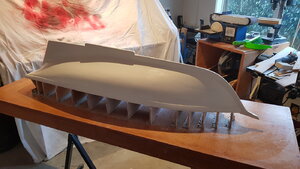

5. Fibreglassed and 1st coat of primer, I was able to fair out station 9.5.
9 Fibreglassed and primed.jpg

10 Fibreglassed and primed.jpg

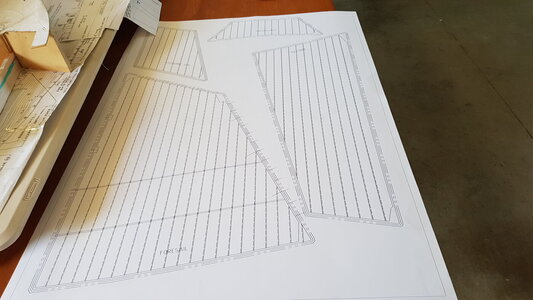

Plus I am drawing up the sails to make templates, I was going to make a set of trial sails to work out the sheeting setups and travels but decided to go all out and make the final set of sails, looking at 250 point cotton sheets at this stage, any other recommendations?

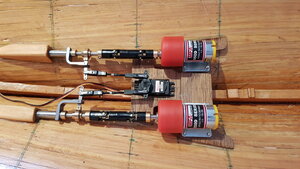

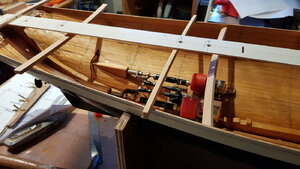

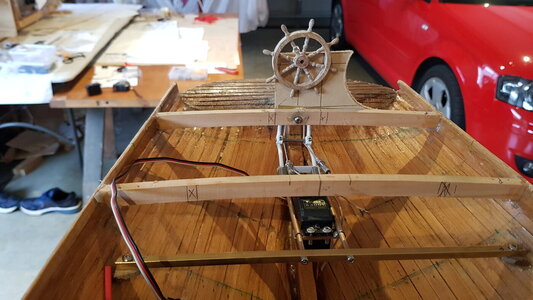

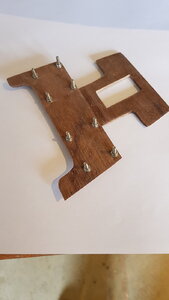

I made up a trial rig to assist to work out the positions of the servos, I will be using a combination of RMG winches (I have 3 x 380D and a 280D that I pulled out of my F100 canting keel yacht) and arm servos.
6 Test Rig.jpg

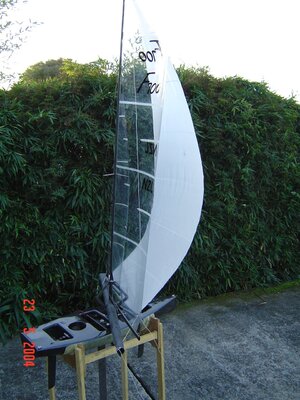

Yes there's a DF65, DF95 and 2 IOM's in the background and the F100 is in bits up in the antic, just sold the V8 last week, a man can only so many boats.

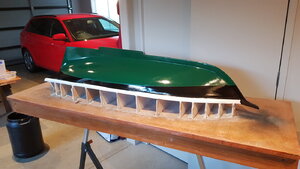

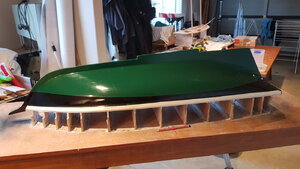

Looking at painting the dark green antifouling and the black topsides this week.

Last edited by a moderator:

Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
17,220
Points
938

Location
Vienna, Austria
Hello

Just finished the planking of the hull, glad its painted as it was my first planking job, a bit of filler and fairing to do.
Thinking ahead about how to do the propulsion of the boat, it is a twin screw setup.
Questions
  1. Can a single electric motor with belt drive to each of the propeller shafts?
  2. What size motor/s?
  3. What type of shaft, do they weep?
  4. What sort of controls for forward and reverse?
  5. Did the propellers need to be con-rotating?
Half the planking completed:

View attachment 154953

Test rig for sorting out the sheeting etc:

View attachment 154956

I look forward to your replies.
Hallo @SloopJohnB
we wish you all the BEST and a HAPPY BIRTHDAY
Birthday-Cake

Joined
Apr 26, 2020
Messages
15
Points
58

Location
Patumahoe, Auckland

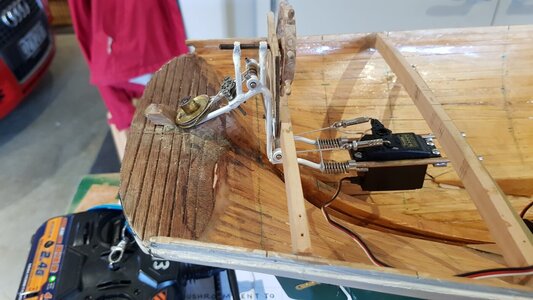

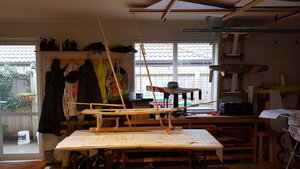

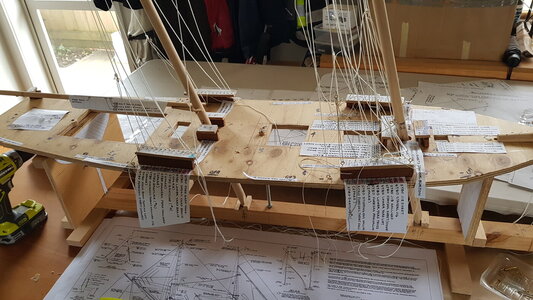

The test rig for sorting out the standing and running rigging.
A Test Rig.jpg

For the standing rigging I am use "Masons Multistrand" brown stainless steel trace. Ther's quite alot of wire.
4.9 meters of 30# (0.38 mm)
9.6 meters of 60# (0.53 mm)
3.9 meters of 125# (0.69 mm)
5.6 meters of 150# (0.79 mm)
12.3 meters of 210# (0.91 mm)
4.5 meters of 275# 1.14 mm)

The running rigging I will be using Dyneema stained brown.
24 meters of 0.4 mm
92 meters of 0.6 mm
43 meters of 0.8 mm
10 meters of 1.0 mm
3 meters of 1.3 mm

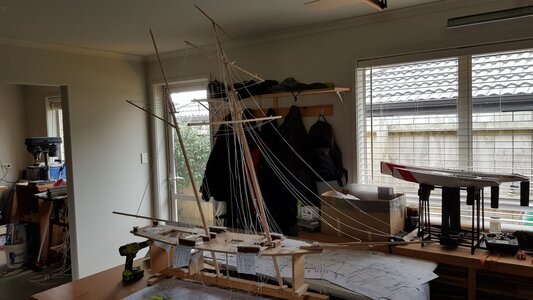

At the moment I have rigged 38 lines a total of 76 meters and there's another 87 lines 95 meters.
B Test Rig.jpg

Joined
Apr 26, 2020
Messages
15
Points
58

Location
Patumahoe, Auckland

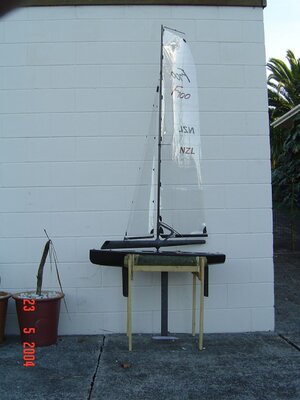

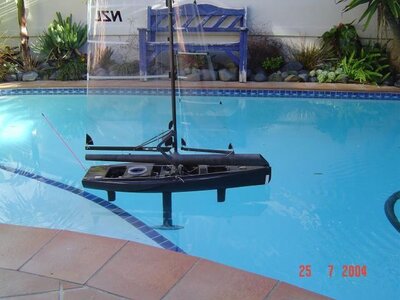

Thanks Brian77, I have been doing radio controlled sailing for 20 years racing IOM's and just recently DF65 & 95. I have built a all carbonfibre F100 yacht with a canting keel, twin rudders, swing rig and a gennaker, but I stripped it of all the electronic to use in this build.

The workshop uses half the garage as well so my car is parked outside.

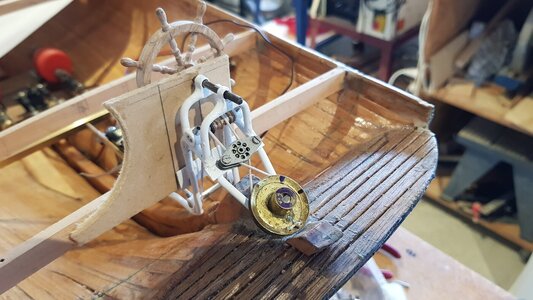

DSC01288.JPGFloating 1.jpgDSC01298.JPG
