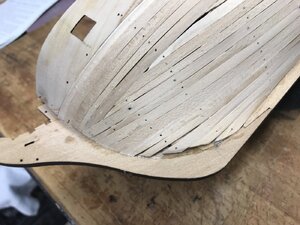

Should recut the rabbet for my second layer of planking to fit into it on the stem ?
Tony ,is the second layer is is 0.5 mm thick planks?if that so just butt agsinst the keel ,even if 1 mm thick
You need to fill that void that starts at the forward end of the garboard strake before the second planking.
yes all voids will be filled my concern is the rabbet on the stem.
I tend to agree with Zoly! The second planking is thin, and abuts keel at a decent angle. Use an X-Acto and sanding stick to refine the joint between the keel and the first planking and just butt to second planking against the keel.
Are you meaning the keel itself or the stem rabbet ? The stem is where I’m concerned. The keel and second garboard will be ok I’m hoping.
Last edited by a moderator:
My apologies! I wasn't precise in my terminology! I meant "stem:. Take a little time with a blade and sanding sticks to get the junction between the stem and first planking smooth and even. Patch with filler if necessary. Then go ahead and carefully fit the trimmed second planking strips so they but up against the stem with no spaces showing. The thin second planking strips are very flexible!
Ok yes agreed. I’ll fill and perfect the areas where the first layer goes into the stem. I don’t want to paint this hull so the second layer has to be perfect. It’s not going to be easy to get the second layer to butt just right but I’ll try. Once it’s all filled if I have to I can cut another rabbet into the stem. Thanks
It absolutely won't hurt if you want to recut the rabbet to make the planking easier!
yes indeed
What did you decide to do?

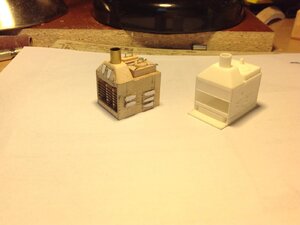

took a break and built the stove !
LOL!!!

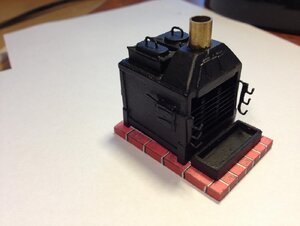

I wonder if you have the same reaction to the stove as I did at this stage? I thought my work was amateurish, like a child did it! Painting transforms the stove!
I wonder if you have the same reaction to the stove as I did at this stage? I thought my work was amateurish, like a child did it! Painting transforms the stove!
You should do an official build log. What vessel is the model?
He has a build log
H.M.S. Fly, Victory models.
Ok finally have my first wooden ship project underway. I’ve been wanting to start and reading about wooden ships for 10 years so it’s about time. First question as the first piece i handled already doesn’t match the plan, please see photo. Ive looked at many Swan class builds and this wasn’t...
shipsofscale.com
Thanks, Zoly. I missed it!

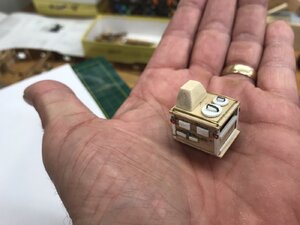

I was going to use styrene for the stove but wood was easier. I had a few pics of stoves and estimated the size. Yes once its black itll be fine, cant see it anyway once its under the foredeck.
Im having Iphone to PC issues once i can sync them ill be able to post photos much easier. I HATE working on the PC !
