My previous kit construction has been completed.
[URL unfurl = "true"] https://modelshipworld.com/topic/14770-hms-president-by-ondras71-finished-sergal-modified/ [/ URL]

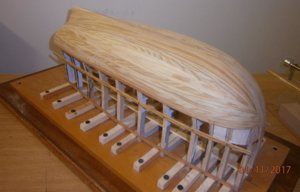

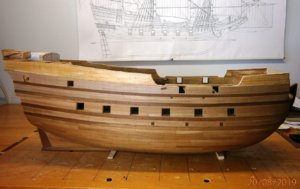

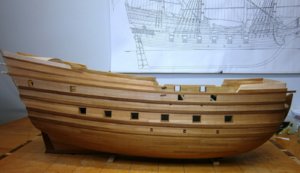

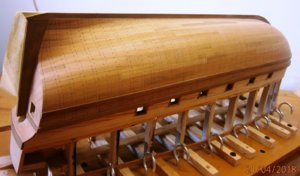

Another construction I started in 2017 is a build from scratch. I've decided for a 16th century galleon, which I always liked, specifically the 1597 Roter Lowe..

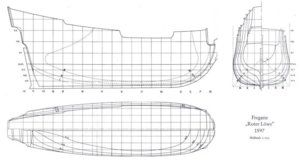

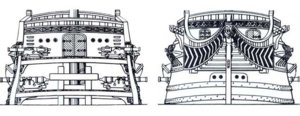

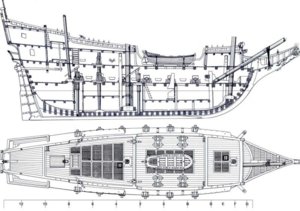

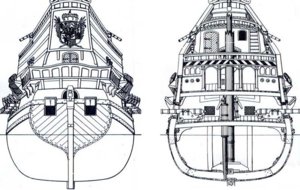

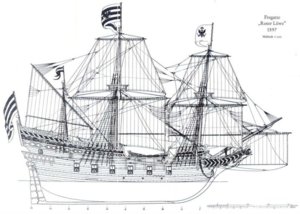

I've had the 1:60 plan at home for many years, it's a copy of a well-known German plan..

plán Roter Lowe (2) .jpg
plán Roter Lowe (1) .jpg
plán Roter Lowe (3) .jpg
plán Roter Lowe (5) .jpg
plán Roter Lowe (4) .jpg

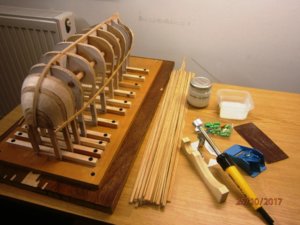

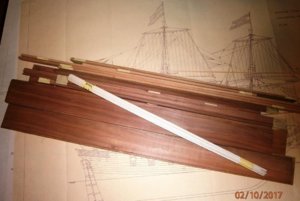

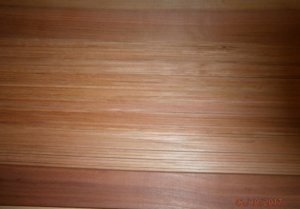

For the construction I use light and dark cherry wood, maple wood, brass..

dřevo třešeň.  (1) .jpg
dřevo třešeň.  (2) .jpg
Ondras. :)


Jimsky

Moderator
Staff member
Moderator
Joined
Nov 3, 2018
Messages
3,852
Points
588

Location
Brooklyn, New York USA

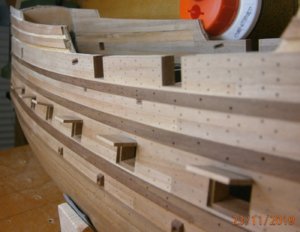

Hello Ondras, I am impressed with your accurate build. Particularly with your treenails and the way you made them. I have seen this method on one of the Russian forum, and if I am correct, it was shown by Aleksandr Dobrenko (passed away last year). If you don't mind, to you show us the tool\material and steps you have taken to made them? I am almost positive, there will be more of us who would love to know about those treenails and the way you make them.

Many, many thanks in advance...

Joined
Feb 6, 2020
Messages
73
Points
113

Location
Czech republic
Hello Ondras, I am impressed with your accurate build. Particularly with your treenails and the way you made them. I have seen this method on one of the Russian forum, and if I am correct, it was shown by Aleksandr Dobrenko (passed away last year). If you don't mind, to you show us the tool\material and steps you have taken to made them? I am almost positive, there will be more of us who would love to know about those treenails and the way you make them.

Many, many thanks in advance...

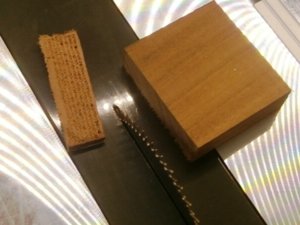

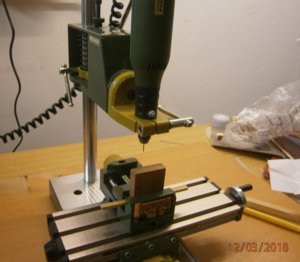

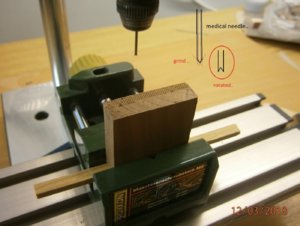

Hello. I looked at this system and chose it. The beginnings are challenging, but after learning everything goes well. Drilled with a medical needle with an inner hole of 0.65 mm. Holes in the hull also 0.65 mm..
Drilled by drill, fast, otherwise it burns. The obligation of drilling in the direction of flight of wood..Thumbsup

výroba kolíčků na vrtacím stojanu (1).JPG
výroba kolíčků na vrtacím stojanu (2).JPG

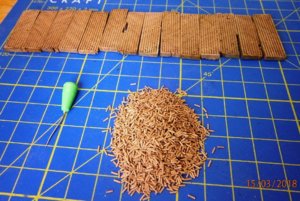

Sealed with tape to prevent pin loss and cut off at the saw.

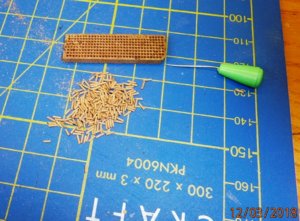

výroba kolíčků na vrtacím stojanu (4).JPGprvních 250 kolíčků...JPG

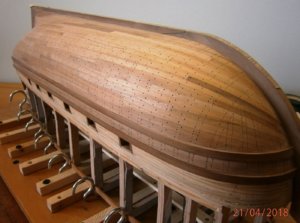

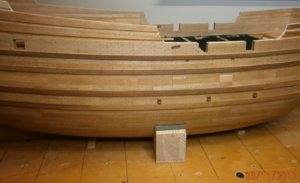

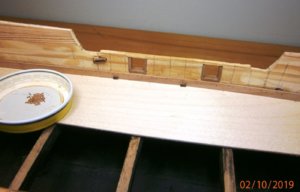

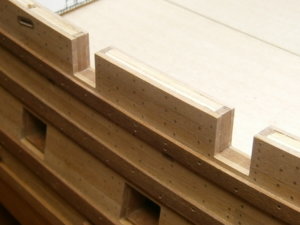

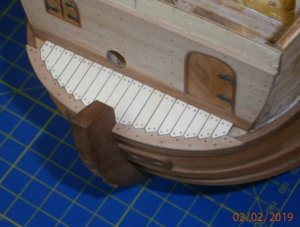

The base is different wood color to make the pins visible ..

Joined
Feb 6, 2020
Messages
73
Points
113

Location
Czech republic

Jimsky

Moderator
Staff member
Moderator
Joined
Nov 3, 2018
Messages
3,852
Points
588

Location
Brooklyn, New York USA
Hello Ondras, Is it possible to provide us a link (internet site) where you have purchased 0.8mm black paper? Image is a bit blurry :( , and we cannot recover the brand name and other information.

Thank you,

Joined
Aug 5, 2019
Messages
153
Points
143

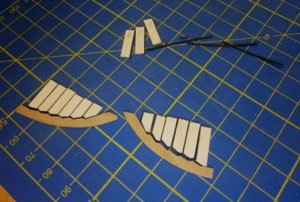

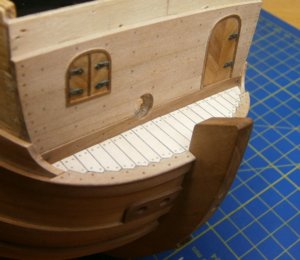

The seal was first made out of plain paper, it has a thickness of 0.15 mm, which is many ..
View attachment 133090View attachment 133089View attachment 133091

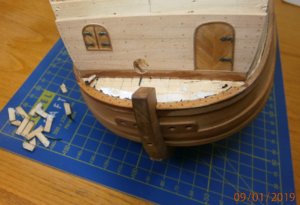

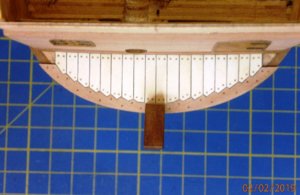

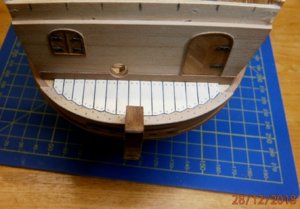

Fixed, now use 0.08 mm thick paper from England..
View attachment 133086View attachment 133088View attachment 133087

This paper is used by the best modelers from the Czech Republic..

Petr Šimek - https://www.modelforum.cz/viewtopic.php?f=177&t=112641
Vladimír Mareš - https://www.modelforum.cz/viewtopic.php?f=177&t=123547
Thank you very much for the prompt response. And that's the difference between the master model and "good enough" model - willingness and skill to redo it. Please, keep the pictures coming, a lot to learn.

Joined
Feb 6, 2020
Messages
73
Points
113

Location
Czech republic
Hello Ondras, Is it possible to provide us a link (internet site) where you have purchased 0.8mm black paper? Image is a bit blurry :( , and we cannot recover the brand name and other information.

Thank you,

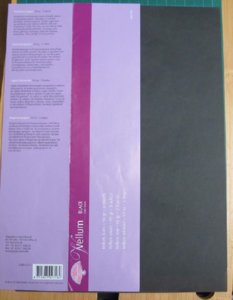

It is this paper no. 62536, parchment, faint and firm, does not stack.
I no longer know where I bought it, it must be sought.
