Saint Philippe 1693 by OlegM

[serikoff]

An interesting color scheme, but I think bitumen will do its magic. Excellent as always! Waiting for the planking.



[OlegM]

An interesting color scheme, but I think bitumen will do its magic. Excellent as always! Waiting for the planking.

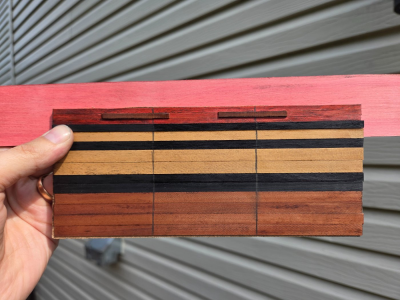

It will be somethig like this eventually



[OlegM]

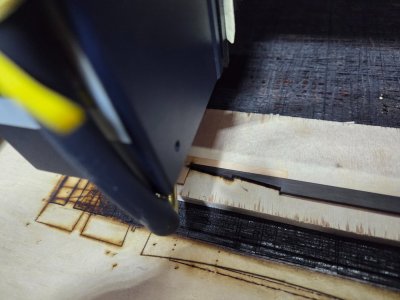

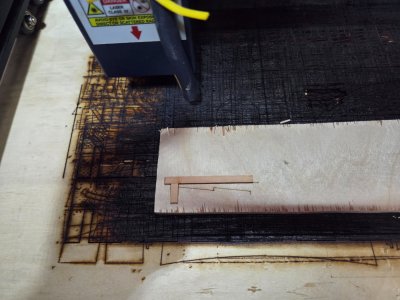

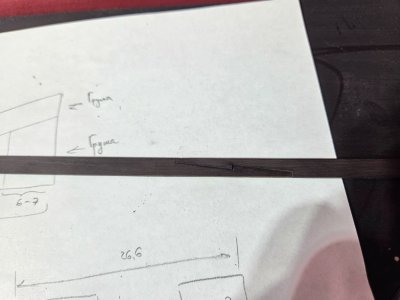

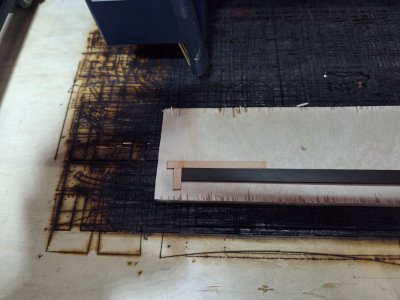

Doing the scarf cuts on the whales



[OlegM]

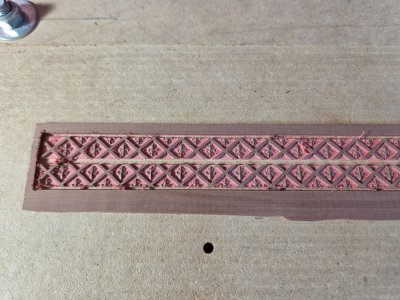

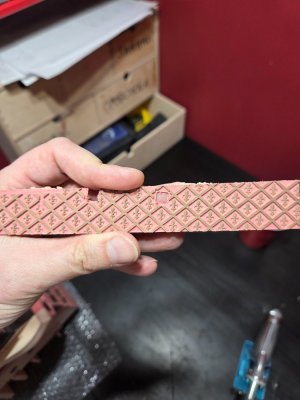

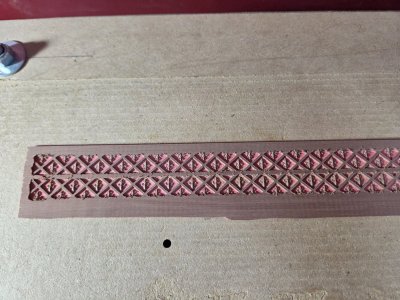

And this is milling of a double layered sheet



[dockattner]

Wow! I've been worried how I will fabricate these details and here you go and do it without issue...



[Maarten]

Wow! I've been worried how I will fabricate these details and here you go and do it without issue...

I see a cnc machine on the horizon.



[Maarten]

And this is milling of a double layered sheet

View attachment 581550View attachment 581551View attachment 581552

Hi Oleg, just PVA between the two layers?
Would be afraid the glue is giving way during the milling, but the result is very convincing.



[WojtasS]

And this is milling of a double layered sheet

View attachment 581550View attachment 581551View attachment 581552

Hi. Nice work. What cutters did you use? Could you please share the dimensions?



[OlegM]

Hi Oleg, just PVA between the two layers?
Would be afraid the glue is giving way during the milling, but the result is very convincing.

Yep, just pva glue and I clamp the parts betweed two big thick boards during drying



[OlegM]

Hi. Nice work. What cutters did you use? Could you please share the dimensions?

The final pass was done with conical 2-flute bit R0.25mm, 10deg total angle. 0.12mm between passes



[OlegM]

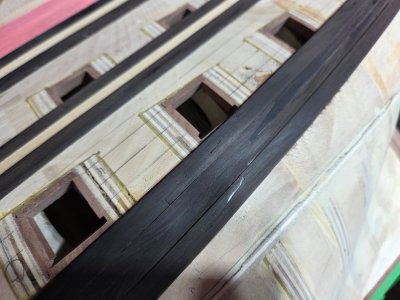

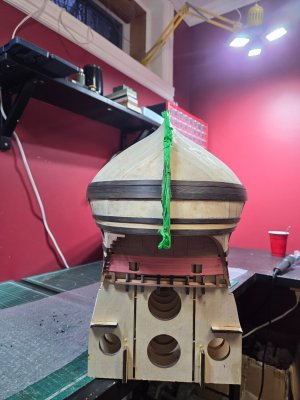

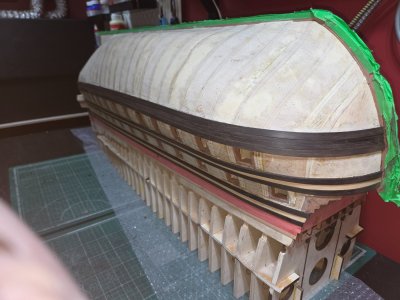

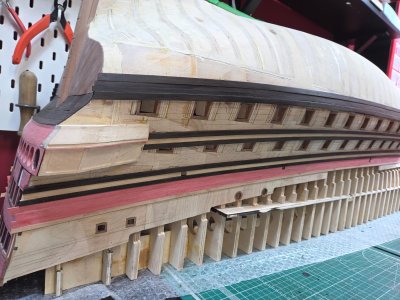

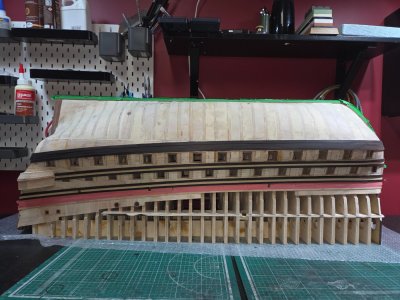

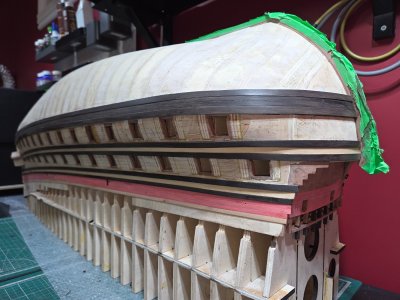

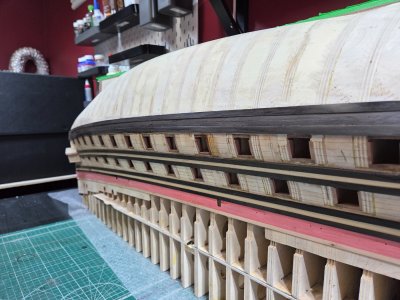

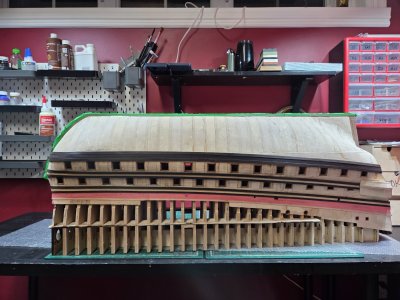

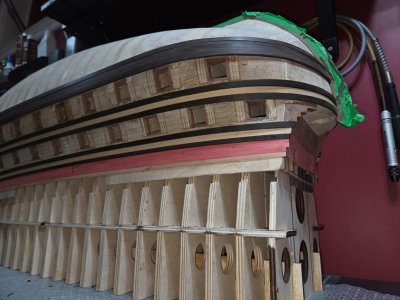

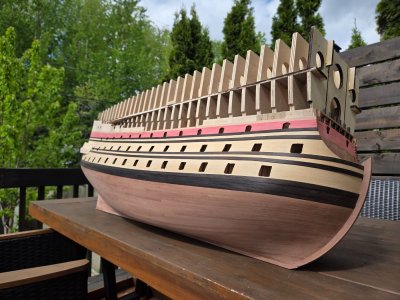

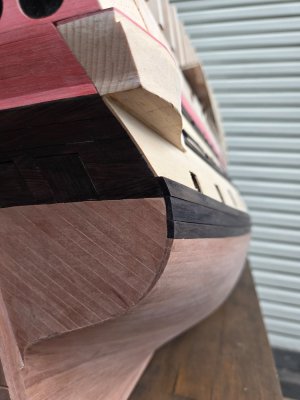

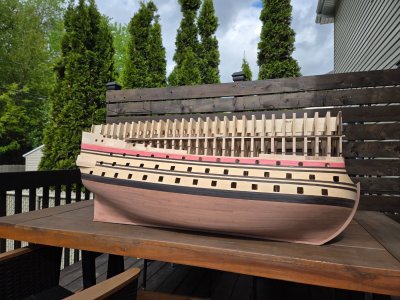

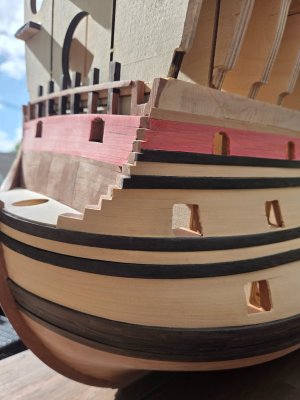

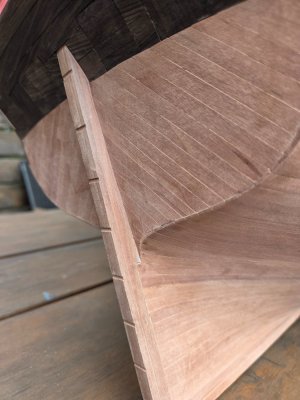

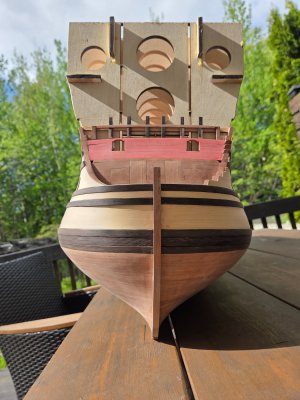

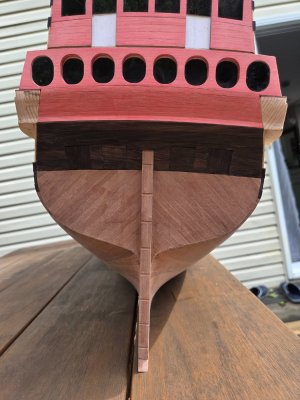

I finished the whales
