Scuppers: England, about 1660-1670.

Joined
Jan 14, 2019
Messages
44
Points
58

Hello ladies and gentlemen!

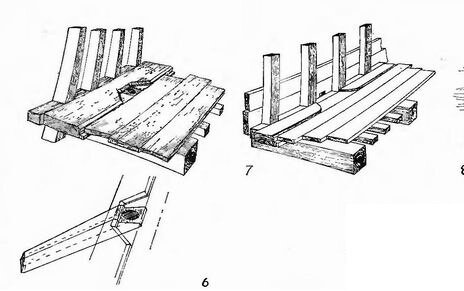

I saw in one book the following waterway layout:

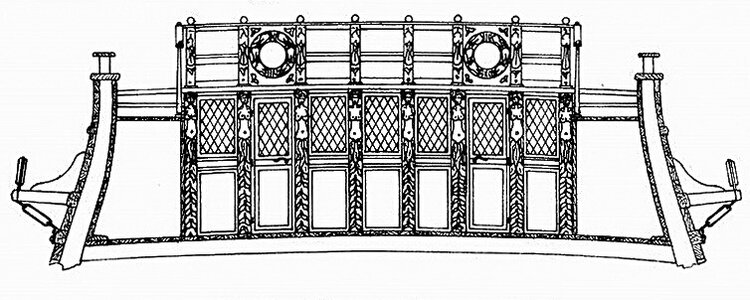

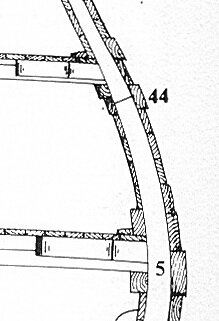

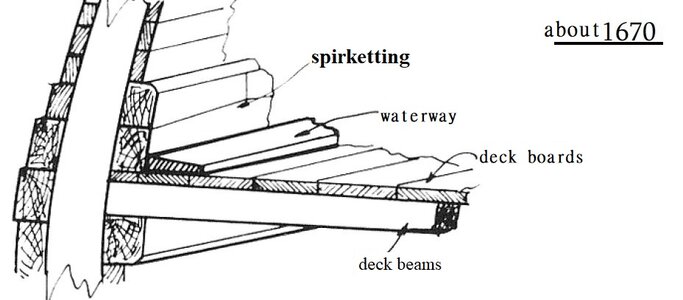

There are similar schemes in other sources about this period (England, about 1660-1670):


That is, the waterway is laid on top of the deck boards.

So, what I want to ask is: where exactly and how exactly were scuppers installed with such a scheme?


Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
22,710
Points
1,038

Location
Vienna, Austria
Hallo
it depends very much which period you are looking for
BTW: The waterway was often not only laying on top of the deck planking, but often was a special formed (thicker Than the normal ones) plank

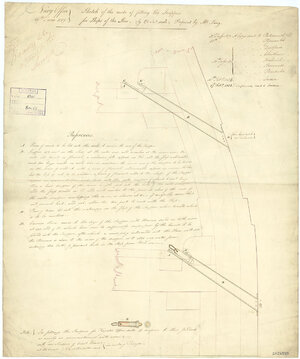

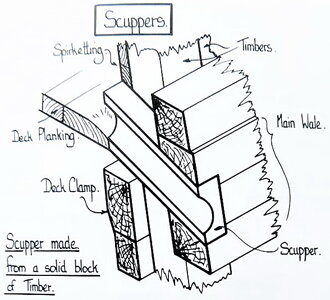

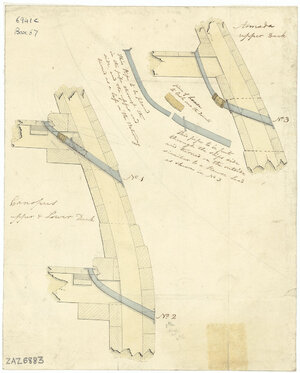

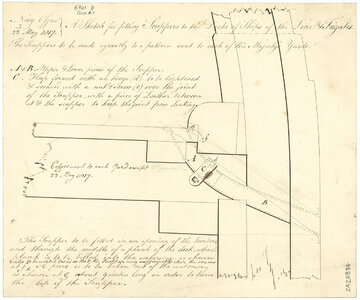

In the NMM you can find several contemporary drawings and models of scuppers

j0727.jpg j0730.jpg j0731.jpg

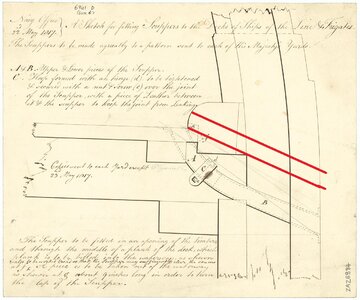

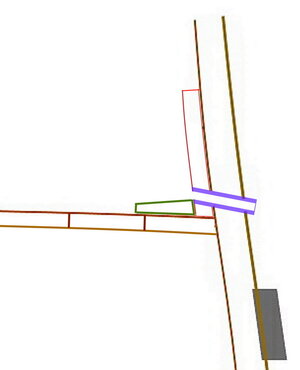

Maybe these examples are too "modern" - these scruppers were before often directly going through the waterway (like marked with red)



Joined
Jan 14, 2019
Messages
44
Points
58

Thanks Uwek!

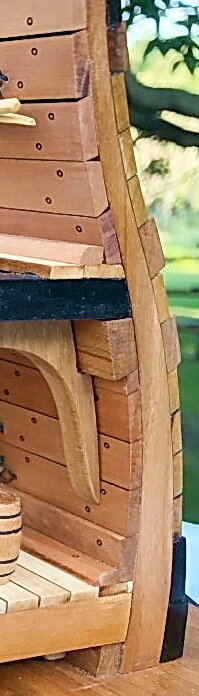

Actually I'm trying to start building a model of «The Nonsuch» (built as an armed merchant in 1650 and rebuilt as an ocean-expedition ship in 1668), but I do not want to absolutely re-copy the remake with all its modern anachronisms and fibs. I found some options for a waterway of a similar design for the 17th century:

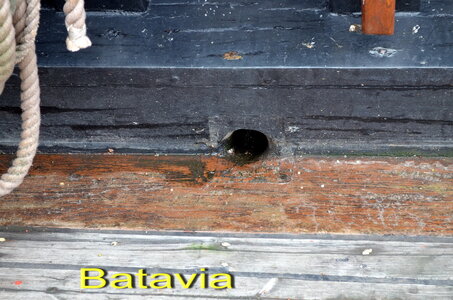

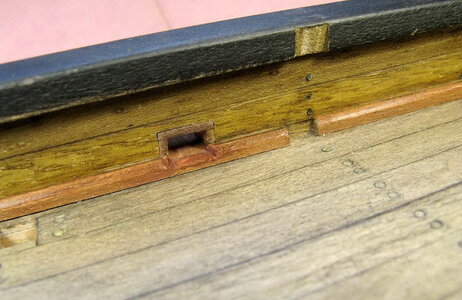

насчет ватервейса...  на фото c Batavia.jpg
ватервейс 2a.jpg

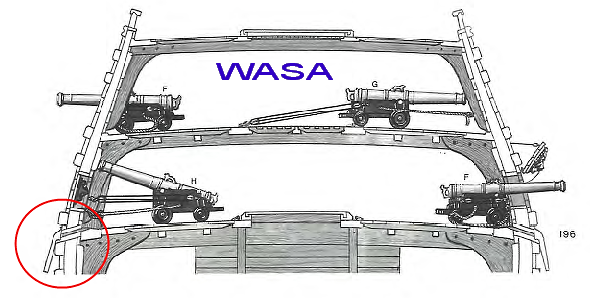

шпигат-  Васы.png


Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
22,710
Points
1,038

Location
Vienna, Austria
Hello ladies and gentlemen!

I saw in one book the following waterway layout:

View attachment 220543

There are similar schemes in other sources about this period (England, about 1660-1670):

View attachment 220544
View attachment 220545
View attachment 220546

That is, the waterway is laid on top of the deck boards.

So, what I want to ask is: where exactly and how exactly were scuppers installed with such a scheme?
Hallo @Archi
we wish you all the BEST and a HAPPY BIRTHDAY
Birthday-Cake

How is your work on your Nonsuch going? Maybe you could show us your model - would be very interesting


Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
22,710
Points
1,038

Location
Vienna, Austria
Hello ladies and gentlemen!

I saw in one book the following waterway layout:

View attachment 220543

There are similar schemes in other sources about this period (England, about 1660-1670):

View attachment 220544
View attachment 220545
View attachment 220546

That is, the waterway is laid on top of the deck boards.

So, what I want to ask is: where exactly and how exactly were scuppers installed with such a scheme?
Hallo @Archi
we wish you all the BEST and a HAPPY BIRTHDAY
Birthday-Cake

How is your work on your Nonsuch going?
Maybe you could show us your model - would be very interesting


Kurt Konrath

Kurt Konrath
Joined
Feb 11, 2020
Messages
2,723
Points
538

Location
Oklahoma City OK
I am not very knowledgeable about the big multi deck warships, but many smaller single deck ships just has slots cut in side of hull at deck height to drain water back out.
