Well I guess I need help, the copies don't measure up. They are too small. The scale on the bottom states 10 feet and at 1/48 that should be 2 1/2 inches. Is that right? 10 feet is 120 inches, 48 x 2.5 = 120 or 1 inch = 48 inches so 2.5 inches should be 120 inches.

My keel measures 5 13/16 inches and should be 7 inches


Bounty1787

Blandford
Blandford Group Build
Joined
Sep 21, 2018
Messages
25
Points
48

Location
Westerwald, Germany
Well I guess I need help, the copies don't measure up. They are too small. The scale on the bottom states 10 feet and at 1/48 that should be 2 1/2 inches. Is that right? 10 feet is 120 inches, 48 x 2.5 = 120 or 1 inch = 48 inches so 2.5 inches should be 120 inches.

My keel measures 5 13/16 inches and should be 7 inches

Hi Shane,
your scale conversion seems to be correct, it matches exactly the dimensions on my drawings.
But the keel lenght you have mentioned is different to mine. 7 inches is by far too much, even 5 13/16 is longer than mine.
My keel measures 132mm on all of the drawings.
Probably Mike41 is right, check the Printer Settings.


Mike41

Moderator
Staff member
Moderator
Blandford Group Build
Joined
Aug 10, 2017
Messages
903
Points
343

Hi Shane, the Keel is shown full size. It is a good idea to have all the drawings printed on the same printer, the scale can vary on different brands of printers.


SigEp Ziggy

Blandford
Blandford Group Build
Joined
May 19, 2019
Messages
109
Points
103

Location
Post Falls, IDAHO

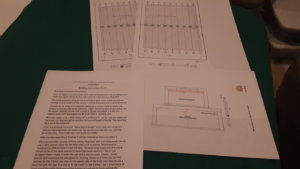

Well it worked. I just used my printer at home and printed 'actual size' and the keel measures 5 3/16 which matches Udo's 132mm. I think that will work, the scale is still off and the instruction build board size and the outline on the cutout are not the same. Maybe I will look at some other builds and see if that is right. I decided to use popular for the keel and frames, I got a 1/4 x 7 1/4 x 48 piece, I also got some water based clear satin polyurethane. I have a chop saw, a table saw, two band saws, a drill press and router with table, however, I do not have a planer or belt/disc sander. I can probably use my drill press as a drum sander and could rig up my 3in belt sander for the outside of the frames, but I will have to come up with a reliable way to thin down the popular as the frames need to 3/16th thick.

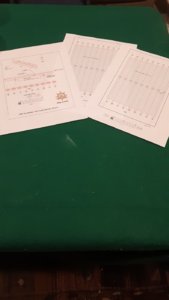

13oct2019 002.jpg

13oct2019.2 001.jpg
