The production process of the Macau fishing boat model

[Sam Chan]

Since I came to the city of Macau, I have met several local masters who used to make real boats. Because of the decline of Macau's shipbuilding industry and their retirement age, they can only show the real ships they have built through models. When I saw them, I immediately expressed to them my intention to learn. They taught me their craft of making boats without reservation.

So, together with another two model fans, I formally learned from the master the technique of making ancient Chinese GuangDong version sailboats.

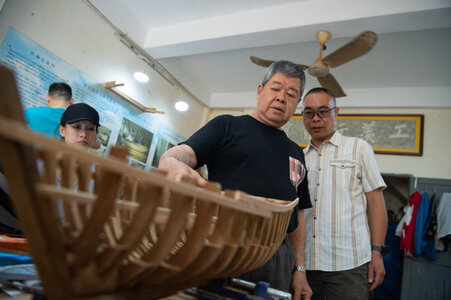

The pictures below are the historical photos of the real ship, as well as the on-site record of the master teaching us to make the ship model. Finally, of course, our group photo is indispensable!



[Sam Chan]

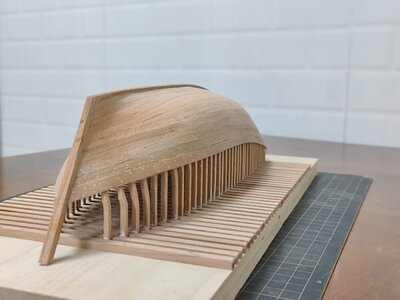

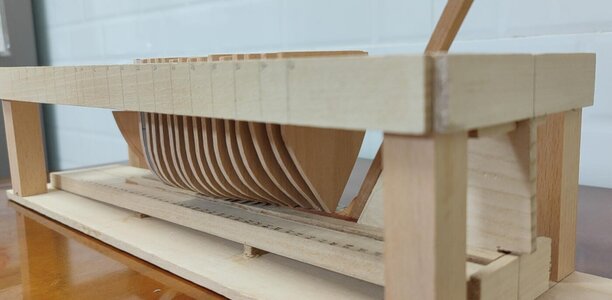

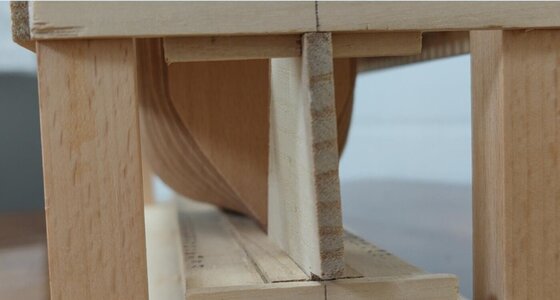

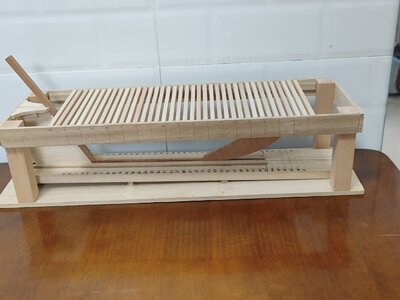

See me with a small scale model on it? Let me talk about this model of mine. Because I have experience in making kits, based on the master, I added some production methods for making models of western boats. For example, a frame base.



[Sam Chan]

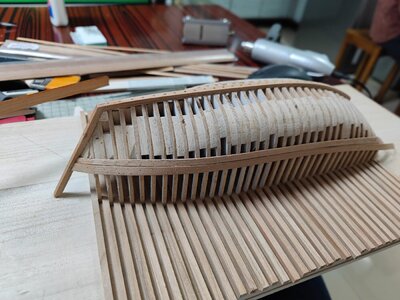

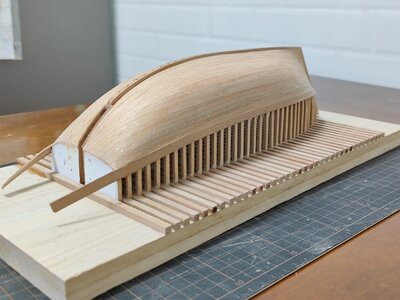

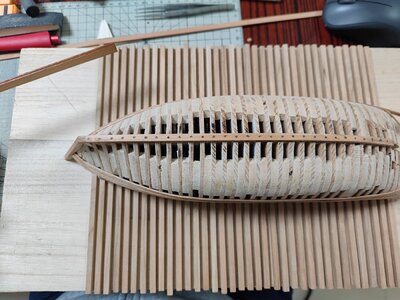

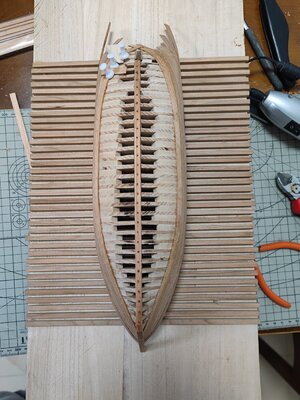

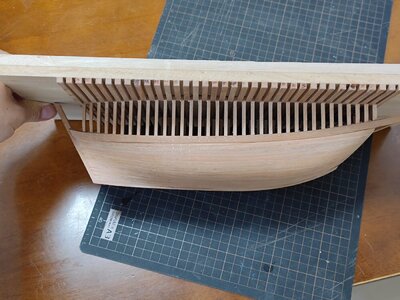

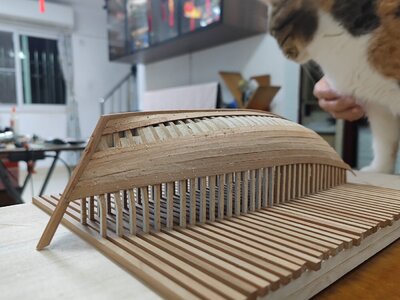

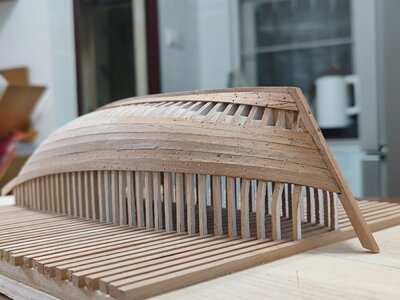

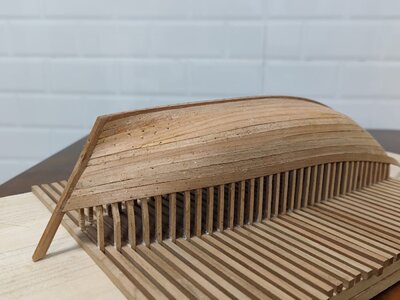

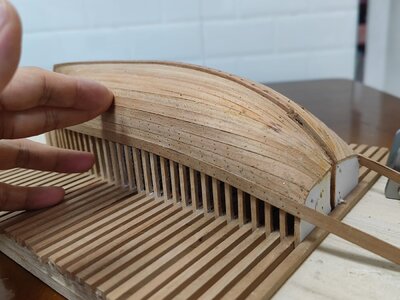

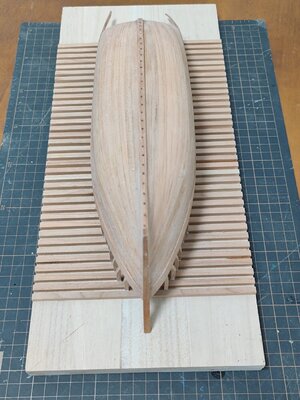

At first, I wanted to use the forward installation, but it was too difficult to operate, so I changed it to the reverse installation.



[Sam Chan]

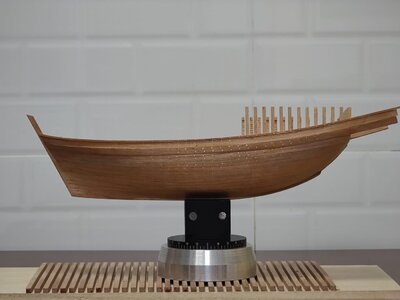

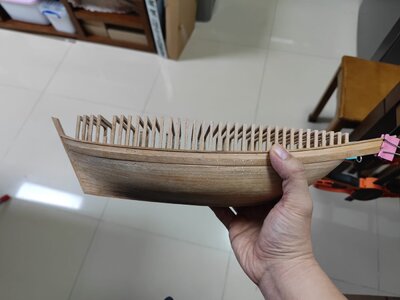

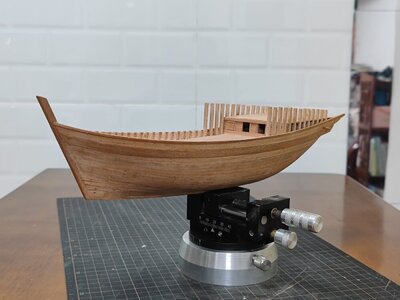

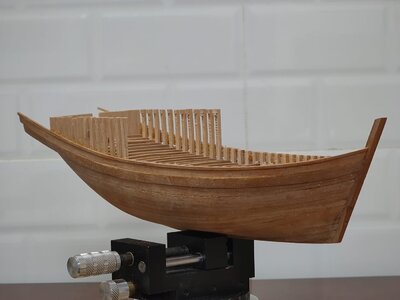

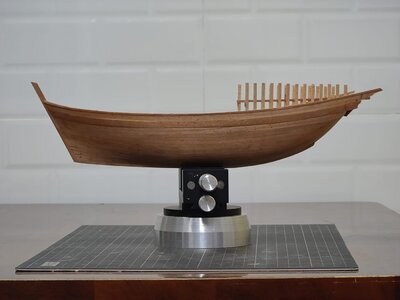

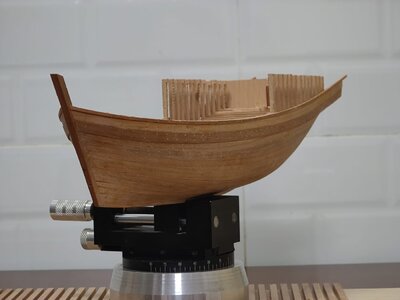

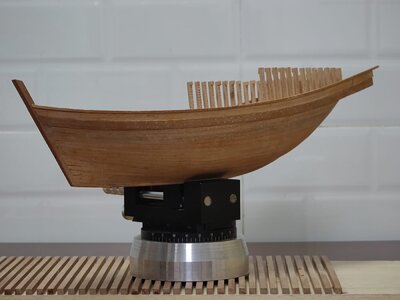

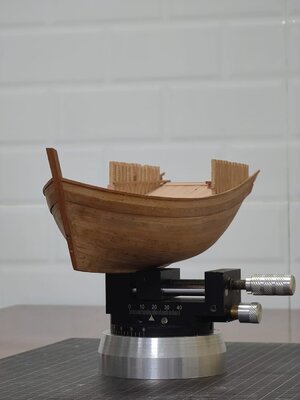

It's finally time to dismantle the boat, hold it in your hand and admire its curves. That's really good.



[Sam Chan]

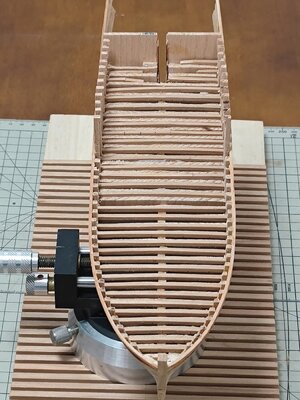

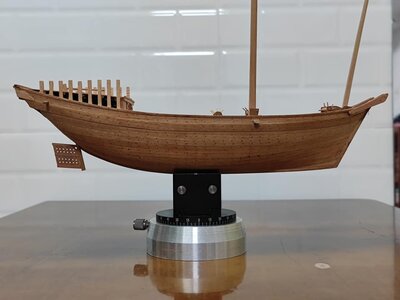

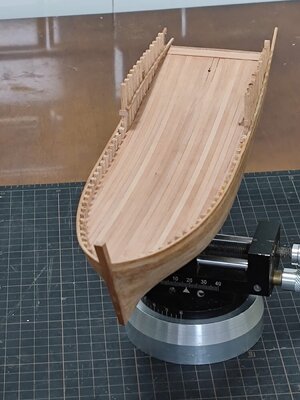

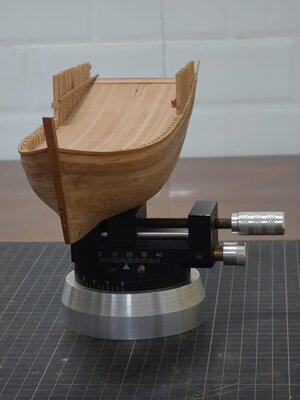

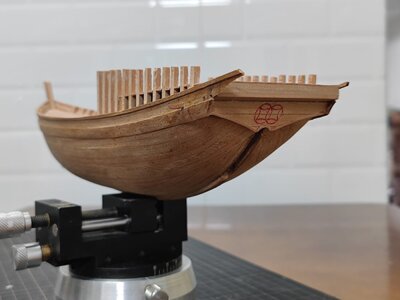

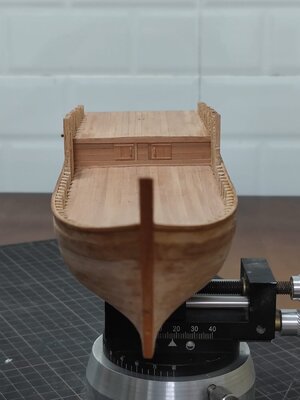

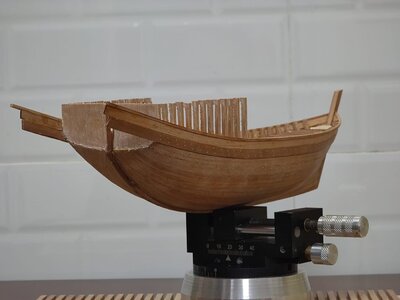

I pre-glued the deck beams before skinning. Since it's my first time doing it, I'm only going to do the exterior model. So I just laid out the deck and didn't even do the splicing.

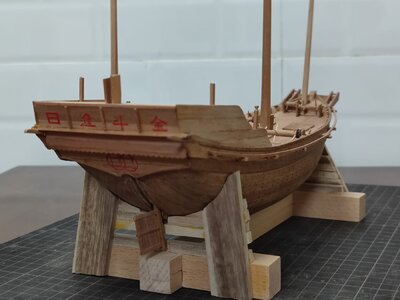

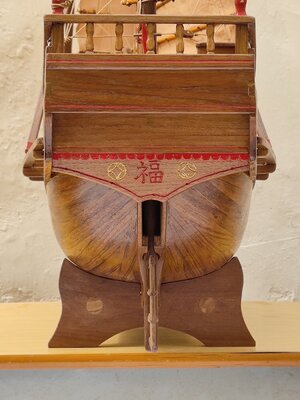

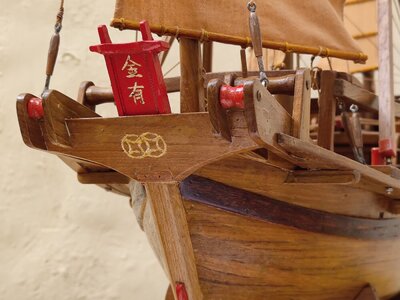

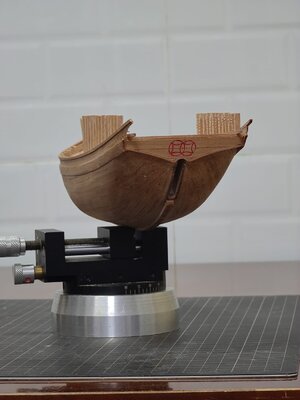

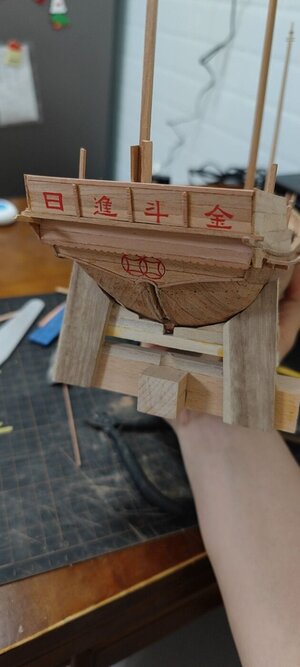

The pattern on the stern is actually an abstract image of an ancient Chinese coin. It means that it can increase the income of fishermen.



[Maarten]

Interesting methode of creating the space between your frames Sam.
Must have been a lot of fun to work with these experienced ship builders.



[Heinrich]

This is very interesting and good news. Now please bring out this model in a kit form so that we finally have an authentic and historically accurate model of a Chinese vessel produced by a Chinese company It will be very interesting to see which Chinese manufacturer would be interested in such a project.



[Uwek]

Very interesting way of building the hull - many thanks for sharing with us



[donfarr]

YOU BET HEINRICH OLD DEAR FRIEND, KEEP PRODDING. GOD BLESS STAY SAFE YOU AND ANNA DON



[fourseas]

What a marvellous opportunity to learn the techniques of the true professional ship builder. Thanks for sharing your experience with us.



[Sam Chan]

Interesting methode of creating the space between your frames Sam.
Must have been a lot of fun to work with these experienced ship builders.

Yes, very interesting. In addition to the technology of making boats, there are various stories.



[Sam Chan]

This is very interesting and good news. Now please bring out this model in a kit form so that we finally have an authentic and historically accurate model of a Chinese vessel produced by a Chinese company It will be very interesting to see which Chinese manufacturer would be interested in such a project.

As far as I know, two Chinese brands have partnered with us to develop model kits for these types of boats. Stay tuned!



[Sam Chan]

Very interesting way of building the hull - many thanks for sharing with us

This is my honor, you are seniors. Hope to correct my shortcomings.



[Sam Chan]

YOU BET HEINRICH OLD DEAR FRIEND, KEEP PRODDING. GOD BLESS STAY SAFE YOU AND ANNA DON

Thank you sir!



[Sam Chan]

What a marvellous opportunity to learn the techniques of the true professional ship builder. Thanks for sharing your experience with us.

It's my pleasure.



[Sam Chan]

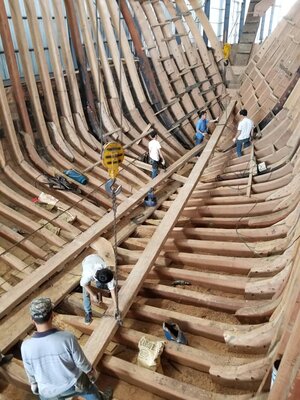

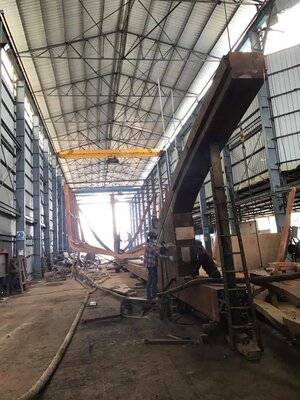

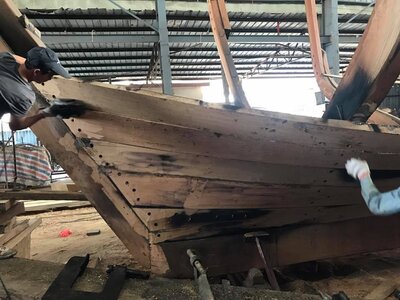

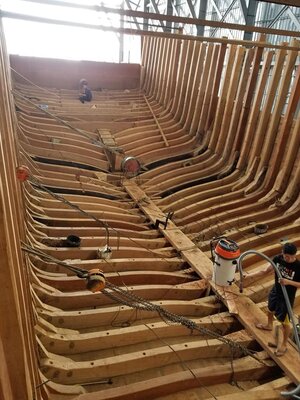

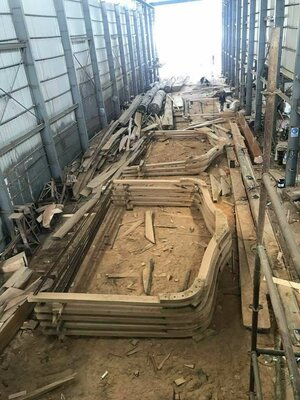

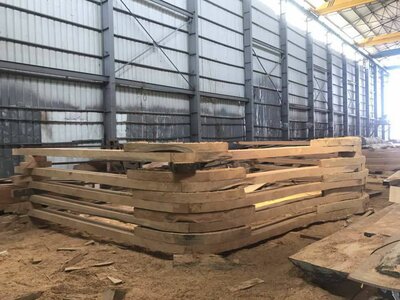

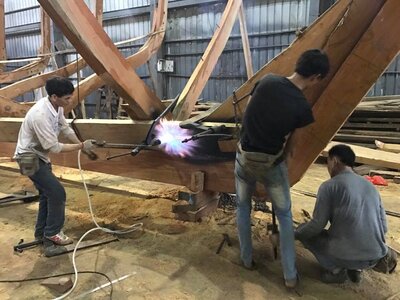

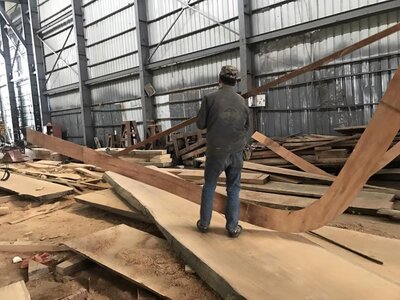

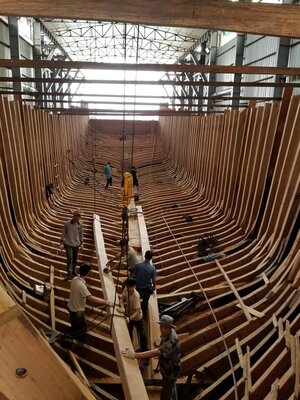

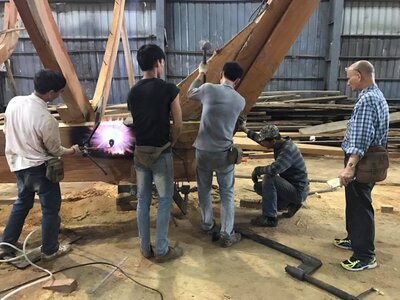

This is the construction method of modern fishing boats in Macau, and it basically retains the construction characteristics of ancient southern Chinese sailing fishing boats.



[Sam Chan]

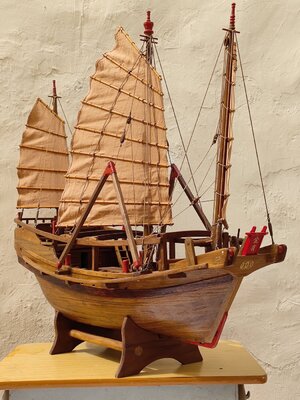

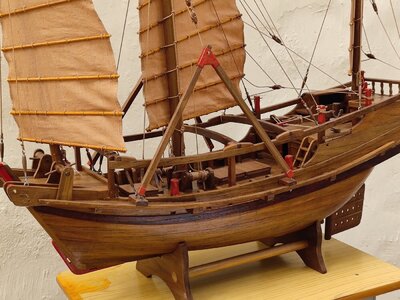

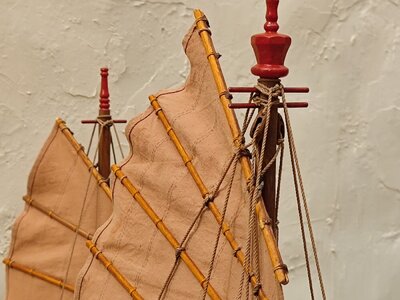

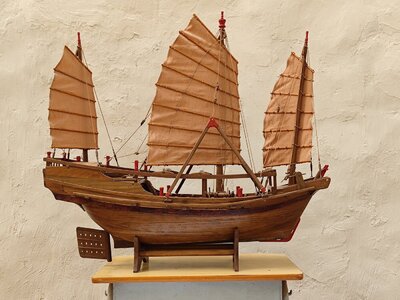

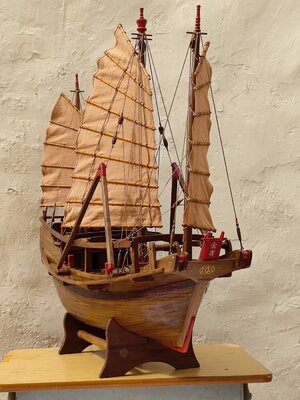

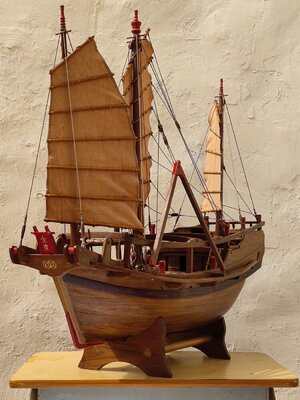

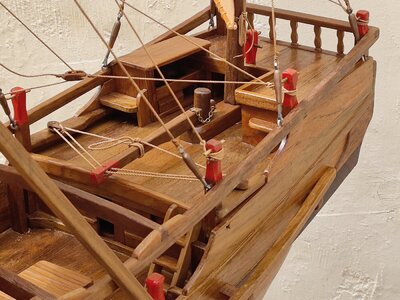

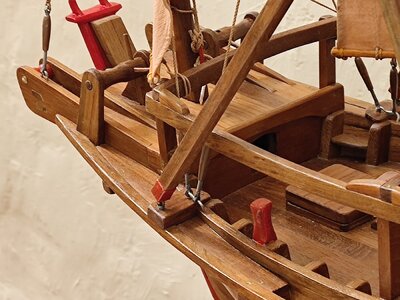

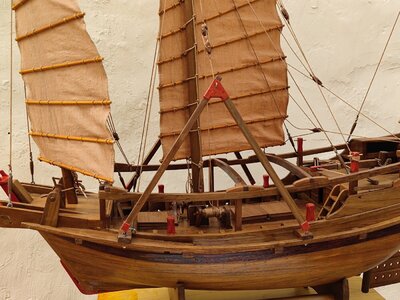

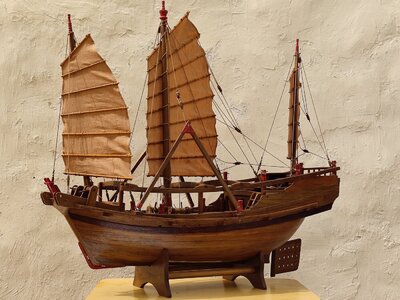

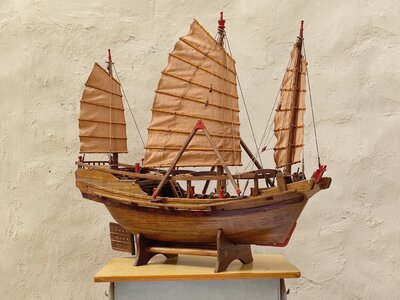

This is a model of sailboat in southern China made by my master.



[Sam Chan]

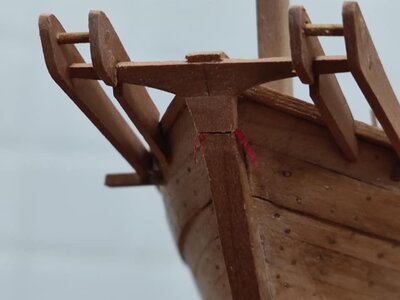

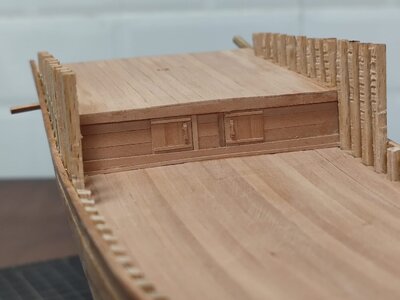

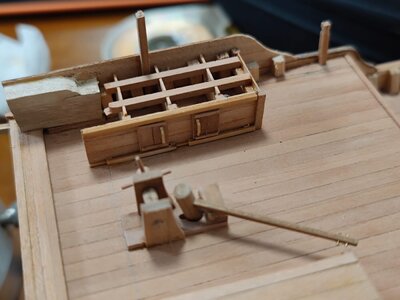

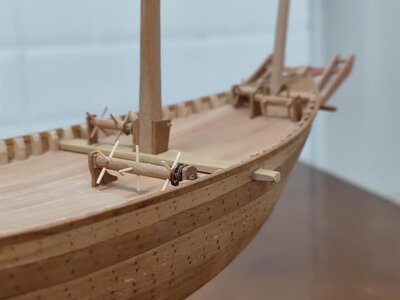

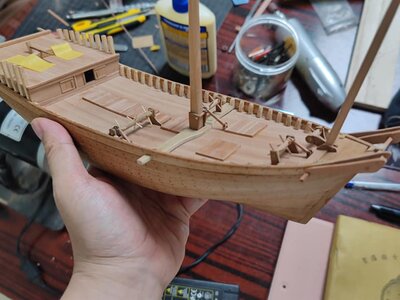

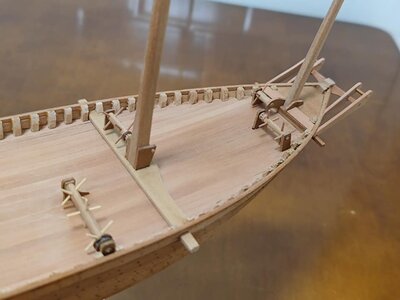

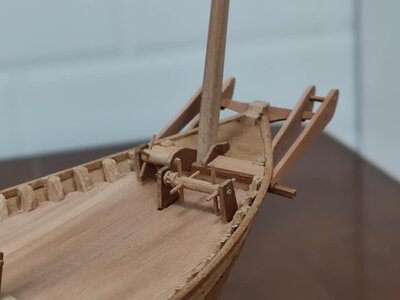

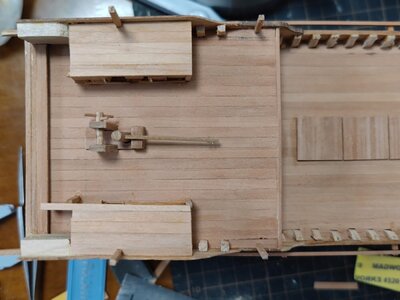

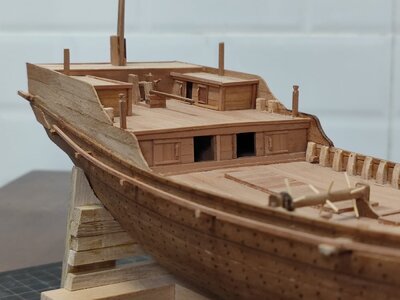

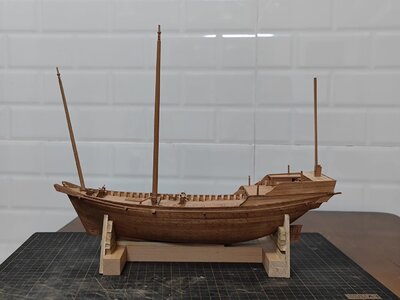

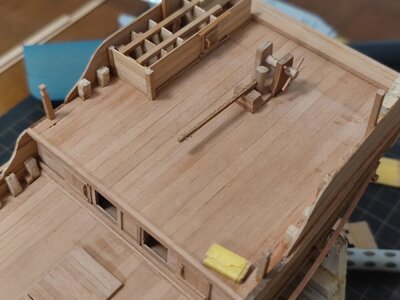

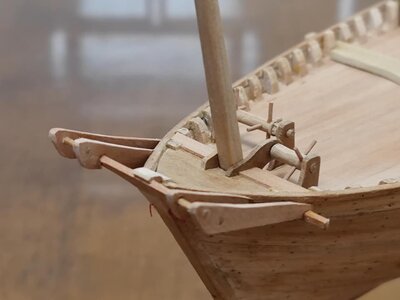

Going back to my model, I started building the builds and parts on the deck. A lot of things in the picture I need to modify or redo later. Because I didn't pay attention to the class and take notes, the homework I did at home was wrong......For example, the steering rudder, the anchor frame of the bow, the deck of the bow, etc.

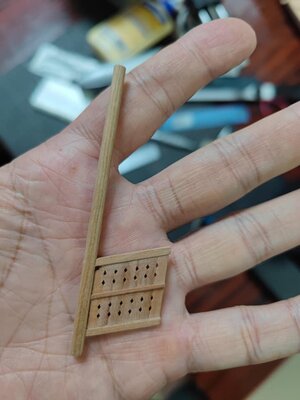

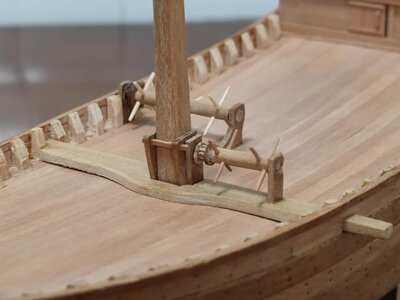

What I am proud of is the hatch that can be opened and the reel stopper.



[Heinrich]

As far as I know, two Chinese brands have partnered with us to develop model kits for these types of boats. Stay tuned!

I will stay tuned.



[Sam Chan]

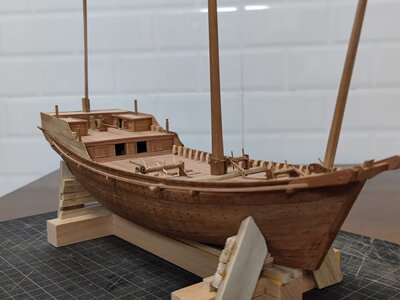

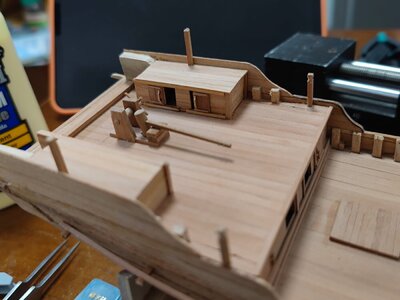

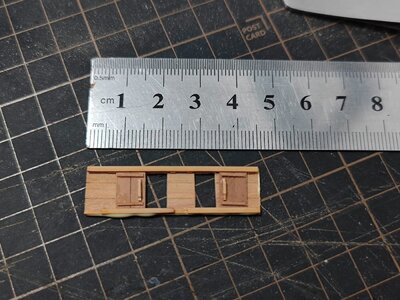

To build the second floor of the building, my door must be able to open. Ha ha!
