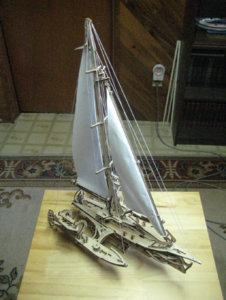

Here is the Trimaran Mérihobus by UGEARS
That I received for Christmas I build that one in January 2019

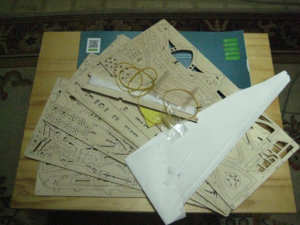

Materials
4mm plywood
High precision laser cutting 0.2mm line
Waxed paper veil
Elastic
And nylon rope

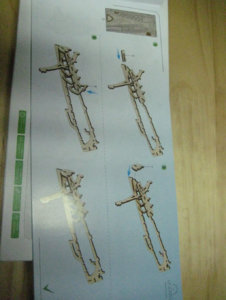

Instruction by image and symbol
No glue everything should fit together accurately

Joined
Aug 16, 2019
Messages
720
Points
343

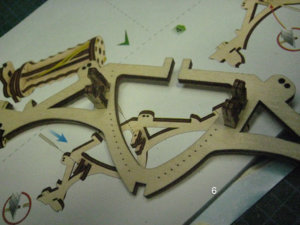

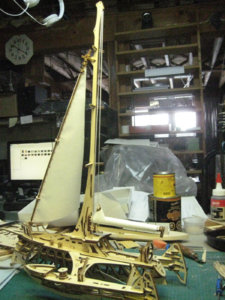

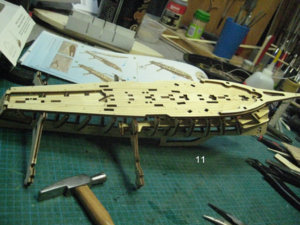

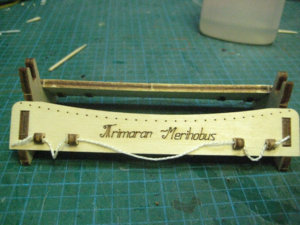

Start of the building

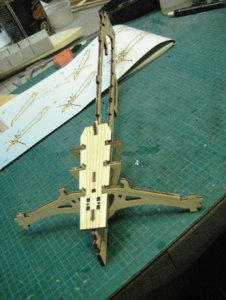

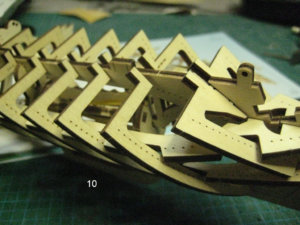

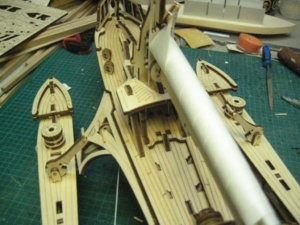

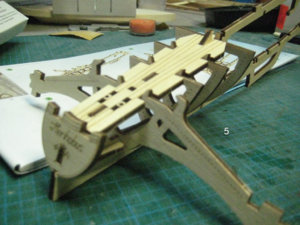

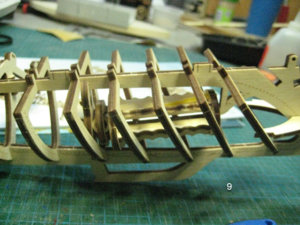

Main structure
ts what will be used during the installation of the anchor at the very end of the assemby

Joined
Aug 16, 2019
Messages
720
Points
343

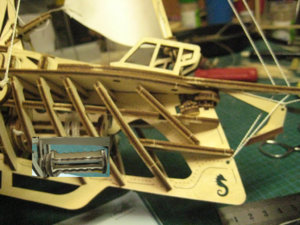

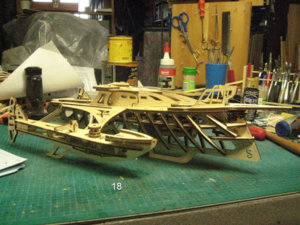

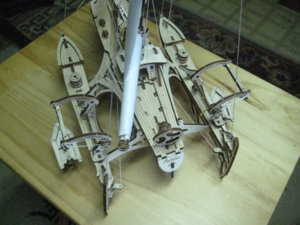

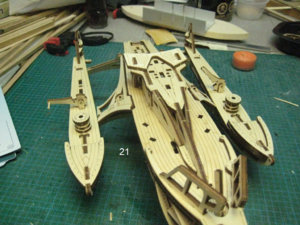

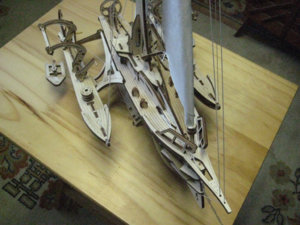

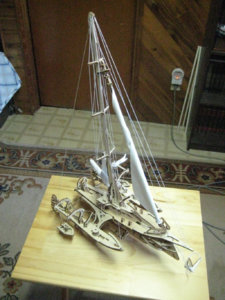

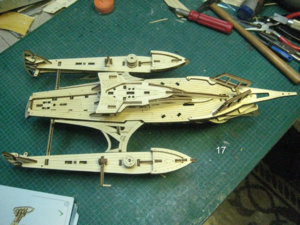

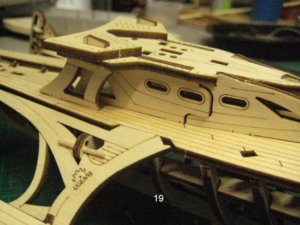

Finished structure and installed bridge

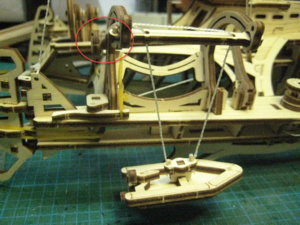

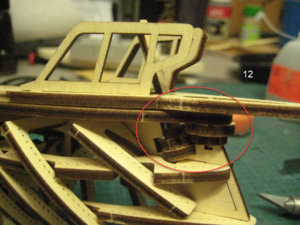

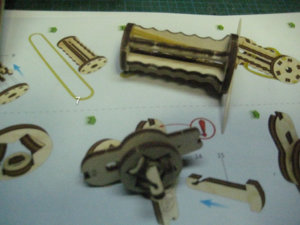

Installation of different mechanisms 12

mechanism that will serve to fer the front sail 13

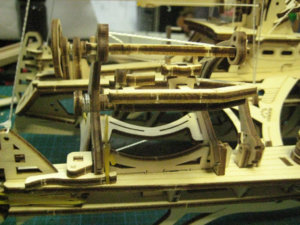

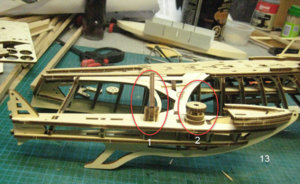

(1) Mechanism for the oriantation of the 2 mast

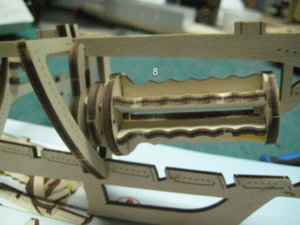

(2) Mechanism (2 in each side) that will serve to raise and lower the mainsail

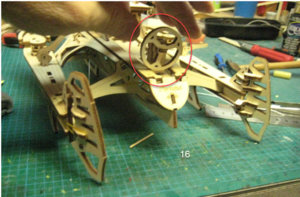

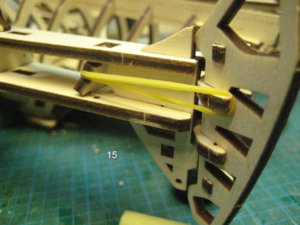

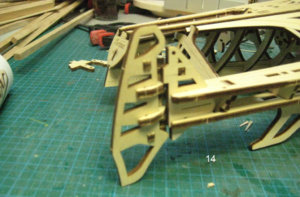

14, 15, 16, 16a the rudder which directs the fins port and starboard

Joined
Aug 16, 2019
Messages
720
Points
343

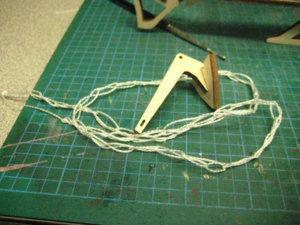

Manufacture of the anchor
I just learned how to simulate a chain with a string
It wraps itself on the assembly done at the beginning all alone, thanks to an elastic mechanism

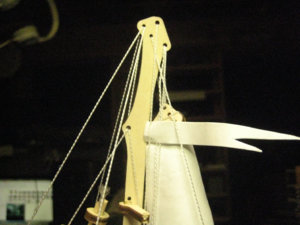

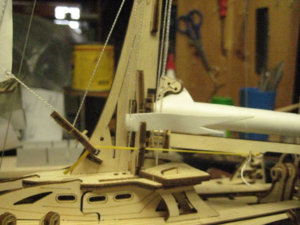

Laying of the main sail (wax paper) and the small pennant which goes up and down simultaneously with the deployment of the sail

Joined
Aug 16, 2019
Messages
720
Points
343

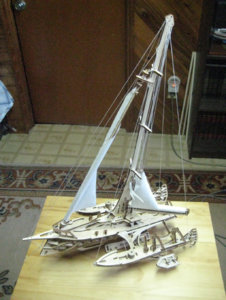

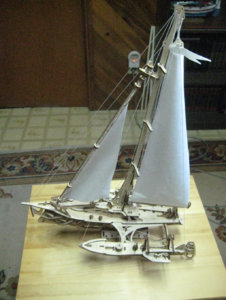

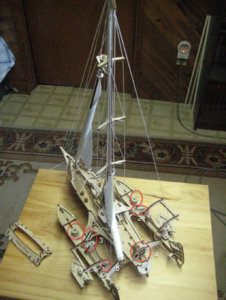

That's it!
1 to be able to lift the sail both wheel have to work simultaneously
2 and 3 allow to oriented the sail one for each sail
4 the rudder
5 the live boat up and down

The way the model is build it was not possible to do any planking
The concept is for an open structure.
And as I said a fragile curiosity.
I give time to and retirement association here and that model was a hit
2 grand fathers went to get similar model to have grand son daughter build project
There are at least 4 companies that made that kind of model that I know of

Joined
Aug 16, 2019
Messages
720
Points
343

I don’t have the kit anymore I give it away to the retirement association
And As I said it is a very fragile curiosity
