US Brig Syren 1803 Model Shipways MS 2260

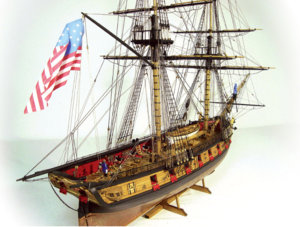

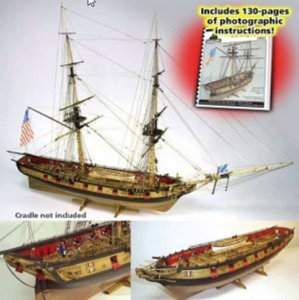

The US brig Syren was a 240 ton Brig build in 1803 in Philadelphia and was capture during the war on 1812-1814 by the British.
I was following the build of the prototype by Chuck Passaro and as soon as the kit was available got it in 2008 I think
I have never see more complete instruction for a kit my only problem it is a Imperial kit and I am a metric guy but I will manage
I will build her stock without any add on
With the help of my partner (He we have to start them young)

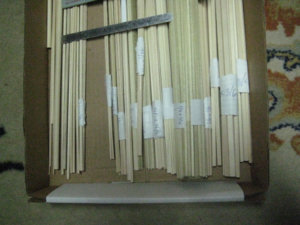

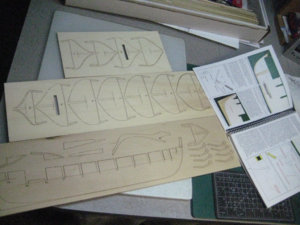

First thing I did was inventory of the kit and identification of all the wood and tag each type.
Will not really start it now as I have to finish my Bireme and the Royal Louis and have to wait for a friend that will build his later this autumn.

Joined
Aug 16, 2019
Messages
857
Points
343

Hi Charles. I've been working on Syren for about two years now and am up to the point where the standing rigging is almost finished, yards and running rigging next. I still have not solved the issue of the "cradle". Have you given any thought on how you'll mount her when finished?

Here's my build log: https://shipsofscale.com/sosforums/threads/build-log-syren-by-passaro.3726/

Yes an no
I like the cradle of my ship to be as discreet as possible
The ship must be the star not the cradle same as my diorama when I made one it is the subject not the envelope that is predominant

Joined
Aug 16, 2019
Messages
857
Points
343

Chapter 1
Syren is not my first kit I do, and since I have the kit (2008) I must have read the instructions and look at the plans more than 100 times and I must admit that the instructions are remarkable and the detail never seen by me so far.
There are 20 chapters well detailed with photo to build this ship the instruction booklet is 130 pages abundantly illustrated with photo and sketch

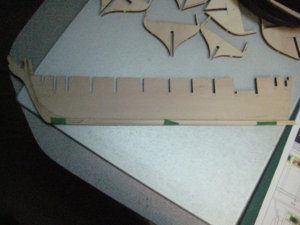

So here is chapter 1 which is the construction of the main structure of the model with the addition and this is a first for me the laying of a bearding line which for all the models that I have done so far was never mentioned.

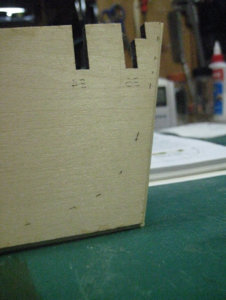

The bearding line is already dotted on one side of the form and at the other side they let the laser perforate at a certain interval which makes it easy to make both sides symmetrically.

Joined
Aug 16, 2019
Messages
857
Points
343

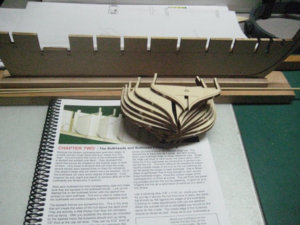

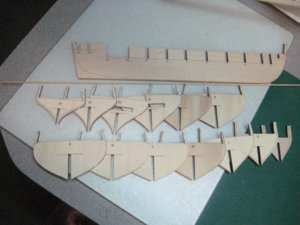

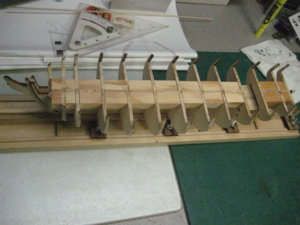

Chapter 2

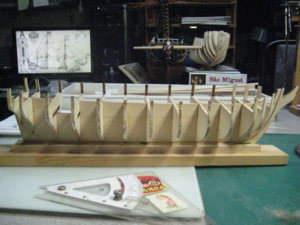

Construction of the frame

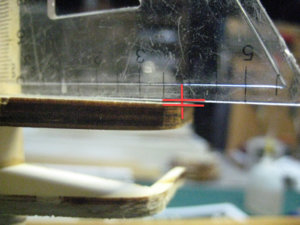

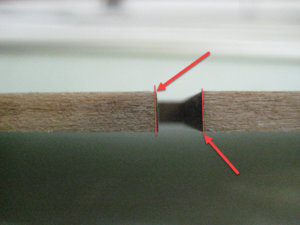

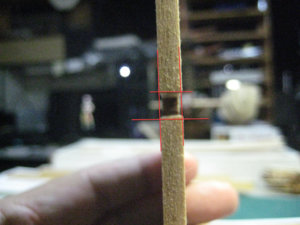

Having already found this in the pass I made sure that the laser cut was well perpendicular to the sections and yes the cutting head was a little out of phase it is minimal but when we add the section at the end the offset is consistent over a distance of 55mm I got 1.5mm of distortion.

With a bit of sanding the whole thing was correct.

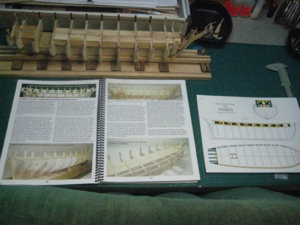

Here it is chapter 2 to finish

Joined
Aug 16, 2019
Messages
857
Points
343

Step 4 Constructions of guns ports and bridge water sweep port

4 1.JPG

The guns ports are 15/32 '' or 11.5mm
The sweep port are 1/8 '' or 3mm

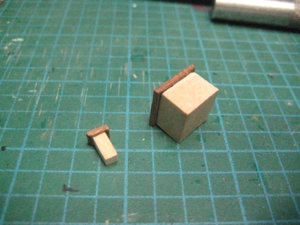

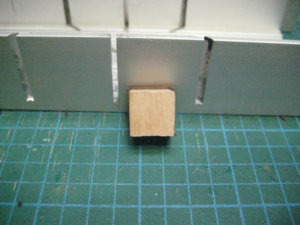

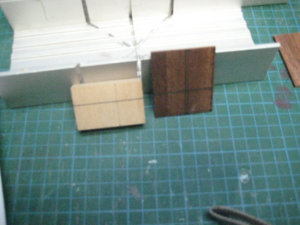

For practical reasons I decide to build 2 templates that will be used at this time to help the placement of the opening and later when hull planking a rim of 1/32 '' or 0.5mm must be allocated my template has this rim which should make my work easier later

4 2.JPG
4 3.JPG
4 4.JPG

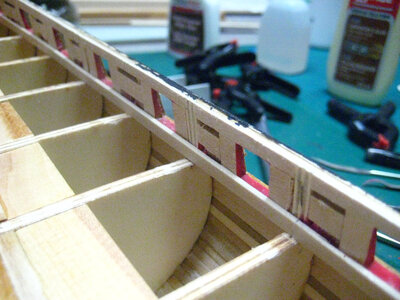

Upper and lower limit completed

4 5.JPG

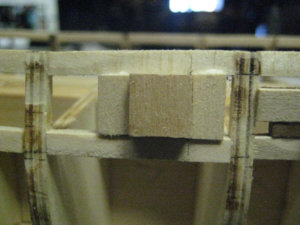

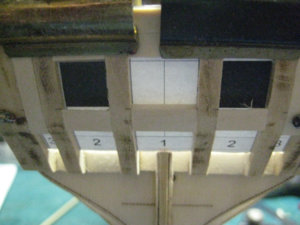

Using templates for placement of the support

4 6.JPG
4 7.JPG

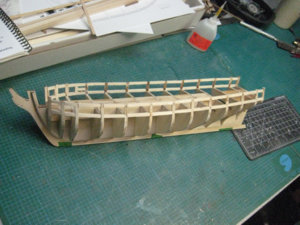

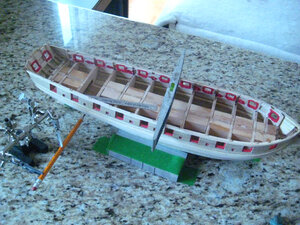

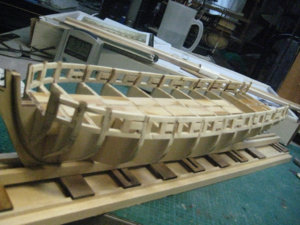

Step 4 complete
4 8.JPG

Step 5 the stern structure that should complete the skeleton of the model

Joined
Aug 16, 2019
Messages
857
Points
343

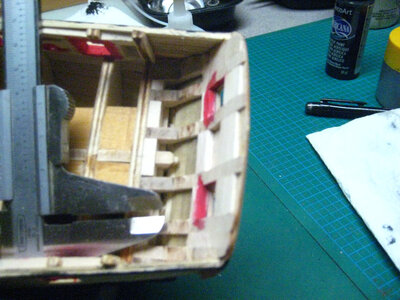

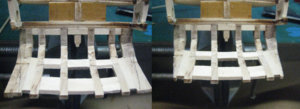

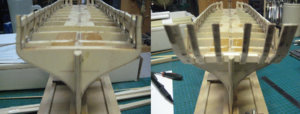

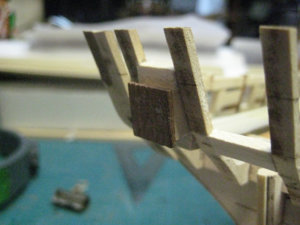

Chapter 4 building the structure of the stern

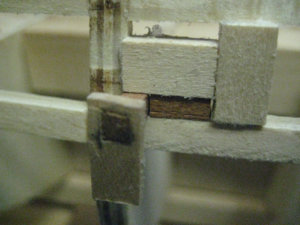

Laying brackets noted that the fact that the 90dg laser cut is not perfect particular care must be taken to ensure that the parts are properly placed.

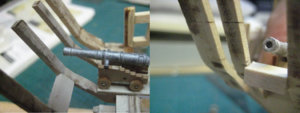

Construct 1 of the 12lb guns for proper placement of the back gun port.

Using my template, place the top bracket.

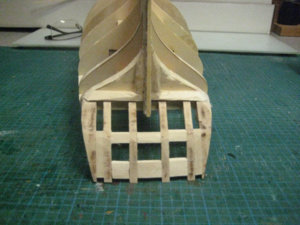

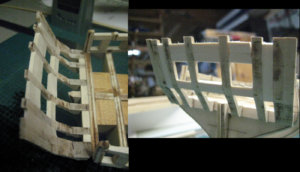

Here is the structure is made.

Check with the template everything fits perfectly.

Cutting edges for future hull planking

That's it.
And very satisfied so far with instructions that are precise and impeccable

Joined
Mar 27, 2019
Messages
723
Points
403

That's what I liked the most of this kit. The practicum is included at no charge and it's extremely detailed.

Joined
Aug 16, 2019
Messages
857
Points
343

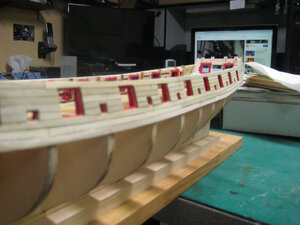

Chapter five hull planking
First the wale plank and the first row of hull plank, the gun port and sweep port are cut
6 1.JPG6 2.JPG

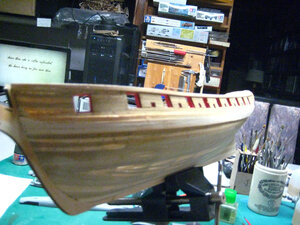

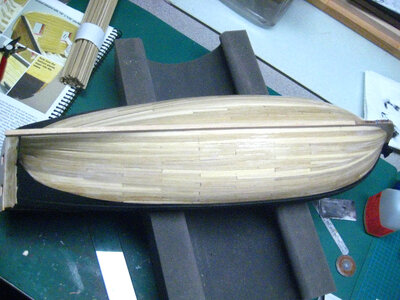

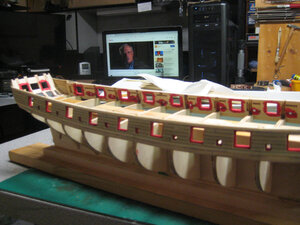

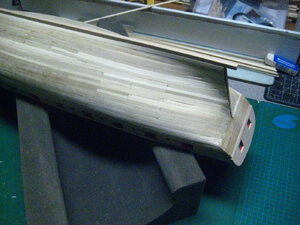

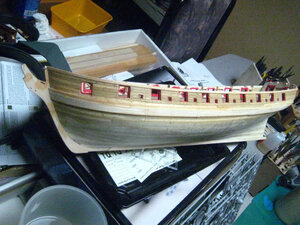

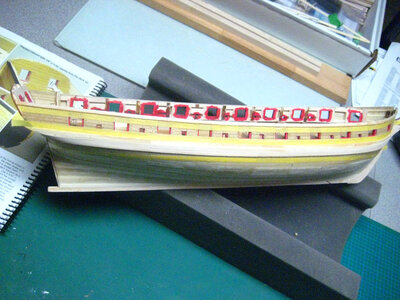

Complete the hull planking
6 3.JPG

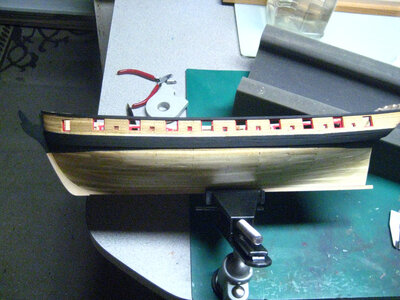

Trace the water line at this step
6 4.JPG

Varnish the section of the hull that will not paint or covert with copper
6 5.JPG6 9.JPG

That complete Chapter 5

Joined
Aug 16, 2019
Messages
857
Points
343

At the step 5 I forget to paint the wales and the section up to the water line black

Now done also put 2 coat of plastic floor on the hull bellow the water line the reason for that is to give a better adherence to the sticky copper plate they will adherers better on a plastic surface, did not have good experience with on wood


Now will begin step 6

Joined
Aug 16, 2019
Messages
857
Points
343

Chapter six

Construction of the stern

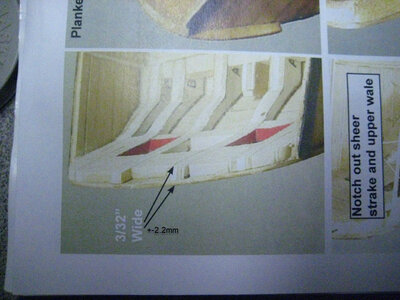

The wall should be reduced from 6mm (¼ ’’) to 2.2mm (3/32 ’’) ideally

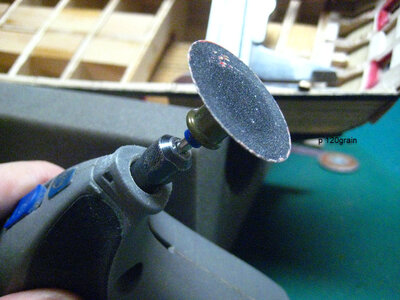

To do this, I use my 120 grit wheel to thin the inner part

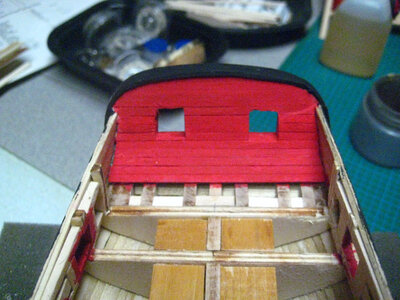

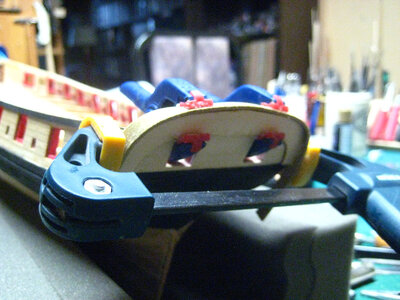

Install the cap rail

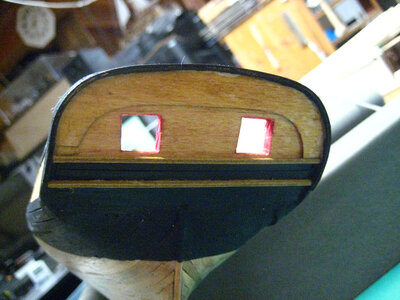

Here it is finish with the 2 horizontal mouldings strip install

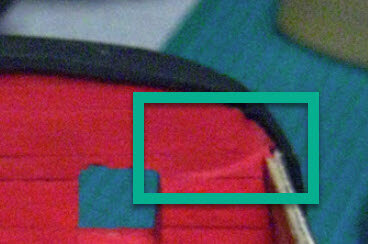

Looking at the photo I see that I will have to do a little touch-up of paint on the moulding strip that I added on the cap rail (not really visible)


Before starting chapter seven I will do 4 small other project

p8 7.JPG

Joined
Aug 16, 2019
Messages
857
Points
343

Chapter 7

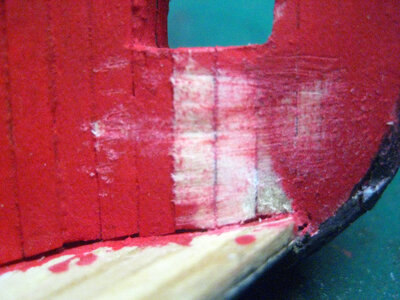

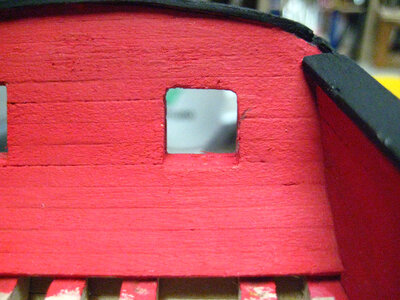

Okay first, fix my blunder I made at the stern.

Here it is correct

Edge of the wall

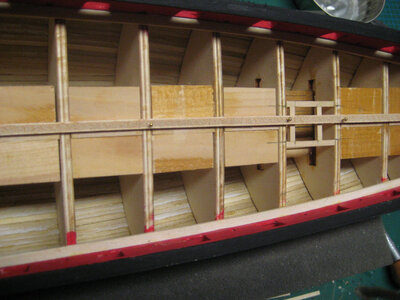

The frame of the staircase and installation and a blank to center the bridge
6 a.JPG

Trace the curve of the rail cap on a sheet and form finalize and install.

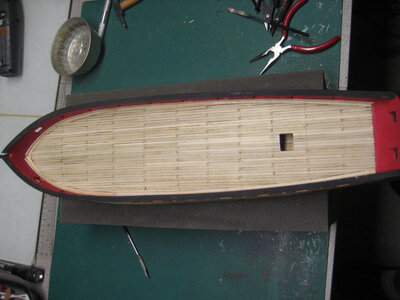

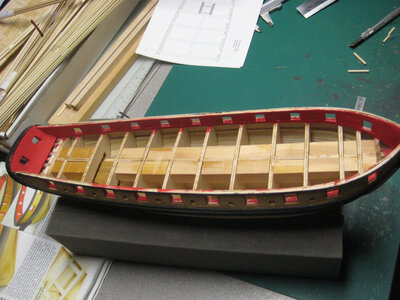

The bridge is finished and varnished



Next step chapter 8 the copper plating of the hull

But before this


Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
17,250
Points
938

Location
Vienna, Austria
Chapter 7

Okay first, fix my blunder I made at the stern.
View attachment 199701
View attachment 199702

Here it is correct
View attachment 199703

Edge of the wall
View attachment 199704View attachment 199705

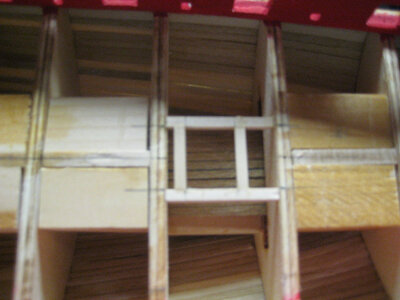

The frame of the staircase and installation and a blank to center the bridge
View attachment 199706
View attachment 199707

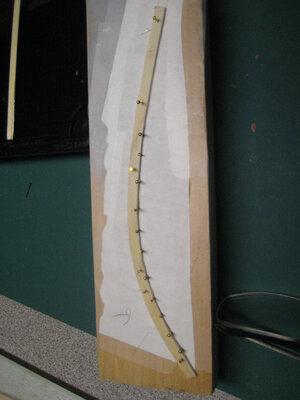

Trace the curve of the rail cap on a sheet and form finalize and install.
View attachment 199708

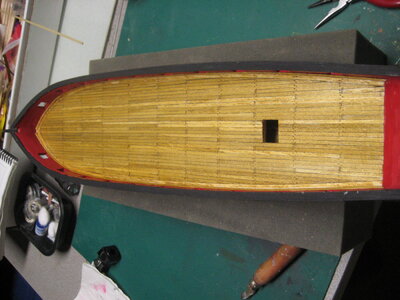

The bridge is finished and varnished
View attachment 199709
View attachment 199710



Next step chapter 8 the copper plating of the hull

But before this
View attachment 199711
Seems, that you are eveyr time making some plastic modeling in between - why not showing us also some of these?
We have a special area of models which are not ship or naval
