Using graphite for plank caulking.

Joined
Jul 9, 2016
Messages
1,328
Points
443

Location
Mount Martha, Victoria Australia
Hi Gang,

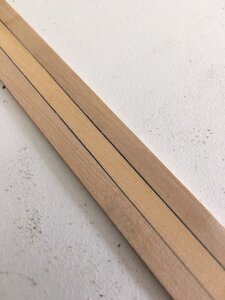

I was watching a you tube video on timber marquetry, and stumbled across a great idea. For highlighting the caulking seams on planks you can use a black graphite pencil lead.

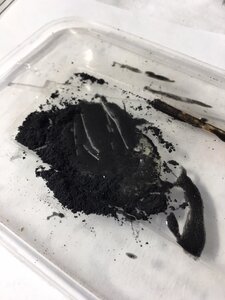

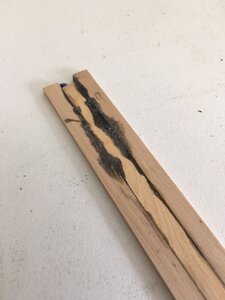

But instead of marking the side of the plank with a pencil, you mix the crushed graphite pencil lead with glue.

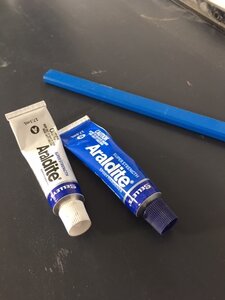

I have been experimenting with white pva glue and 2 pack epoxy glue, and both work superbly. I used one of those thick builders pencils in the picture. Just split the pencil open and extract the lead.


Last edited:

NMBROOK

Moderator
Staff member
Moderator
Joined
Jul 15, 2013
Messages
1,315
Points
483

Location
Yorkshire England
Great results Brian Thumbsup The caulking looks like a true black rather than the dark grey you get using a normal HB pencil on the edge.I would say the one important thing with these techniques is that the plank edges need to be perfectly true and smooth.Some of the "furry" kit planking would result in a black line that waved about all over.

Kind Regards

Nigel

Joined
Sep 17, 2017
Messages
3
Points
3
I used this technique before. Instead of a pencil use a graphite stick, you can find these in artstores. I made a long time ago a note to try charcoal instead of graphite.

Joined
Feb 15, 2019
Messages
54
Points
78

Thank you. I'll be trying that. Next build is 1:36 so a pencil line won't do.

Joined
Sep 9, 2017
Messages
141
Points
103

Location
Fredericksburg, VA
Great idea! Another idea that I have used in the past is to run a hard artist charcoal stick down the edges of the planks. As we know Charcoal sticks are used by artists for charcoal drawings and available in art supply stores. Now, here is the trick...charcoal sticks come in different degrees of softness (or conversely hardness). Do not get "soft" sticks as the dust they generate will simply get all over everything...including the plank tops. Look for and get a hard grade of charcoal stick. One huge issue...any charcoal stick application needs to be clean to avoid spreading charcoal around upon finish sanding. I apply a coat of sanding sealer to seal the charcoal. The graphite and glue method avoids this peccadillo.

Joined
Sep 9, 2017
Messages
141
Points
103

Location
Fredericksburg, VA
Let me tell you about one attempt to simulate deck plank caulking I did many years back on one model...and never repeated the process. I actually laid heavy duty black thread between each plank as I glued it down. Looked great. But what a job. Took forever and was not easy to get it right. But it did look good...

Joined
Mar 9, 2020
Messages
36
Points
68

I run a black permanent marker along one edge of the plank. Do both edges for a wider appearance. Easy to apply and looks good to me.


DocBlake

Blandford Group Build
Joined
Jan 24, 2015
Messages
1,583
Points
528

Location
Pewaukee, Wisconsin
Wow, Jim! That's dedication! What model was that?

Polydoc: Just a caution. Depending upon the wood, using a permanent marker might result in "bleeding" of the black into the plank; especially the end grain.

Joined
Mar 9, 2020
Messages
36
Points
68

I use a permanent black fabric marker bought at Joanne s ( sewing chain stores). Never had a bleeding problem but I guess it could happen with some woods.

Joined
Mar 27, 2020
Messages
38
Points
68

Hi Brian, So you cleaned up the planks with Brynes thickness sander, how would you clean them up when they were laid on the deck? Would that just be hand sanding or with a scraper? Cheers Tony

Joined
Mar 27, 2020
Messages
38
Points
68

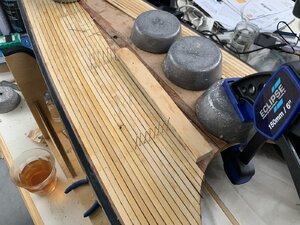

Hi Brian, I am sure that would work well. I still lay my planks using the black paper/light card method, that is stuck onto my board prior to cutting the individual planks, then laying them on to a ply sub deck using pins and epoxy then using a sanding block and a scraper to level the boards prior to applying more clear epoxy to seal everything from water as my craft all need to sail. Regards TonyIMG_0362.JPG
