USS England DE-635 1/350 scale by Trumpeter

modlerbob

Well-Known Member
Joined
Aug 23, 2017
Messages
140
Points
78

Location
central Florida
Even though I have several other ship kits under construction I decided this one will be the easiest to get done quickly and also I will have the opportunity to photo document the entire process. Now that I have a set of Camouflage colors for US Navy ships in the pacific during WWII I have decided to embark on several projects at once. The paint comes from Lifecolor and is acrylic enamel, it comes in sets of 6 bottles a bit smaller than Tamiya paint and is somewhat pricey. One reason for starting with the England is that the colors are simple. Everything above the waterline is dark blue/grey.
The England was famous for a running sea battle with Japanese submarines in May of 1944 during which she participated in the destruction of 6 of them.

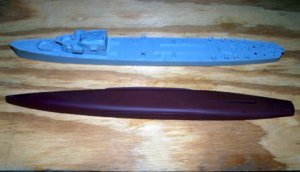

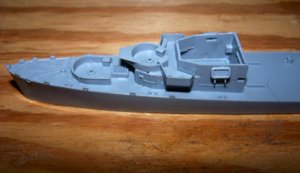

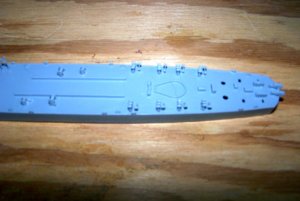

The kit contains almost as many parts as the Fletcher and Gearing class destroyers. Many are very small and hard to handle while removing excess sprue. At this point I have glued the main deck to the hull, attached the forward superstructure and various small parts along the length of the deck. I will post images as significant progress is made.

USS England 001.jpg
USS England 002.jpg
USS England 003.jpg


zoly99sask

Admin
Staff member
Administrative
Blandford Group Build
Joined
Apr 13, 2015
Messages
3,828
Points
578

Location
Saskatoon,Canada

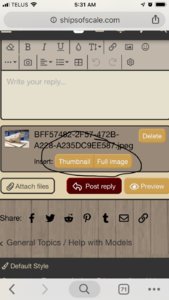

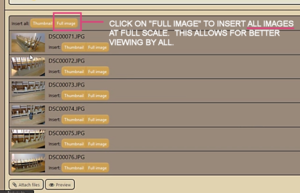

Hello Bob,thank you for shating with us ,just on the side note ,to have a better overlook on the images please choose “thumbnail” or “Full images” before posting the images,thanks!

PS.I have edited your images on your last post.For mor info how to post images please visit these tutorials.







modlerbob

Well-Known Member
Joined
Aug 23, 2017
Messages
140
Points
78

Location
central Florida
Need some help with what might be considered a minor detail. The kit comes with twin rudders but I have other resource material indicating just a single rudder similar to the configuration of the Fletcher class. The Sumner and Gearing class did have twin rudders.


Uwek

Admin
Staff member
Administrative
Blandford Group Build
Joined
Dec 25, 2017
Messages
9,390
Points
728

Location
Vienna, Austria
Need some help with what might be considered a minor detail. The kit comes with twin rudders but I have other resource material indicating just a single rudder similar to the configuration of the Fletcher class. The Sumner and Gearing class did have twin rudders.
The USS England was a Buckley class


Here is the complete list of all vessels of the Buckley class


and here you can search for the individual ships of the same class to find a lot of photos - maybe also a photo of one of these vessels in the drydock etc.


f.e. the Slater, but this was a later Cannon-class -> so I wish a successful research

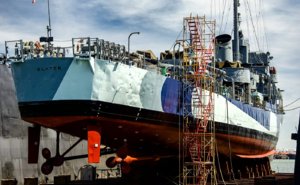

the Cannon class USS Slater in Drydock


nino

Active Member
Joined
Apr 27, 2018
Messages
13
Points
48

2 Rudders for Buckley class.
The old Revell Buckley class model had 1 Rudder whereas the real ship had 2. Trumpeter has it right- 2 rudders.
I located some specs of the Buckley class

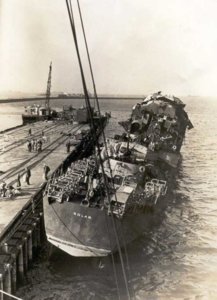

USS Solar aftr explosion showing the 2 rudders:
106686


GENERAL INFORMATION Buckley Class Destroyer Escorts
Length: Hull OA: 306' 0
Beam: 37' 0"
Displacement: 1,400 long tons standard; 1,740 full load.
Draft: Light: 9' 4"; Deep: 13' 6"
Designed Complement: Officers, 15; Enlisted, 198.
Shaft Horsepower: 12,000
Speed: 23.5 knots.
Screws: Two.
Rudders: Two.
Bridge: open.
Stack: One.
ARMAMENT
Gun battery: 3 x 3-inch/50 caliber dual purpose guns.
Initial: 1 x twin 40mm Bofors.
Later: 3 x twin 40mm Bofors.
9 x single 20mm Oerlikon.

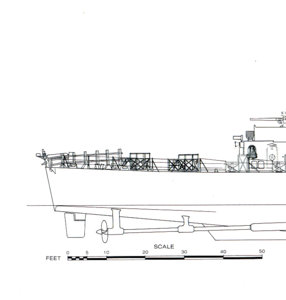

Buckley Class plan: ( dual rudders-only 1 depicted in drawing)
106680

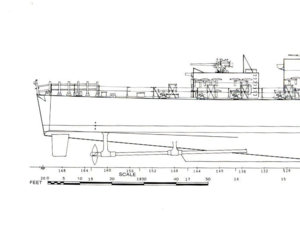

Evarts class plan (example of plans showing single rudder.):
106681


Nino
