USS Pennsylvania 1837 second build.

[threebs]

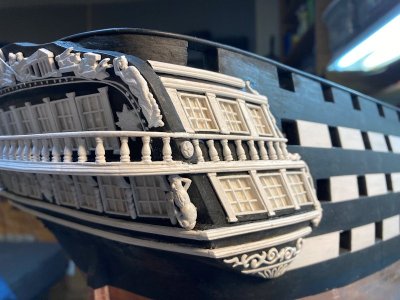

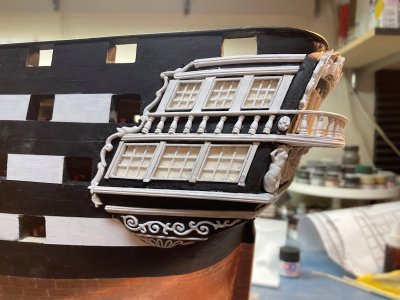

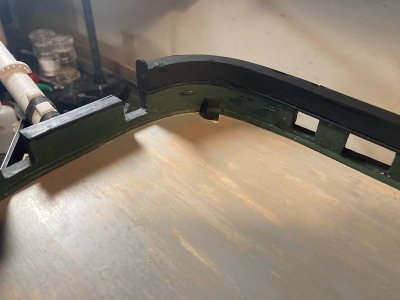

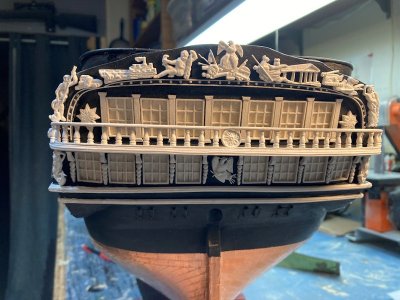

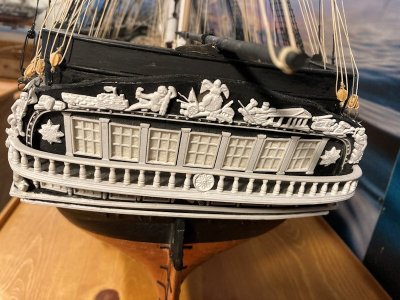

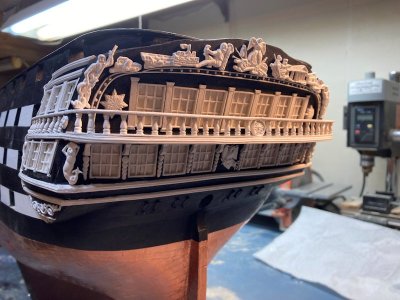

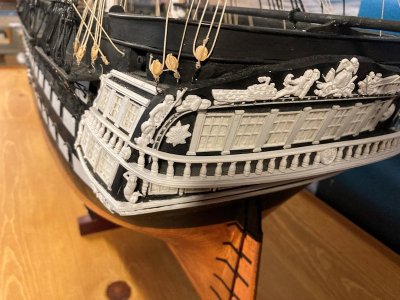

Now that the balcony railing of the Pennsylvania is on I think I can call the stern done.



[threebs]

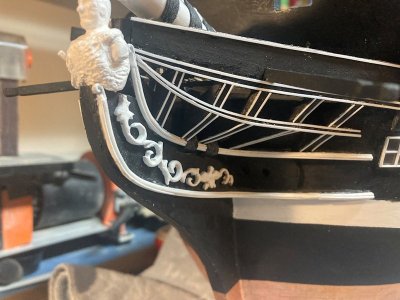

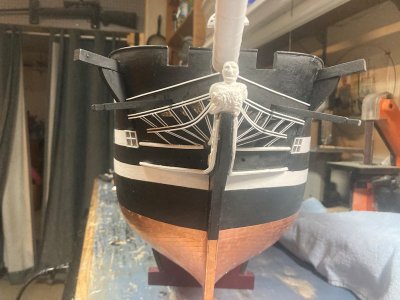

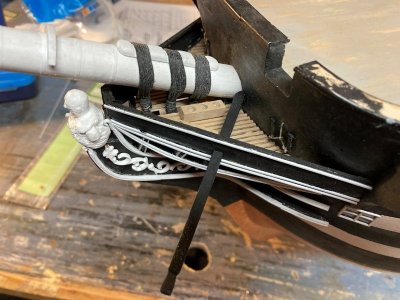

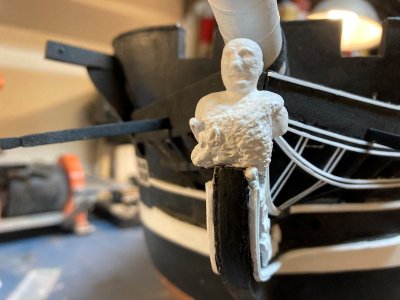

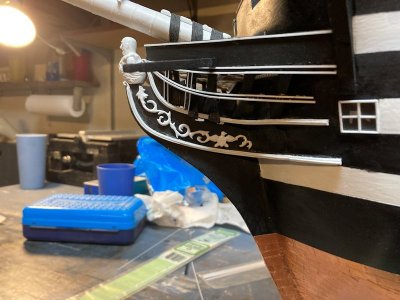

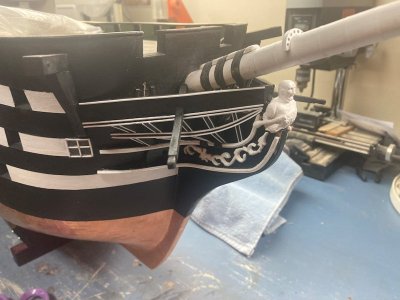

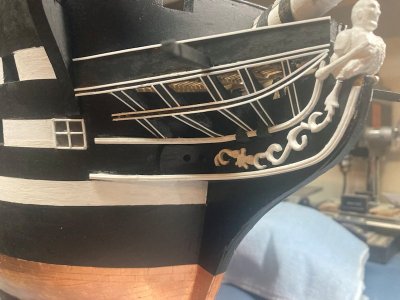

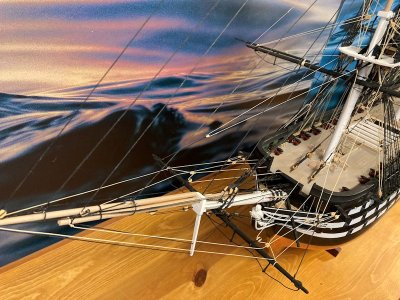

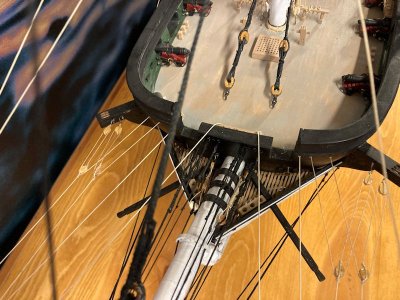

Progress on the Pennsylvania's bow. The figurehead and scroll work were carved months ago and were used in a display at a local museum. So, the most time consuming portion of this was already done. That is why this part seems to be going so quickly.



[threebs]

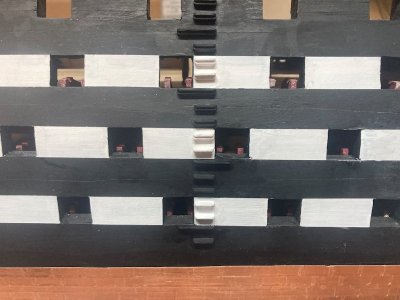

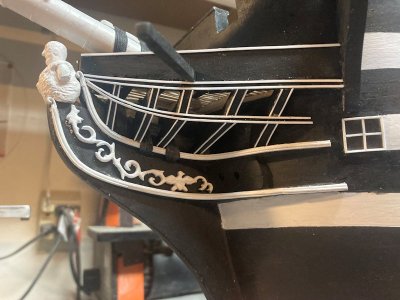

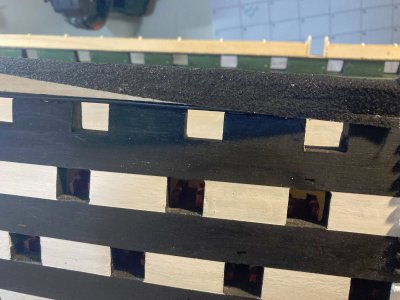

Bow and hull steps on the Pennsylvania are done.



[Hipitron9000]

Where did you get your plans and blueprints for the U.S.S. Pennsylvania? I have been trying to find solid blueprints but have come up empty handed. Maybe I am just looking in the wrong places? Amazing ships and impressive work! I have yet to find anything on the frames or bulkheads, nor detailed drawings of deck layouts or masts.



[threebs]

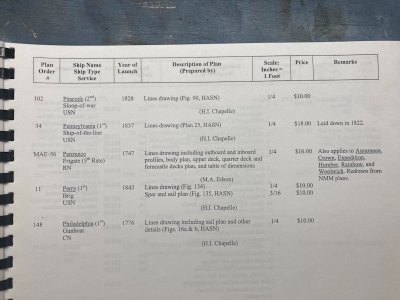

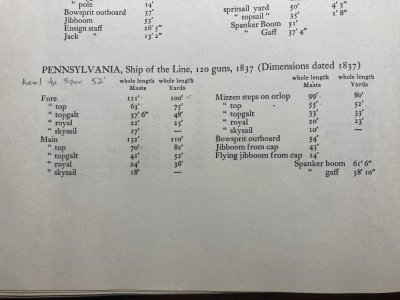

https://www.americanhistory.si.edu/about/departments/work-and-industry/ship-plans This is where you can get plans for the Pennsylvania. Been a long time since I got mine so I do not remember if this includes plans of here stern and quarter galleries, her figure head, a cut away showing her interior arrangement, and a plan of her frame locations. Her mast and yard measurements are in the book in 2nd photo and the 1st photo is from that book.



[threebs]

https://www.model-monkey.com/product-page/uss-pennsylvania-1837-lower-and-middle-gun-decks Free down load. Looks like from original plan



[threebs]

https://www.facebook.com/historicsh...ylvania-1st-rate-120gun-1837/770905733327616/ Sort of a cross section shows some of the interior labeled and the deck beams



[threebs]

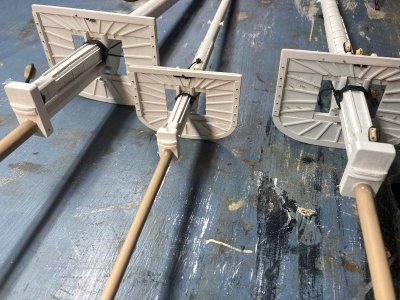

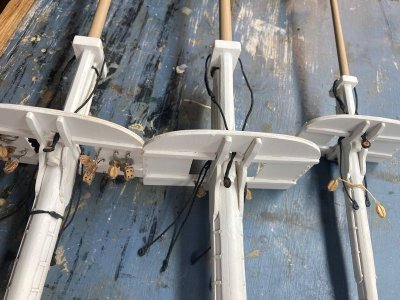

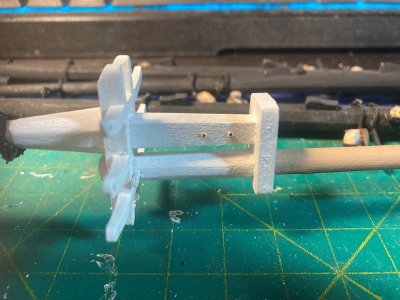

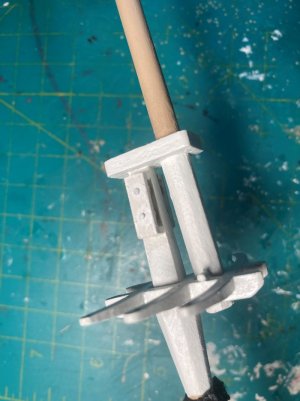

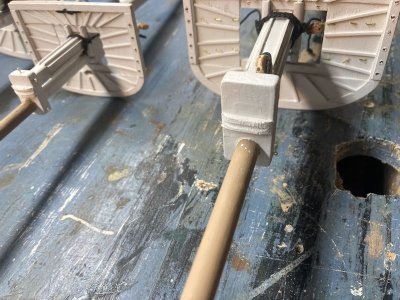

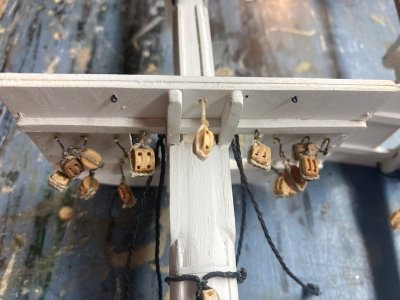

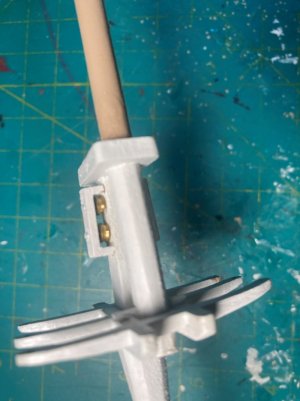

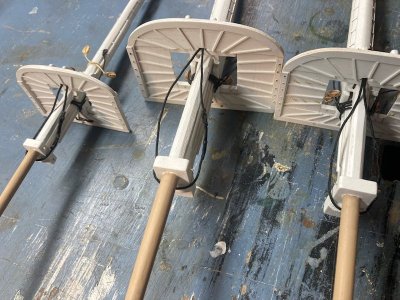

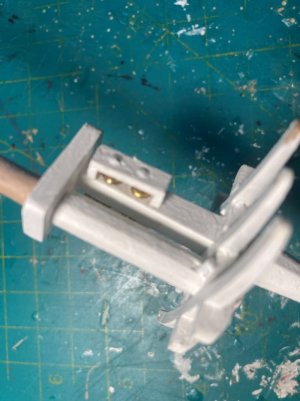

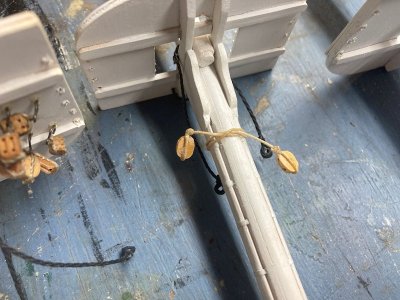

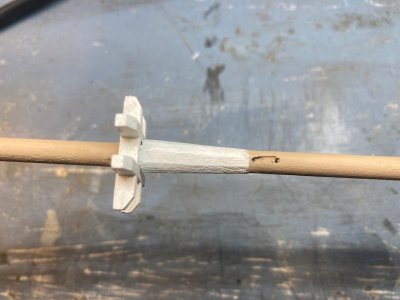

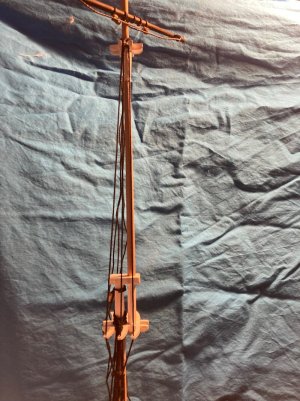

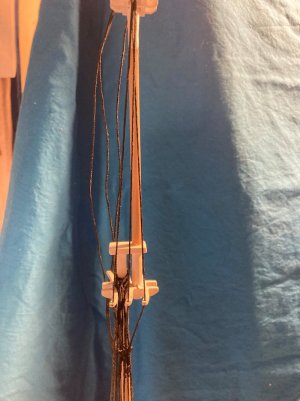

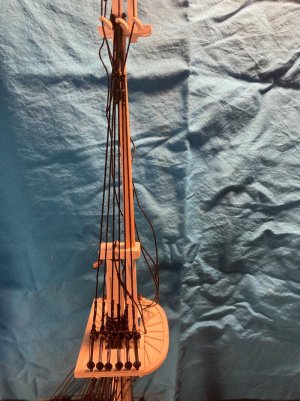

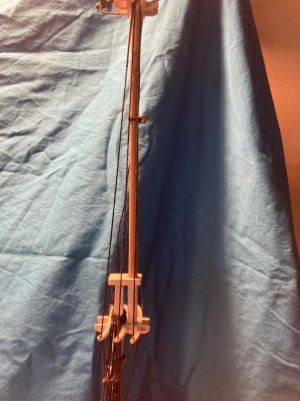

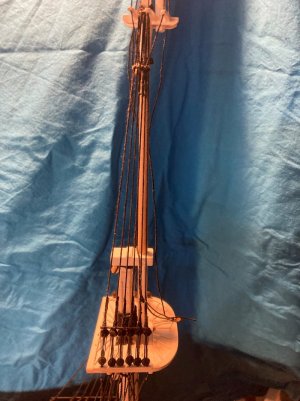

Finished prepping the Masts.



[threebs]

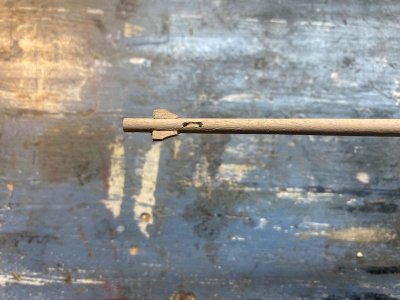

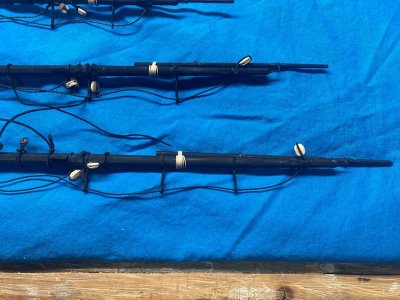

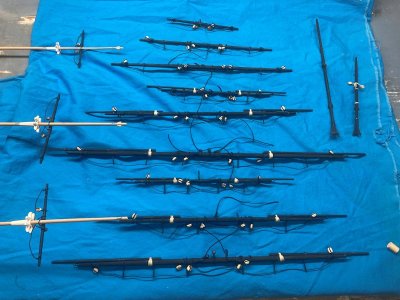

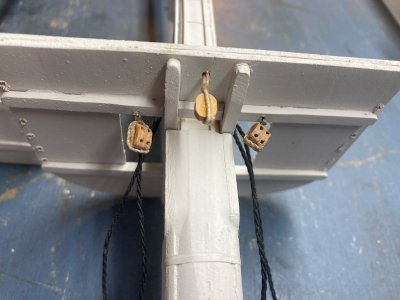

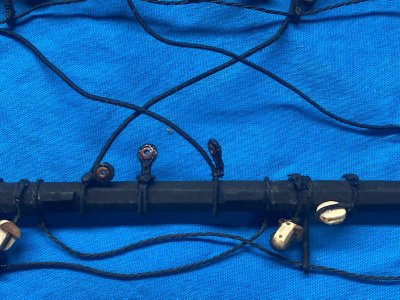

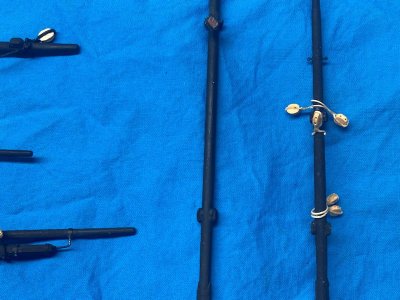

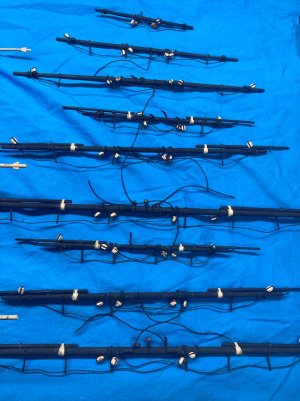

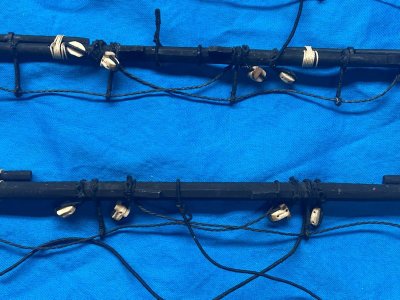

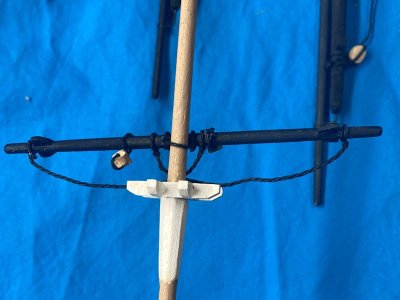

still need the Bow Sprit yard, but other wise done prepping the yards.



[threebs]

Post a post to catch up with my progress.



[threebs]

Forgot these photos



[threebs]

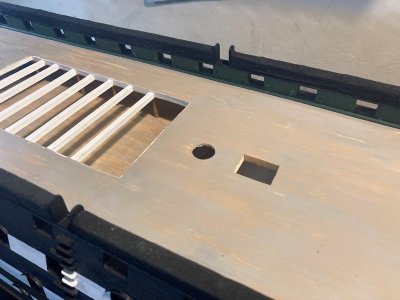

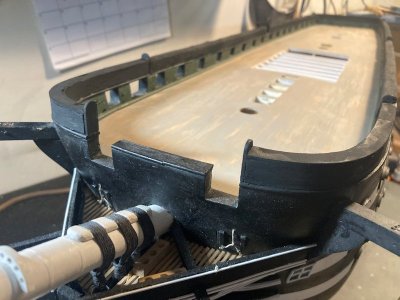

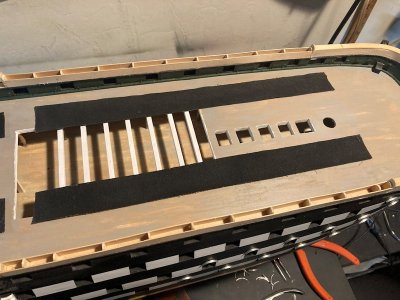

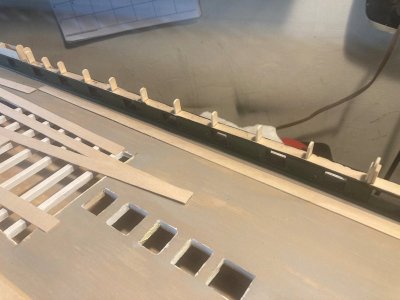

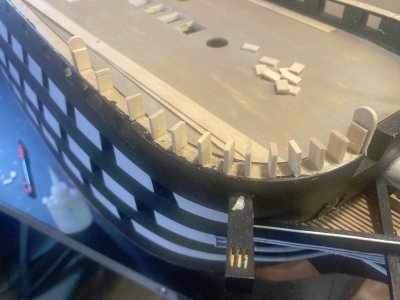

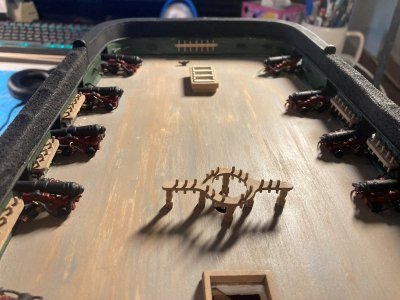

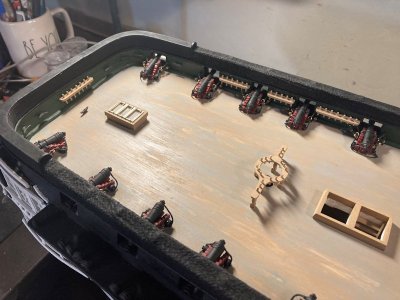

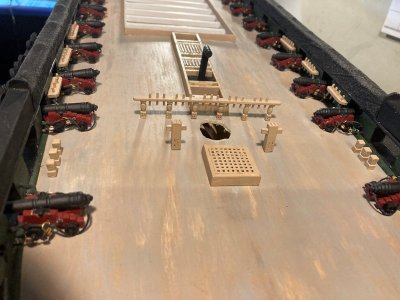

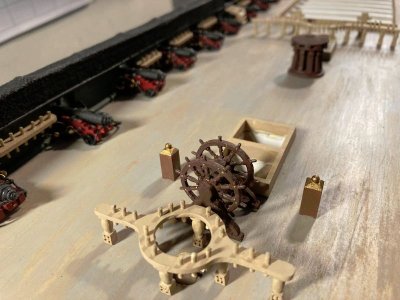

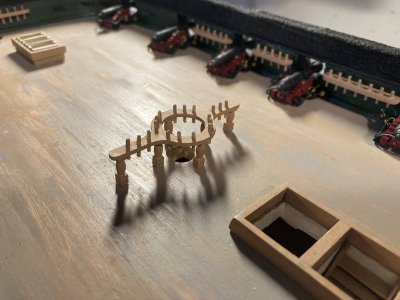

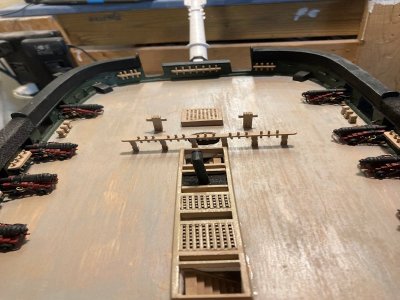

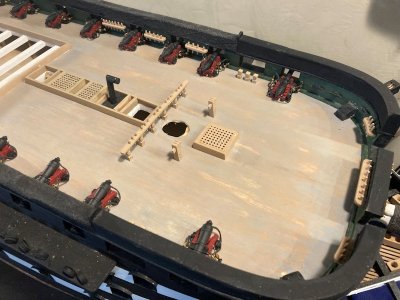

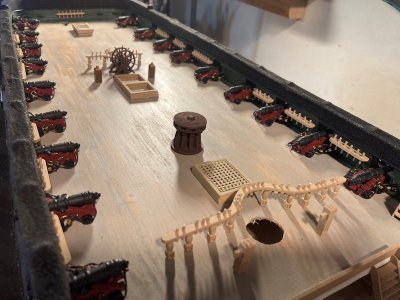

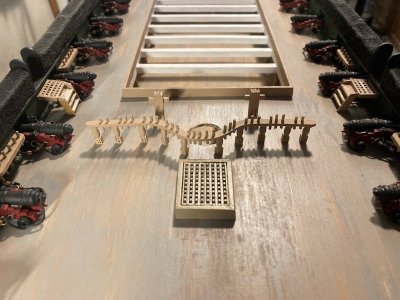

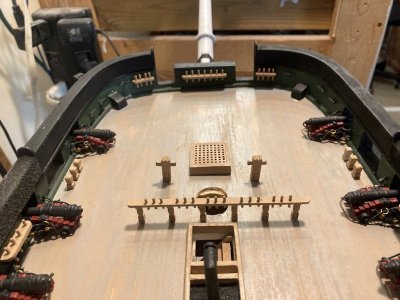

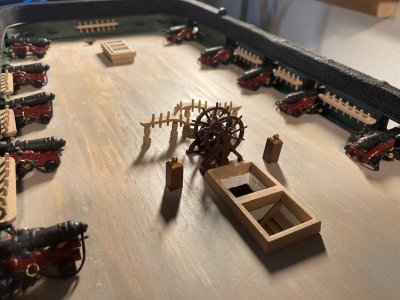

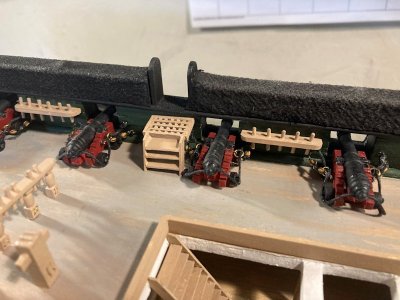

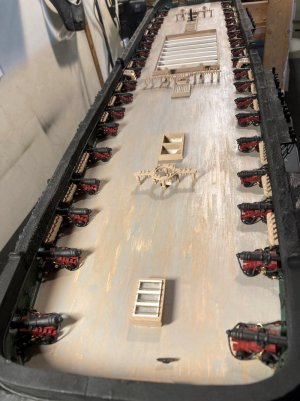

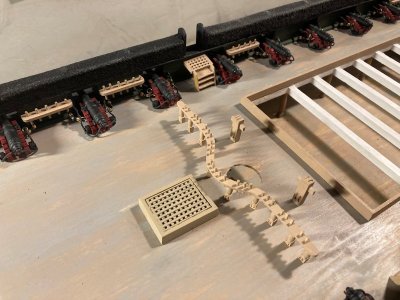

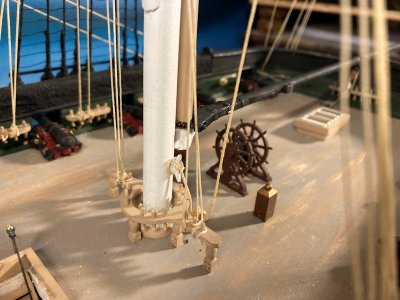

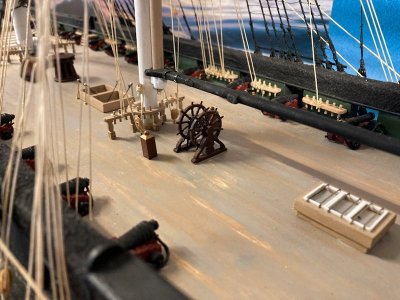

The spar deck is 95% done.



[threebs]

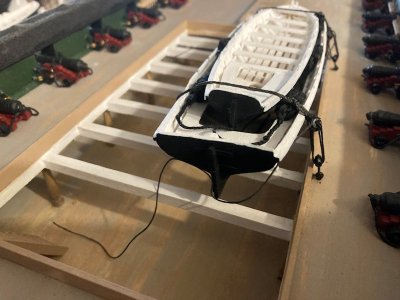

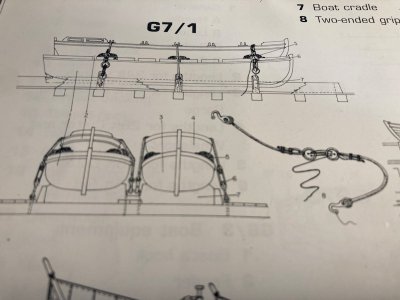

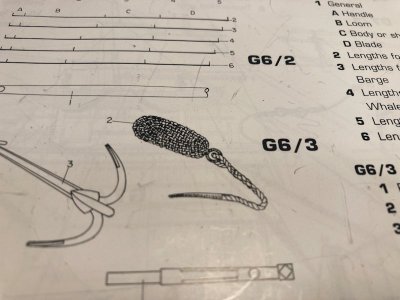

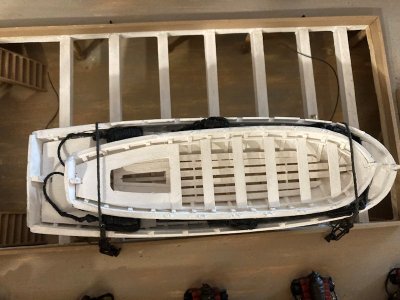

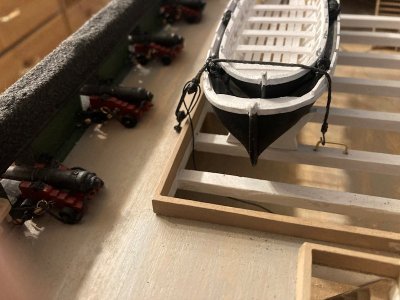

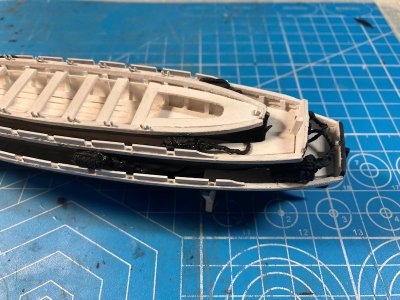

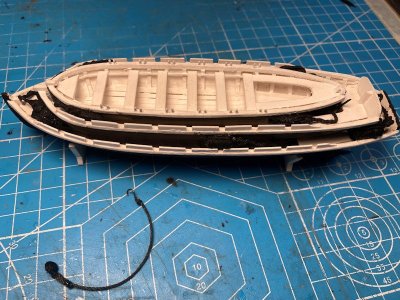

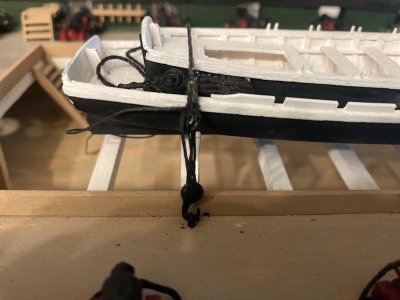

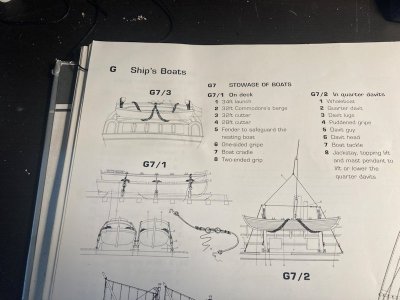

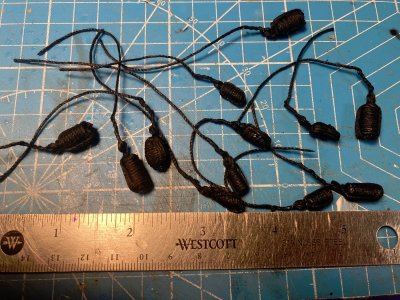

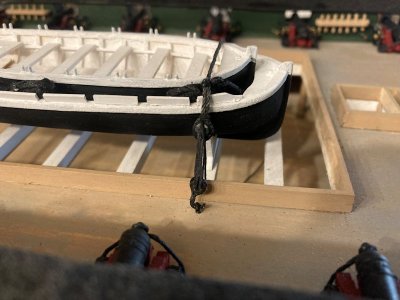

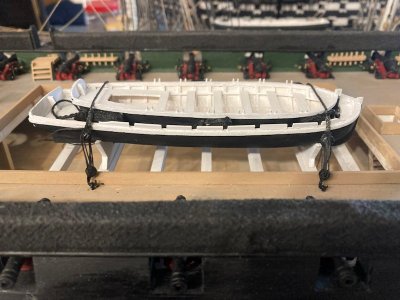

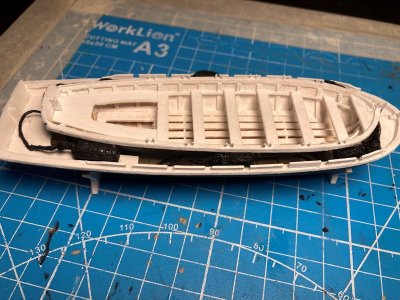

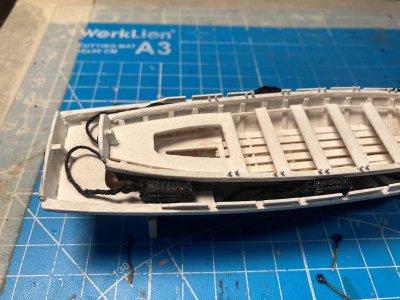

Bumpers made and starting to install boats



[threebs]

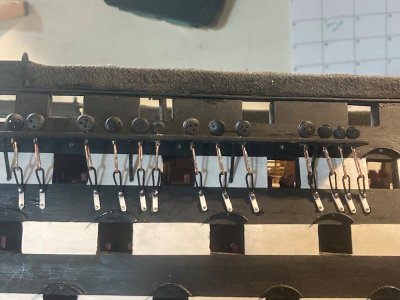

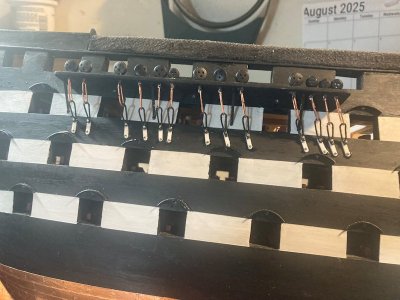

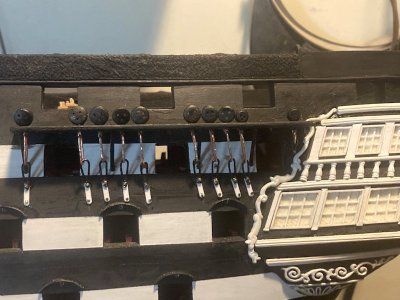

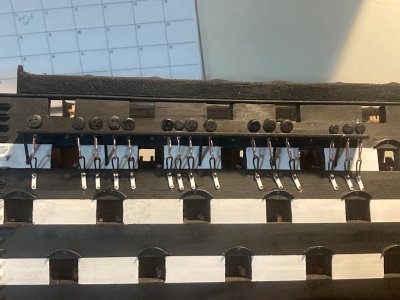

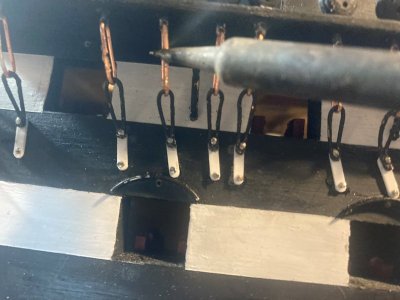

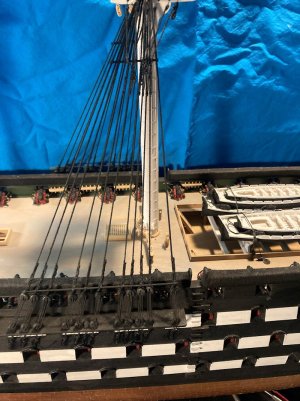

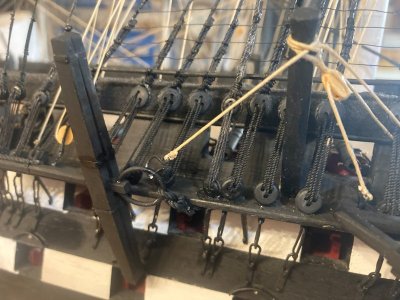

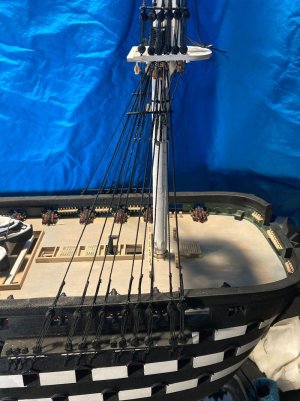

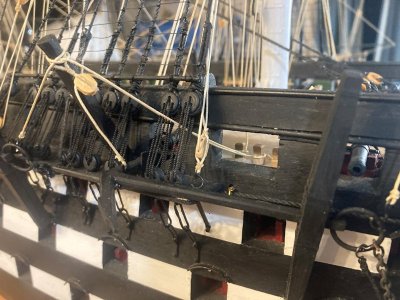

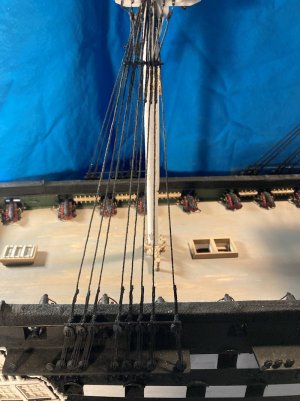

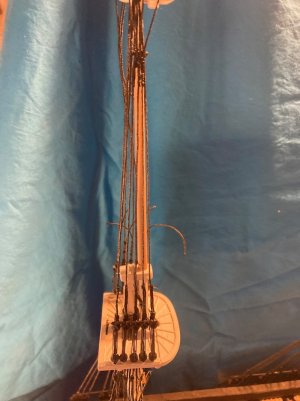

The shrouds on one side of the Pennsylvania are done



[threebs]

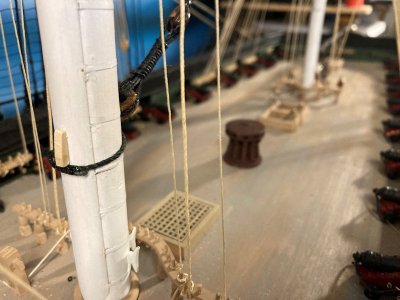

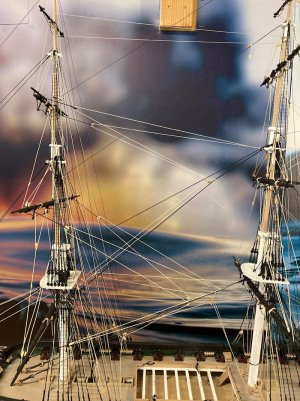

Standing rigging is done



[threebs]

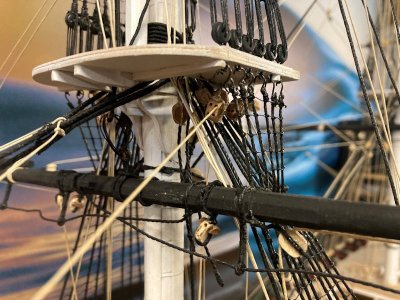

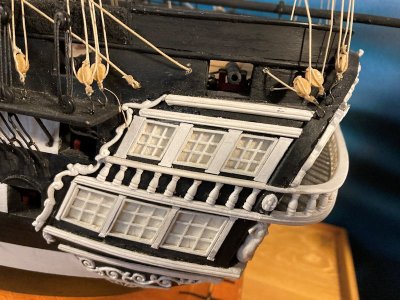

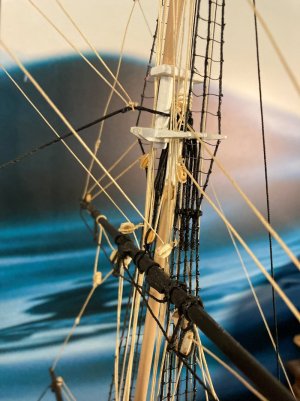

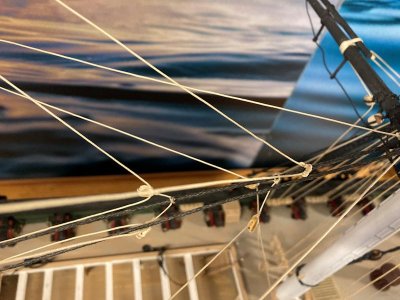

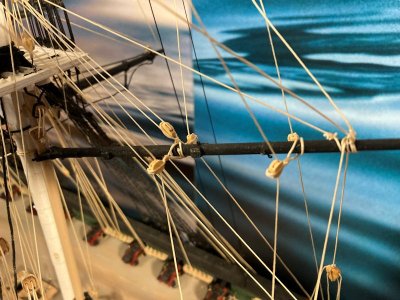

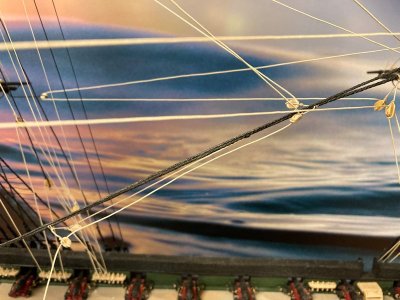

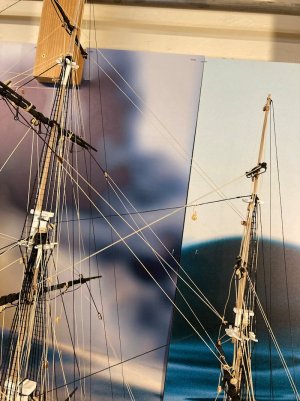

Mizzen running rigging is going well. Also the spanker and gaff are about done.



[threebs]

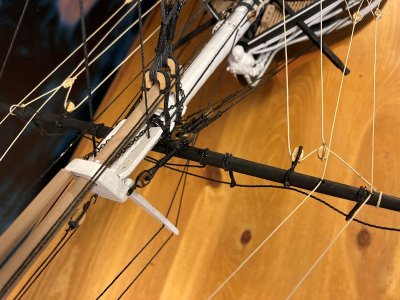

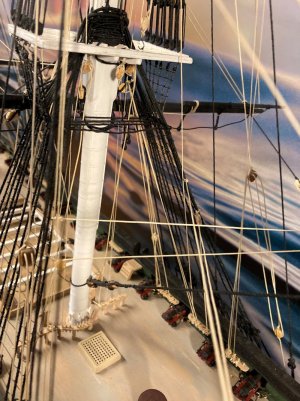

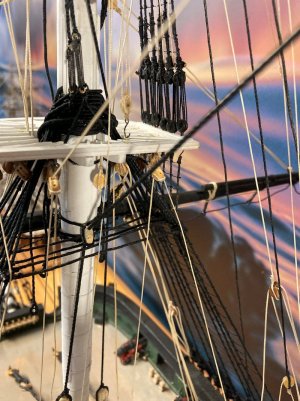

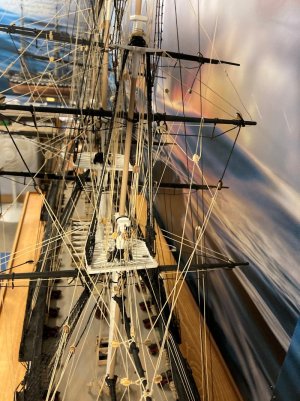

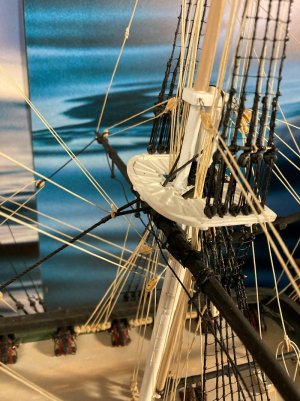

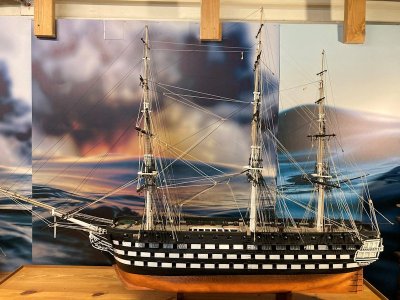

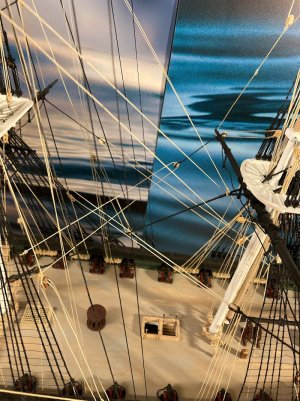

Almost done with rigging.



[Roger Pellett]

A real masterpiece!

Roger



[threebs]

Thank you Roger! I appreciate you taking time to comment. Happens so rarely these days. Not because folks do not want to, it's just that unless you have a question about something in the photos, there is no need to.



[threebs]

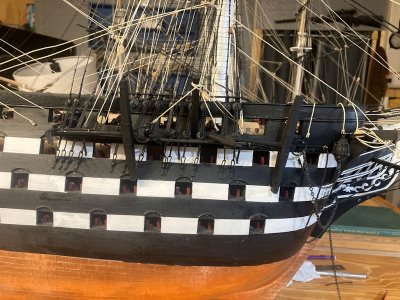

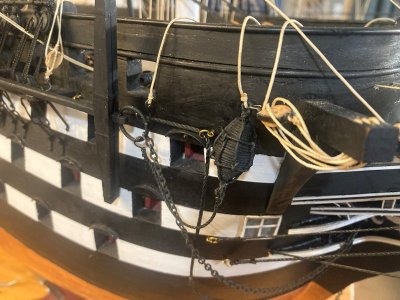

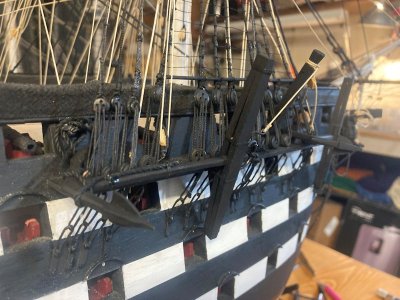

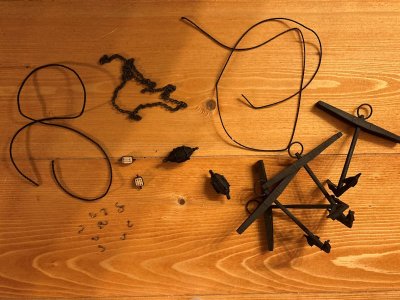

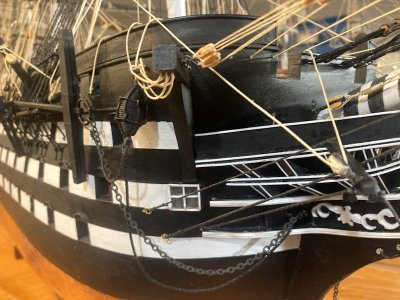

Pennsylvania's starboard anchors are on.
