I went away for a few weeks and came home to find my 1/48 Suprise assembly noticeably curved. Someone had moved my bench to the furnace room and the heat must have done it. Not sure how I can fix this as all the frames and first deck have been glued down using Titebond 2 glue. I would have thought that would prevent any warping but it turns out I was mistaken. Any ideas on how to straighten it would be appreciated.
- Joined
- Dec 1, 2016
- Messages
- 5,127
- Points
- 728
first can you post an image of the hull
I will Dave but I'm fairly new to posting and will have to read up on how to upload. Thanks for the quick response!

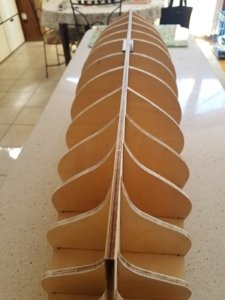

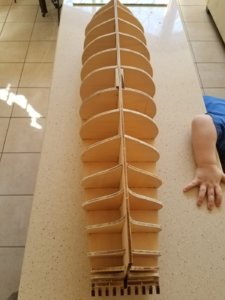

Not the best pics but here they are
- Joined
- Feb 16, 2020
- Messages
- 4
- Points
- 3
- Joined
- Feb 16, 2020
- Messages
- 4
- Points
- 3
I worked as a stringed musical instrument maker/repairer before I retired. In my experience warping such as you have will gradually straighten itself as the moisture content equalizes. This may take a couple of weeks. Leave it in a draft free place, away from heat or air conditioning. p
Most of the time warping in plywood happens when one side of the wood is either dried or dampened more than the other. The quick fix of spraying the concave side with water is extremely risky; it is nearly impossible to achieve equilibrium.
Most of the time warping in plywood happens when one side of the wood is either dried or dampened more than the other. The quick fix of spraying the concave side with water is extremely risky; it is nearly impossible to achieve equilibrium.
You could fit a L shaped aluminium straight edge against the keel and clamp it tight. When you plank the hull, it will straighten out.
That was my latest thought as well but was concerned that the planking might split or spring. Going to give that a try. Thank you for the help!
Thank you for the information! I've also done some Luthier work on my own instruments but consider myself highly unqualified to do so! Thankfully none of mine were damaged in the process.
To affirm...if you can clamp the keel straight then the planking will hold the shape for you...in this case apply glue to each bulkhead frame as well as edge glue each strake...
