1:48 Bounty open side Help requested

[Balac]

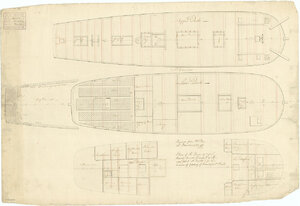

I just got a Artesania Latina Bounty model and I was intending to make a open side boat with exposed internal decks which was called "The Anatomy of the H. M. S. Bounty 1783" (Ref 20604) but instead I received a model that had parts of the top deck cut away, exposing some cabins and the center hold. The model has partially full frames in the aft and bow and I would like to open up those areas for viewing the below decks and filling the boat with stores and quarters. I do not know what those areas held or the deck layout and I con not read the attached admiralty bottom deck plan.
Any help with this process and build would be greatly appreciated.

Here are some videos that I already found on the below decks designs.
Charlie Borg

Restoration

Russian build

The Making of HMS Bounty wooden model. The model is made by Constructo 1-13 videos
Het maken van de opengewerkte Bounty.. deel 1-2 build installments



[mrshanks]

Search SoS build logs. I recall someone building the AL Bounty and super detailing the interior. I am sure it will give you all the info you need.



[Balac]

Thanks' will do.



[Uwek]

I guess this topic by @JScolum will help

HMS Bounty 1:48 Artesania Latina

A few photos. As you can see, the set is very modified.

shipsofscale.com



[Balac]

I guess this topic by @JScolum will help

HMS Bounty 1:48 Artesania Latina

A few photos. As you can see, the set is very modified.

shipsofscale.com

Yes The pic and layout is great---Thank you very much. I think I can modify the kit with those pics. well done Uwek!!!
