Hi everbody

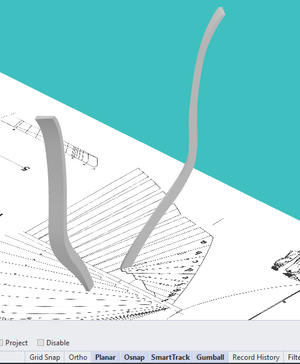

Today I'm studying the POF plans of Bon Homme Richard in order to learn how to build the bow section. And I decided to draw a 3d image of it by using these plans. First I drawn the part a.
When i look at the front view, i can see that adjacent sides of part a and b must be the same.

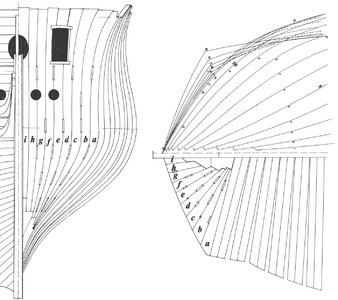

Here is the front view :

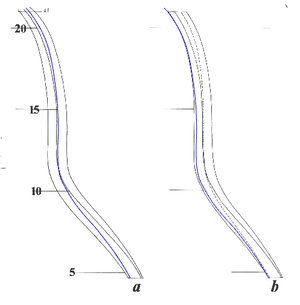

I marked the adjacent side of part a as blue and copy this onto part b. And realised that there is slight diffrence between sides.

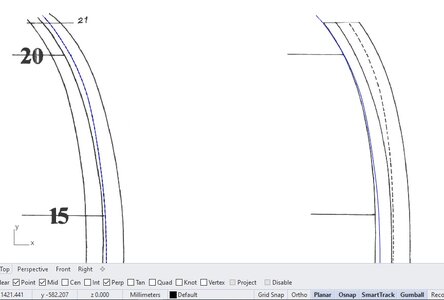

Lets take a closer look :
It is not a homogeneous difference.
So here is my questions.
Is this a drawing mistake or overdrawn on purpose (for sanding the parts after cutting maybe)
Should I proceed with the blue line or the original lines for part b.
Thanks in advance
Bilal
